FSI-130-10-SM-D-AB datasheet, PDF

FSI-130-10-SM-D-AB: DescriptionCard Edge Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size2MB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FSI-130-10-SM-D-AB Overview

Card Edge Connector, 60 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	MATTE TIN (250)
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FSI
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Base Number Matches	1

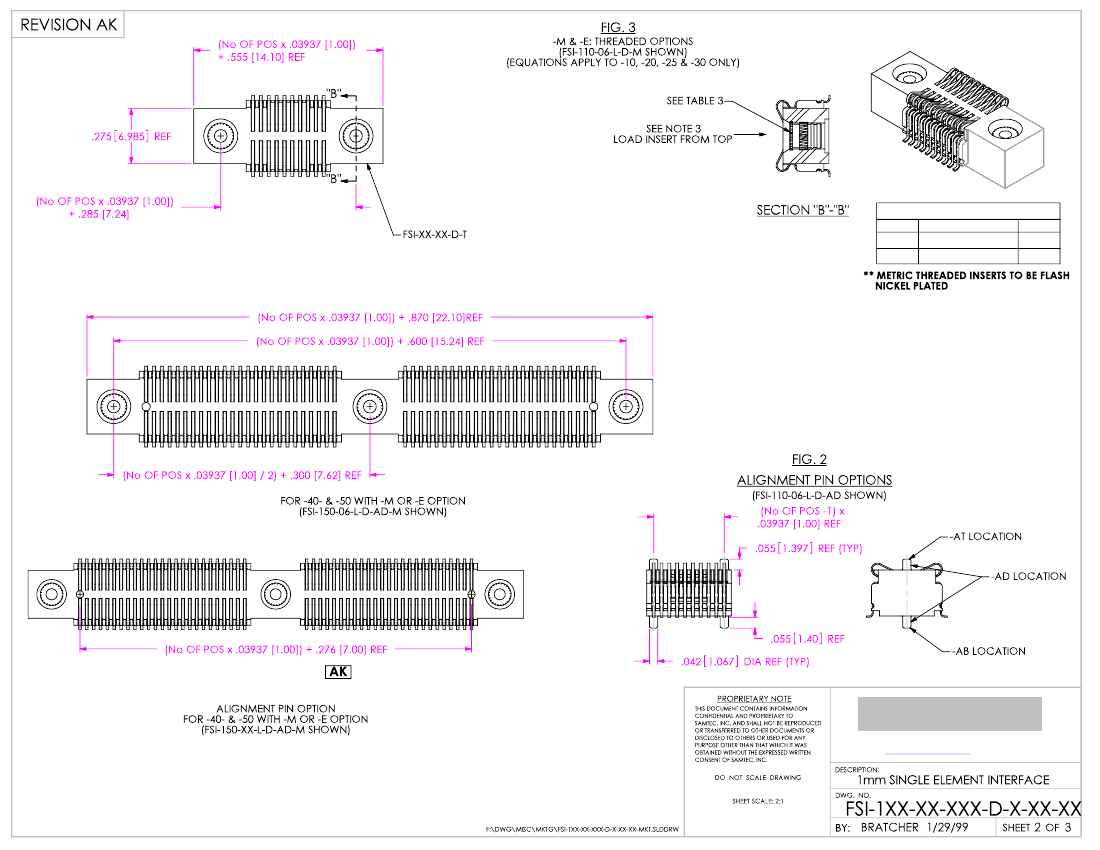

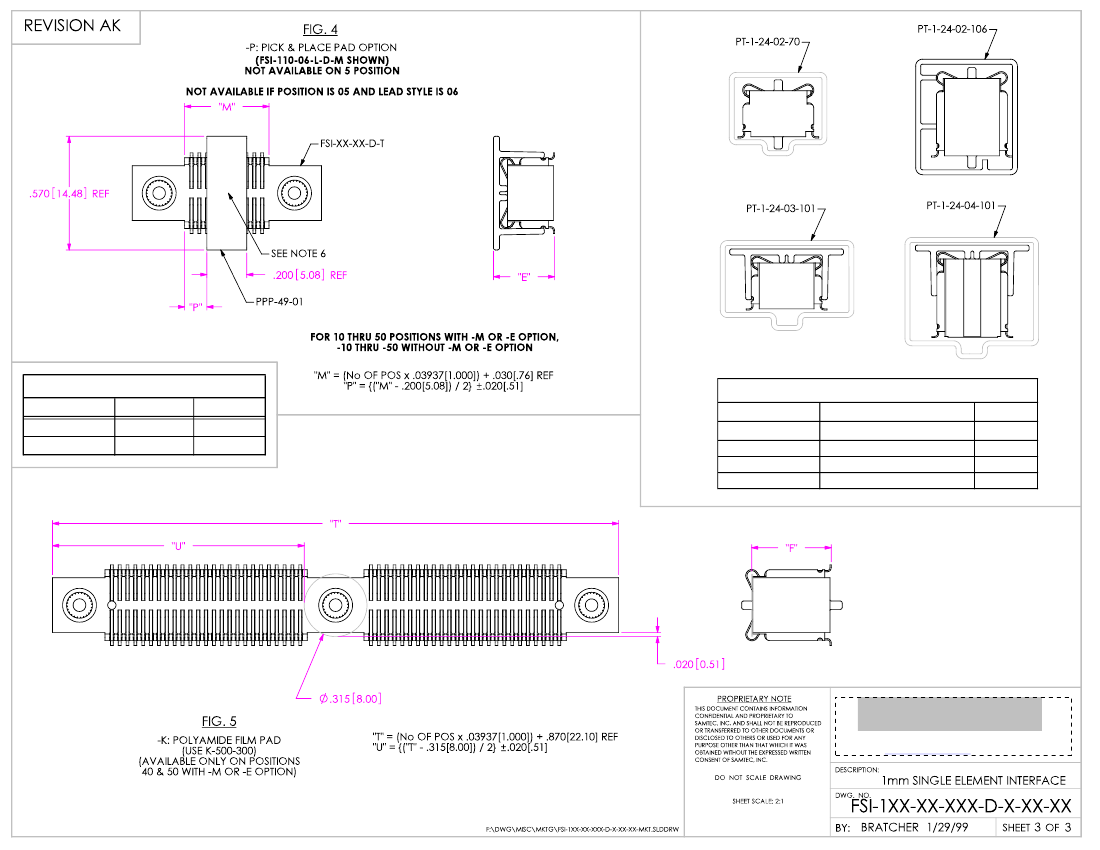

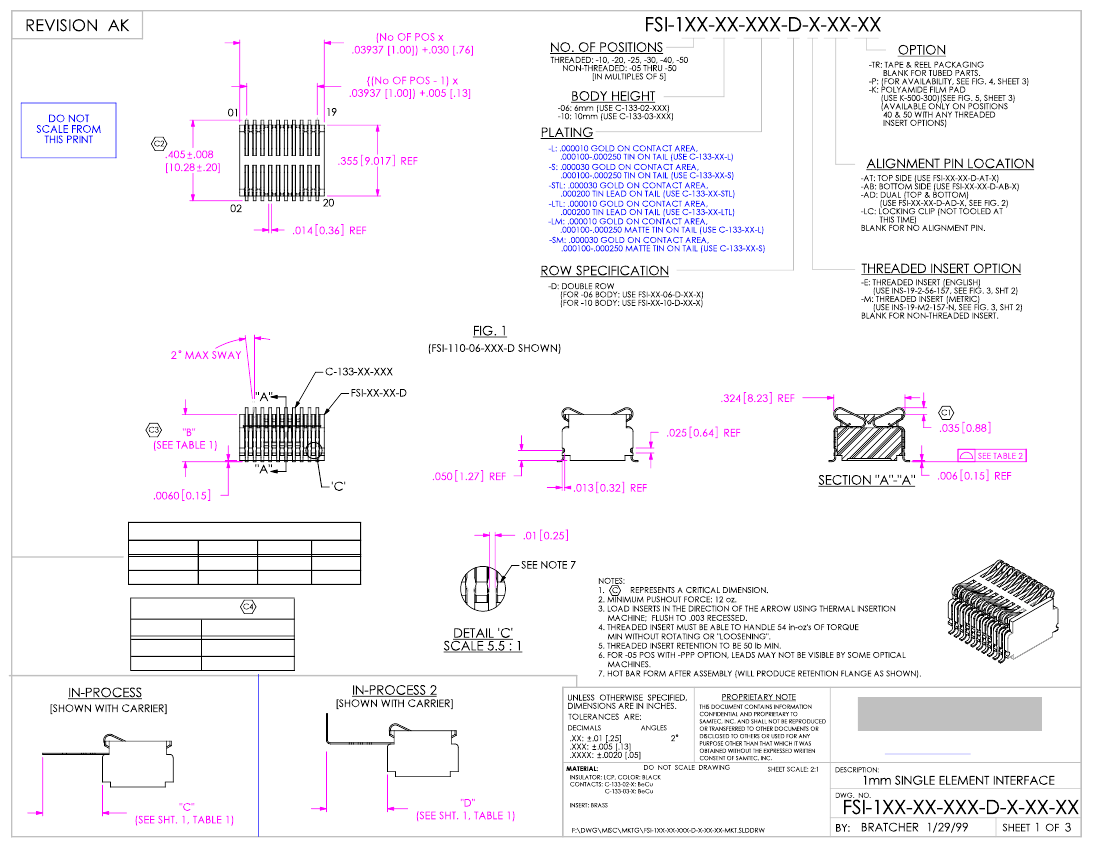

TABLE 1

BODY HEIGHT

-06

-10

"B"

"C"

"D"

.236 [6.00] .450 [11.43] .158 [4.01]

.394 [10.00] .450 [11.43] .307 [7.80]

TABLE 2

No. OF POS.

0-35

40-50

COPLANARITY

.004 [.10]

.006 [.15]

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .94 4 .67 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e-M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
