5962-8997301PX: Description5962-8997301PX amplifier basic information: 5962-8997301PX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP, 5962-8997301PX amplifier core information: The minimum operating temperature of 5962-8997301PX is -55 °C and the maximum operating temperature is 125 °C. How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8997301PX is 1200 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8997301PX gain becomes 0.707 times the low-frequency gain is 179000 kHz. The nominal supply voltage of 5962-8997301PX is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of 5962-8997301PX is 6000 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-8997301PX is: 7.62 mm . Related dimensions of 5962-8997301PX: 5962-8997301PX has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8 5962-8997301PX amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8997301PX is: DIP. The materials used in the 5962-8997301PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR. The 5962-8997301PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size315KB，14 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Alternative parts：5962-8997301PX

Download Datasheet Parametric View All

5962-8997301PX Overview

5962-8997301PX amplifier basic information:

5962-8997301PX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,

5962-8997301PX amplifier core information:

The minimum operating temperature of 5962-8997301PX is -55 °C and the maximum operating temperature is 125 °C.

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8997301PX is 1200 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8997301PX gain becomes 0.707 times the low-frequency gain is 179000 kHz.

The nominal supply voltage of 5962-8997301PX is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of 5962-8997301PX is 6000 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-8997301PX is: 7.62 mm .

Related dimensions of 5962-8997301PX:

5962-8997301PX has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8

5962-8997301PX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8997301PX is: DIP. The materials used in the 5962-8997301PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.

The 5962-8997301PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.

5962-8997301PX Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	55 dB
Maximum input offset voltage	6000 µV
JESD-30 code	R-GDIP-T8
Negative supply voltage upper limit	-7 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal slew rate	1200 V/us
Supply voltage upper limit	7 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	179000 kHz
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

CLC401 Fast Settling, Wideband High Gain Monolithic Op Amp

February 2001

CLC401

Fast Settling, Wideband High Gain Monolithic Op Amp

General Description

The CLC401 is a wideband, fast settling op amp designed

for applications requiring gains greater than

7. Constructed

using an advanced complementary bipolar process and a

proprietary design, the CLC401 features dynamic perfor-

mance far beyond that of typical high speed monolithic op

amps. For example, at a gain of +20, the −3dB bandwidth is

150MHz and the rise/fall time is only 2.5ns.

The wide bandwidth and linear phase (0.2˚ deviation from

linear at 50MHz) and a very flat gain response makes the

CLC401 ideal for many digital communication system appli-

cations. For example, demodulators need both DC coupling

and high frequency amplification-requirements that are ordi-

narily difficult to meet.

The very fast 10ns settling to 0.1% and the ability to drive

capacitive loads lend themselves well to flash A/D applica-

tions. Systems employing D/A converters also benefit from

the settling time and also by the fact that current-to-voltage

transimpedance amplification is easily accomplished.

The CLC401 provides a quick, effective design solution. Its

stable operation over the entire

7 to

50 gain range pre-

cludes the need for external compensation. And, unlike

many other high speed-op amps, the CLC401’s power dis-

sipation of 150mW is compatible with designs which must

limit total power dissipation or power supply requirements.

The CLC401 is based on

National’s

proprietary op amp

topology that uses current feedback instead of the usual

voltage feedback. This unique design has many advantages

over conventional designs (such as settling time that is

relatively independent of gain), yet it is used in basically the

same way (see the gain equations in

Figure 1

and

Figure 2).

However, an understanding of the topology will aid in achiev-

ing the best performance. The discussion below will proceed

for the non-inverting gain configuration with the inverting

mode analysis being very similar.

Enhanced Solutions (Military/Aerospace)

SMD Number: 5962-89973

Space level versions also available.

For more information, visit http://www.national.com/mil

Features

−3dB bandwidth of 150MHz

0.1% settling in 10ns

Low power, 150mW

Overload and short circuit protected

Stable without compensation

Recommended gain range,

7 to

Applications

Flash, precision A/D conversion

Photodiode, CCD preamps

IF processors

High speed modems, radios

Line drivers

DC coupled log amplifiers

High speed communications

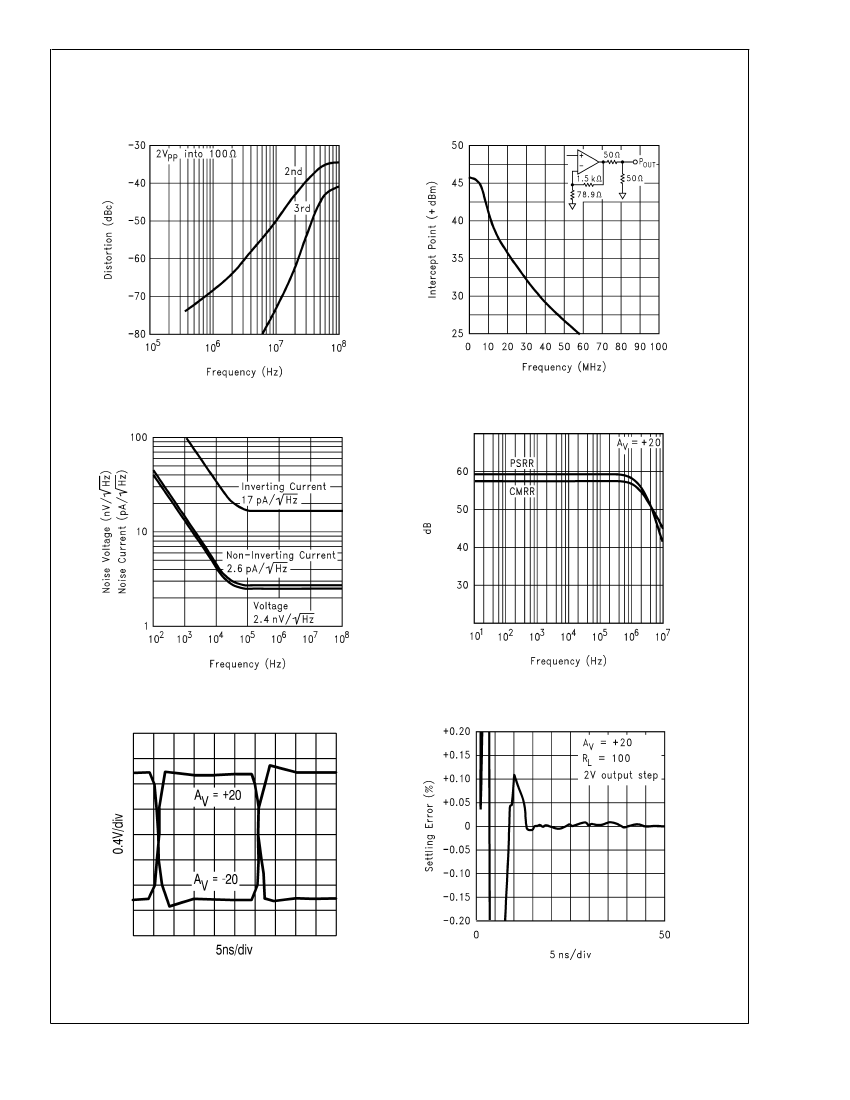

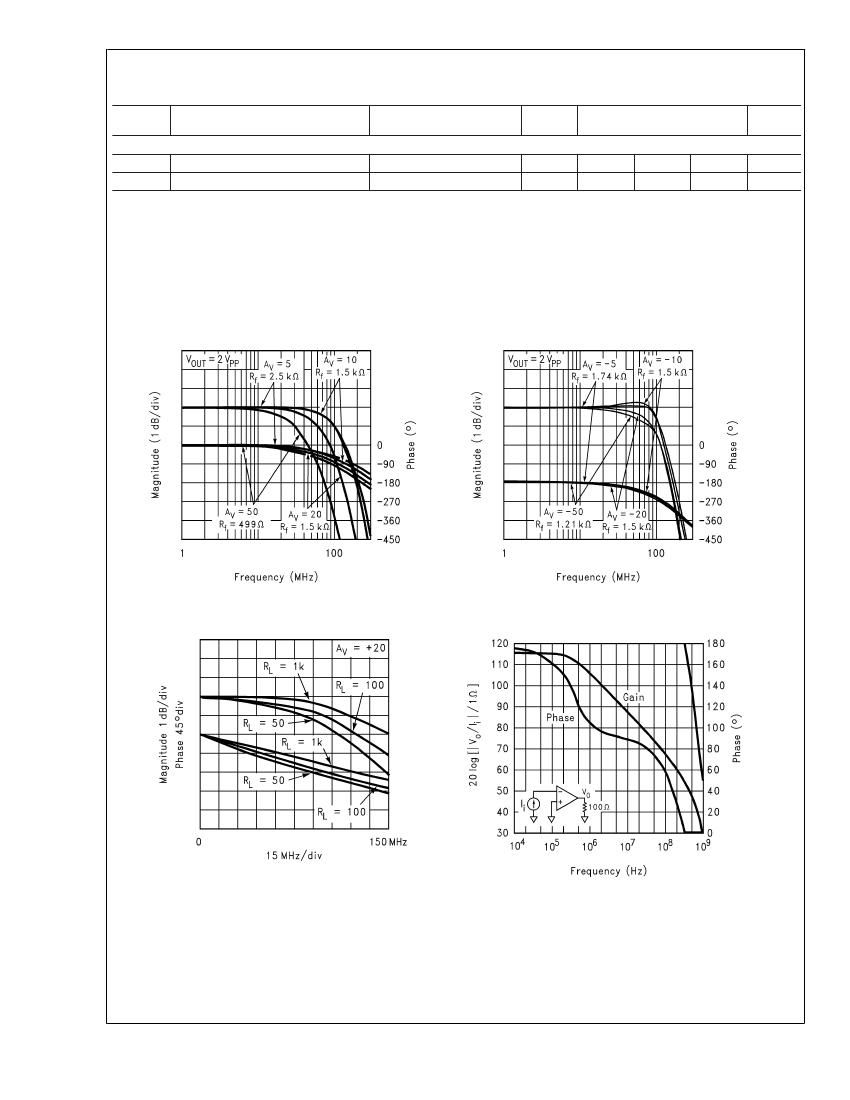

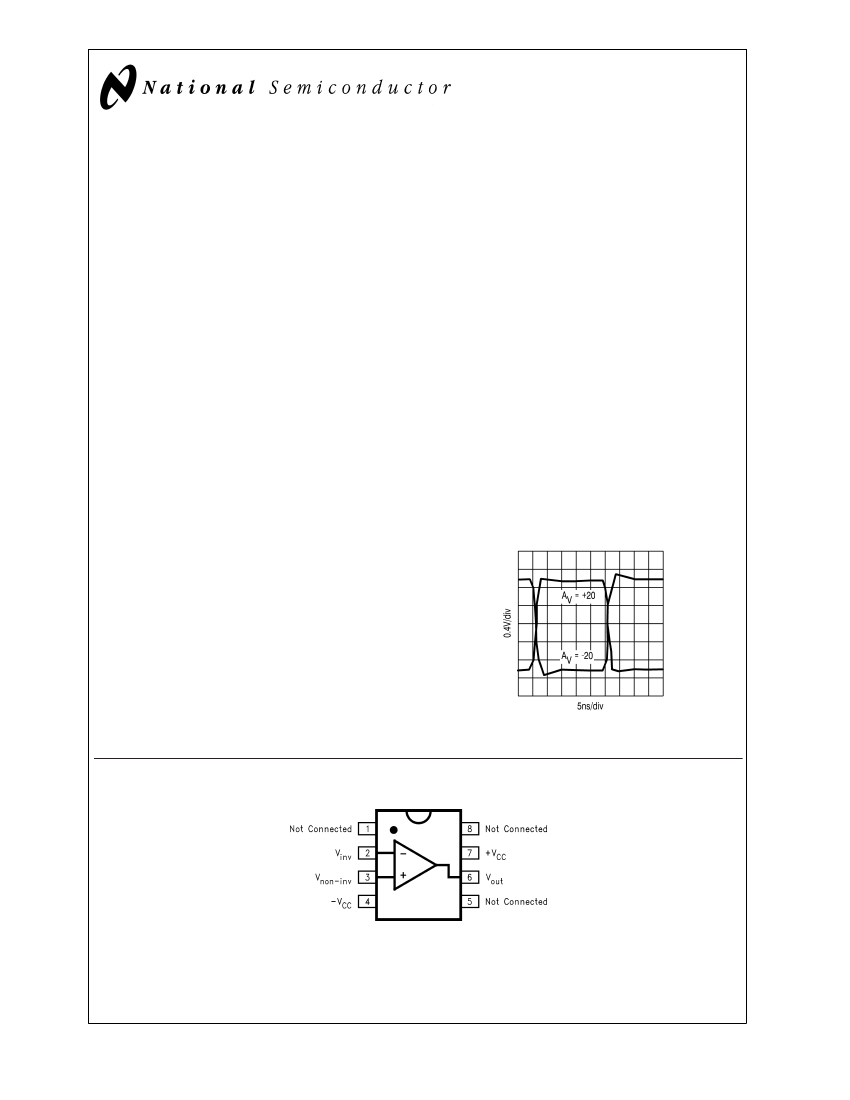

Pulse Response

DS012744-18

Connection Diagram

DS012744-17

Pinout

DIP & SOIC

DS012744

www.national.com
