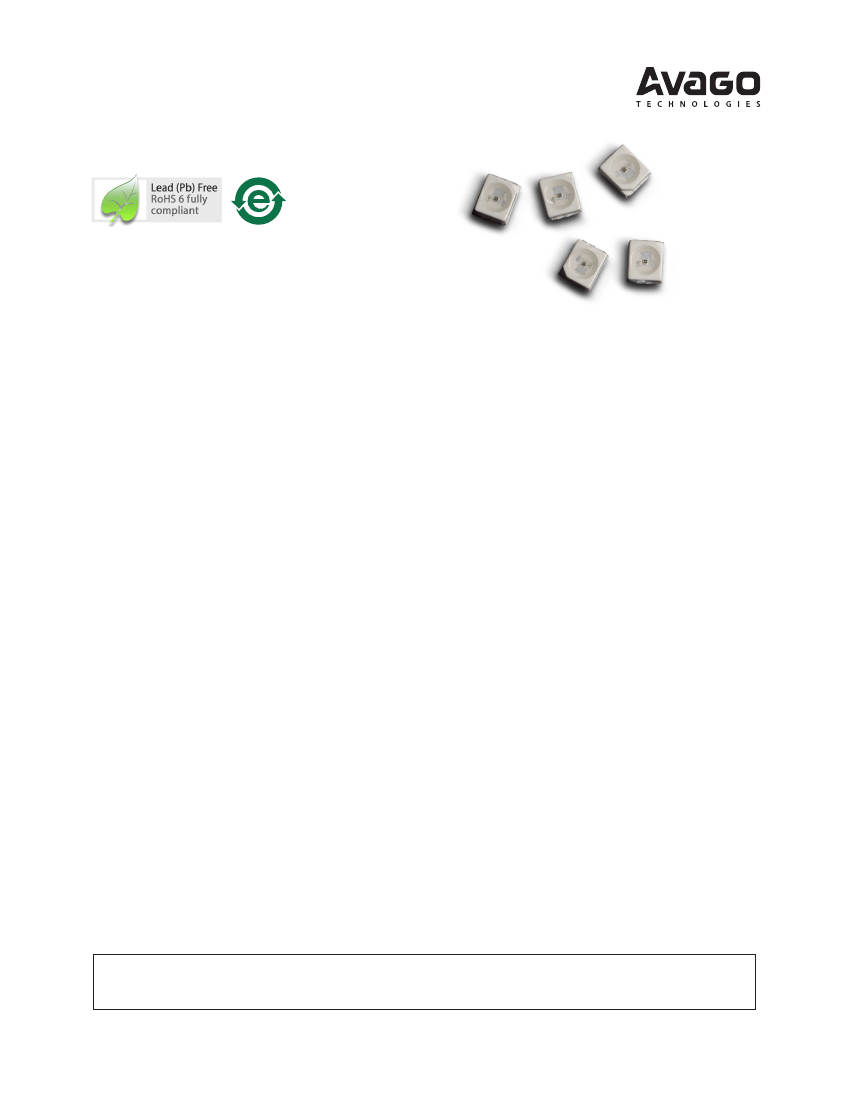

HSMx-A10x-xxxxx PLCC-2
Surface Mount LED Indicator
Data Sheet
Description
This family of SMT LEDs is packaged in the industry
standard PLCC-2 package. These SMT LEDs have high
reliability performance and are designed to work under
a wide range of environmental conditions. This high
reliability feature makes them ideally suited to be used
under harsh interior automotive as well as interior signs
application conditions.
To facilitate easy pick & place assembly, the LEDs
are packed in EIA-compliant tape and reel. Every reel will
be shipped in single intensity and color bin, except red
color, to provide close uniformity.
These LEDs are compatible with IR solder reflow process.
Due to the high reliability feature of these products, they
can also be mounted using through-the-wave soldering
process.
The super wide viewing angle at 120˚ makes these
LEDs ideally suited for panel, push button, or general
backlighting in automotive interior, office equipment,
industrial equipment, and home appliances. The flat
top emitting surface makes it easy for these LEDs
to mate with light pipes. With the built-in reflector
pushing up the intensity of the light output, these LEDs
are also suitable to be used as LED pixels in interior elec-
tronic signs.
Features
•
Industry standard PLCC-2 package
•
High reliability LED package
•
High brightness using AlInGaP and InGaN dice tech-
nologies
•
Available in full selection of colors
•
Super wide viewing angle at 120˚
•
Available in 8 mm carrier tape on 7 inch reel (2000
pieces)
•
Compatible with both IR and TTW soldering process
Applications
•
Interior automotive
– Instrument panel backlighting
– Central console backlighting
– Cabin backlighting
•
Electronic signs and signals
– Interior full color sign
– Variable message sign
•
Office automation, home appliances, industrial
equipment
– Front panel backlighting
– Push button backlighting
– Display backlighting
CAUTION: HSMN,M,K and E-A10x-xxxxx LEDs are Class 2 ESD sensitive. Please observe appropriate precau-
tions during handling and processing. Refer to Avago Application Note AN-1142 for additional details.
