BG305-06-A-0500-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG305-06-A-0500-L-D

BG305-06-A-0500-L-D: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BG305-06-A-0500-L-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BG305-06-A-0500-L-D	-	-	View	Buy Now

BG305-06-A-0500-L-D Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

BG305-06-A-0500-L-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Global Connector Technology
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

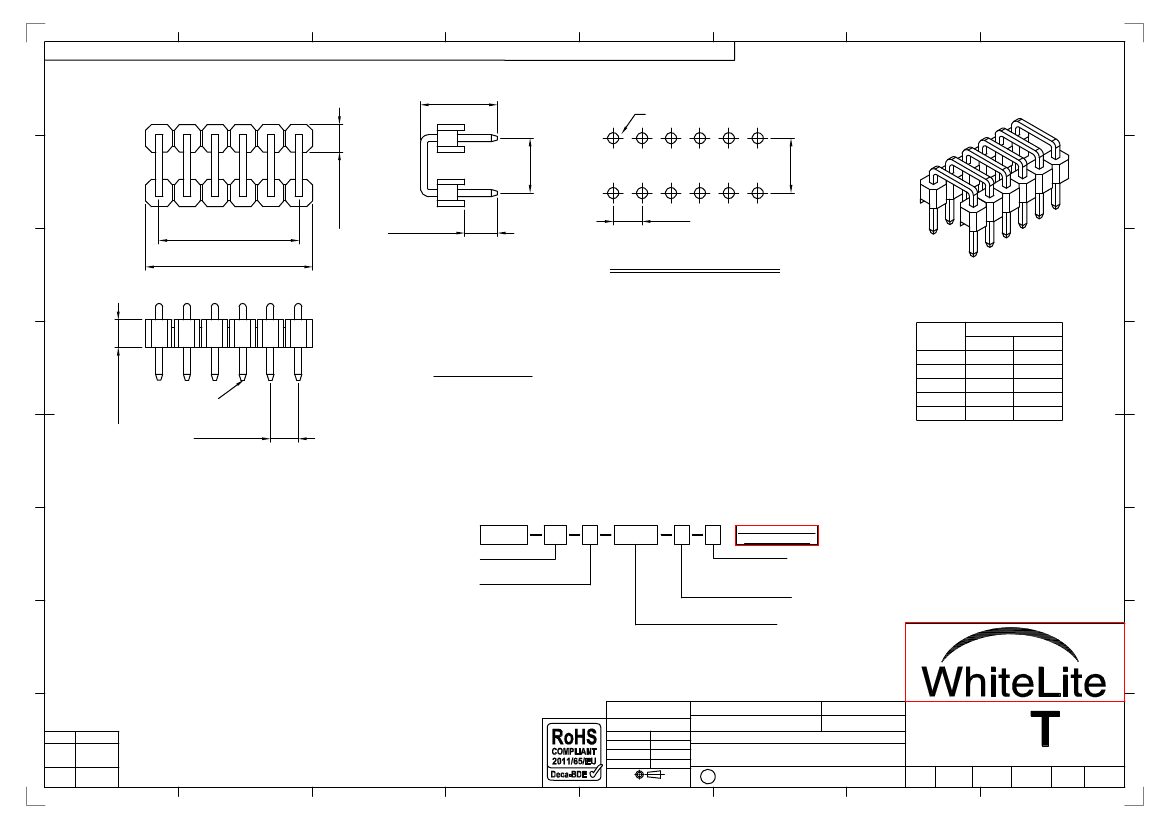

Global Connector Technology Ltd. - BG305: 2.54mm PITCH PIN HEADER, SINGLE ROW, U-SHAPED THRU-HOLE, DUAL INSULATOR, NATURAL LCP

7.00±0.20

Ø1.10 (Typ.)

D±0.30

2.50±0.10

5.00

B±0.20

A ±0.50

3.00±0.20

2.54

(Non-Accum)

RECOMMENDED PCB LAYOUT

General Tolerance: ±0.05

CONTACTS

DIMENSIONS

5.08

7.62

10.16

12.70

15.24

2.54

5.08

7.62

10.16

12.70

2.50±0.10

6 Position Example

PIN 0.64 SQ

2.54±0.10

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 Amp

INSULATION RESISTANCE

绝缘电阻值

: 1000 MΩ min.

DIELECTRIC WITHSTANDING

耐电压

: 500V AC/Minute

CONTACT RESISTANCE

接触电阻值

: 20 mΩ max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: BRASS

PLATING

电镀

CONTACT AREA

接触面积

: 30µ”-50µ” NICKEL UNDERPLATE, FOR PLATING

SEE ORDERING GRID.

INSULATOR MATERIAL

绝缘½物料

: POLYESTER

聚酯

, LCP, NATURAL, UL94V-0

SOLDERING PROCESS

可焊性

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之公头

A: BG306

B: DIRECT SOLDER TO PCB

直接焊在

PCB

上。

Ordering Grid

BG305

No. of Contacts

02 to 06

0500

REQUEST SAMPLES

AND QUOTATION

Contact Plating

A = Gold Flash All Over

(Other plating options

available on request)

Packing Options

G = Plastic Box

(Standard packing for 2 contacts)

D = Tube

(Standard packing for 3-6 contacts)

Insulator Material

L = LCP (Natural)

Dimension D (Footprint width)

0500 = 5.00mm

(Standard)

Or Specify Dimension D

e.g. 0250 = 2.50mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

BG305

Description:-

07 DEC 11

DRAWING

DETAIL

RELEASE

REV

DATE

07/12/11

X.X ± 0.30

X.XX ± 0.20

2.54mm PITCH PIN HEADER, SINGLE ROW, U-SHAPE

THRU-HOLE, DUAL INSULATOR, NATURAL LCP

Scale

NTS

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note
