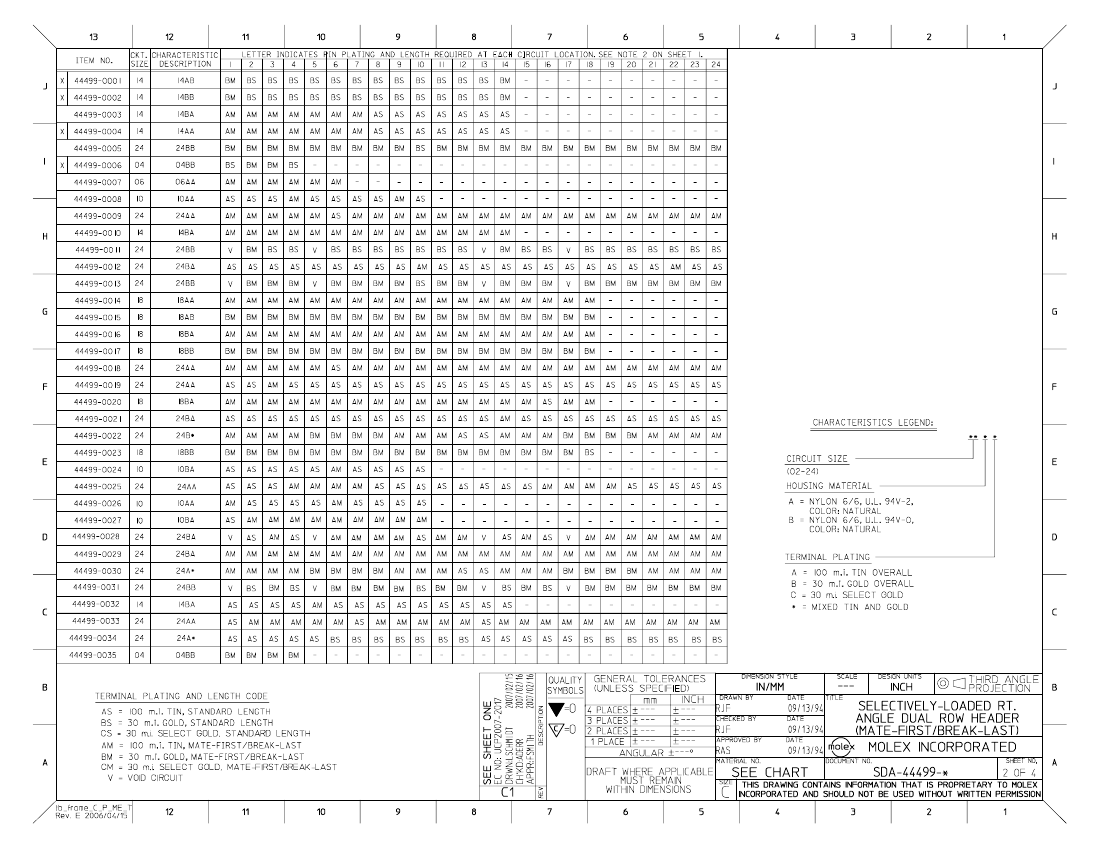

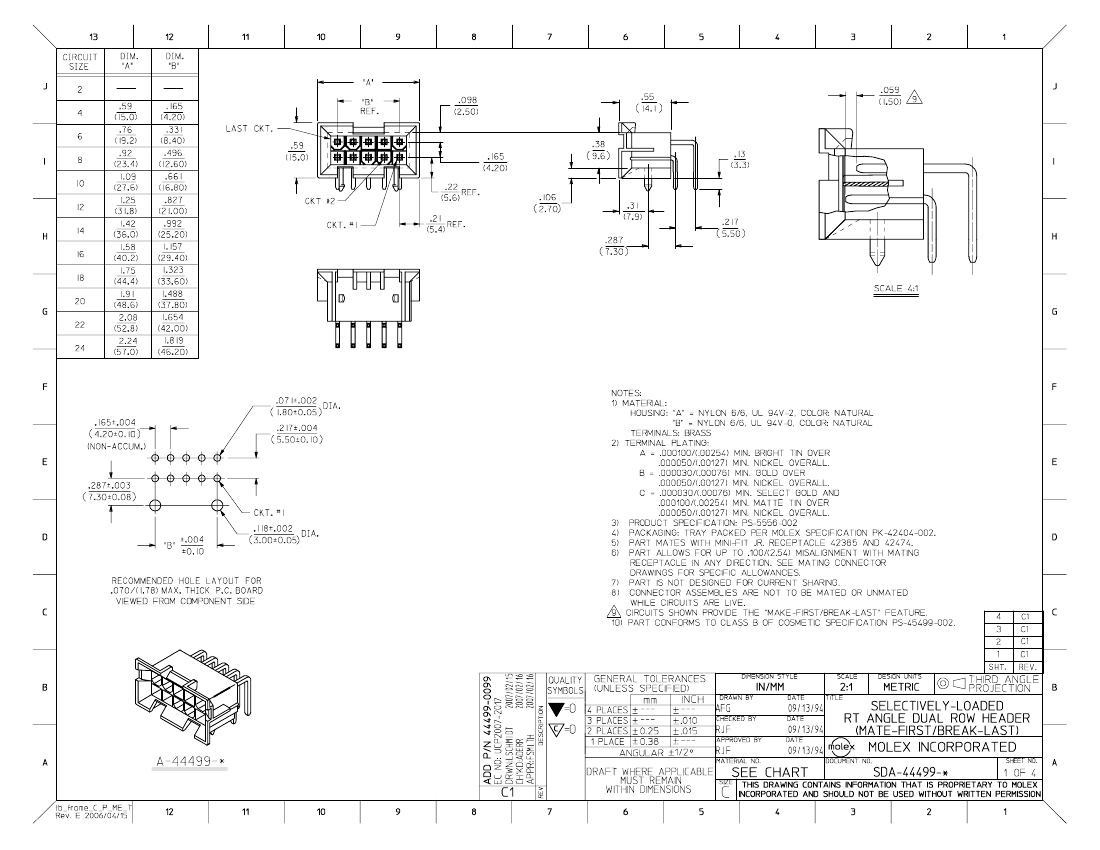

Rectangular Power Connector, 24 Contact(s), Male, Solder Terminal, Receptacle,
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | FIRST MAKE LAST BREAK |
| Board mount options | PEG |
| body width | 0.591 inch |
| subject depth | 0.815 inch |
| body length | 2.244 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 30 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 14.6784 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | NATURAL |
| insulator material | NYLON |
| MIL compliance | NO |
| Plug contact pitch | 0.165 inch |
| Match contact row spacing | 0.165 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | GUIDE SLOT |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.5118 mm |
| Plating thickness | 100u inch |
| polarization key | POLARIZED HOUSING |
| Guideline | CSA,TUV,UL |
| reliability | COMMERCIAL |
| Shell material | POLYAMIDE66 |
| Terminal length | 0.13 inch |
| Terminal pitch | 4.191 mm |
| Termination type | SOLDER |
| Total number of contacts | 24 |
| UL Flammability Code | 94V-2 |
| Evacuation force-minimum value | .0834 N |
| Base Number Matches | 1 |
