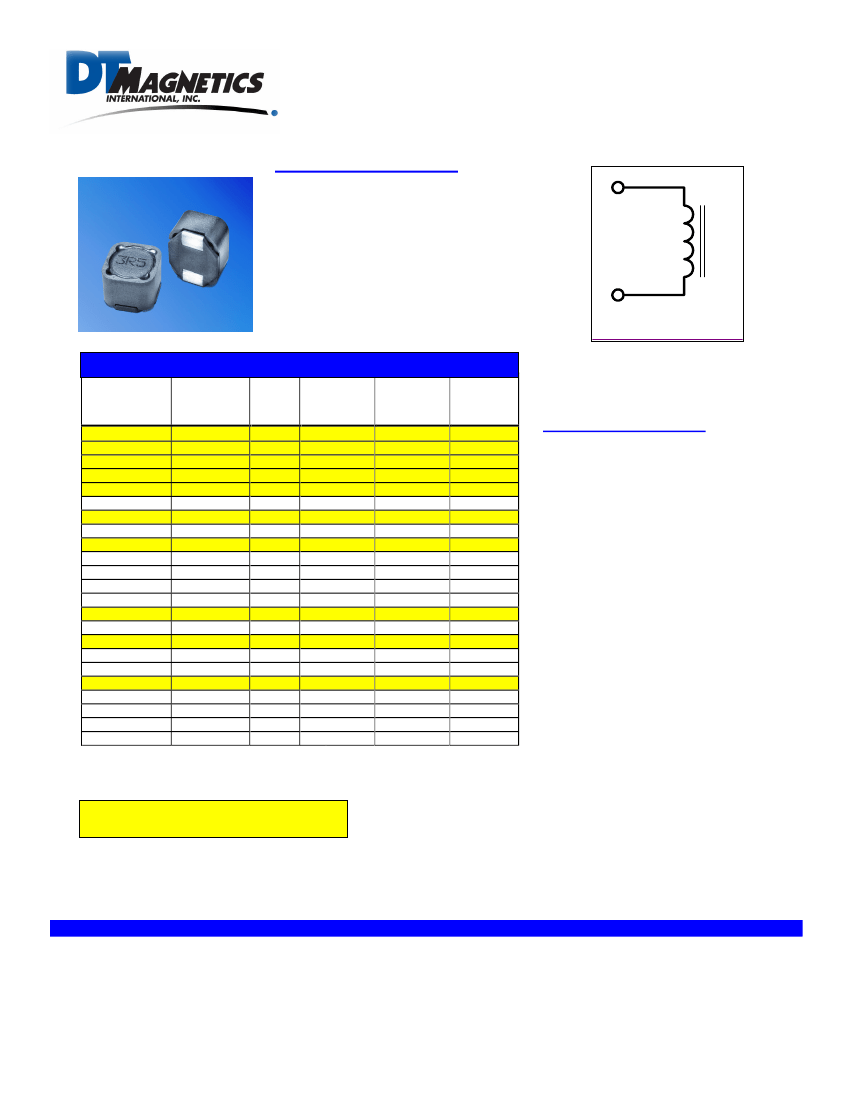

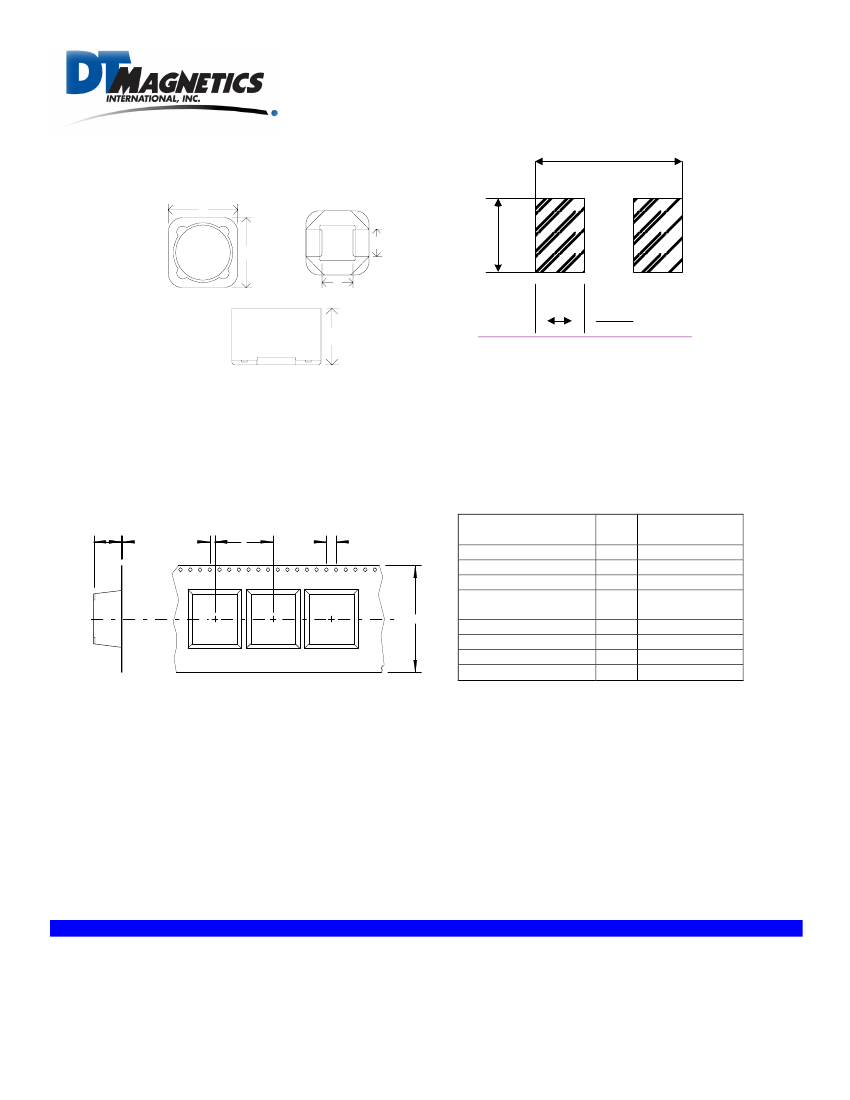

SMT Shielded Drum Inductors
1207 Series
Benefits & Features
•
•
•
•
•
•
Inductance Range from .47-1000uH
Low profile package
(12mm square x 8mm high)
Tape & Reel packaging
Very cost-effective
Frequency range up to 3 MHz
Magnetic Shielding
SCHEMATIC
Part Number Selection Table
OCL
DTM
Inductance
+/-20%
Part Number
(
µH)
(
µH)
DTSD1207-R47
DTSD1207-1R0
DTSD1207-1R5
DTSD1207-2R2
DTSD1207-3R3
DTSD1207-4R7
DTSD1207-6R8
DTSD1207-8R2
DTSD1207-100
DTSD1207-150
DTSD1207-220
DTSD1207-330
DTSD1207-470
DTSD1207-680
DTSD1207-820
DTSD1207-101
DTSD1207-151
DTSD1207-221
DTSD1207-331
DTSD1207-471
DTSD1207-681
DTSD1207-821
DTSD1207-102
0.470
1.00
1.50
2.20
3.30
4.70
6.80
8.20
10.0
15.0
22.0
33.0
47.0
68.0
82.0
100
150
220
330
470
680
820
1000
0.419
0.821
1.357
2.027
2.831
4.841
7.387
8.861
10.47
14.09
22.93
33.92
47.05
66.48
79.75
99.31
144.9
221.5
323.6
467.1
676.7
818.1
1005
DCR
Ohms TYP
0.00187
0.00256
0.00331
0.00434
0.00595
0.00837
0.01090
0.0158
0.0172
0.0226
0.0353
0.0572
0.0685
0.0953
0.1203
0.1363
0.2052
0.315
0.458
0.676
1.011
1.145
1.351
I
rms
Amps I
sat
Amps
(40C Rise)
TYP
(30% drop)
TYP
18.29
15.65
13.75
12.02
10.26
8.65
7.58
6.29
6.04
5.27
4.22
3.31
3.03
2.57
2.29
2.15
1.75
1.41
1.17
0.97
0.79
0.74
0.69
56.0
40.0
31.1
25.5
21.5
16.5
13.3
12.2
11.2
9.7
7.6
6.2
5.3
4.4
4.1
3.6
3.0
2.4
2.0
1.7
1.4
1.3
1.1
Typical Applications
•
•
•
•
•
Buck Converters
Forward Converters
Boost Converters
Noise Filtering
Filter Chokes
Environmental Specifications
•
•
•
Storage Temp. Range -40° to 125° C
°
°
Operating Ambient Temperature
Range: -40° to +85°C
Infrared Reflow Temperature:
+240° C for 30 seconds maximum
°
1. OCL tested at 100 KHz/ 0.250 Vrms/ 0 ADC
2. T
A
= 25°C.
Highlighted parts are
in stock
through distribution.
ALL parts are available through distribution.
Specifications subject to change without notice.
www.dtmagnetics.com
DTMagnetics
1001 Steeple Square Ct.
Knightdale, NC 27545
Tel (919) 266-4411
Fax (919) 266-6008
DTSD1207 0219
DTMagnetics
140 Crosby Road
Dover, NH 03820
Tel (603) 742-4375
Fax (603) 742-9165
sales@dtmagnetics.com
Component Distributors, Inc.
Phone (800) 777-7334
FAX (720) 962-4437
Email: cdisales@compdist.com
www.cdiweb.com/dtm
engineering@dtmagnetics.com
SMT Shielded Drum Inductors
1207 Series
TOP VIEW
BOTTOM VIEW
13.80
A
D
E
5.50
B
SIDE VIEW
3.85
C
DIM A
12.0 +/- 0.2
DIM B
12.00 +/- 0.2
DIM C
8.00 Max
DIM D
4.9 Typ
DIM E
5.2 Typ
Dimensions are in mm.
TAPE & REEL SPECIFICATIONS
H
T
P1
P
P0
Parameter
Tape width
Component pitch
Indexing pitch
Index-to-component
offset
Pocket height
Tape thickness
Reel overall diameter
Reel capacity
Des.
W
P
P
0
P
1
H
T
OD
Qty
Dimension
(inches (mm))
0.945 (24.0)
0.630 (16.0)
0.157 (4.0)
.079 (2.0)
0.343 (8.7)
.020 (.50)
13.0 [330]
450 pcs
W
Specifications subject to change without notice.
www.dtmagnetics.com
DTMagnetics
1001 Steeple Square Ct.
Knightdale, NC 27545
Tel (919) 266-4411
Fax (919) 266-6008
DTSD1207 0219
DTMagnetics
140 Crosby Road
Dover, NH 03820
Tel (603) 742-4375
Fax (603) 742-9165
sales@dtmagnetics.com
Component Distributors, Inc.
Phone (800) 777-7334
FAX (720) 962-4437
Email: cdisales@compdist.com
www.cdiweb.com/dtm
engineering@dtmagnetics.com
