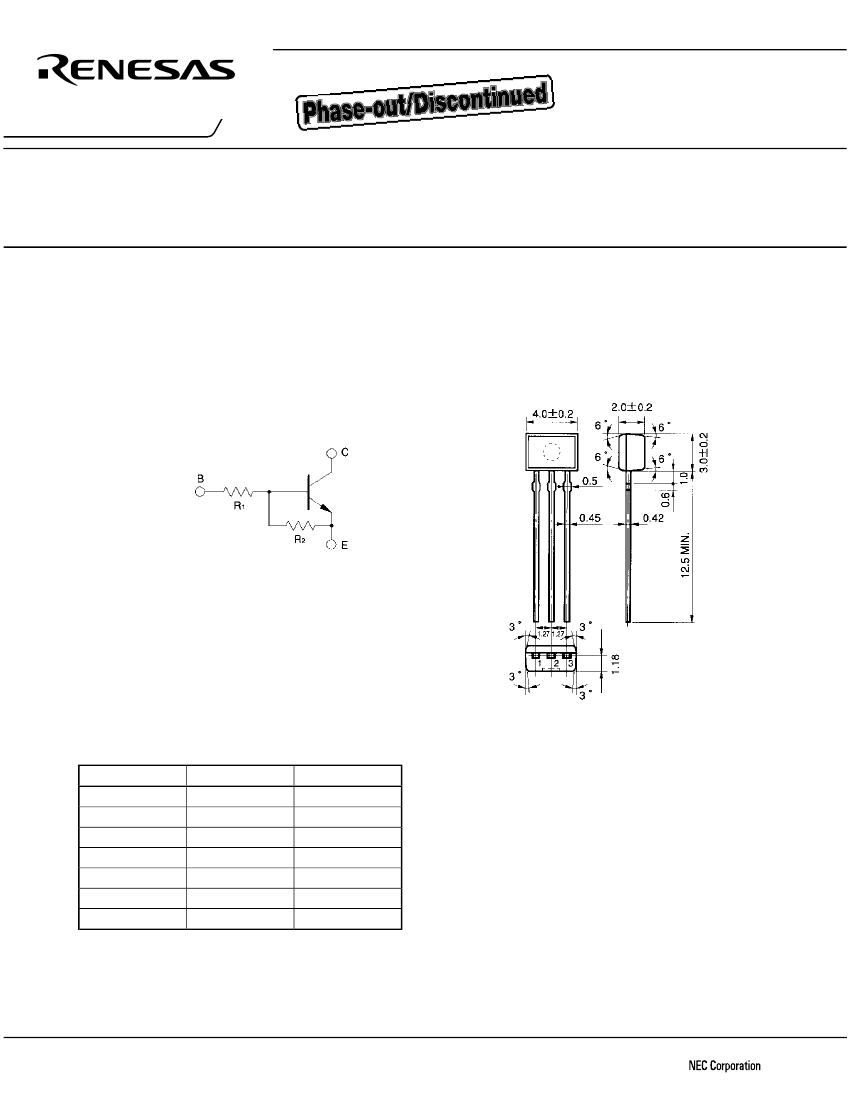

DATA SHEET
COMPOUND TRANSISTOR
BB1 SERIES
on-chip resistor NPN silicon epitaxial transistor
For mid-speed switching
The BB1 Series is an N type small signal transistor and enables the reduction of component counts and
downsizing of sets due to on-chip resistors. This transistor is especially ideal for use in household electronic
appliances and OA equipments such as VCRs and TVs.
FEATURES
• Up to 0.7 A current drive available
• On-chip bias resistor
• Low power consumption during drive
PACKAGE DRAWING (UNIT: mm)
QUALITY GRADES
• Standard
Please refer to “Quality Grades on NEC Semiconductor
Devices” (Document No. C11531E) published by NEC Corporation
to know the specification of quality grade on the devices and its
recommended applications.
Electrode Connection
1. Emitte (E)
2. Collector (C)
3. Base (B)
BB1 SERIES LISTS
Products
BB1A4A
BB1L2Q
BB1A3M
BB1F3P
BB1J3P
BB1L3N
BB1A4M
R
1
(KΩ)
−
0.47
1.0
2.2
3.3
4.7
10
R
2
(KΩ)
10
4.7
1.0
10
10
10
10
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. D11739EJ2V0DS00 (2nd edition)
Date Published April 2002 N CP(K)
Printed in Japan
©
