BWS8141-0: DescriptionCircular Connector, 5 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal,; CategoryThe connector The connector; File Size252KB，1 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric Compare View All

BWS8141-0 Overview

Circular Connector, 5 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal,

BWS8141-0 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	BWS8141-0
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	SCREW
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

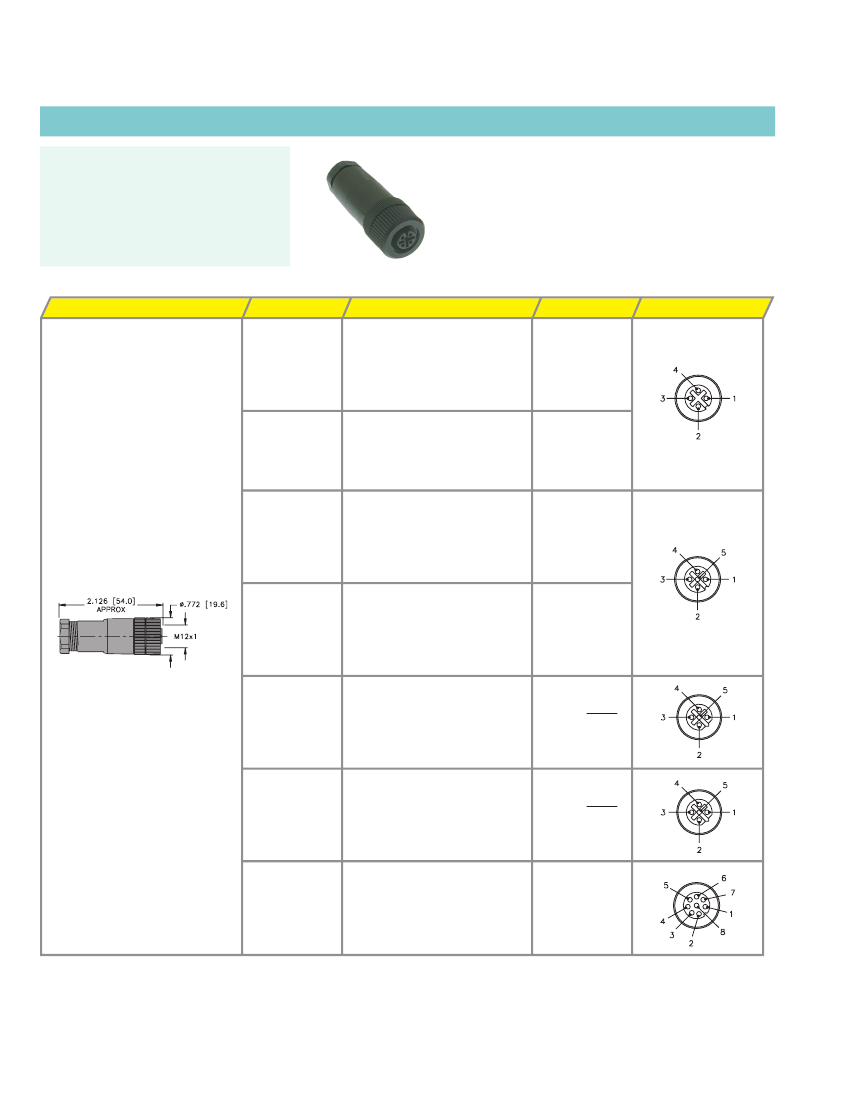

TURCK

Process Wiring Solutions

4, 5 and 8-Wire

eurofast

®

Field Wireable Connectors, Standard and Reverse Key

•

Straight Female Connectors

•

IEC IP 67 Protection

Drawing

Part Number

Housing Specs.

PBT, Black

PG 7 cable gland

accepts 4-6 mm cable diameter

Screw terminals

accepts up to 18 AWG conductors

85°C

250 V, 4 A

PBT, Black

PG 9 cable gland

accepts 6-8 mm cable diameter

Screw terminals

85°C

250 V, 4 A

PBT, Black

PG 9 cable gland

accepts 4-8 mm cable diameter

Screw terminals

accepts up to 18 AWG conductors

85°C

125 V, 4 A

PBT, Black

PG 9 cable gland

accepts 4-8 mm cable diameter

Screw terminals

Metal coupling nut

85°C

125 V, 4 A

PBT, Black

PG 9 cable gland

accepts 4-8 mm cable diameter

Screw terminals

Metal coupling nut

85°C

250 V, 4 A

PBT, Black

PG 9 cable gland

accepts 4-8 mm cable diameter

Screw terminals

accepts up to 18 AWG conductors

85°C

125 V, 4 A

Nylon, Black

PG 9 cable gland

accepts 4-8 mm cable diameter

Screw terminals

accepts up to 18 AWG conductors

85°C

60 VAC/75 VDC, 2 A

Application

Pinout

B 8141-0

Mates with standard

key 4-pin cordsets

and receptacles

B 8141-0/PG 9

Mates with standard

key 4-pin cordsets

and receptacles

B 8151-0/PG 9

Mates with standard

key 5-pin cordsets

and receptacles

BM 8151-0

Mates with standard

key 5-pin cordsets

and receptacles

BWS 8141-0

Mates with reverse

key 4-pin cordsets

and receptacles

BWS 8151-0

Mates with reverse

key 5-pin cordsets

and receptacles

B 8181-0

Mates with standard

key 8-pin cordsets

and receptacles

G15

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708

www.turck.com

BWS8141-0 Related Products

	BWS8141-0	B8141-0	B8141-0/PG9	B8151-0/PG9	BM8151-0/PG9
Description	Circular Connector, 5 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal,	Circular Connector, 4 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal,	Circular Connector, 4 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal,	Circular Connector, 5 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal,	Circular Connector, 5 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW
Total number of contacts	5	4	4	5	5
Base Number Matches	1	1	1	1	1
Maker	TURCK Inc.	TURCK Inc.	TURCK Inc.	-	-
