Part Number

Search

54F273/B2A

Description
D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20,
Categorylogic    logic
File Size180KB,4 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric Compare View All

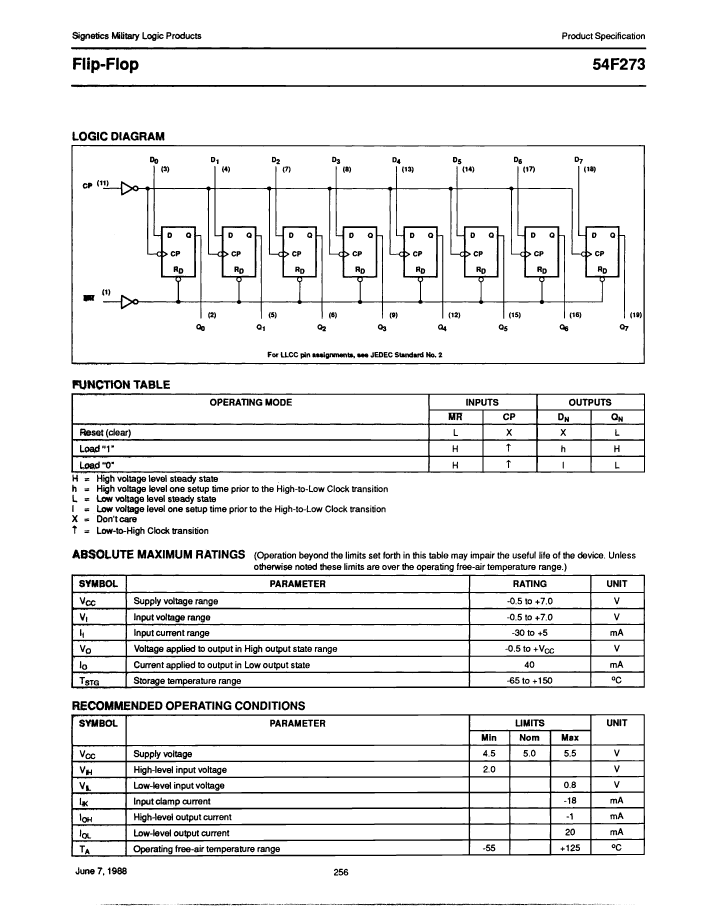

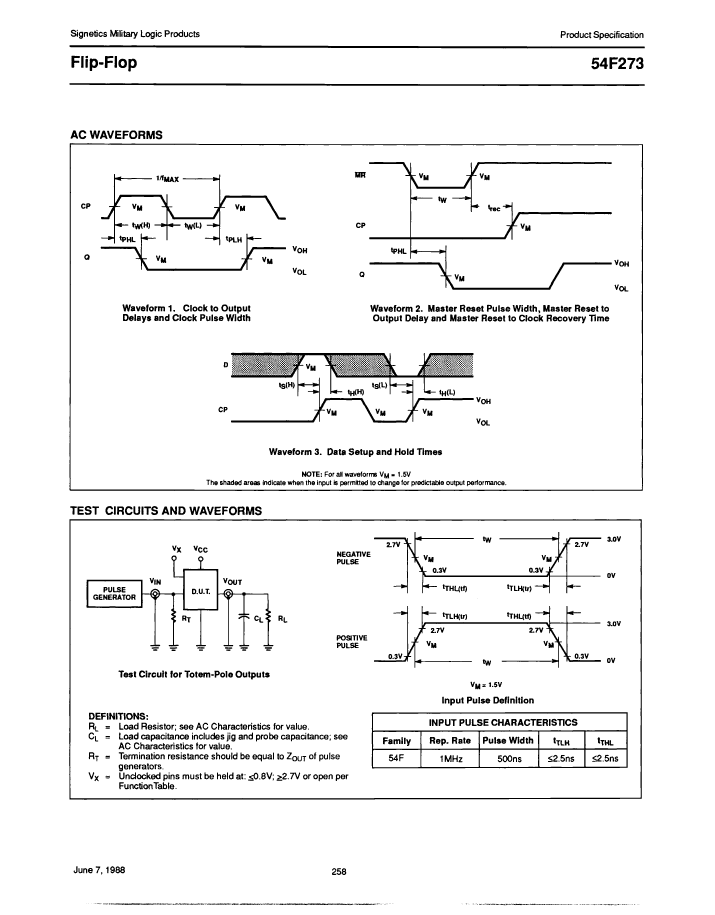

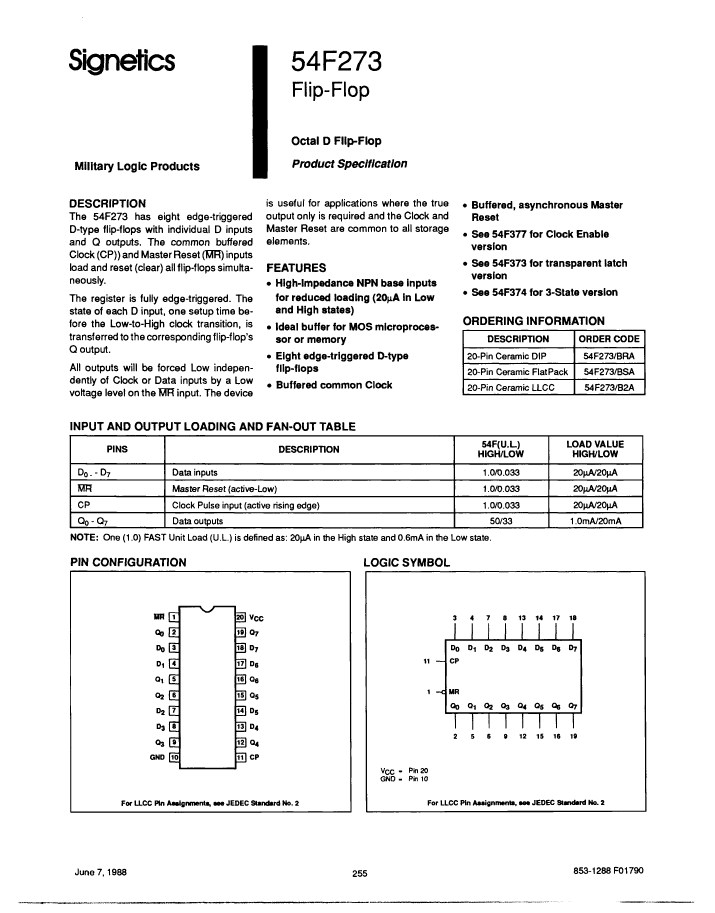

54F273/B2A Overview

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20,

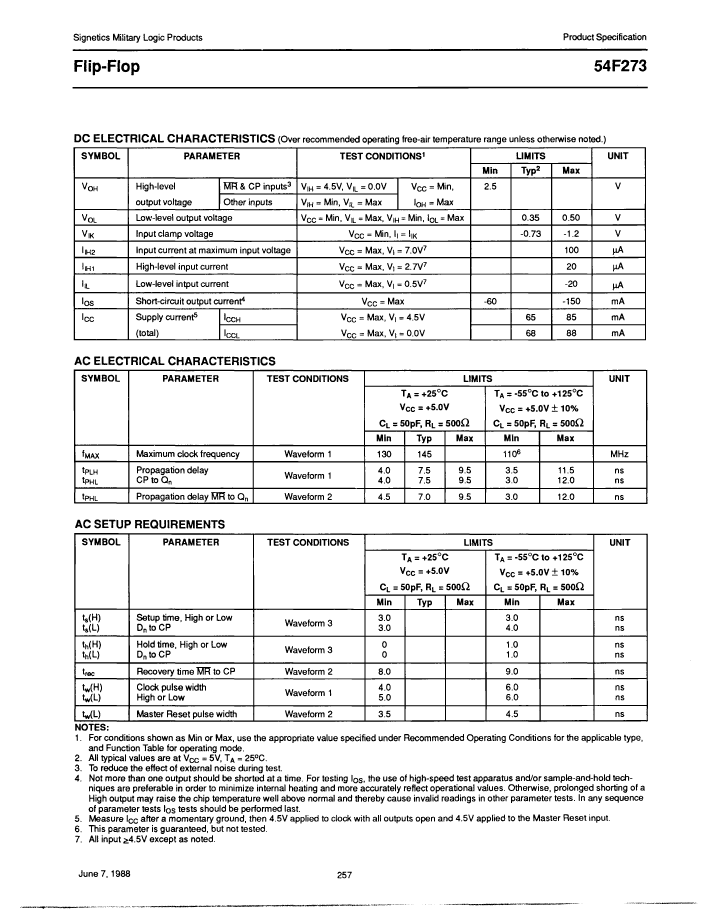

54F273/B2A Parametric

Parameter NameAttribute value
package instruction,
Reach Compliance Codeunknown
seriesF/FAST
JESD-30 codeS-CQCC-N20
Load capacitance (CL)50 pF
Logic integrated circuit typeD FLIP-FLOP
Number of digits8
Number of functions1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeSQUARE
Package formCHIP CARRIER
Maximum supply current (ICC)88 mA
propagation delay (tpd)12 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formNO LEAD
Terminal locationQUAD
Trigger typePOSITIVE EDGE
minfmax110 MHz
Base Number Matches1

54F273/B2A Related Products

54F273/B2A 54F273/BRA 54F273/BSA
Description D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20, D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDIP20 D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDFP20
Reach Compliance Code unknown unknown unknown
series F/FAST F/FAST F/FAST
JESD-30 code S-CQCC-N20 R-CDIP-T20 R-CDFP-F20
Load capacitance (CL) 50 pF 50 pF 50 pF
Logic integrated circuit type D FLIP-FLOP D FLIP-FLOP D FLIP-FLOP
Number of digits 8 8 8
Number of functions 1 1 1
Number of terminals 20 20 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output polarity TRUE TRUE TRUE
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape SQUARE RECTANGULAR RECTANGULAR
Package form CHIP CARRIER IN-LINE FLATPACK
Maximum supply current (ICC) 88 mA 88 mA 88 mA
propagation delay (tpd) 12 ns 12 ns 12 ns
Certification status Not Qualified Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES NO YES
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal form NO LEAD THROUGH-HOLE FLAT
Terminal location QUAD DUAL DUAL
Trigger type POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE
minfmax 110 MHz 110 MHz 110 MHz
Base Number Matches 1 1 1
