Data Sheet
FOL1437 Series
Jul. 2014
(with FBG,
=1400-1465nm)
14xx-nm Pump Laser Diode Module (with FBG)
(High power / Low power consumption)
Applications
Pump Source for Raman Amplifier
C-band Raman
Product Type :
FOL1437 Series
Descriptions

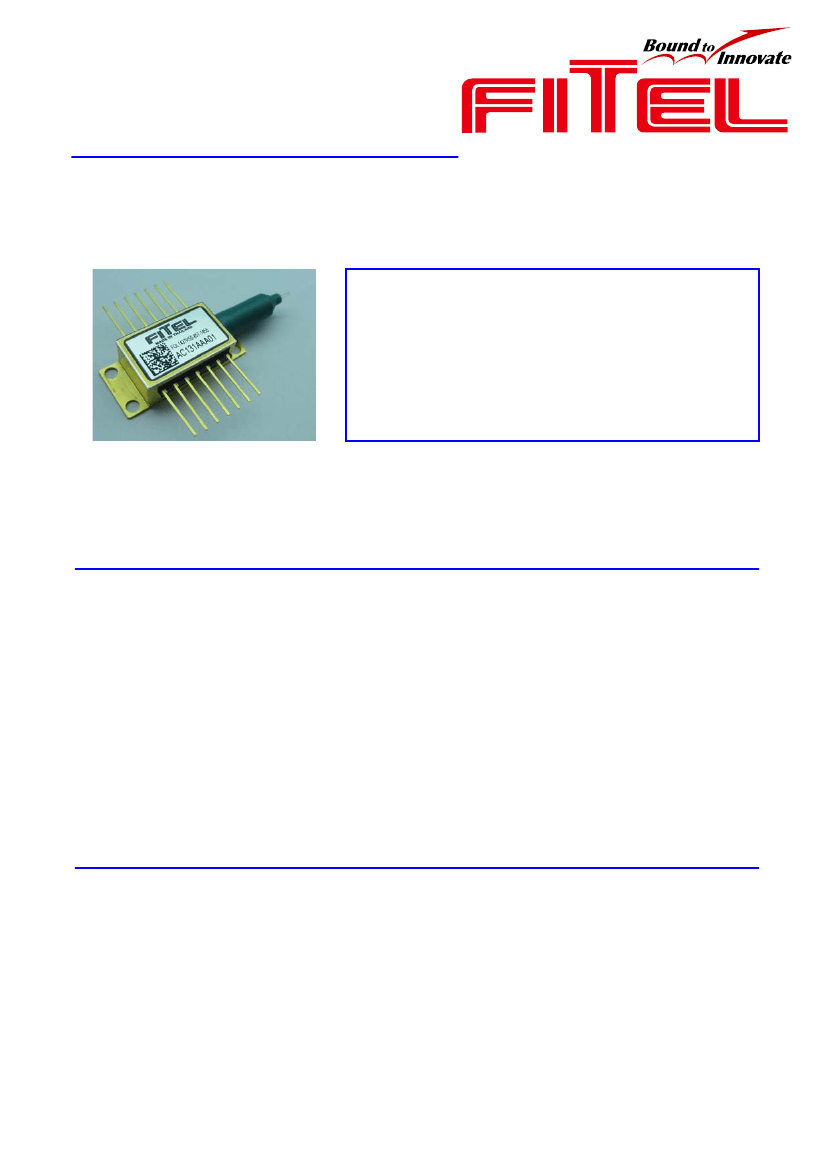

The FOL1437 series (with FBG) has been designed for use in a wide variety of optical
amplifier, such as Raman Amplifier used in optical transmission systems, especially in
dense wavelength-division-multiplexing (DWDM) systems.
A strained multi-quantum well laser diode chip is integrated with thermo-electric cooler
(TEC), thermistor and PIN photodiode in a hermetically sealed 14 pin butterfly package.
A 2-lens-system couples a round shape light from the laser chip efficiently to the fiber
and enables the output power up to 500 mW.
This laser module complies with telecom requirements described in Telcordia
TM
GR-
468 requirement and manufactured in an ISO
TM
9001 certified production line.
Features
Rated output power up to 500 mW (CW)
Widely deployed reliable package design with industry compatible 14 pin butterfly
footprint
Internal Thermo-electric cooler (TEC) and Thermistor for stable operation
Integrated PIN photodiode for back facet monitor
Polarization maintaining fiber pigtail
Wavelength stabilization available with external FBG
EU RoHS compliant
(Exemption 7(c)-1, 13(a) applied)
1/4
ODC-DC003B
Data Sheet
FOL1437 Series
Jul. 2014
(with FBG,
=1400-1465nm)
Absolute Maximum Rating
Parameters
Storage Temperature
Operating Case Temperature
LD Forward Current
LD Reverse Voltage
PD Forward Current
PD Reverse Voltage
TEC Current
TEC Voltage
Sym.
Tstg
Tc
If
Vr
IfPD
VrPD
Ic
Vc
Min.
-40
-20
-
-
-
-
-1.1
-
Max.
85
70
2100
2
5
20
4.5
4.5
Unit
°C
°C
mA
V
mA
V
A
V
Specifications
Parameters
Output Power
1)
Forward Current
Center Wavelength(FBG)
Spectral Width
Forward Voltage
Forward Current at EOL
Monitor Current
Monitor Dark Current
Extinction Ratio
TEC Specification
Thermistor Resistance
Thermistor B Constant
Sym.
Pf
If
Vf
IfEOL
Im
Id
Re
-
Rth
Bth
9.5
-
-
100
-
16
-1.5
-
Min.
Typ.
Table A
-
Table A
-
-
-
-
Table A
10
3900
10.5
-
1.15xIfBOL
2000
100
-
+1.5
3
Max.
(
LD Temperature (Ts) = 25°C)
Unit
mW
mA
nm
nm
V
mA
A
nA
dB
VrPD=5V, Rated Power
VrPD=5V
RMS(-20dB), Rated Power
=1400~1465nm
for FBG
RMS(-20dB), Rated Power
Conditions
Rated Power
k
-
Ts = 25°C
Ts = 25°C
1) Pf: Available Pf may depend upon center wavelength selected.
Table A
*:EOL
Part Number
FOL1437R40
FOL1437R45
FOL1437R50
Pf(mW)
400
450
500
If(mA)
max
1300
1500
1700
Vf(V)
max
2.1
2.2
2.3
Tc(ºC)
70
70
70
Itec(A)*
max
2.6
2.8
3.0
Vtec(V)*
max
3.1
3.3
3.5
Wtotal(W)*
max
10.5
12
13.5
ODC-DC003B
2/4
Data Sheet
FOL1437 Series
Jul. 2014
(with FBG,
=1400-1465nm)

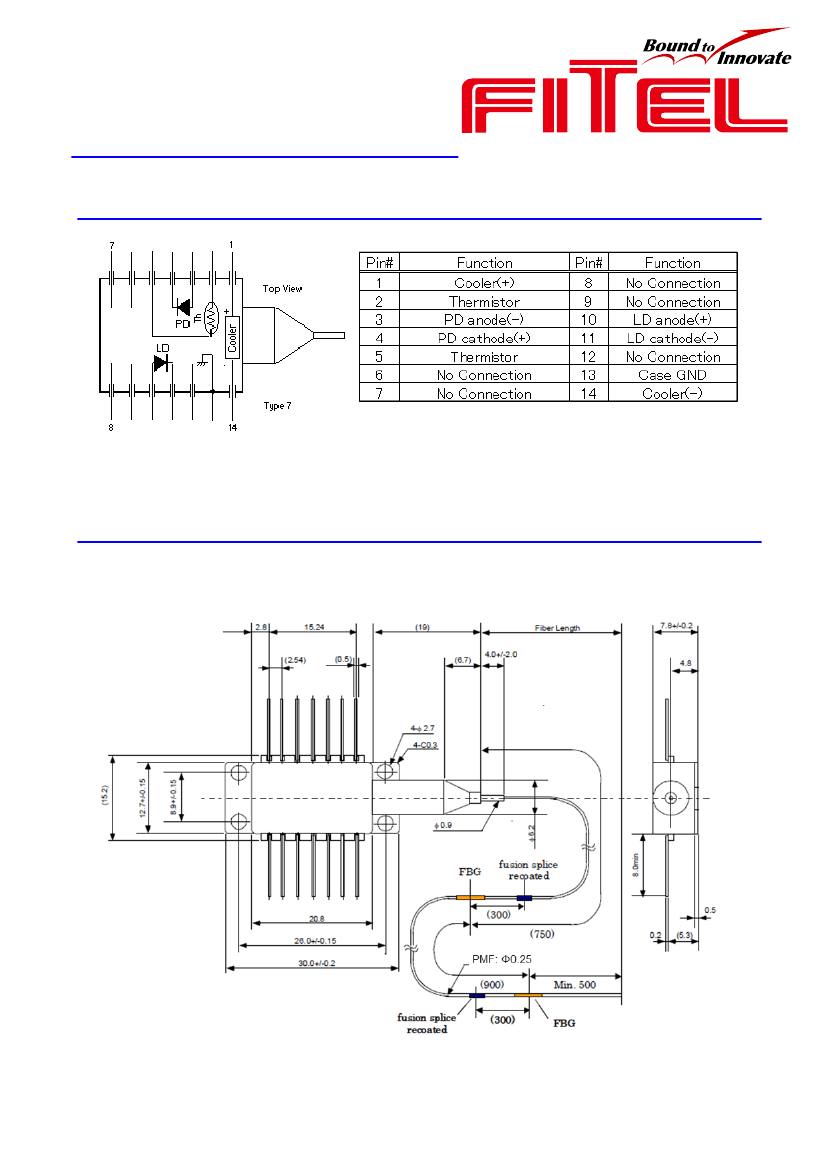

Pin Assignment
Dimensions
FOL1437Rxx-857-xxxx (w/2FBGs)
ODC-DC003B
3/4
Data Sheet
FOL1437 Series
Jul. 2014
(with FBG,
=1400-1465nm)
Ordering information
FOL 1 4 3 7 R
- 8 5 7 -
Wavelength
e.g.1425
Output power
e.g. 500mW : FOL1437R50
Safety information
This product complies with 21 CFR 1040.10 and 1040.11, Class IV laser product. Invisible laser radiation is
emitted from the end of the fiber or connector. Avoid eye or skin exposure to direct or scattered radiation.
DANGER
INVISIBLE LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO DIRECT OR
SCATTERED RADIATION
ISO is a trademark of The International Organization for Standardization.
Telcordia is a trademark of Telcordia Technologies, Inc.
MAXIMUM OUTPUT POW ER: 500mW
W AVELENGTH: 1400 to 1490nm
CLASS IV LASER PRODUCT
