J01020H1214 datasheet, PDF - EEWORLD Datasheet

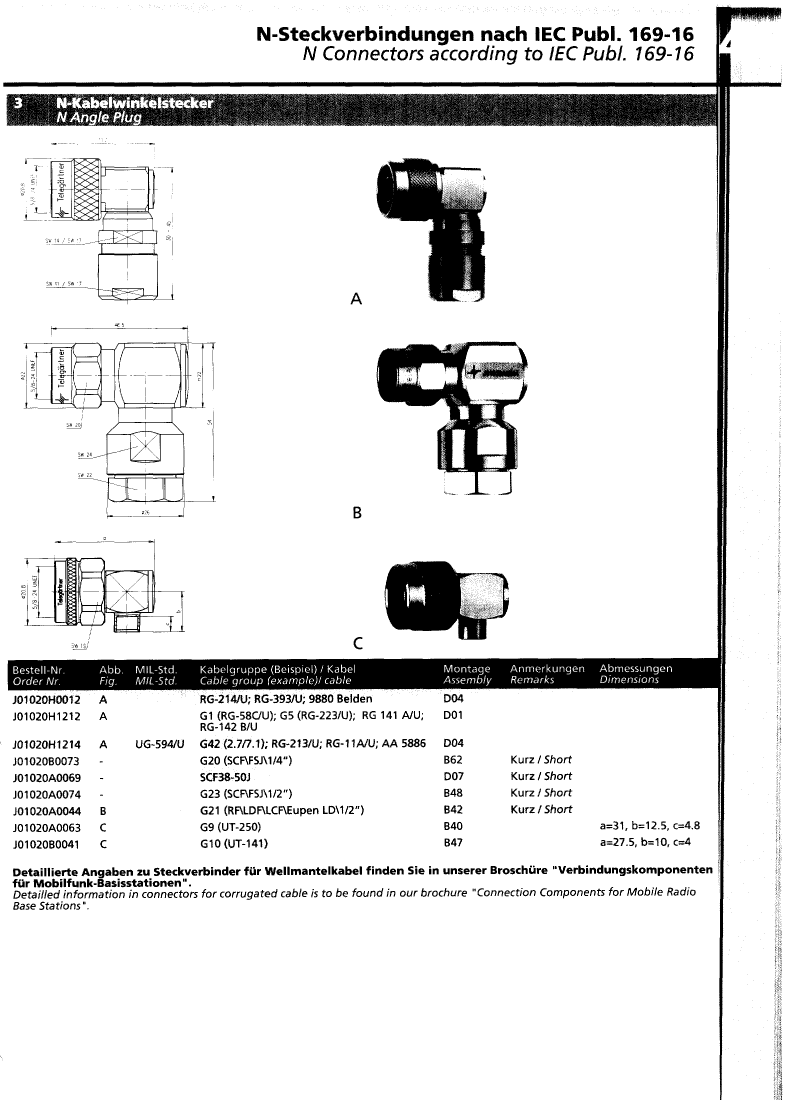

J01020H1214: DescriptionRF N Connector, Male, Cable Mount, Plug,; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerTelegartner Karl Gartner GmbH; Websitehttps://www.telegaertner.com

Download Datasheet Parametric Compare View All

J01020H1214 Overview

RF N Connector, Male, Cable Mount, Plug,

Parameter Name	Attribute value
Maker	Telegartner Karl Gartner GmbH
Reach Compliance Code	compliant
Other features	STANDARD:IEC 169-16, VSWR MAX AT 1GHZ, APPLICABLE CABLES:RG-213/U; RG-11A/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PTFE
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Panel mounting	NO
voltage standing wave ratio	1.44
Base Number Matches	1

	J01020H1214	J01020H1212	J01020B0073	J01020A0069	J01020H0012
Description	RF N Connector, Male, Cable Mount, Plug,	RF N Connector, Male, Cable Mount, Plug,	RF N Connector, Male, Cable Mount, Plug,	RF N Connector, Male, Cable Mount, Plug,	RF N Connector, Male, Cable Mount, Plug,
Maker	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD:IEC 169-16, VSWR MAX AT 1GHZ, APPLICABLE CABLES:RG-213/U; RG-11A/U	STANDARD:IEC 169-16, VSWR MAX AT 1GHZ, APPLICABLE CABLES:RG-58C/U; RG-223/U; RG141A/U; RG-142B/U	STANDARD:IEC 169-16, VSWR MAX AT 1GHZ	STANDARD:IEC 169-16, VSWR MAX AT 1GHZ	STANDARD:IEC 169-16, VSWR MAX AT 1GHZ, APPLICABLE CABLES:RG-214/U; RG-393/U
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
insulator material	PTFE	PTFE	PTFE	PTFE	PTFE
MIL compliance	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz
Panel mounting	NO	NO	NO	NO	NO
voltage standing wave ratio	1.44	1.44	1.44	1.44	1.44
Base Number Matches	1	1	1	1	1
