85HF(R) Series
PRV : 100 - 1600 Volts
Io : 85 Ampere
FEATURES :
*
*
*
*
High surge current capability
Stud cathode and stud anode version
Types up to 1600 V V
RRM
Pb / RoHS Free
STANDARD RECOVERY DIODES
APPLICATION :
*
*
*
*
*
Battery charges
Converters
Power supplies
Machine tool controls
Welding
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Maximum Repetitive
Type Number
(1)
85HF(R)10
85HF(R)20
85HF(R)40
85HF(R)60
85HF(R)80
85HF(R)100
85HF(R)120
85HF(R)140
85HF(R)160
Note :
(1) Non suffix "R" : Stud Normal Polarity (Cathode to Stud). Suffix "R" : Stud Reverse Polarity (Anode to Stud).
Maximum Non-Repetitive
Peak Reverse Voltage
V
RSM
(V)
200
300
500
700
900
1100
1300
1500
1700
I
RRM
max.
@ T
J
= T
Jmax
(mA)
Peak Reverse Voltage
V
RRM
(V)
100
200
400
600
800
1000
1200
1400
1600
9.0
4.5
Page 1 of 5
Rev. 00 : March 19, 2007
Certificate
:
TH97/10561QM
Certificate :
TW00/17276EM
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
PARAMETER
Max. Average Forward Current at T
C
85HF(R)10 - 85HF(R)120 at T
C
= 140 °C
85HF(R)140 - 85HF(R)160 at T
C
= 110 °C
Max. RMS Forward Current
Max. Peak, One-Cycle Forward,
Non-repetitive Surge Current
t = 10 ms
No Voltage
Sinusoidal
half wave,
Initial T
J
=
T
Jmax
Sinusoidal
half wave,
Initial T
J
=
T
Jmax
I
2
√t
T
J
= T
Jmax
V
F(TO)
I
2
t
I
FSM
I
F(RMS)
133
1700
1800
1450
1500
14500
13500
10500
9400
16000
0.68
0.69
1.62
1.75
1.2
0.95
0.25
-65 to +180 -65 to +150
-65 to +180 -65 to +150
1.4
A
2
√s
V
A
2
s
A
A
CONDITIONS
180° conduction, half sine wave
I
F(AV)
85
A
SYMBOL
85HF(R)
10 to 120
140, 160
UNIT
t = 8.3 ms reapplied
t = 10 ms
100% V
RRM
t = 8.3 ms reapplied
Maximum I
2
t for fusing
t = 10 ms
No Voltage
t = 8.3 ms reapplied
t = 10 ms
100% V
RRM
t = 8.3 ms reapplied
Maximum I
2
√t
for fusing
Value of threshold Voltage (up to 1200V)
(for 1400V, 1600V)
Value of forward slope
Resistance
(up to 1200V)
T
J
= T
Jmax
(for 1400V, 1600V)
I
PK
= 125 A, T
J
= 25 °C, tp = 400
μs
rectangular wave
r
f
mΩ
Maximum forward voltage drop
V
FM
R
thJC
R
thCS
T
J
T
STG
V
K/W
K/W
°C
°C
Max. Thermal Resistance, Junction to Case
Max. Thermal Resistance, Case to heatsink
DC operation
Mounting surface, smooth, flat
and greased
Max. Operating junction temperature range
Max. Storage temperature range
Page 2 of 5
Rev. 00 : March 19, 2007
Certificate
:
TH97/10561QM
Certificate :
TW00/17276EM
RATING AND CHARACTERISTIC CURVES ( 85HF(R) Series )

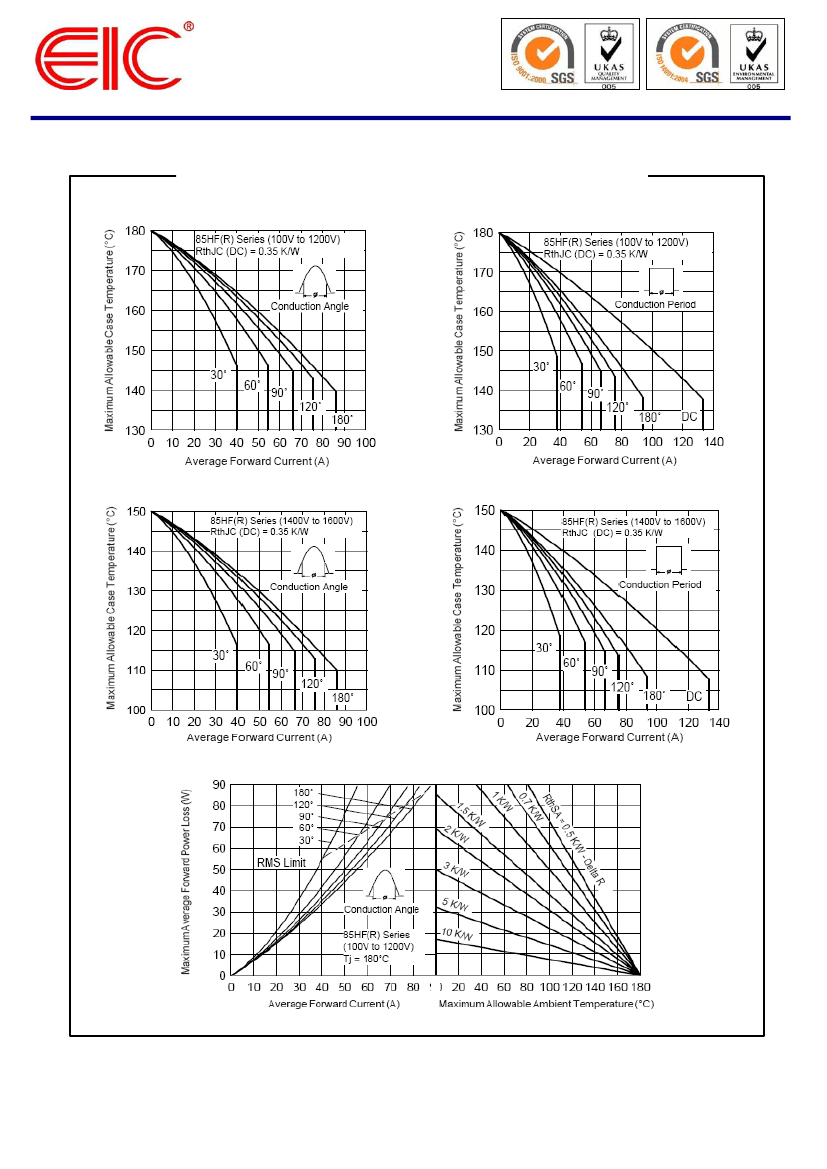

Fig. 1 - Current Ratings Characteristics
Fig. 2 - Current Ratings Characteristics
Fig. 3 - Current Ratings Characteristics
Fig. 4 - Current Ratings Characteristics
Fig. 5 - Forward Power Loss Characteristics
Page 3 of 5
Rev. 00 : March 19, 2007
Certificate
:
TH97/10561QM
Certificate :
TW00/17276EM
RATING AND CHARACTERISTIC CURVES ( 85HF(R) Series )

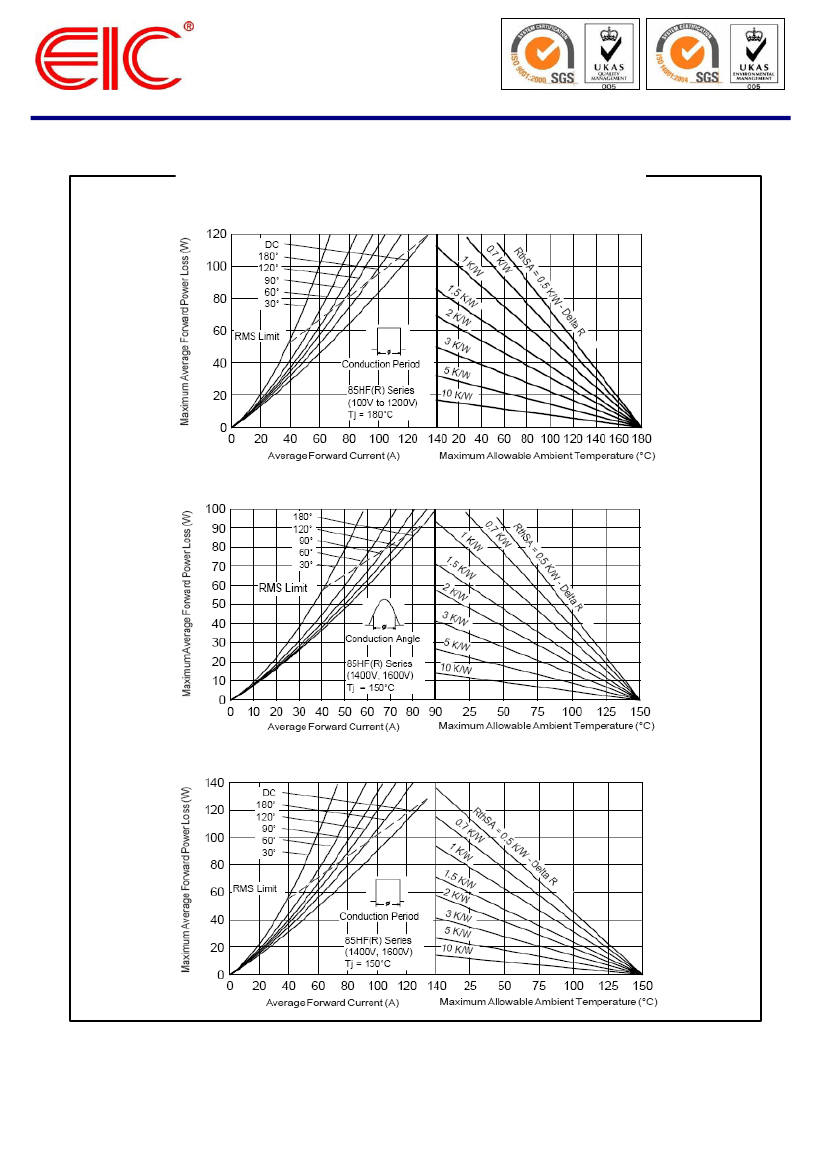

Fig. 6 - Forward Power Loss Characteristics
Fig. 7 - Forward Power Loss Characteristics
Fig. 8 - Forward Power Loss Characteristics
Page 4 of 5
Rev. 00 : March 19, 2007
Certificate
:
TH97/10561QM
Certificate :
TW00/17276EM
RATING AND CHARACTERISTIC CURVES ( 85HF(R) Series )

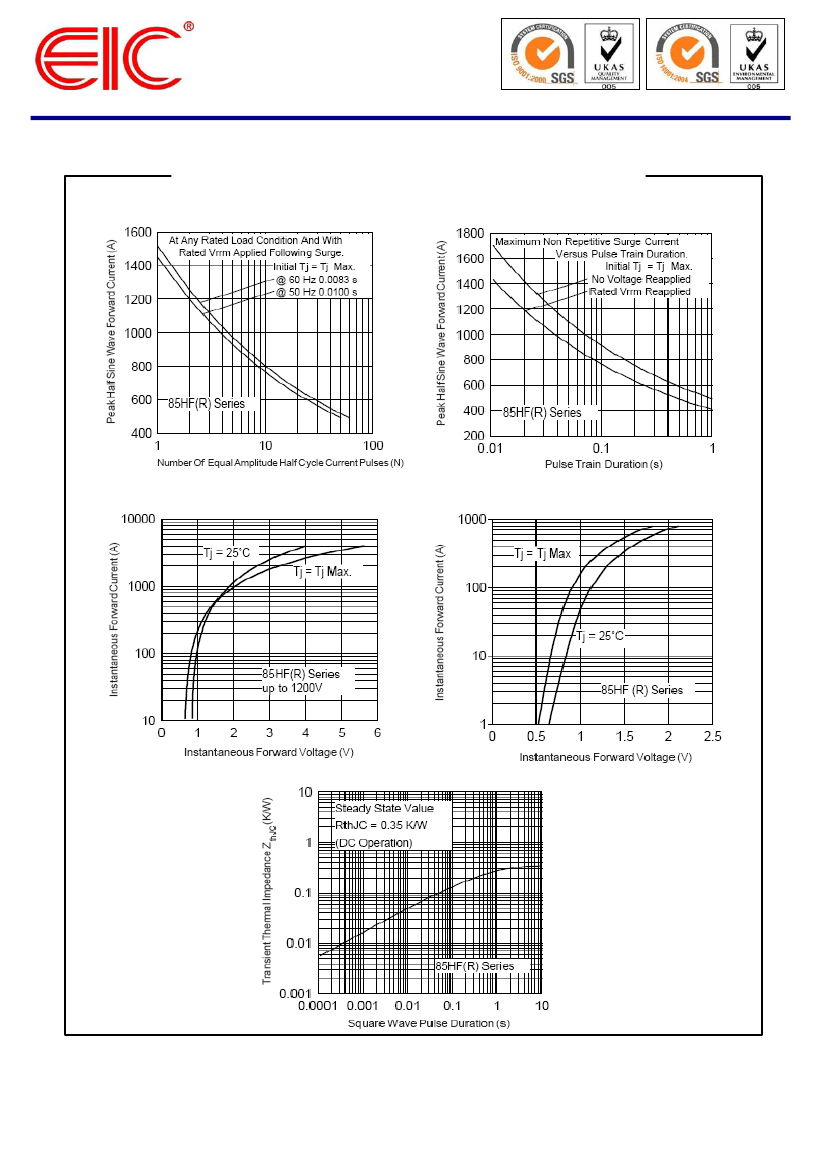

Fig. 9 - Maximum Non-Repetitive Surge Current
Fig. 10 - Maximum Non-Repetitive Surge Current
Fig. 11 - Forward Voltage Drop Characteristics
(up to 1200V)
Fig. 12 - Forward Voltage Drop Characteristics
(for 1400V, 1600V)
Fig. 13 - Thermal Impedance Z
thJC
Characteristics
Page 5 of 5
Rev. 00 : March 19, 2007
