404-1-P-N-45P-8T8-P-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> 404-1-P-N-45P-8T8-P-C

404-1-P-N-45P-8T8-P-C: DescriptionRack and Panel Connector, 45 Contact(s), Male-Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size1MB，3 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

404-1-P-N-45P-8T8-P-C Overview

Rack and Panel Connector, 45 Contact(s), Male-Male, Crimp Terminal, Plug,

404-1-P-N-45P-8T8-P-C Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	45
Base Number Matches	1

Preview

Download Datasheet

View All

ARINC 404 Series Connectors

MIL-C-81659 Anti-Rotational Twinax Insert Arrangements

Sabritec’s ARINC 404 connector series is available with high speed Fibre Channel and/

or Ethernet Twinax and Quadrax contacts. These connectors come standard with anti-

rotational keyed insert assemblies and high speed differential pair signaling. Designed

for 1394 Firewire, Gigabit Ethernet, 100 Base-T Ethernet, high speed video Hot-Link,

and Fibre Channel data links. Quadrax high speed Ethernet and matched impedance

150 Ohm differential pair insert assemblies are also available.

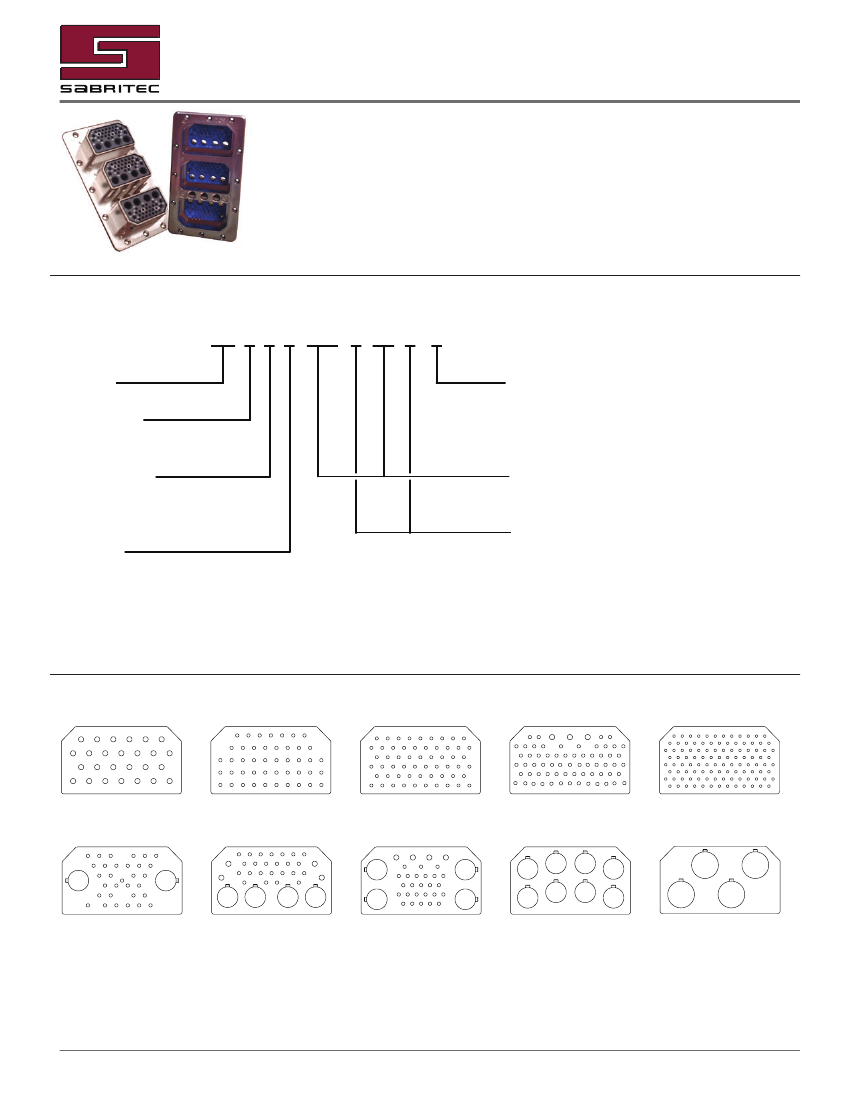

ARINC 404 Part Number Description Code

404 - 2 - R - C - 106 - S - 8T8 - P - P

PREFIX:

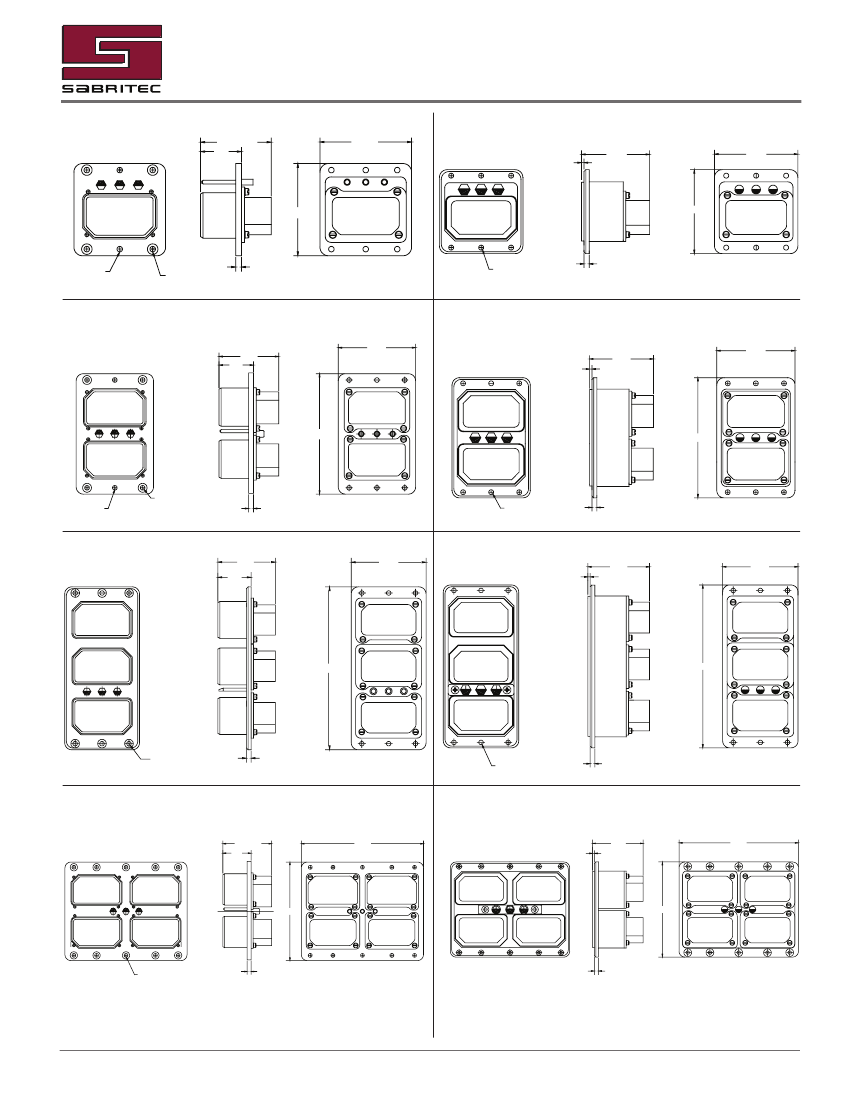

SHELL SIZE:

1, 2, 3

SHELL STYLE:

P- Plug

R - Receptacle

PLATING:

C - Cadmium (Yellow Chromate)

N - Electroless Nickel

CONTACT TERMINATION:

S - Solder Cup

P - PC Tail

C - Crimp

INSERT ARRANGEMENTS:

Cavity A, B, C, D, E, F

CONTACT TYPE:

P - Pin

(Front Release/Rear Removable PC Tail Version)

S - Socket

(Rear Release/Rear Removable Cable Mount)

ARINC 404 Insert Arrangements

26 #16 CONTACTS

Insert Arrangement: 26

45 #20 CONTACTS

Insert Arrangement: 45

57 #20 CONTACTS

Insert Arrangement: 57

64 #20, 3 #16 CONTACTS

Insert Arrangement: 67

106 #22 CONTACTS

Insert Arrangement: 106

30 #20

2 #5 TWINAX/QUADRAX

Insert Arrangement: 32T2

24 #20, 4 #16,

4 #5 TWINAX/QUADRAX

Insert Arrangement: 32T4

25 #20, 4 #16,

4 #5 TWINAX/QUADRAX

Insert Arrangement: 33T4

8 #5 TWINAX/QUADRAX

Insert Arrangement: 8T8

(For ARINC Size 1 Quadrax contact only)

4 #1 QUAD CONTACT

Insert Arrangement: 4Q1

Notes:

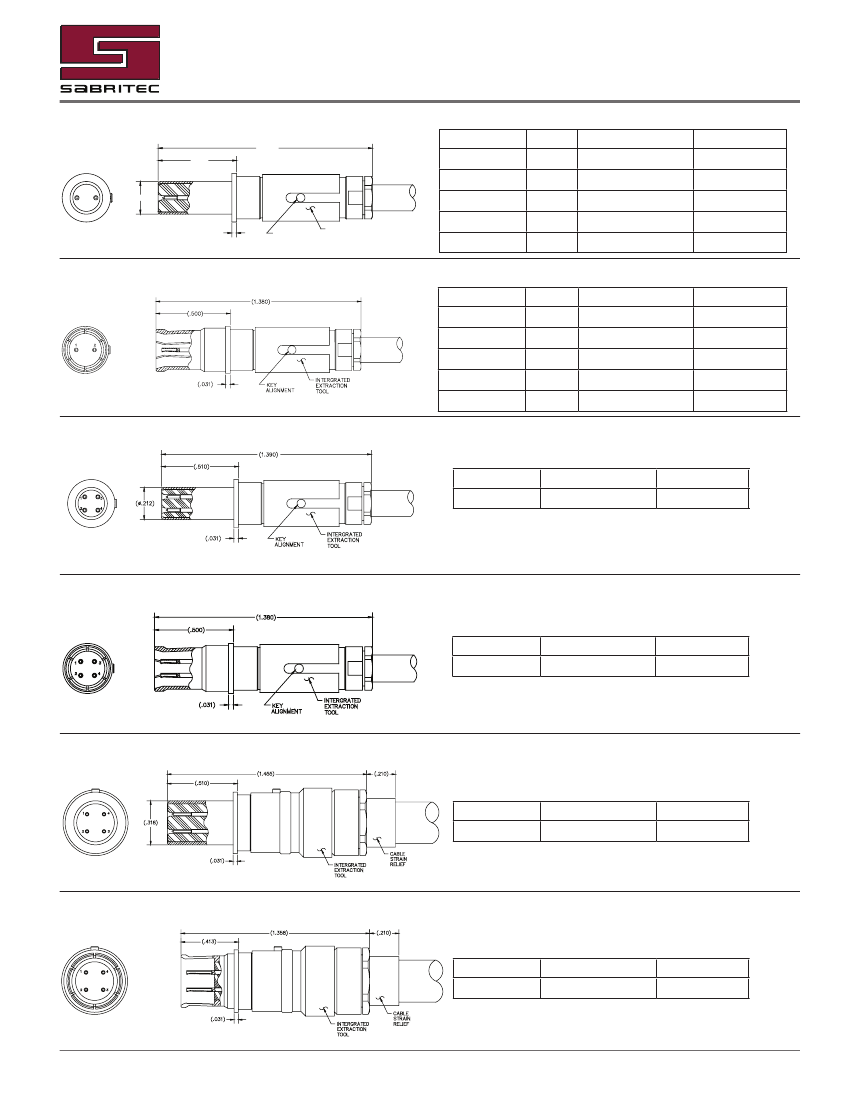

Size 5 Twinax and Quadrax Contact Cavities are anti-rotational

Size 1 Quadrax Contact Cavities are anti-rotational

Sabritec provides specialty, enhanced performance connectors and cable assemblies and as such does not currently offer circular, rack and panel, or D-subminiature connectors that are listed

on military standard Qualified Products Lists (QPL) per applicable detail specification sheets. Sabritec’s connectors are fully intermateable with applicable QPL products and meet the applicable

requirements of all military standards listed in this catalog.

Pg. 58

17550 Gillette Avenue, Irvine, CA 92614 • www.sabritec.com • Tel: (949) 250-1244 • Fax (949) 250-1009
