F335-40-BULK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> F335-40-BULK

F335-40-BULK: DescriptionHCMOS Output Clock Oscillator, 40MHz Nom, SMD, 4 PIN; CategoryPassive components oscillator; File Size179KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

F335-40-BULK Overview

HCMOS Output Clock Oscillator, 40MHz Nom, SMD, 4 PIN

F335-40-BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Other features	STANDBY; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.2mm
longest rise time	6 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

HcMOS 3.2x2.5mm 3.3V SMD Oscillator

Model: F330 Series

Page 1 of 2

RoHS compliant / Pb Free

XpressO

Equivalent

FXO-HC33

Why XpressO?

Lower Cost, Faster Delivery, Low Jitter!

Rev. 10/21/2008

http://www.foxonline.com/need_a_sample.htm

FEATURES

•

3.3V Operation

HCMOS Output

Standby Function

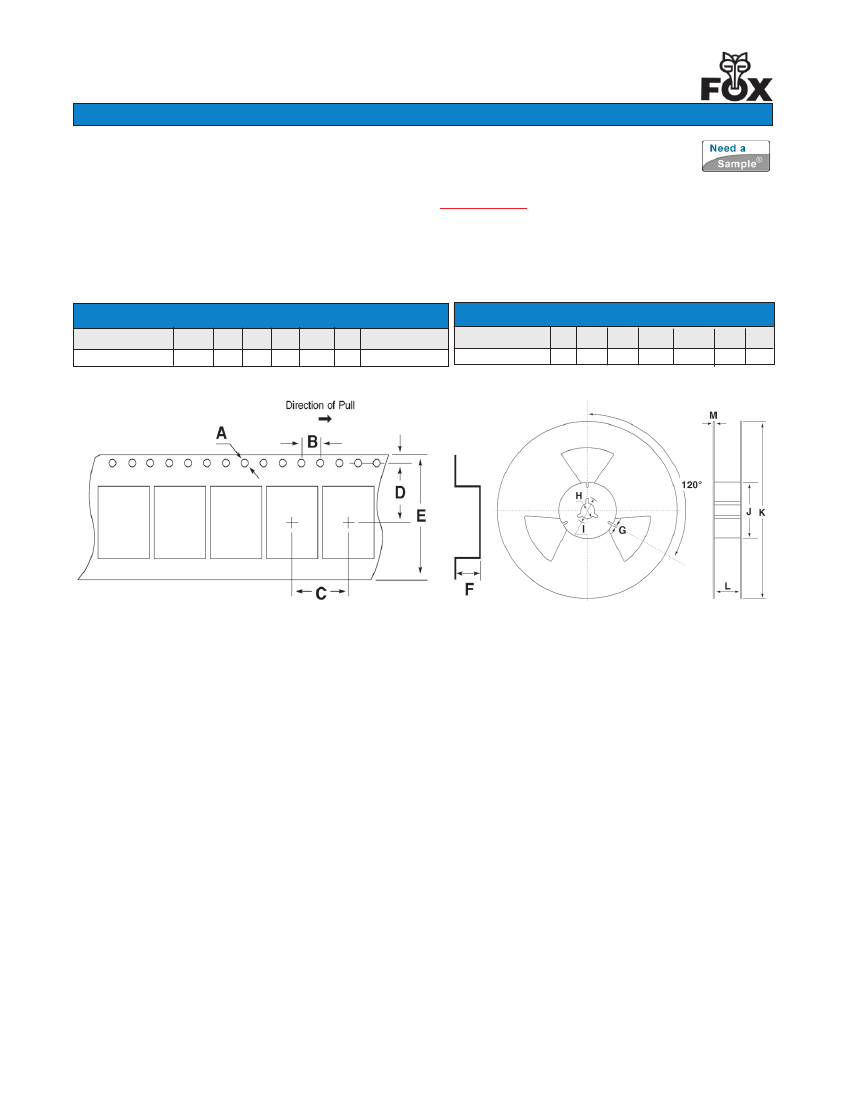

Tape and Reel

(2,000 pcs. STD)

• PART nUMbER SElEcTiOn

Learn More - Internet Required

Part Number

584-Frequency-xxxxx

585-Frequency-xxxxx

586-Frequency-xxxxx

587-Frequency-xxxxx

588-Frequency-xxxxx

589-Frequency-xxxxx

590-Frequency-xxxxx

Model

Number

F330

F330R

F335

F335R

F336

F336R

F338

Frequency

Stability

±100PPM

±50PPM

±25PPM

±25PPM*

±20PPM*

Operating

Temperature (ºC)

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

-40 ~ +85

-10 ~ +70

Frequency

Range (MHz)

0.625 ~ 75.000

1.800 ~ 50.000

3 .2 ± 0.2

Top

View

Dot denotes

Pin 1

2 .5 ± 0.2

1 .2 M ax

• ElEcTRicAl cHARAcTERiSTicS

PARAMETERS

Frequency Range (F

)

Storage Temperature Range (T

stg

)

Supply Voltage

)

Input Current

)

0.625 ~ 20.000 MHz

20.000+ ~ 40.000 MHz

40.000+ ~ 60.000 MHz

60.000+ ~ 75.000 MHz

Output Symmetry (50% V

)

Rise Time (10% ~ 90% V

) (T

)

Fall Time (90% ~ 10% V

) (T

)

Output Voltage

)

Output Current

)

Output Load

(HCMOS)

Standby Current

Start-up Time

)

Output Disable Time

Output Enable Time

Reflow Soldering Temp

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

0.625 ~ 75.000 MHz

-55ºC ~ +125ºC

3.3V ± 10%

7mA

13mA

19mA

24mA

45% ~ 55%

6nS

10% V

90% V

Min

2mA Min

-2mA Min

15pF

10µA

5mS

150nS

5mS

260ºC / 10 Seconds

Bottom

View

1 .2

0 .8

0 .7

0 .9

Recommended

Solder Pad Layout

1 .4

1 .2

0 .5

1 .0

All dimensions are in millimeters.

Pin Connections

# 1 E /D

#2 G ND

# 3 O u tp u t

#4 V

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration. *Excludes Shock/Vibration

An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.

Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to

minimize power supply line noise.

Drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may

vary. All specifications subject to change without notice.

• EnAblE / DiSAblE FUncTiOn

INH (Pin 1)

OUTPUT (Pin 3)

OPEN

ACTIVE

'1' Level V

≥

70% V

ACTIVE

'0' Level V

≤

30% V

High Z

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
