GU-106DM1: DescriptionElectromechanical Relay, SPST, Latched, 9VDC (Coil), 30A (Contact), 30VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size410KB，4 Pages; ManufacturerGood Sky Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

GU-106DM1 Overview

Electromechanical Relay, SPST, Latched, 9VDC (Coil), 30A (Contact), 30VDC (Contact), Random, AC/DC Output

GU-106DM1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	23 mm
body height	16.8 mm
Body length or diameter	28.2 mm
Coil operating voltage (DC)	4.8 V
Coil release voltage (DC)	0.3 V
Coil resistance	40 Ω
Maximum coil voltage (DC)	9 V
Nominal coil voltage	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	7200VA@240VAC
Contact (AC) maximum rated R load	30A@240VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated power R load	900W@30VDC
Contact (DC) maximum rated R load	30A@30VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1500 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	4
operating hours	15 ms
Maximum operating temperature	55 °C
Minimum operating temperature	-25 °C
PCB hole count	4
physical size	28.2mm x 23mm x 16.8mm
Guideline	UL
Relay action	LATCHED
Relay style	1 FORM A
Relay function	SPST
release time	10 ms
Terminal length	0.0059 inch
Termination type	SOLDER
weight	21.6 g
Base Number Matches	1

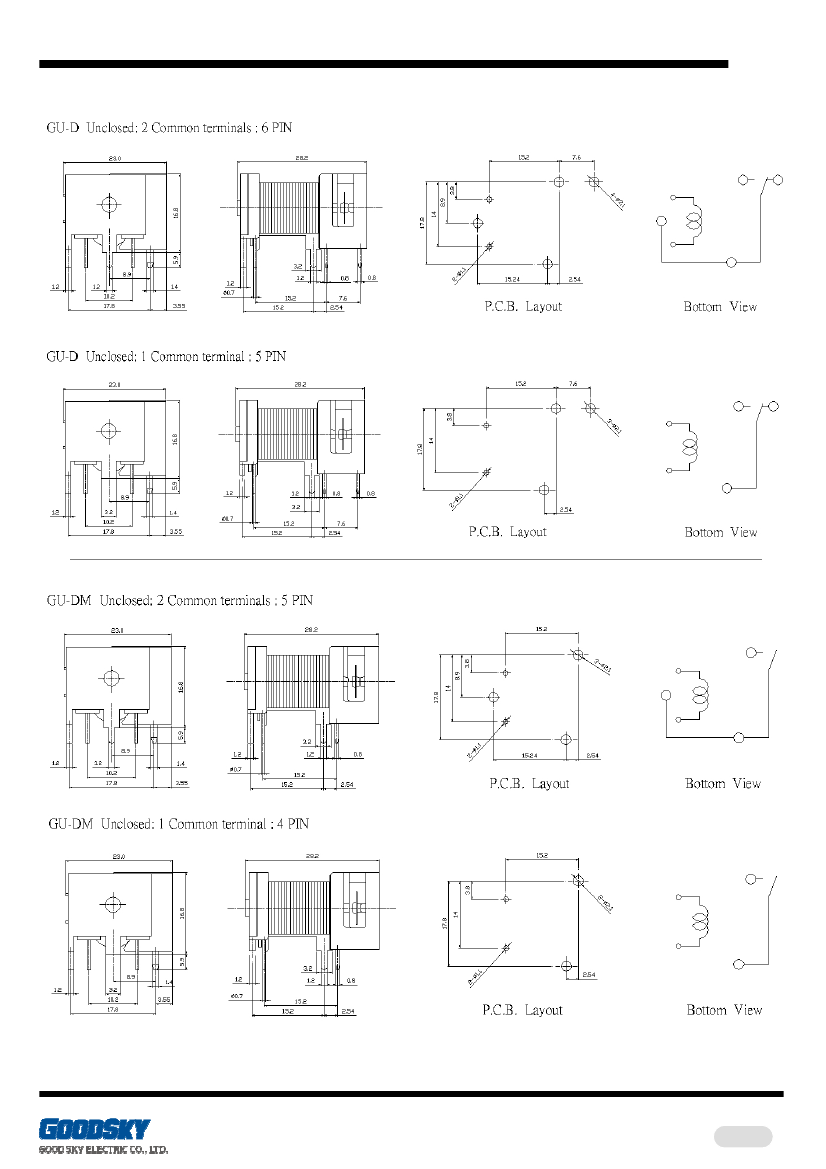

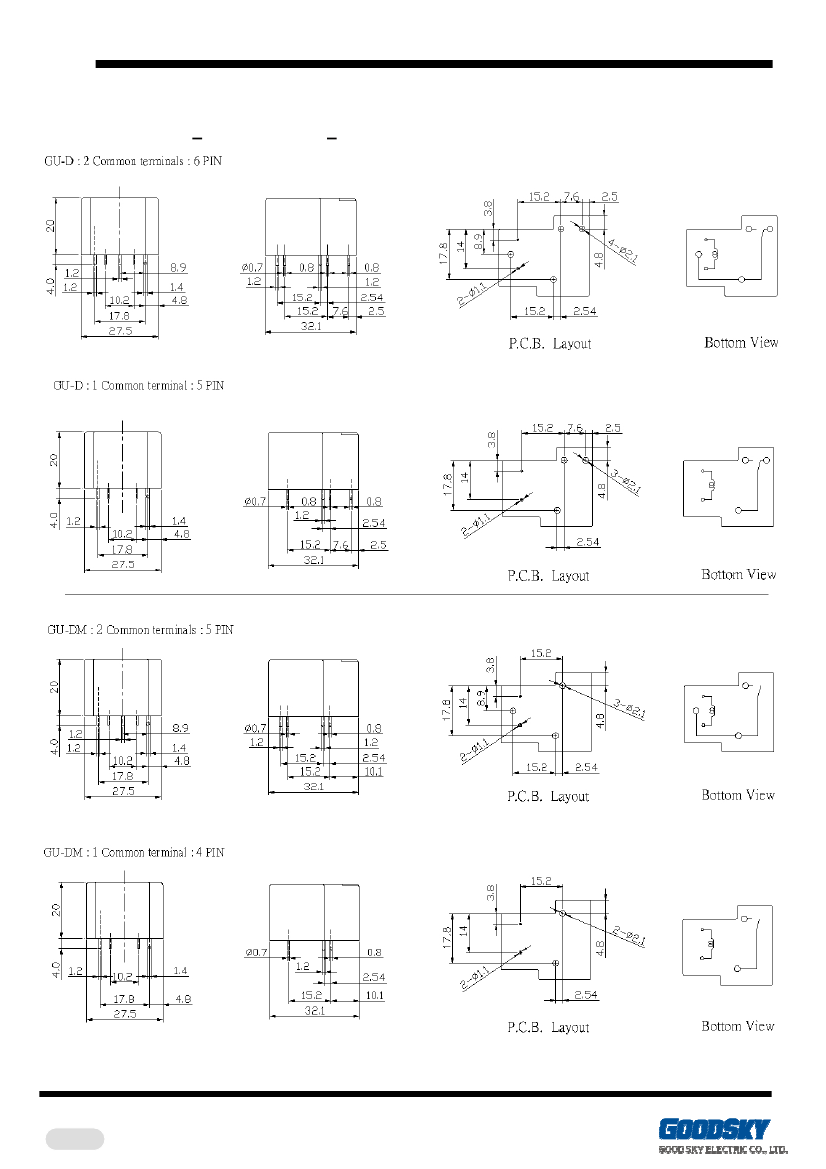

Preview

Download Datasheet

View All

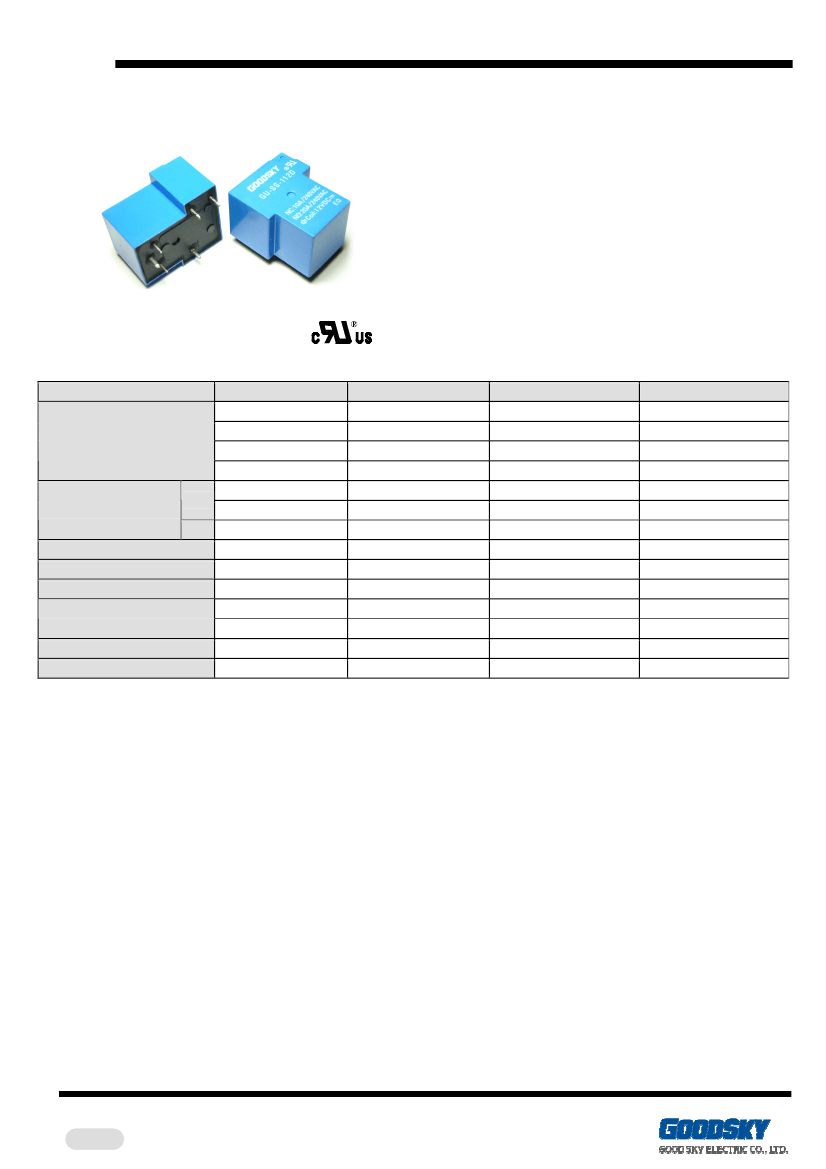

Main Feature

1. Single contact Form (SPST) series Relay offers

switching capacity 30A in small size.

2. Dust cover, sealed & unclosed cover types are

available.

3. UL Class F insulation available.

4. Halogen Free series available.

5. Comply with RoHS and REACH regulations

Contact Rating

Load Type

GU (DM)

30A 120VAC

30A 240VAC

30A 30VDC

TV-8 120VAC

1-1/2HP 240VAC

30A

AC 240V

30A

7,200VA

900W

Ag Alloy

SPST

GU (DB)

10A 240VAC

10A 30VDC

1/2HP 240VAC

10A

AC 240V

10A

2,400VA

300W

Ag Alloy

SPST

GU (D)

NC: 20A 240VAC

10A 30VDC

NO: 30A 240VAC

20A 30VDC

TV-8 120VAC

1-1/2HP 240VAC

1/2HP 240VAC

30A

AC 240V

30A

7,200VA

600W

Ag Alloy

SPDT

GU (D1)

NC: 10A 240VAC

10A 30VDC

NO: 20A 240VAC

20A 30VDC

TV-8 120VAC

1-1/2HP 240VAC

1/2HP 240VAC

20A

AC 240V

20A

4,800VA

600W

Ag Alloy

SPDT

Rated Load (Resistive)

Contact Capacity

Rated Carrying Current

Max. Allowable Voltage

Max. Allowable Current

Max. Allowable Power

Force

Contact Material

Contact Form

Application

Domestic Appliances, Heating, Ventilating and Conditioning

System, Car Control Switching Box, General Power

Switching Applications.

Performance (at Initial Value)

Contact Resistance ............. 100mΩMax.@1A,6VDC

Operate Time....................... 15 mSec. Max.

Release Time ...................... 10 mSec. Max.

Dielectric Strength:

Between Coil & Contact....... 1,500VAC at 50/60 Hz

for one minute

Between Contacts ............... 1,500VAC at 50/60 Hz

for one minute

Insulation Resistance .......... 100 MegaΩ Min. at

500VDC

Max. On/Off Switching:

Electrical .............................. 6 Cycles per Minute

Mechanical .......................... 300 Cycles per Minute

Temperature Range ............ -25½+55°C

Humidity Range ................... 45½85% RH.

Coil Temperature Rise......... 60°C Max.

Vibration:

Endurance ........................... 10 to 55 Hz dual

amplitude width 1.5 mm

Error Operation.................... 10 to 55 Hz dual

amplitude width 1.5 mm

Shock:

Endurance ......................... 1,000 m/S

Error Operation.................... 50

m/S

Life Expectancy:

Mechanical ........................ 10 Operations at No

Load condition

Electrical ............................ 10 Operations at

Resistive Load

Weight ................................. Flow Solder Type: 27.2g

Open Type: 21.6g

Safety Standard & File Number

UL & C-UL ......................... E141060
