Printed-circuit board connector - FK-MPT 0,5/ 8-ST-3,5
NZ88975H5 - 1712445
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 4 A, number of positions: 8, pitch: 3.5 mm, connection method: Push-in
spring connection, color: green, contact surface: Tin

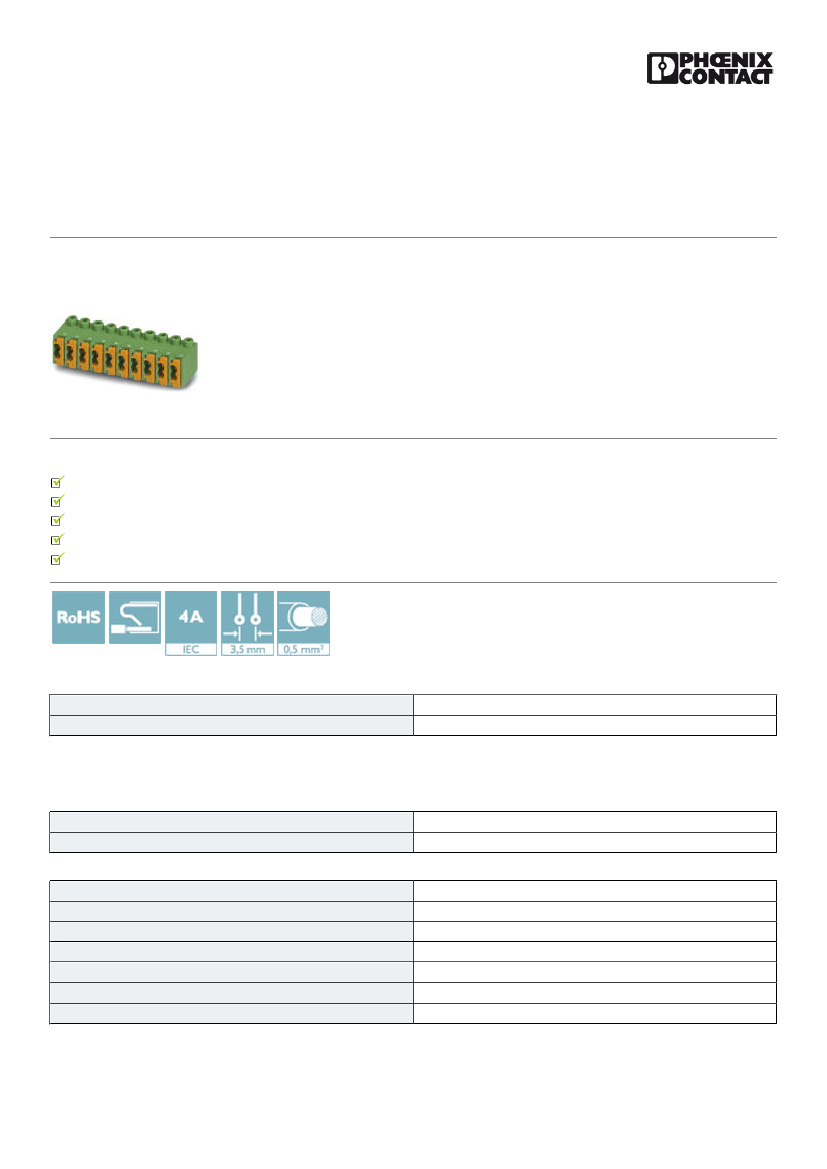

The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Potentials can be easily looped through – ideal for BUS applications
Small component size for applications where space is at a premium
Key Commercial Data
Packing unit
Country of origin
1 pc
India
Technical data
Dimensions
Pitch
Dimension a
3.5 mm
24.5 mm
General
Range of articles
Number of positions
Connection method
Rated voltage (III/3)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
FK-MPT 0,5/..-ST
8
Push-in spring connection
160 V
EN-VDE
4A
0.5 mm²
01/14/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1712445
Printed-circuit board connector - FK-MPT 0,5/ 8-ST-3,5
NZ88975H5 - 1712445
Technical data
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.12 mm²
0.5 mm²
26
20
28
20
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27141109
27141190
27260700
27260700
27440309
27440309
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002643
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
34131203
39121432
39121409
01/14/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1712445
Printed-circuit board connector - FK-MPT 0,5/ 8-ST-3,5
NZ88975H5 - 1712445
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / SEV / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
4A
28-20
FILE E 60425
300 V
4A
28-20
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
4A
28-20
FILE E 60425
300 V
4A
28-20
SEV
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
https://www.electrosuisse.ch/de/meta/shop/produktezertifikate.html
160 V
4A
0.5
IK-3558-M2
EAC
B.01742
01/14/2019 Page 3 / 4
https://www.phoenixcontact.com/in/products/1712445
Printed-circuit board connector - FK-MPT 0,5/ 8-ST-3,5
NZ88975H5 - 1712445
Approvals
cULus Recognized
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/14/2019 Page 4 / 4
