244263 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 244263

244263: DescriptionD Subminiature Connector, 3 Contact(s), Female, Surface Mount Terminal,; CategoryThe connector The connector; File Size173KB，7 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

244263 Overview

D Subminiature Connector, 3 Contact(s), Female, Surface Mount Terminal,

244263 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SURFACE MOUNT
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

D-Sub Connectors

Right Angle Female High Current 7W2, 3W3, 3WK3

Versions with stamped high current contacts

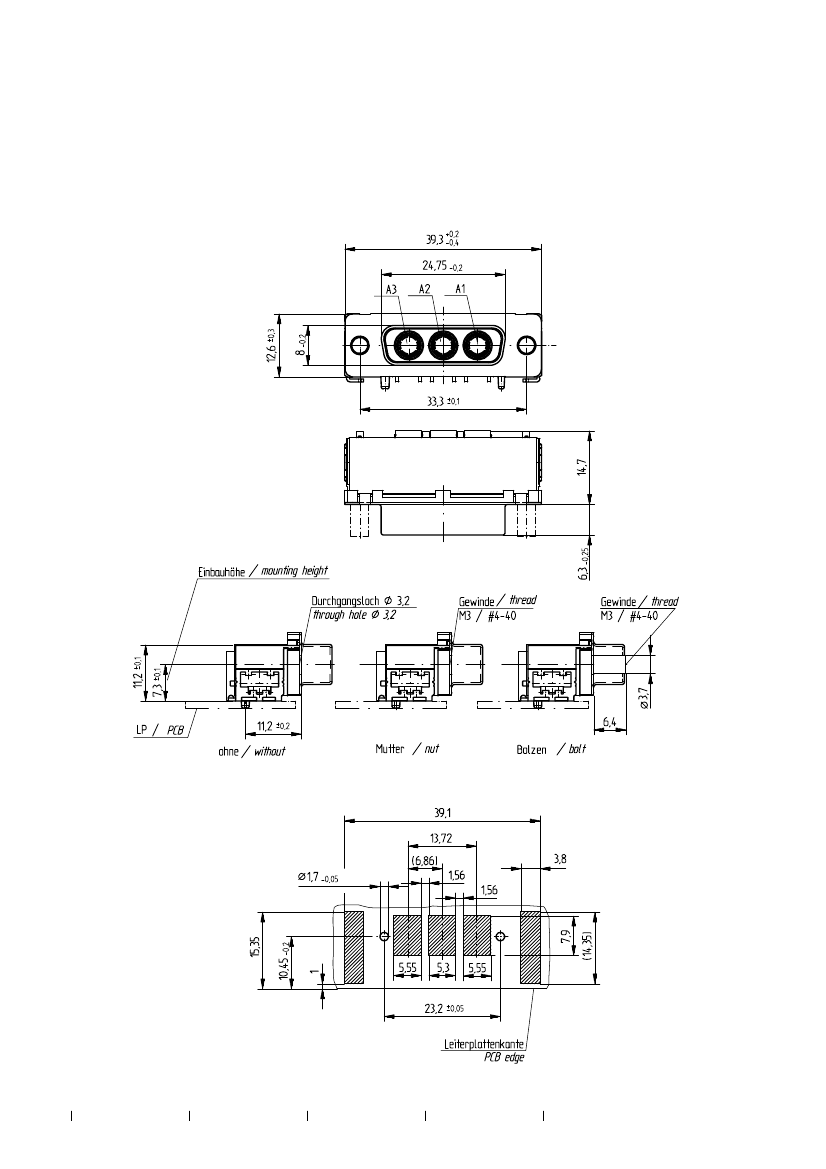

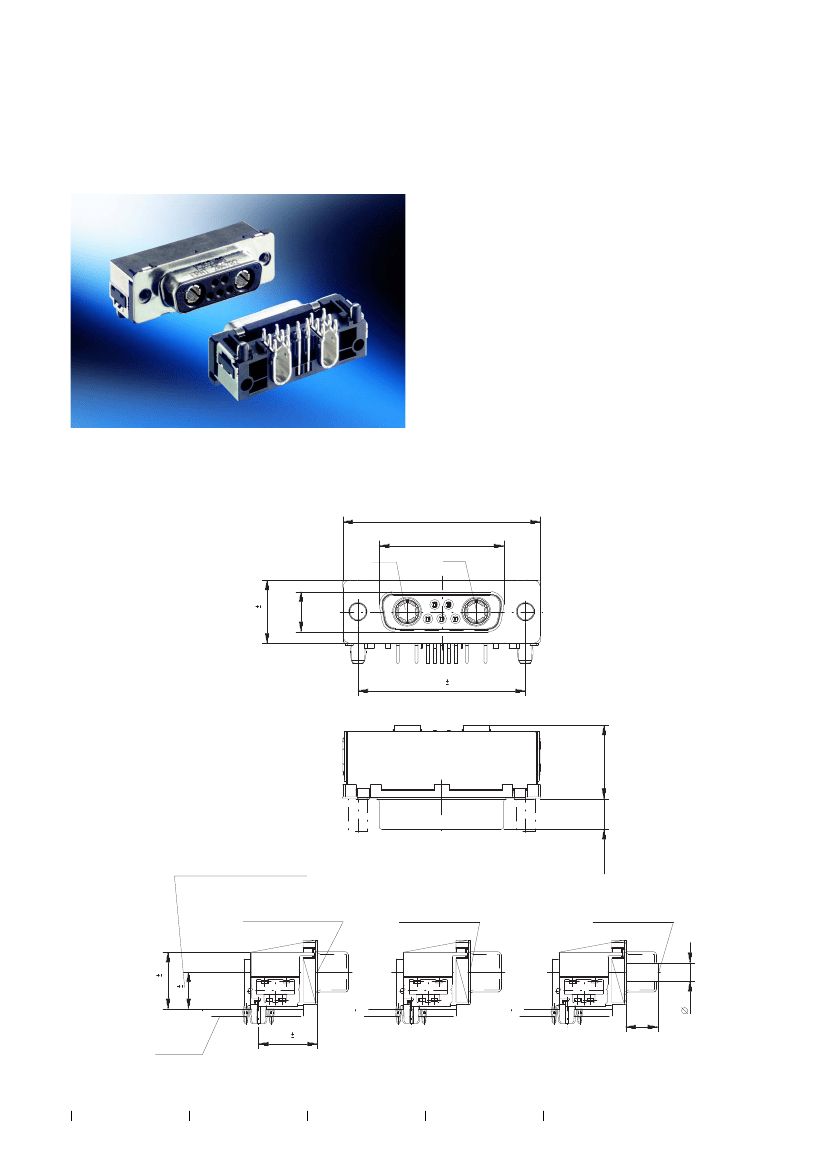

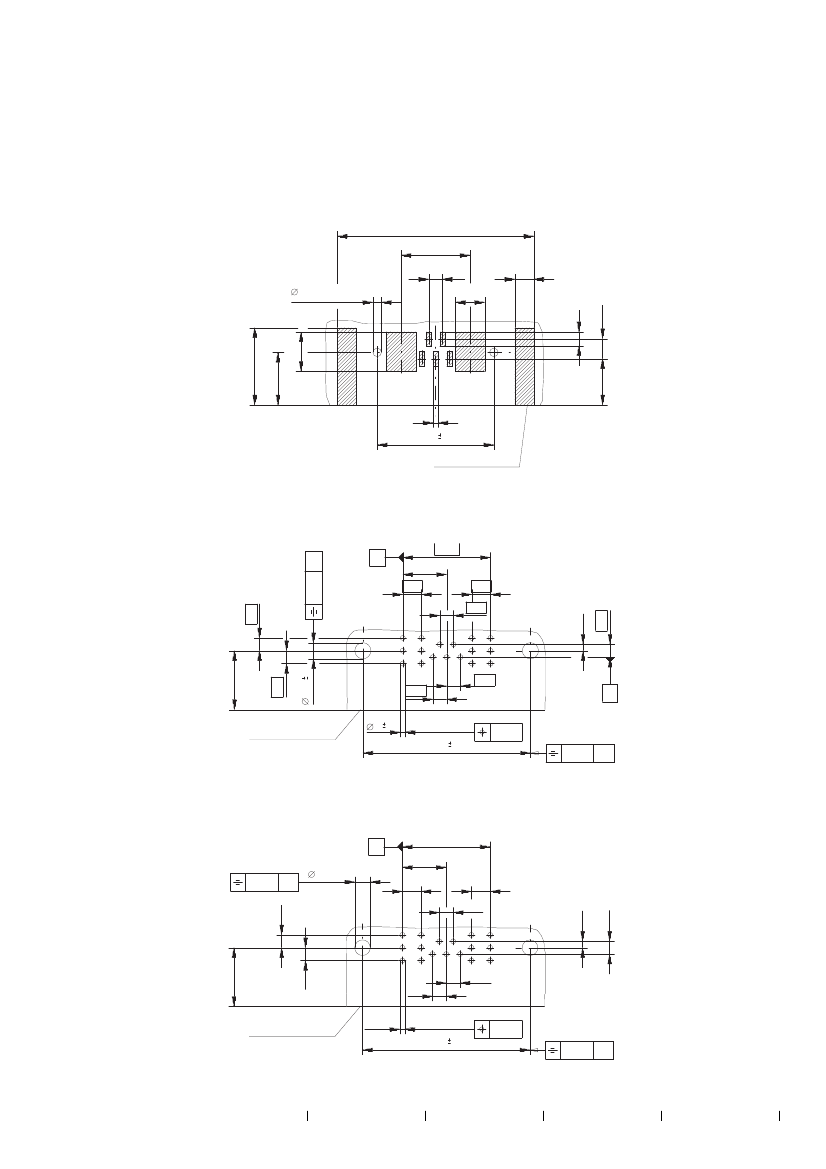

Dimensional Drawing

7W2 SMT, THR and Pressfit Versions,

Assembly Height 7.3 mm

39,3

-0,4

24,75

+0,2

-0,2

0,3

12,6

-0,2

33,3

0,1

Einbauhöhe / mounting height

ohne /

without

Mutter /

Gewinde /

M3 / #4-40

nut

thread

Bolzen /

Gewinde /

6,3

-0,25

14,7

bolt

thread

Durchgangsloch ø3,2

through hole ø 3,2

M3 / #4-40

0,1

11,2

7,3

0,1

6,4

11,7

LP / PCB

0,2

All dimensions in mm

Catalog E 074573

11/08

Edition 2

www.erni.com

3,7
