DG411DY-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG411DY-T

DG411DY-T: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, PLASTIC, MS-012AC, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，14 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

DG411DY-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG411DY-T	-	-	View	Buy Now

DG411DY-T Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, PLASTIC, MS-012AC, SOIC-16

DG411DY-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	PLASTIC, MS-012AC, SOIC-16
Contacts	16
Reach Compliance Code	unknown
Other features	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-20 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	145 ns
Maximum connection time	175 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	3.9 mm
Base Number Matches	1

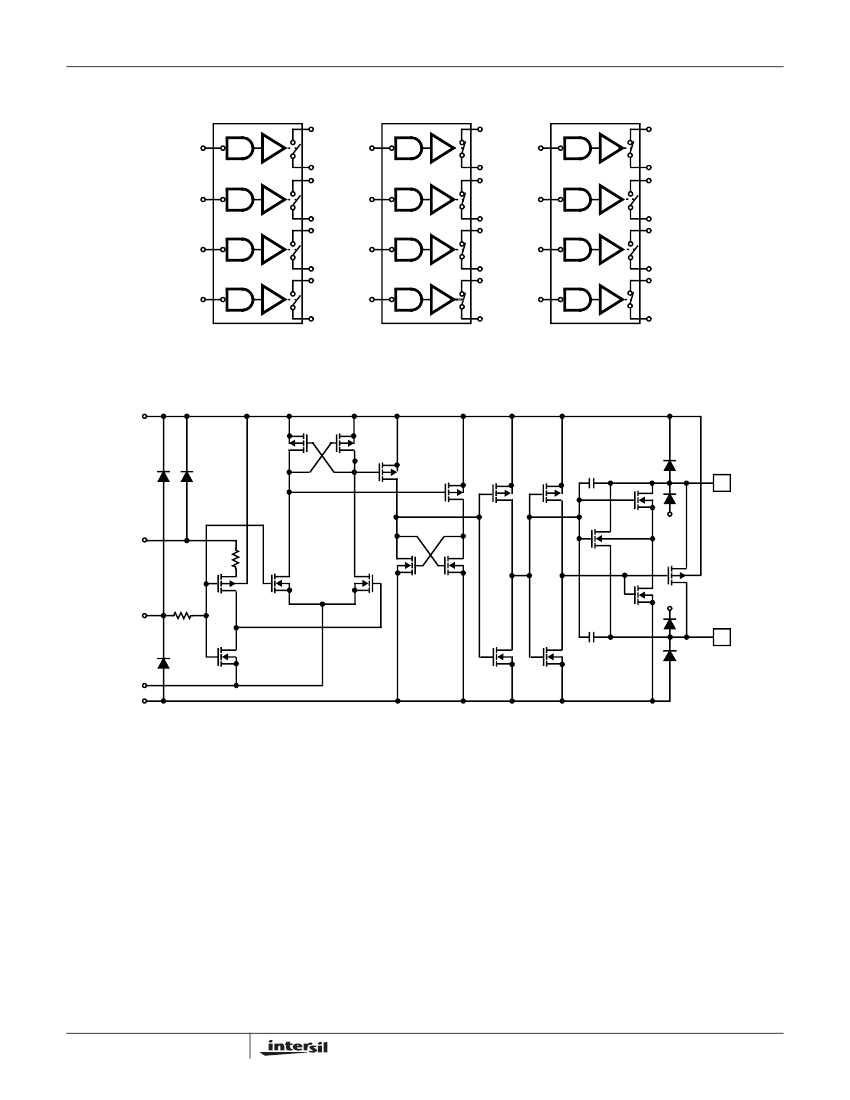

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

DG411DY-T Related Products

	DG411DY-T	DG411DYZ	DG413DY-T	DG411DVZ	DG412DYZ	DG413DJZ	DG413DYZ	DG412DY-T
Description	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, PLASTIC, MS-012AC, SOIC-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, ROHS COMPLIANT, PLASTIC, MS-012AC, SOIC-16	SPST, 4 Func, 1 Channel, CMOS, PDSO16, PLASTIC, MS-012AC, SOIC-16	QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, ROHS COMPLIANT, PLASTIC, MS-153AB, TSSOP-16	SPST, 4 Func, 1 Channel, CMOS, PDSO16, ROHS COMPLIANT, PLASTIC, MS-012AC, SOIC-16	SPST, 4 Func, 1 Channel, CMOS, PDIP16, ROHS COMPLIANT, PLASTIC, MS-001BB, DIP-16	SPST, 4 Func, 1 Channel, CMOS, PDSO16, ROHS COMPLIANT, PLASTIC, MS-012AC, SOIC-16	SPST, 4 Func, 1 Channel, CMOS, PDSO16, PLASTIC, MS-012AC, SOIC-16
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free	Lead free	Lead free	Lead free	Contains lead
Parts packaging code	SOIC	SOIC	SOIC	TSSOP	SOIC	DIP	SOIC	SOIC
package instruction	PLASTIC, MS-012AC, SOIC-16	SOP,	SOP,	TSSOP,	SOP,	DIP,	SOP,	SOP,
Contacts	16	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	9.9 mm	9.9 mm	5 mm	9.9 mm	19.17 mm	9.9 mm	9.9 mm
Maximum negative supply voltage (Vsup)	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Negative supply voltage minimum (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16	16	16
Nominal off-state isolation	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB
Maximum on-state resistance (Ron)	35 Ω	35 Ω	35 Ω	35 Ω	35 Ω	35 Ω	35 Ω	35 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	TSSOP	SOP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	260	NOT SPECIFIED	260	260	NOT APPLICABLE	260	240
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.2 mm	1.75 mm	5.33 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Minimum supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	YES	NO	YES	YES
Maximum disconnect time	145 ns	145 ns	145 ns	145 ns	145 ns	145 ns	145 ns	145 ns
Maximum connection time	175 ns	175 ns	175 ns	175 ns	175 ns	175 ns	175 ns	175 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	0.65 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	30	NOT SPECIFIED	30	30	NOT APPLICABLE	30	30
width	3.9 mm	3.9 mm	3.9 mm	4.4 mm	3.9 mm	7.62 mm	3.9 mm	3.9 mm
Is it Rohs certified?	incompatible	conform to	incompatible	conform to	conform to	conform to	conform to	-
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	-	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Other features	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	-	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY	ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
JESD-609 code	e0	e3	-	e3	e3	e3	e3	e0
Humidity sensitivity level	1	2	-	1	2	-	3	1
Terminal surface	TIN LEAD	MATTE TIN	-	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	TIN LEAD
