GRS-540-SP-QRP Overview

RF Connector, Male, Cable Mount,

GRS-540-SP-QRP Parametric

Parameter Name	Attribute value
Maker	Corning Cable Systems
Reach Compliance Code	unknown
ECCN code	EAR99
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact completed and terminated	TIN
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
JESD-609 code	e3
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	1 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.45
Base Number Matches	1

Preview

Download Datasheet

View All

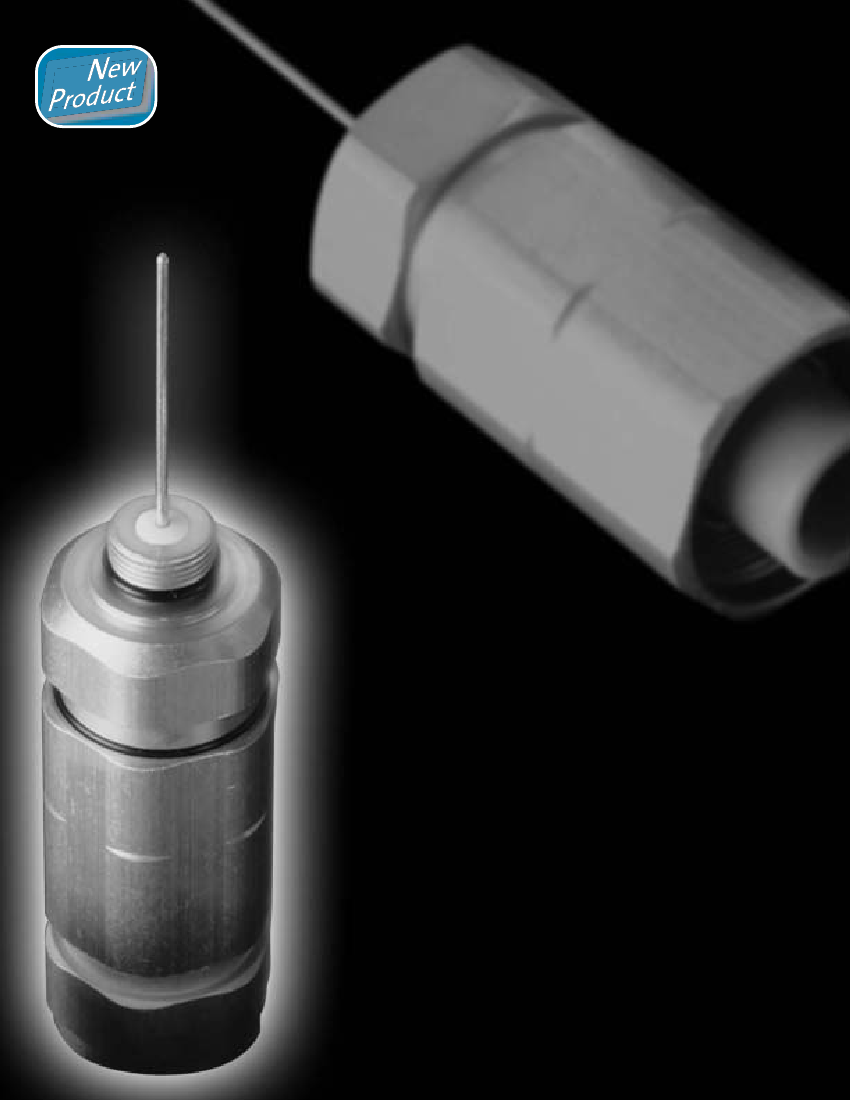

GRS QR+

Connector Series

Corning Gilbert has added

several significant performance

enhancements to its GRS

3-piece QR trunk & distribution

connector line. The new GRS

QR+ Series incorporates a

non-metallic support sleeve,

which reduces the craft

sensitivity of the connector-to-

cable interface during the

installation process.

Additionally, this design will

compensate for the expected

variability in the cable coring

process. This new QR+ Series

preserves the shielding

integrity within the entire

bandwidth spectrum, even

under extreme environmental

conditions, and extends the

usable bandwidth range

beyond 1 GHz.

GRS-540-SP-QRP Related Products

	GRS-540-SP-QRP	GRS-715-SP-QRP	GRS-860-SP-QRP
Description	RF Connector, Male, Cable Mount,	RF Connector, Male, Cable Mount,	RF Connector, Male, Cable Mount,
Maker	Corning Cable Systems	Corning Cable Systems	Corning Cable Systems
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Characteristic impedance	75 Ω	75 Ω	75 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insertion loss	0.15 dB	0.15 dB	0.15 dB
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE
Maximum operating frequency	1 GHz	1 GHz	1 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
voltage standing wave ratio	1.45	1.45	1.45
Base Number Matches	1	1	-
