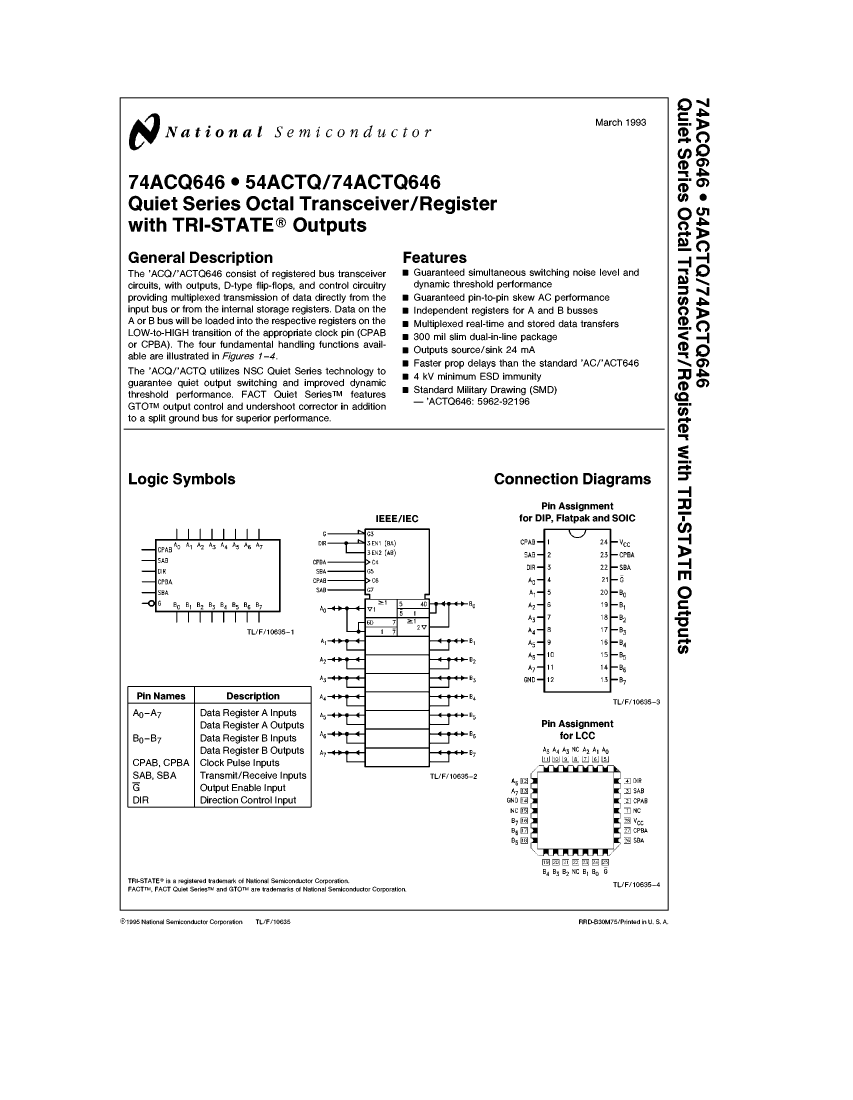

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24,

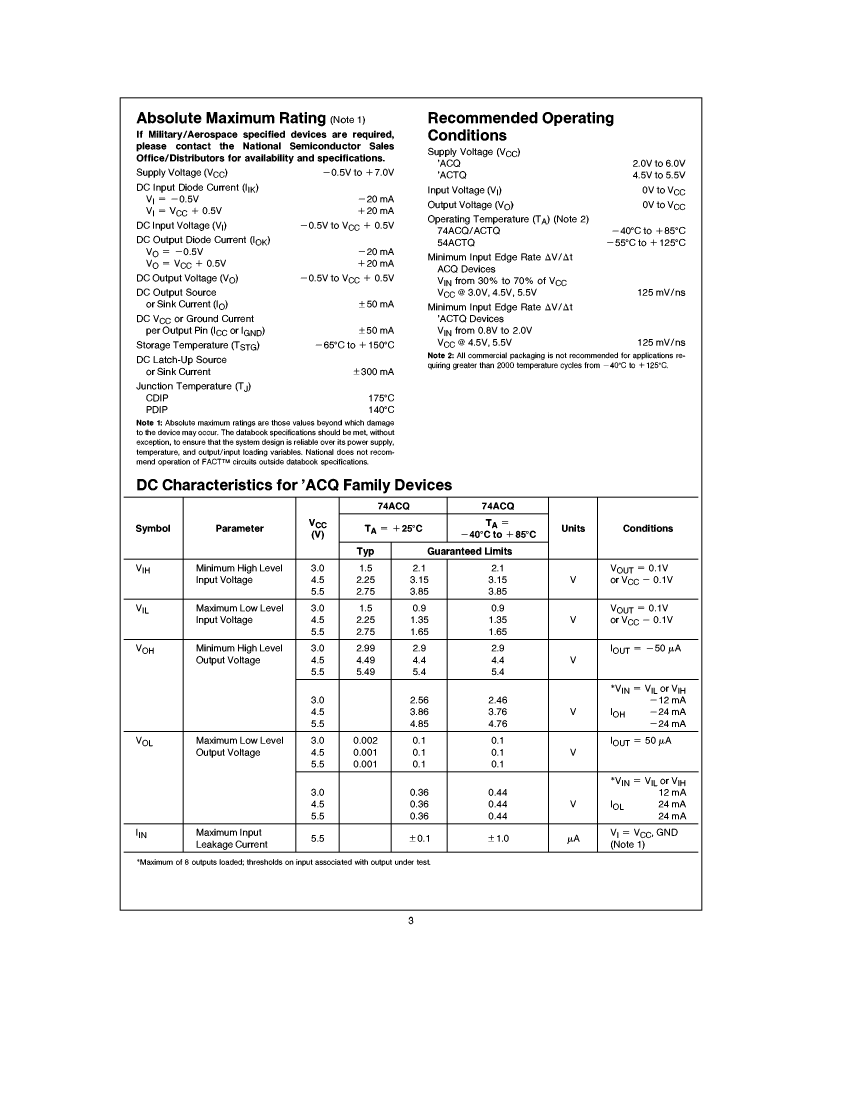

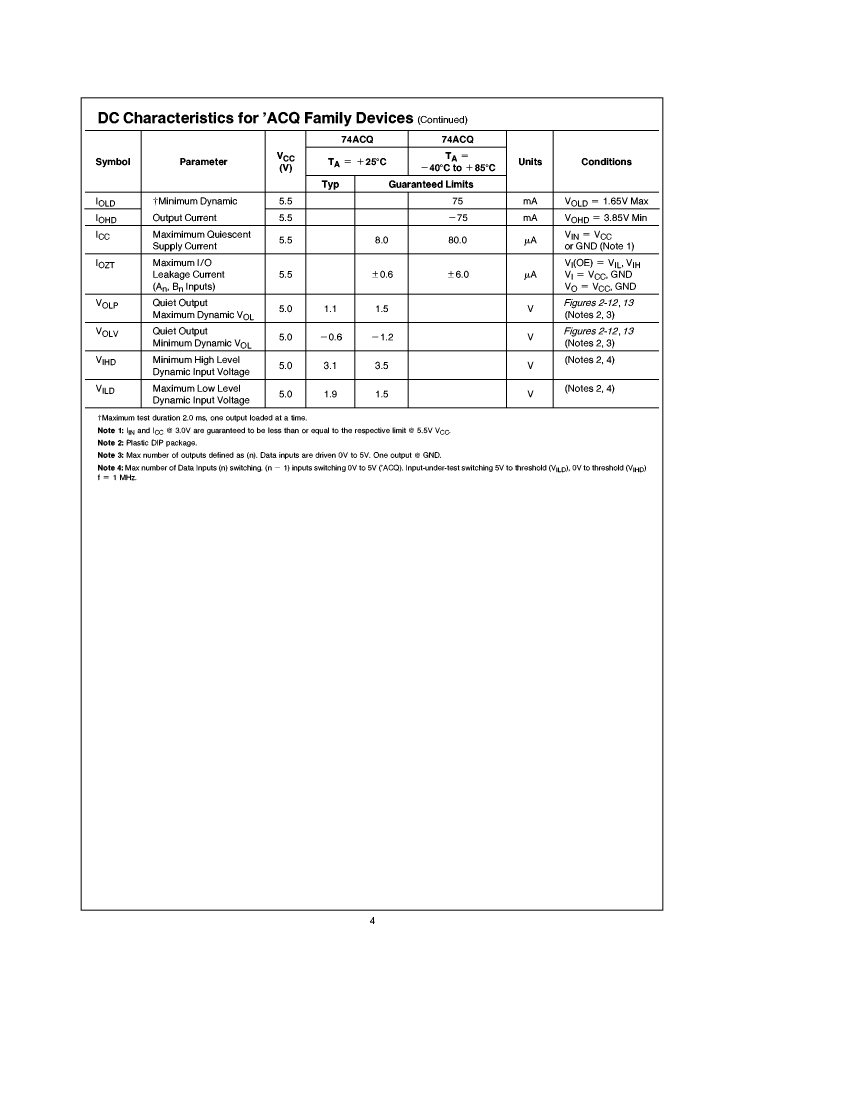

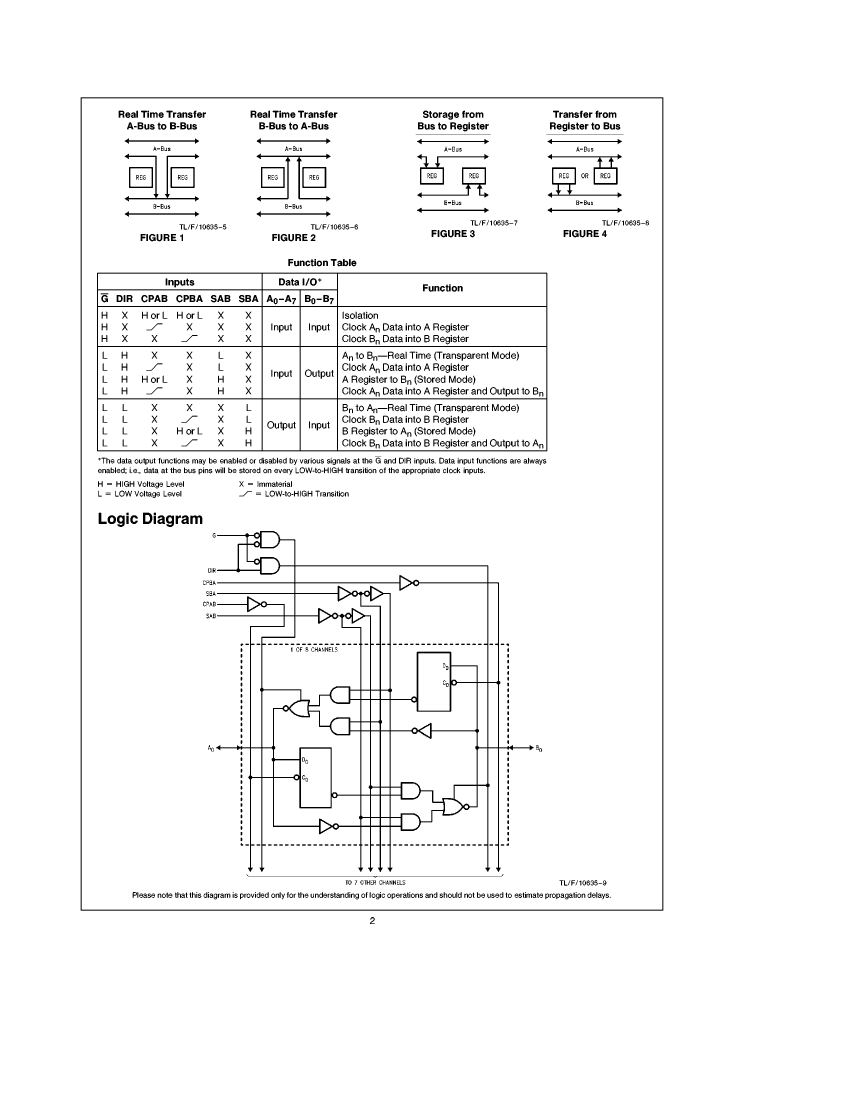

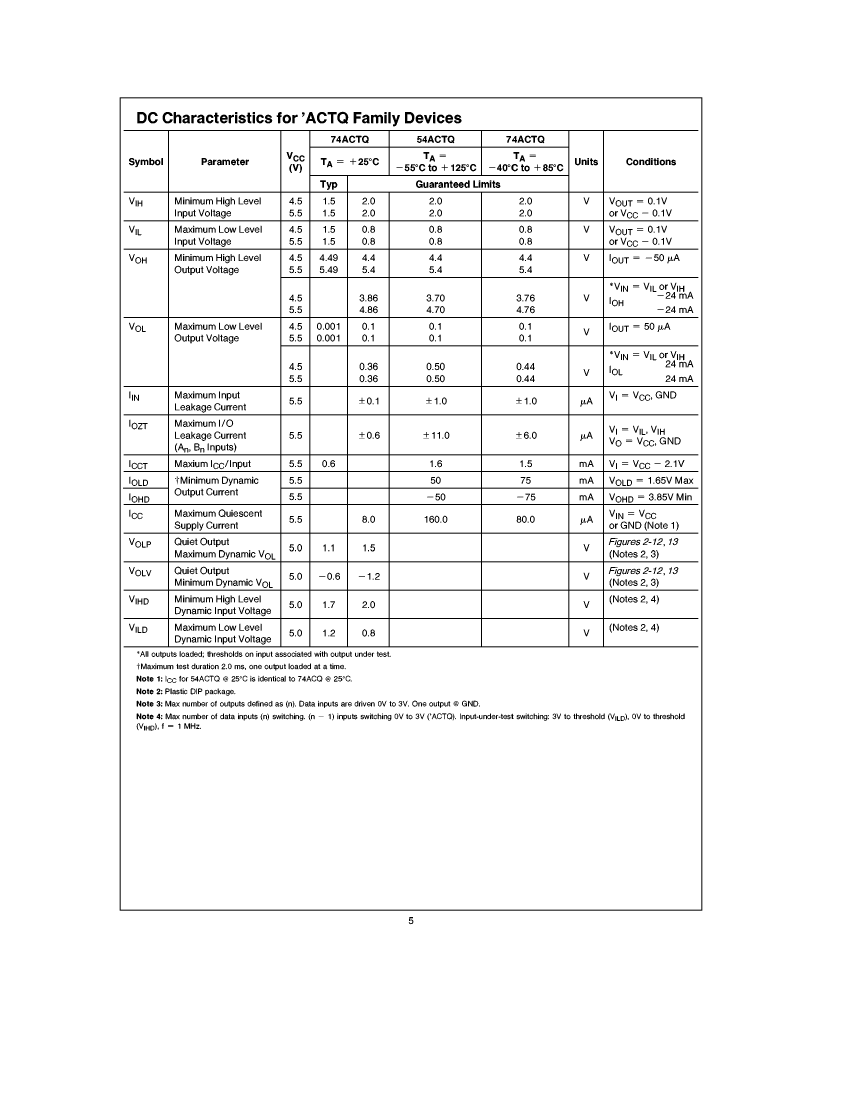

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP24,.3 |
| Reach Compliance Code | unknown |
| Control type | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL |
| JESD-30 code | R-XDIP-T24 |
| JESD-609 code | e0 |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER |
| MaximumI(ol) | 0.024 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| method of packing | TUBE |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 11 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| Base Number Matches | 1 |
| 54ACTQ646SDMQB | 54ACTQ646LMQB | 54ACTQ646FMQB | 74ACQ646SCQR | 74ACTQ646SCQR | |
|---|---|---|---|---|---|
| Description | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24, | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28, | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDFP24, | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO24, | Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO24, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP24,.3 | QCCN, LCC28,.45SQ | DFP, FL24,.4 | SOP, SOP24,.4 | SOP, SOP24,.4 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Control type | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| JESD-30 code | R-XDIP-T24 | S-XQCC-N28 | R-XDFP-F24 | R-PDSO-G24 | R-PDSO-G24 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER |
| MaximumI(ol) | 0.024 A | 0.024 A | 0.024 A | 0.024 A | 0.024 A |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 28 | 24 | 24 | 24 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | QCCN | DFP | SOP | SOP |
| Encapsulate equivalent code | DIP24,.3 | LCC28,.45SQ | FL24,.4 | SOP24,.4 | SOP24,.4 |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | FLATPACK | SMALL OUTLINE | SMALL OUTLINE |
| power supply | 5 V | 5 V | 5 V | 3.3/5 V | 5 V |
| Prop。Delay @ Nom-Sup | 11 ns | 11 ns | 11 ns | 13 ns | 10.5 ns |
| surface mount | NO | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | NO LEAD | FLAT | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | QUAD | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| method of packing | TUBE | TUBE | TUBE | - | - |
| Certification status | Not Qualified | Not Qualified | Not Qualified | - | - |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | - | - |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V |
| Base Number Matches | 1 | 1 | 1 | 1 | - |
