FERRITE D-SUBMINIATURE
KYCON
KF42 Series

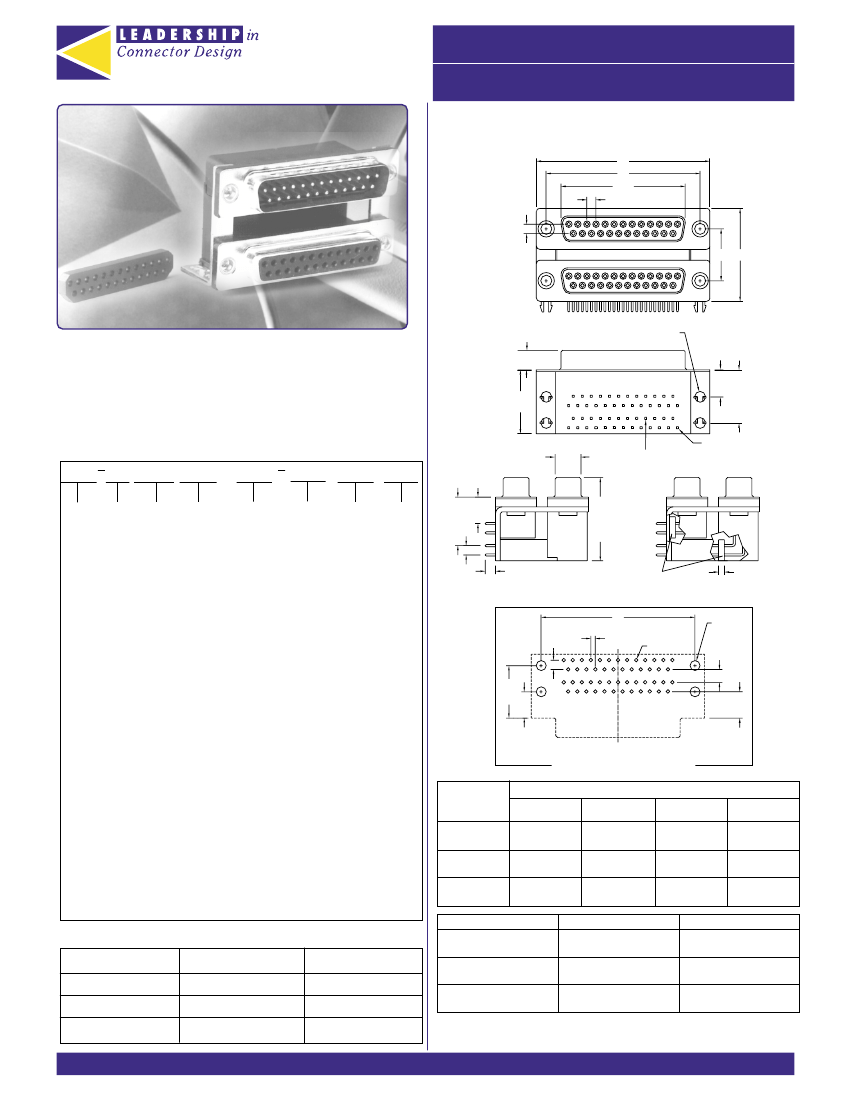

KF42 Series Dimensions
Pictured with Board Lock Option, Dimensions in mm [In]
C
B
A, A1
2.77
2.84
D
E
4-Ø3.18 [0.125"]
KF42 Series
Dual Port D-Sub
with Ferrite
Ordering Information
KF42
B
25
S
/
5.9 Plug,
6.0 Socket
8.0±0.25
16.00±0.25
19.50
Edge Hole
S
A
4N
14.84±0.20
8.08±0.20
7.90±0.13
Inner Hole
Center Mounting Plating
Bottom
Series Shell Number Top
Size
of Connector Connector to Center Options Options
Gender Distance
Contacts Gender
Series
KF42-Kycon Dual-Port D-Subminiature Connector with Ferrite
Shell Size
E-9 Contacts
A-15 Contacts
B-25 Contacts
E-15 Contacts (High Density)
Number of Contacts Per Port
9, 15, 25
Top Connector Gender
P-Pin Contact (Plug)
S-Socket Contact (Receptacle)
Bottom Connector Gender
P-Pin Contact (Plug)
S-Socket Contact (Receptacle)
Center to Center Distance
(D Dimension)
A-.750"
B-.900"
C-.625"
Mounting Options
(see page 37)
Plating Options and Performance Specifications
(see page 4)
2.84
3.18±0.20
25.50±0.25
Ferrite Inserts
1.80±0.20
Optional grounding brackets not shown in side views.
B
2.84
4-Ø3.05
3.92
1.385
Ø1.09
16.00
8.00
(Top View)
Recommended PCB Layout
Number of
Contacts
(Shell Size)
9 (E)
15 (A)
25 (B)
Dimensions (Inch/mm)
A
.643
16.33
.971
24.66
1.511
38.38
A1
.666
16.92
.994
25.25
1.534
38.96
D
.750
19.05
.900
22.86
.625
15.88
B
.984
24.99
1.312
33.32
1.852
47.04
C
1.213
30.81
1.541
39.14
2.088
53.04
E
1.244
31.60
1.394
35.41
1.119
28.42
Ferrite Specifications
Test Frequency
30 Mhz
50 Mhz
100 Mhz
2002
Center to Center Spacing
A
Edge Hole
17-27 Ohms
22-30 Ohms
29-34 Ohms
Inner Hole
22-30 Ohms
29-37 Ohms
35-40 Ohms
C
B
A = Exterior of Female Shell (S)
A1 = Interior of Male Shell (P)
8.08
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
31
MULTIPORT D-SUBMINIATURE
KYCON
Jack Screws

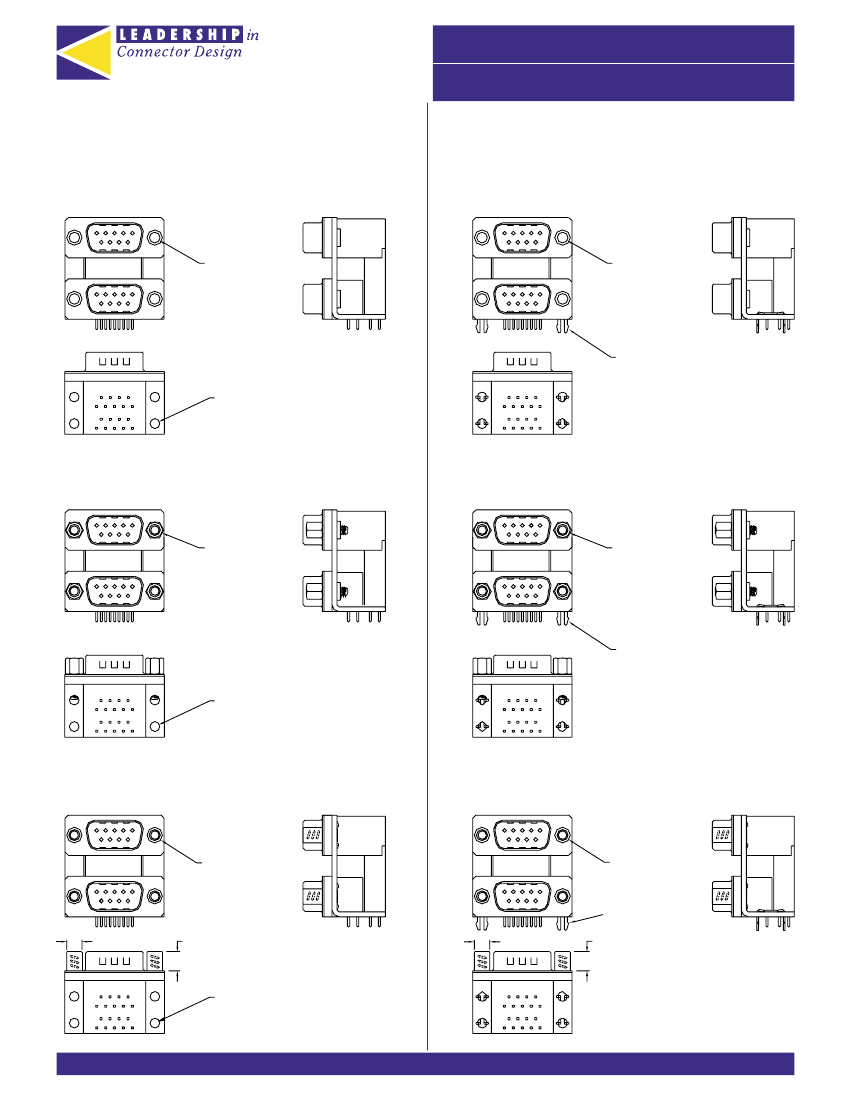

Mounting Options
4N
With Four Board Locks and 4-40 Riveted
Threaded Inserts
Mounting Options K42, KF42
Standard
With .125 Diameter Mounting Holes and 4-40
Riveted Threaded Inserts
(4) 4-40 Riveted
Threaded Inserts
(4) 4-40 Riveted
Threaded Inserts
(4) Boardlocks
(4) .125" Diameter
J
With .125 Diameter Mounting Holes and 4-40
Hex Jack Screws Installed
4NJ
With Four Board Locks and 4-40 Hex Jack
Screws Installed
(4) 4-40 Hex
Jackscrews Installed
(4) 4-40 Hex
Jackscrews Installed
(4) Boardlocks
(4) .125" Diameter
R
With .125 Diameter Mounting Holes and 4-40
Round Jack Screws Riveted to Connector
4NR
With Four Board Locks and 4-40 Round Jack
Screws Riveted to Connector
(4) 4-40 Round
Riveted Jackscrews
(4) 4-40 Round
Riveted Jackscrews
(4) Boardlocks
Ø5.0
6.00
Ø5.0
6.00
(4) .125" Diameter
2002
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
37
D-SUBMINIATURE CONNECTORS
KYCON
Performance Specifications
Materials and Finish
Shell
Steel Material, Tin Finish, and Indentations (Dimples) on Plug Only
Insert
Standard: PBT Thermoplastic, Black Color, 30% Glass Filled, 94V-0 Rated
Reflow Compatible: High Temperature Thermoplastic, Black Color,
30% Glass Filled, 94V-0 Rated
Contact Material
Pin: Brass .040 (1.02) Diameter Standard; .030 (0.76) Diameter High Density
Socket: Phosphor Bronze (Precision Formed Contact)
Brass (Precision Machined Contact)
Contact Finish-Standard
Gold Flash Over 0.0001 (0.00254) Nickel on Mating End of Contacts
Tin/Lead Over Nickel or Gold Flash Over Nickel on Solder Tails
Riveted Insert
Brass Material, Nickel Finish
KYCON continues
its leadership in
D-Subminiature
connectors by
offering a complete
line of sizes and
options.
PC99 Colors Available:
• HD15: Blue
• DB15: Gold
• DB25: Burgundy
• DB09: Teal
Mechanical Characteristics
LR78160
Contact Retention
Precision Machined Contact 10 Lbs, Precision Formed Contact 10 Lbs
Contact Extraction Force
Typ. 4 Oz.
Contact Insertion Force
Typ. 9 Oz.
Durability
1,000 Insertion Cycles Min (With Standard Plating)
Operating Temperature Rating
-55°C to +125°C
Electrical Characteristics
Contact Current Rating
Precision Machined Contact 7.6 Amps
Precision Formed Contact 5.0 Amps (Except K99 Series)
Contact Resistance
Precision Machined Contact 5 Milliohms Max
Precision Formed Contact 8 Milliohms Max
Dielectric Withstanding Voltage
1000 V AC Min for 1 Minute
Insulation Resistance
5000 Megohms Min
Processing Characteristics
Soldering Temperature Rating
High Temperature Plastic: 230°C for 30 Seconds, 260°C for 10 Seconds
Plating Options
Designator Plating Description
KYCON Tech Support:
1-888-KYCON-22
or E-mail: sales@kycon.com
Standard
15
30
Gold Flash over Nickel on Contacts. Gold Flash over Nickel or Tin/Lead over Nickel on Solder Tails.
15µ" Gold over Nickel on Mating End of Contacts. Tin/Lead over Nickel on Solder Tails.
30µ" Gold over Nickel on Mating End of Contacts. Tin/Lead over Nickel on Solder Tails.
2002
4
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
FERRITE D-SUBMINIATURE CONNECTORS
KYCON
Directory
Right Angle
KF22 - 0.318" footprint
KF44 - 0.590" footprint
KF66 - High Density 0.350" footprint
KF42 - Dual Port
28
29
30
31
KYCON continues
its leadership in
Ferrite D-Subs by
offering a complete
line of styles,
sizes, and pin
configurations.
Features:
• Applications include Computer
Peripherals, Data Processing,
Telecommunications, Industrial Controls,
and Local Area Networks
• High performance ferrite filter with
superior high frequency attenuation
characteristics
• Minimal effect on fundamental
waveforms
• EMI/RFI noise suppression in data
communication lines
• Cost effective way to meet FCC and VDE
Class B requirements
• Does not require any more board space
than a standard D-Sub
• No need to redesign board layout to
accommodate separate filter placement
• UL Recognized File No. E140125
Vertical
KF85 - Low Profile
KF86 - High Density
KF88 - High Profile
32
33
34
Technical Information:
Ferrite filters provide an easy and efficient way of reducing both radiated and conducted
interference. KYCON uses a medium permeability nickel zinc ferrite material that is most
effective at attenuating frequencies above 30MHz.
Attenuation =20 log
10
Where Z
S
= Source Impedance
Z
F
= Ferrite Impedance
Z
L
= Load Impedance
[Z
s
+Z
F
+Z
L
]
dB
[Z
s
+Z
L
]
With the above impedance values calculated at the interference frequency.

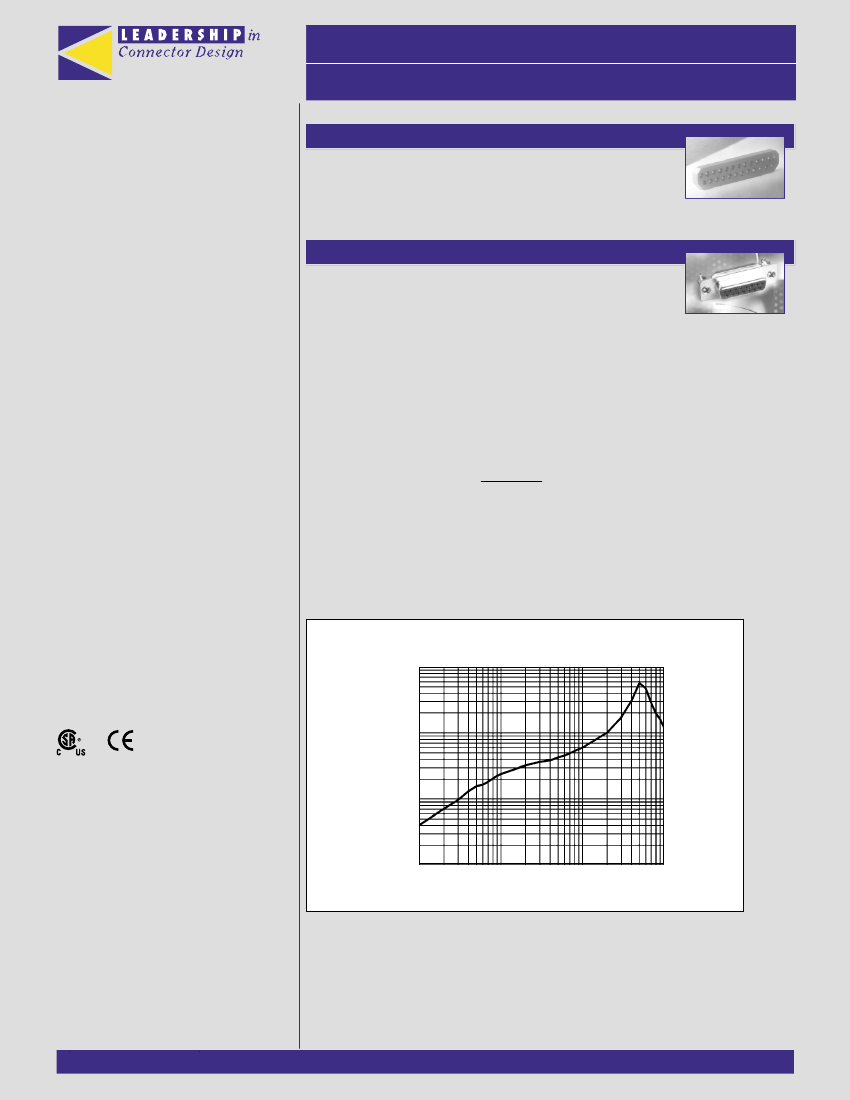

Typical Impedance of KYCON Ferrite D-Sub
1000
2.8mm Plate Tested
Impedance (Ohm)
100
S
F
L
LR78160
10
1
1
10
100
1000
Frequency (MHz)
KYCON Tech Support:
1-888-KYCON-22
or E-mail: sales@kycon.com
2002
The above chart is typical performance data for a 2.8mm thick ferrite plate at room
temperature. Impedance will be reduced by increased temperature (down approx. 15%
at 100°C at 25MHz) and by increased DC bias (down approx. 15% at 1 amp at 25MHz).
Also, impedance varies with ferrite thickness. Please contact our technical support for
data specific to your application.
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
