54LS283DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS283DM

54LS283DM: DescriptionAdder/Subtractor, TTL, CDIP16,; Categorylogic logic; File Size103KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS283DM Overview

Adder/Subtractor, TTL, CDIP16,

54LS283DM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	ADDER/SUBTRACTOR
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

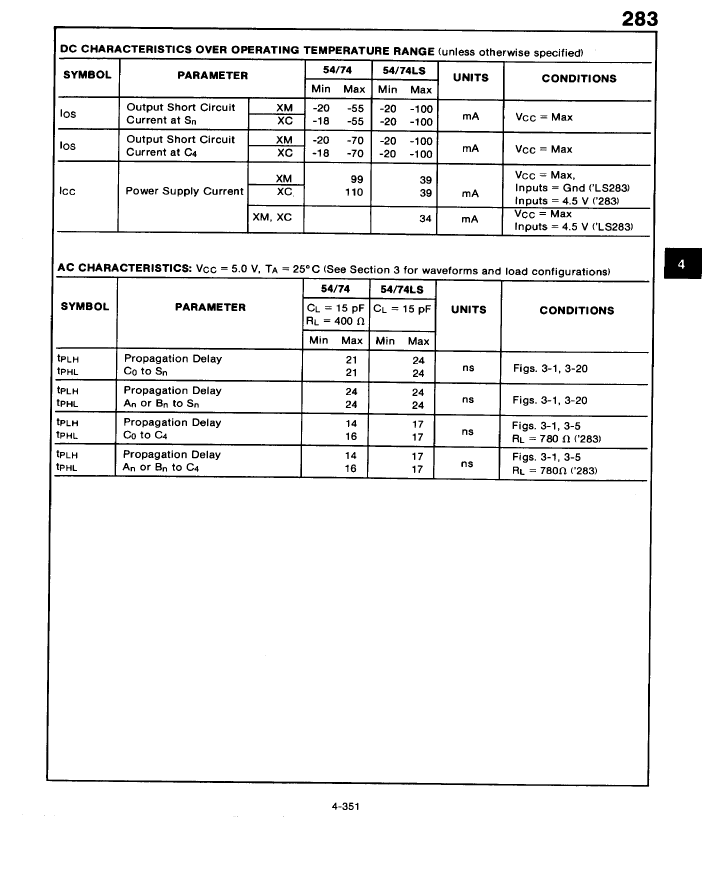

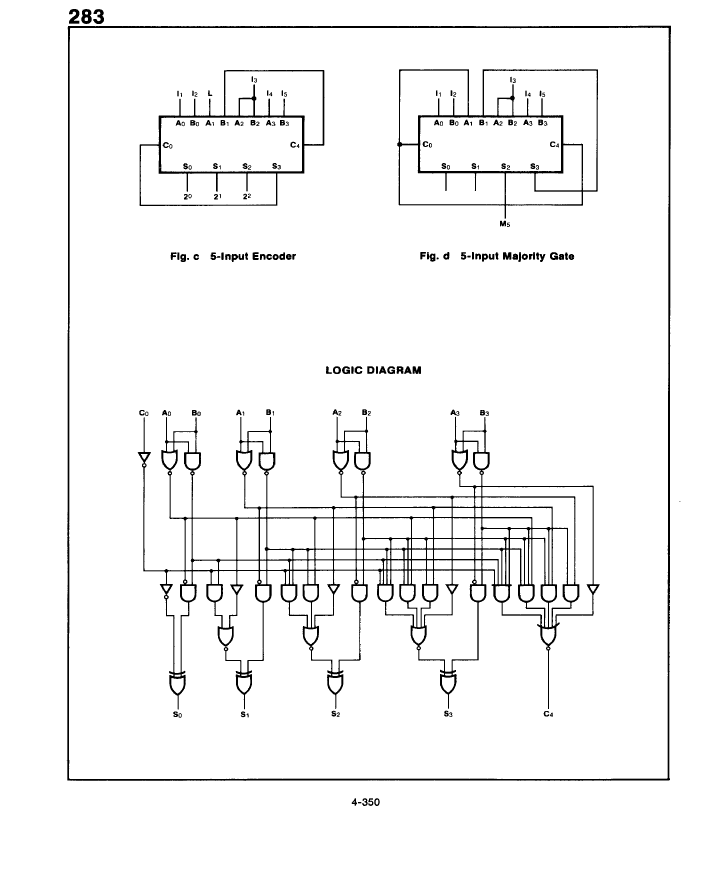

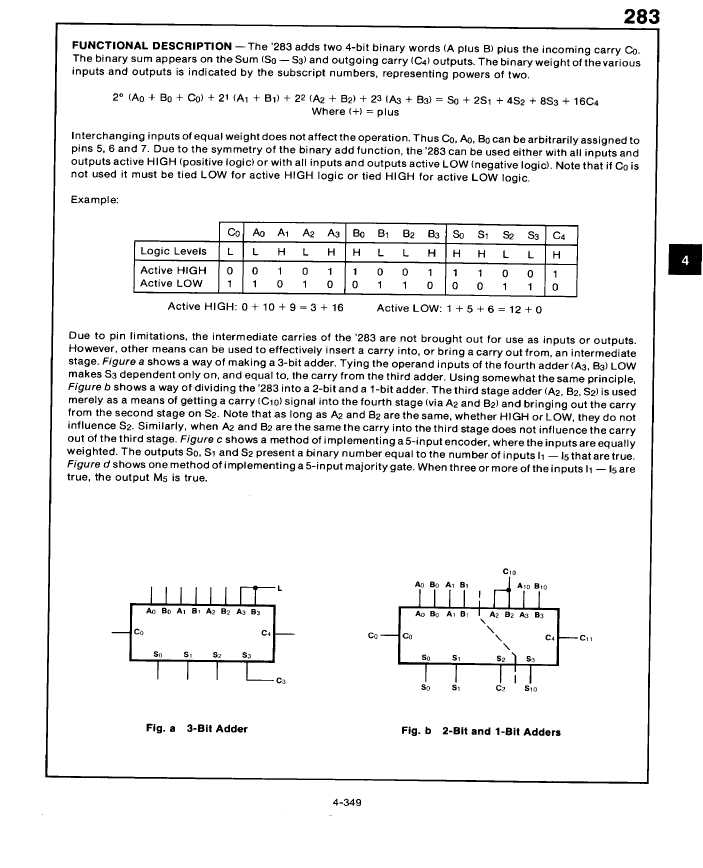

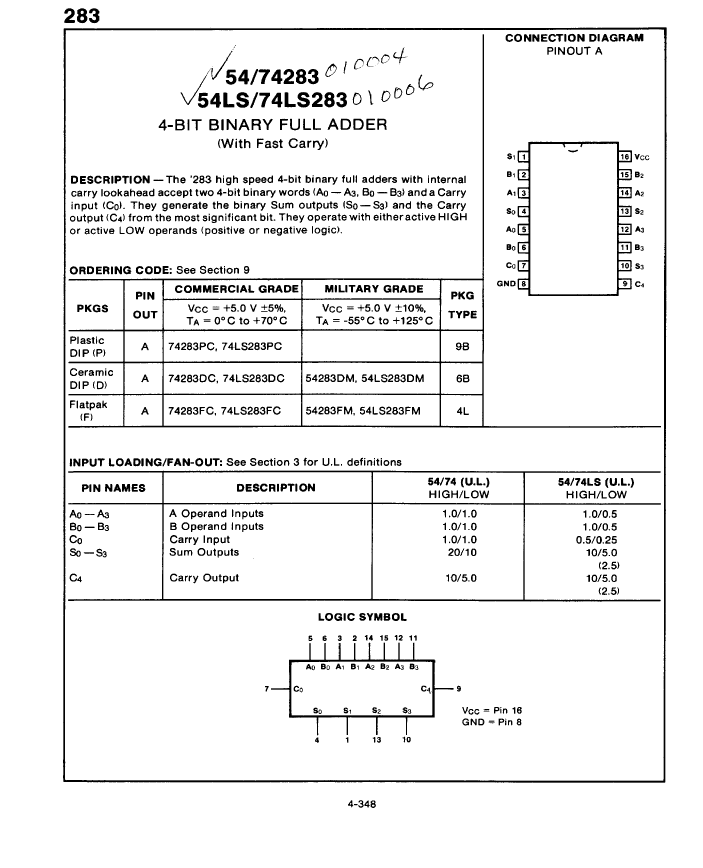

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS283DM Related Products

	54LS283DM	74283FC	74283DC	54283FM	74283PC	54283DM	74LS283DC	74LS283PC
Description	Adder/Subtractor, TTL, CDIP16,	Adder/Subtractor, TTL, CDFP16,	Adder/Subtractor, TTL, CDIP16,	Adder/Subtractor, TTL, CDFP16,	Adder/Subtractor, TTL, PDIP16,	Adder/Subtractor, TTL, CDIP16,	Adder/Subtractor, TTL, CDIP16,	Adder/Subtractor, TTL, PDIP16
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown	compliant	compliant	unknow
JESD-30 code	R-XDIP-T16	R-XDFP-F16	R-XDIP-T16	R-XDFP-F16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16
Logic integrated circuit type	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C	70 °C	125 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DFP	DIP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	FL16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Base Number Matches	1	1	1	1	1	1	-	-
