3406UF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3406UF

Preview

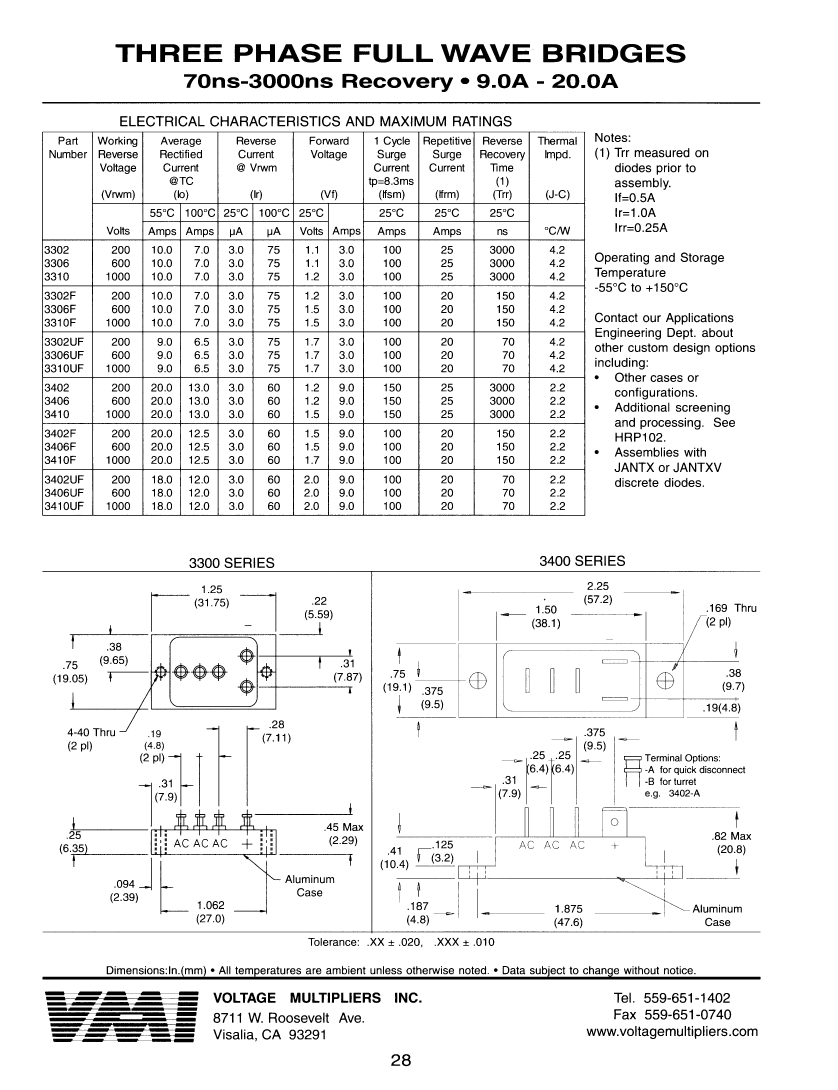

3406UF: DescriptionBridge Rectifier Diode, 3 Phase, 18A, 600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size154KB，1 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric Compare View All

3406UF Overview

Bridge Rectifier Diode, 3 Phase, 18A, 600V V(RRM), Silicon,

3406UF Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-D5
Reach Compliance Code	compliant
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
JESD-30 code	R-XUFM-D5
Maximum non-repetitive peak forward current	100 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	18 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.07 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

3406UF Related Products

	3406UF	3410UF	3402UF	ACT381T-42700MBFNBXXZC	3402	3410F	3406F	3410
Description	Bridge Rectifier Diode, 3 Phase, 18A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 18A, 1000V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 18A, 200V V(RRM), Silicon,	TCXO	Bridge Rectifier Diode, 3 Phase, 20A, 200V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 20A, 1000V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 20A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 3 Phase, 20A, 1000V V(RRM), Silicon,
package instruction	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	-	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5
Reach Compliance Code	compliant	compliant	compliant	-	compliant	compli	compli	compli
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	2 V	2 V	-	1.2 V	1.7 V	1.7 V	1.5 V
JESD-30 code	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	-	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5	R-XUFM-D5
Maximum non-repetitive peak forward current	100 A	100 A	100 A	-	150 A	100 A	100 A	150 A
Number of components	6	6	6	-	6	6	6	6
Phase	3	3	3	-	3	3	3	3
Number of terminals	5	5	5	-	5	5	5	5
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	150 °C	150 °C	150 °C
Maximum output current	18 A	18 A	18 A	-	20 A	20 A	20 A	20 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	1000 V	200 V	-	200 V	1000 V	600 V	1000 V
Maximum reverse recovery time	0.07 µs	0.07 µs	0.07 µs	-	-	0.15 µs	0.15 µs	-
surface mount	NO	NO	NO	-	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	-	UPPER	UPPER	UPPER	UPPER
Maker	-	VOLTAGE MULTIPLIERS INC.	-	-	VOLTAGE MULTIPLIERS INC.	VOLTAGE MULTIPLIERS INC.	VOLTAGE MULTIPLIERS INC.	VOLTAGE MULTIPLIERS INC.
