BR9327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR9327

BR9327: DescriptionWide Band Low Power Amplifier, 10MHz Min, 2000MHz Max, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size84KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR9327 Overview

Wide Band Low Power Amplifier, 10MHz Min, 2000MHz Max, H2, TO-8B

BR9327 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	13 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

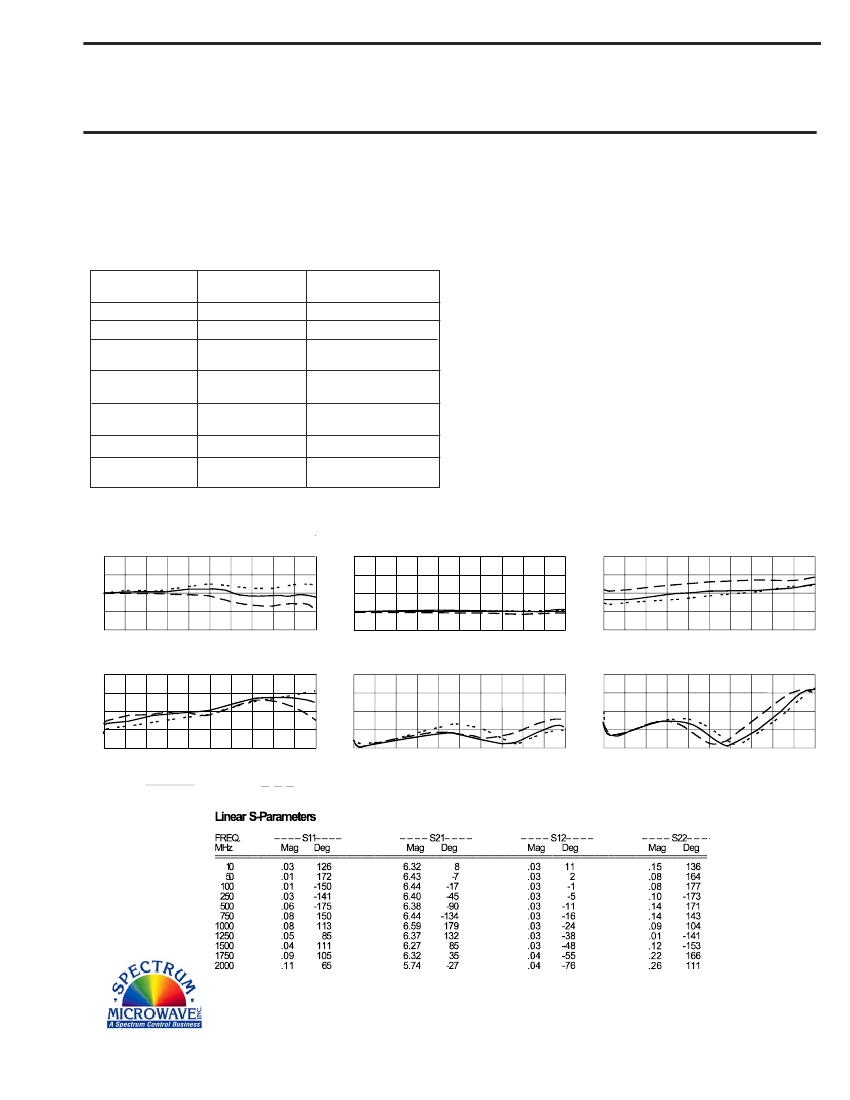

RF AMPLIFIER

MODEL

TR9327

Features

Medium Gain: 15 dB Typical

Medium Output Power: +17.5 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TR9327, 4 Pin TO-8B (T8)

RN9327, 4 Pin Surface Mount (SM19)

BR9327, Connectorized Housing (H2)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +44 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +38 dBm (Typ.)

Third Order Two Tone Intercept Point ............+29 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25

ºC

10 - 2000 MHz

+17.5

-27.5

<1.25:1

<1.5:1

<6.5

+15

108

MIN/MAX

Ta = -55

ºC

to +85

ºC

10 - 2000 MHz

13.0 Min.

+16.0 Min.

-26.0 Max.

2.0:1 Max.

7.5 Max.

+15

118 Max.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power.......50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 2000 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 10 MHz

Stop 2000 MHz

Noise Figure (dB)

Start 10 MHz

Stop 2000 MHz

+23

+21

+19

+17

+15

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 2000 MHz

Start 10 MHz

Stop 2000 MHz

Start 10 MHz

Stop 2000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

1/22/09

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

BR9327 Related Products

	BR9327	RN9327
Description	Wide Band Low Power Amplifier, 10MHz Min, 2000MHz Max, H2, TO-8B	Wide Band Low Power Amplifier, 10MHz Min, 2000MHz Max, SM-19, 4 PIN
Reach Compliance Code	compliant	compliant
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT
Gain	13 dB	13 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	2000 MHz	2000 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
