3-822516-7 datasheet, PDF - EEWORLD Datasheet

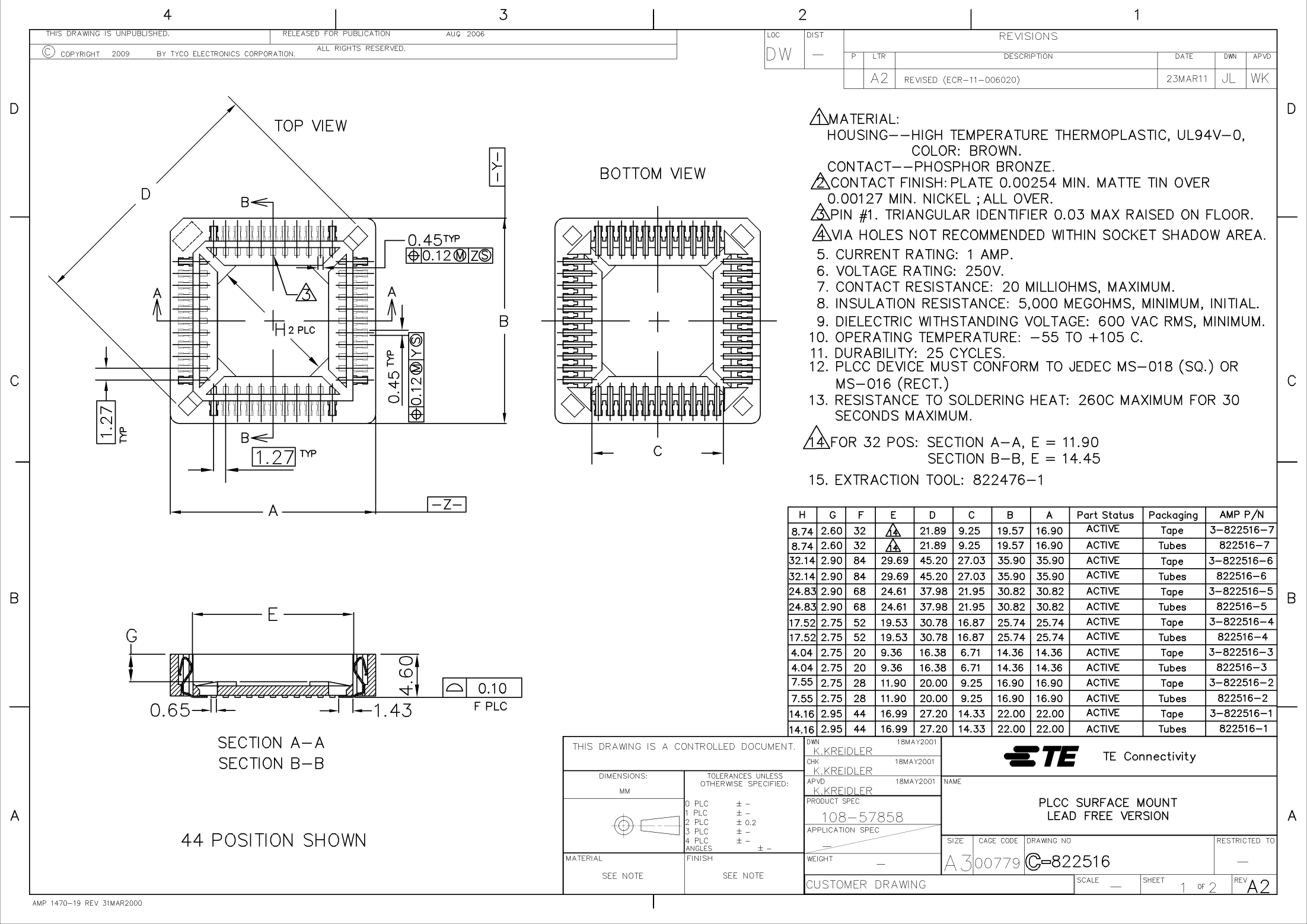

3-822516-7: DescriptionIC Socket, PLCC32, 32 Contact(s), Surface Mount; CategoryThe connector socket; File Size146KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-822516-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-822516-7	-	-	View	Buy Now

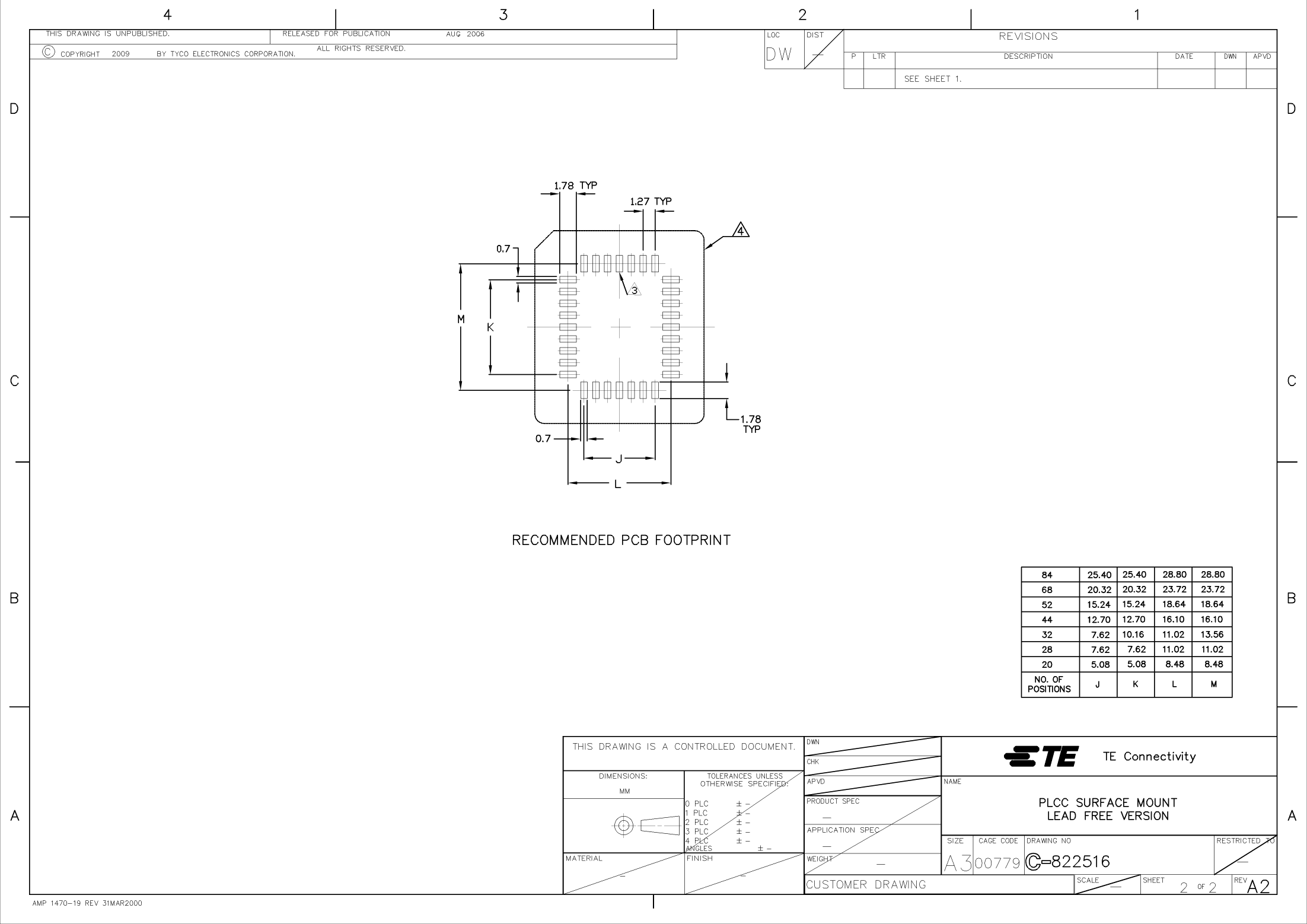

IC Socket, PLCC32, 32 Contact(s), Surface Mount

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.665 inch
subject depth	0.181 inch
body length	0.665 inch
Contact structure	8X8
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC32
Dielectric withstand voltage	850VAC V
Shell material	POLYETHYLENE
Insulation resistance	5000000000 Ω
JESD-609 code	e3
Installation method	STRAIGHT
Number of contacts	32
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Termination type	SURFACE MOUNT
Base Number Matches	1

OBSOLETE

NOT the LATEST

REVISION
