DB564K-TR: DescriptionBase Station/Broadcast Transmission Antenna, 806MHz Min, 824MHz Max, 16.15dB Gain, 120deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size231KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB564K-TR Overview

Base Station/Broadcast Transmission Antenna, 806MHz Min, 824MHz Max, 16.15dB Gain, 120deg 3dB Beamwidth

DB564K-TR Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
bandwidth	18 MHz
Beam Width-E	6 deg
Beamwidth-H	120 deg
Characteristic impedance	50 Ω
front to back ratio	27 dB
Gain	16.15 dB
Omnidirectional	NO
Maximum operating frequency	824 MHz
Minimum operating frequency	806 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.5
Commentary	100 mph
Base Number Matches	1

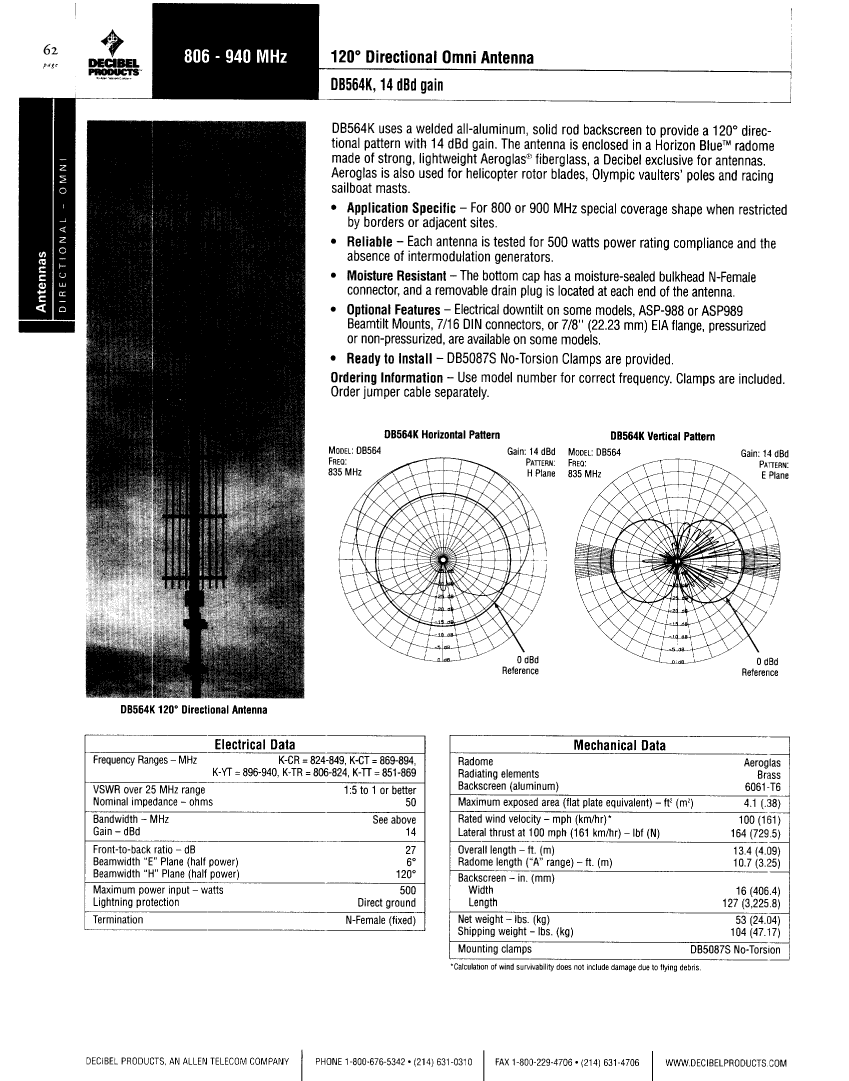

Preview

Download Datasheet

View All

DB564K-TR Related Products

	DB564K-TR	DB564K-TT	DB564K-CR	DB564K-CT	DB564K-YT
Description	Base Station/Broadcast Transmission Antenna, 806MHz Min, 824MHz Max, 16.15dB Gain, 120deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 851MHz Min, 869MHz Max, 16.15dB Gain, 120deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 824MHz Min, 849MHz Max, 16.15dB Gain, 120deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 869MHz Min, 894MHz Max, 16.15dB Gain, 120deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 896MHz Min, 940MHz Max, 16.15dB Gain, 120deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
bandwidth	18 MHz	18 MHz	25 MHz	25 MHz	44 MHz
Beam Width-E	6 deg	6 deg	6 deg	6 deg	6 deg
Beamwidth-H	120 deg	120 deg	120 deg	120 deg	120 deg
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
front to back ratio	27 dB	27 dB	27 dB	27 dB	27 dB
Gain	16.15 dB	16.15 dB	16.15 dB	16.15 dB	16.15 dB
Omnidirectional	NO	NO	NO	NO	NO
Maximum operating frequency	824 MHz	869 MHz	849 MHz	894 MHz	940 MHz
Minimum operating frequency	806 MHz	851 MHz	824 MHz	869 MHz	896 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W	500 W	500 W	500 W	500 W
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5
Commentary	100 mph	100 mph	100 mph	100 mph	100 mph
