2047-6-39-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2047-6-39-1

2047-6-39-1: DescriptionBoard Connector, 39 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2047-6-39-1 Overview

Board Connector, 39 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug

2047-6-39-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.11 inch
subject depth	0.169 inch
body length	3.094 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
maximum insertion force	2.9468 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	2047
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	39
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

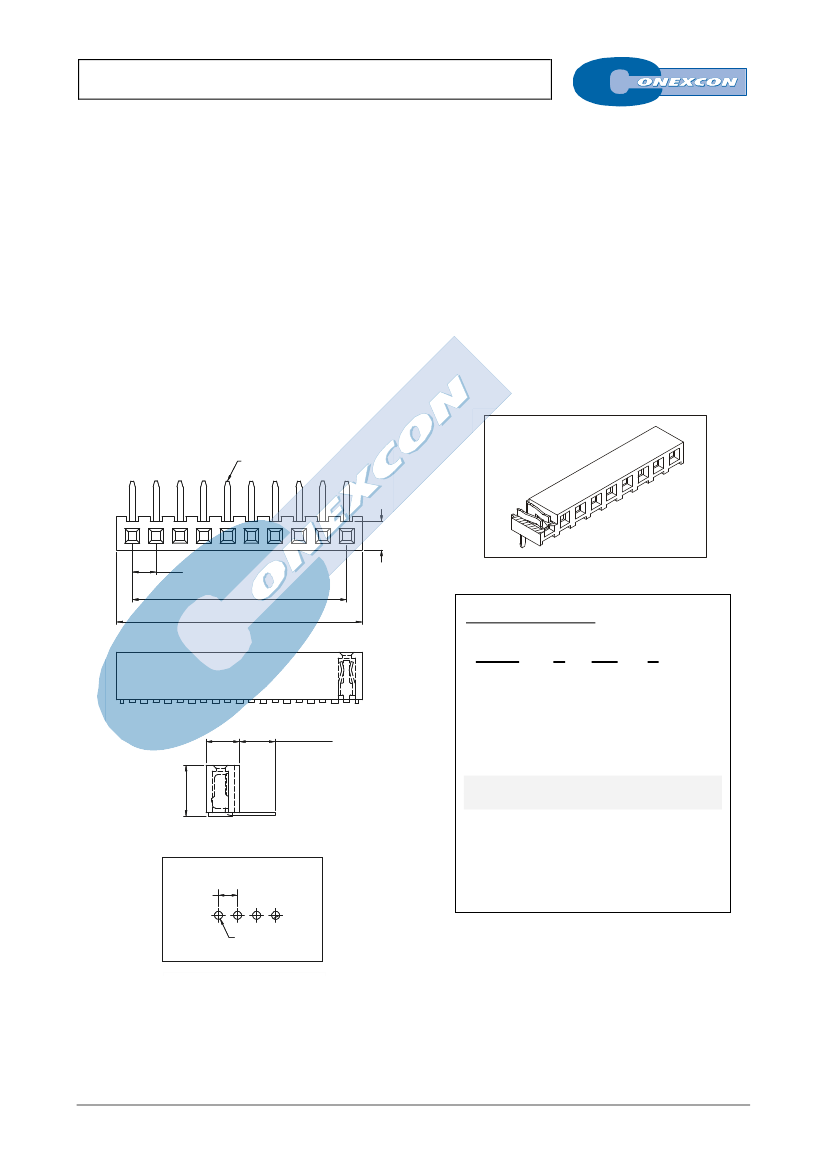

SINGLE ROW RIGHT ANGLE SOCKET

2047 SERIES.

2.00 mm. (0.079”) pitch.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with pin header 2.00 mm. pitch, 2015, 2016, 2017,

2150, 2152 , 2036 and 2058 series

Accepts 0.50 mm. square pin

Dual Beam contact with different plating



Voltage rating: < 125V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2pF at 1 KHz.

Materials

Mechanical Features

Insertion force receptacle/plug: < 0,30 Kgf/pin

Unmating force receptacle/plug: > 0,02 Kgf/pin

Contact retention force to housing: > 0,300Kgf/pin

Durability: 50 cycles



Insulator: Polyester nylon 6T UL 94 V-0

Contact: phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Dimension Information

Pin 0.50 x 0.20

2.00

A±0.25

B ±0.20

2 40

Ordering Information:

2047 -

T-

XX-

1. Connector Series

2.80

3.00±0.20

2. (T) Contact Plating

4.30



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

RECOMMENDED HOLE PATTERN

3. (XX) Circuit Size



2.00

Available in 2 through 40 circuits

ø 0.85

Dimensions:

(In mm.)

= 2.00 x (XX*-1)

= 2.00 x (XX*)+0.60

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE
