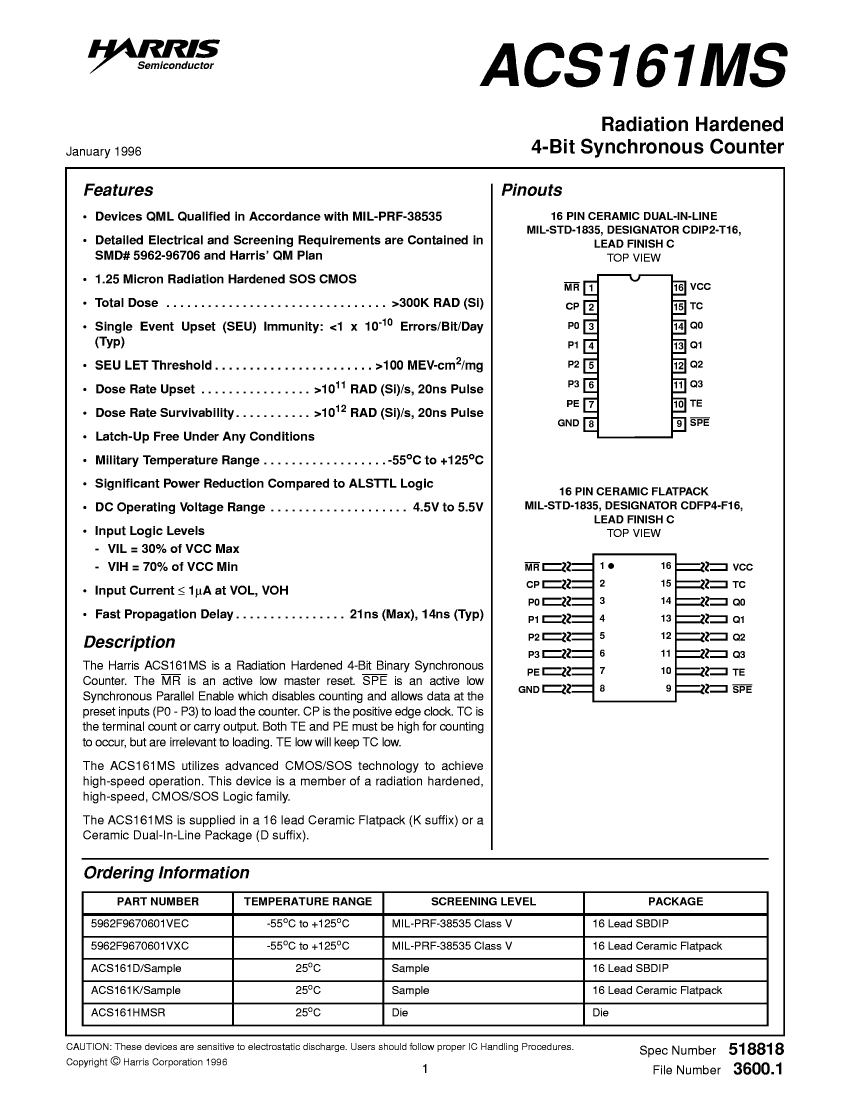

5962F9670601VXC datasheet, PDF

5962F9670601VXC: DescriptionBinary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16; Categorylogic logic; File Size133KB，3 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

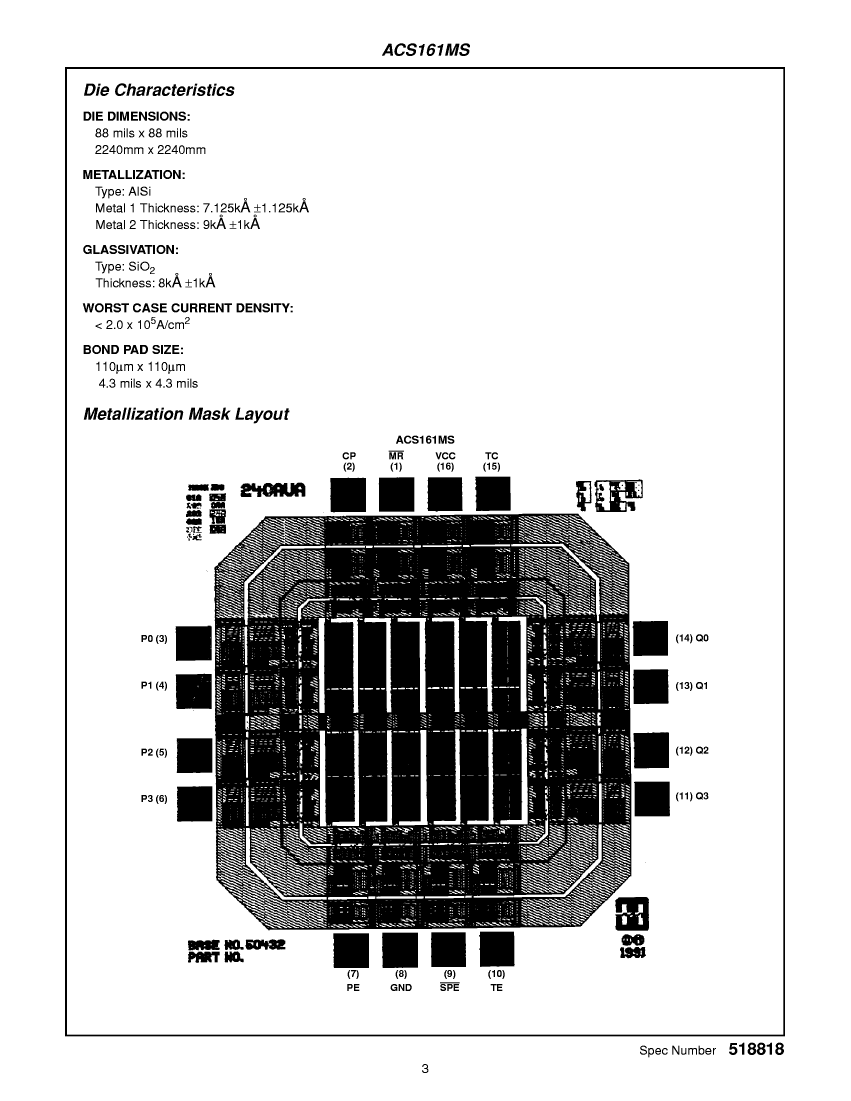

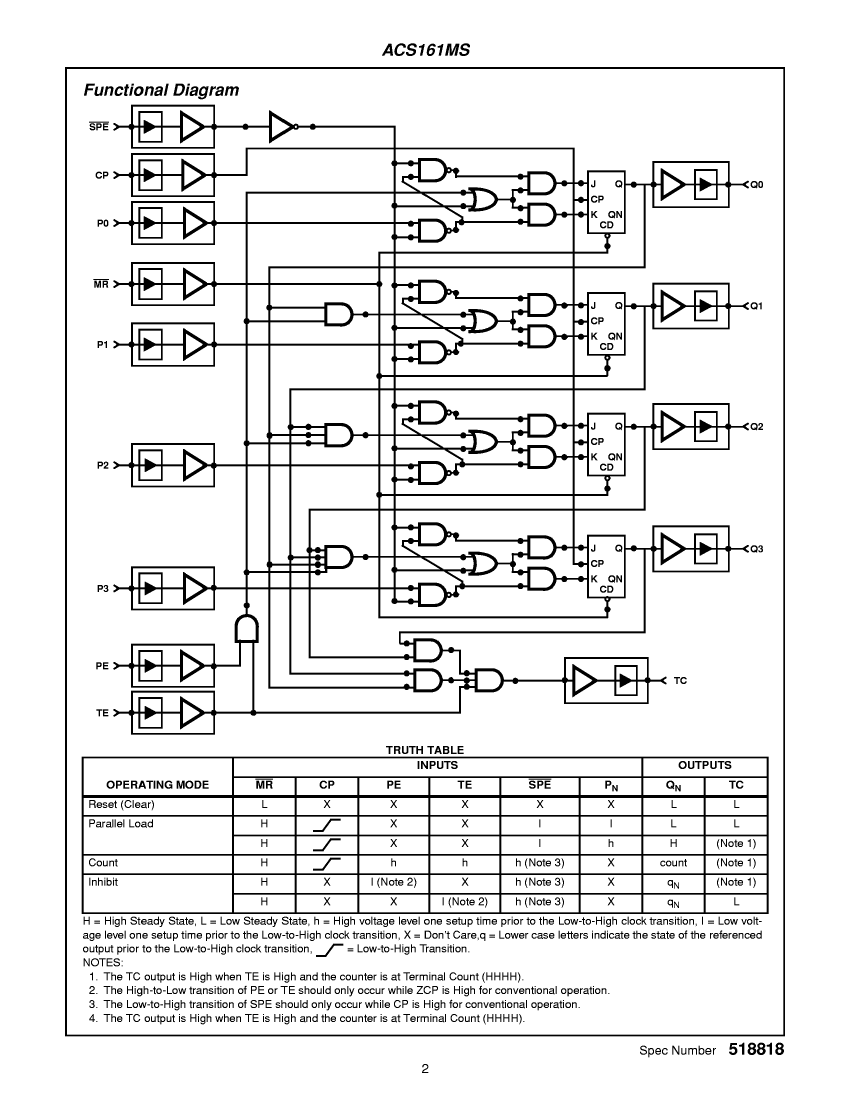

5962F9670601VXC Overview

Binary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Counting direction	UP
series	AC
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
total dose	300k Rad(Si) V
Trigger type	POSITIVE EDGE
Base Number Matches	1

	5962F9670601VXC	5962F9670601VEC	ACS161HMSR
Description	Binary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16	Binary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16	Binary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS
Reach Compliance Code	unknown	unknown	unknown
Counting direction	UP	UP	UP
series	AC	AC	AC
JESD-30 code	R-CDFP-F16	R-CDIP-T16	X-XUUC-N16
Load/preset input	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	16	16	16
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	FLATPACK	IN-LINE	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	UPPER
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
JESD-609 code	e4	e4	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Temperature level	MILITARY	MILITARY	-
Terminal surface	GOLD	GOLD	-
total dose	300k Rad(Si) V	300k Rad(Si) V	-
Base Number Matches	1	1	-
Maker	-	Harris	Harris
