Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
1
EMIFILr (Inductor type)
I
Dimensions
0.6±0.03
0.3±0.03
Chip Ferrite Bead
BLM03AX Series (0201 Size)
I
Equivalent Circuit
0.15±0.05
0.3±0.03
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
I
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
15000
50000
1000
I
Rated Value (p: packaging code)
Part Number
BLM03AX100SN1p
BLM03AX800SN1p
BLM03AX121SN1p
BLM03AX241SN1p
BLM03AX601SN1p
BLM03AX102SN1p
Number of Circuits: 1
Continued on the following page.
Impedance
(at 100MHz/20°C)
10ohm (Typ.)
80ohm
±25%
120ohm
±25%
240ohm
±25%
600ohm
±25%
1000ohm
±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
Rated Current
1000mA
500mA
450mA
350mA
250mA
200mA
DC Resistance
0.05ohm max.
0.18ohm max.
0.23ohm max.
0.38ohm max.
0.85ohm max.
1.25ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
Continued from the preceding page.
2
I

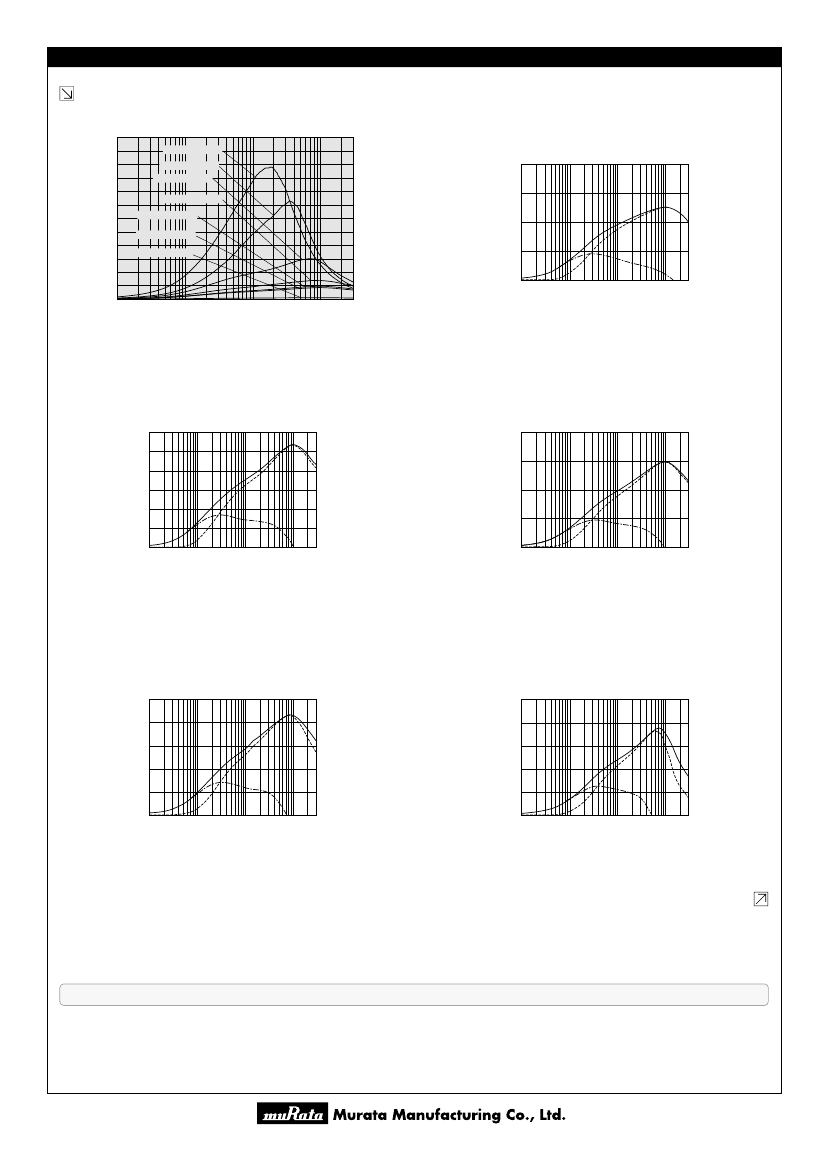

Impedance-Frequency Characteristics (Main Items)
1500
BLM03AX102SN1
1250
BLM03AX601SN1
BLM03AX241SN1
Impedance (Ω)
1000
I
Impedance-Frequency Characteristics
BLM03AX100SN1
16
Impedance (Ω)
BLM03AX121SN1
750
12
Z
BLM03AX800SN1
8
R
X
500
BLM03AX100SN1
250
4
0
0
1
10
100
Frequency (MHz)
1000
3000
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM03AX800SN1
150
I
Impedance-Frequency Characteristics
BLM03AX121SN1
240
Z
Impedance (Ω)
100
R
50
X
Impedance (Ω)
180
Z
120
R
X
60
0
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM03AX241SN1
400
320
Impedance (Ω)
I
Impedance-Frequency Characteristics
BLM03AX601SN1
1200
Impedance (Ω)
Z
240
R
160
80
0
X
900
Z
600
R
300
X
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
Continued from the preceding page.
3
I
Impedance-Frequency Characteristics
BLM03AX102SN1
1500
Z
Impedance (Ω)
1000
R
500
X
0
1
10
100
Frequency (MHz)
1000
3000
I
!Caution/Notice
!Caution
(Rating)
Do not use products beyond the rated current as
this may create excessive heat and deteriorate
the insulation resistance.
Notice
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
1
EMIFILr (Inductor type)
I
Dimensions
0.6±0.03
0.3±0.03
Chip Ferrite Bead
BLM03AG Series (0201 Size)
I
Equivalent Circuit
0.15±0.05
0.3±0.03
(Resistance element becomes dominant
at high frequencies.)
: Electrode
(in mm)
I
Packaging
Code
D
J
B
Packaging
180mm Paper Tape
330mm Paper Tape
Bulk(Bag)
Minimum Quantity
15000
50000
1000
I
Rated Value (p: packaging code)
Part Number
BLM03AG100SN1p
BLM03AG700SN1p
BLM03AG800SN1p
BLM03AG121SN1p
BLM03AG241SN1p
BLM03AG601SN1p
BLM03AG102SN1p
Number of Circuits: 1
Continued on the following page.
Impedance
(at 100MHz/20°C)
10ohm (Typ.)
70ohm (Typ.)
80ohm
±25%
120ohm
±25%
240ohm
±25%
600ohm
±25%
1000ohm
±25%
Impedance
(at 1GHz/20°C)
-
-
-
-
-
-
-
Rated Current
500mA
200mA
200mA
200mA
200mA
100mA
100mA
DC Resistance
0.1ohm max.
0.4ohm max.
0.4ohm max.
0.5ohm max.
0.8ohm max.
1.5ohm max.
2.5ohm max.
Operating
Temperature Range
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead
Data Sheet
Continued from the preceding page.
2
I
Impedance-Frequency Characteristics (Main Items)
1500
BLM03AG102SN1
1250
BLM03AG601SN1
BLM03AG241SN1
1000
Impedance (Ω)
I
Impedance-Frequency Characteristics
BLM03AG100SN1
20
750
BLM03AG800SN1
BLM03AG700SN1
Impedance (Ω)
BLM03AG121SN1
15
Z
R
5
X
0
1
10
100
Frequency (MHz)
1000
3000
10
500
BLM03AG100SN1
250
0
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM03AG700SN1
120
100
Impedance (Ω)
80
60
40
X
20
0
I
Impedance-Frequency Characteristics
BLM03AG800SN1
160
Impedance (Ω)
Z
R
120
Z
80
R
40
X
1
10
100
Frequency (MHz)
1000
3000
0
1
10
100
Frequency (MHz)
1000
3000
I
Impedance-Frequency Characteristics
BLM03AG121SN1
200
160
Impedance (Ω)
120
R
80
X
40
0
I
Impedance-Frequency Characteristics
BLM03AG241SN1
500
400
Impedance (Ω)
Z
300
200
100
0
Z
R
X
1
10
100
Frequency (MHz)
1000
3000
1
10
100
Frequency (MHz)
1000
3000
Continued on the following page.
o
This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2011.5.12
http://www.murata.com/
