87705-1042

Description
Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch
CategoryThe connector    The connector
File Size403KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

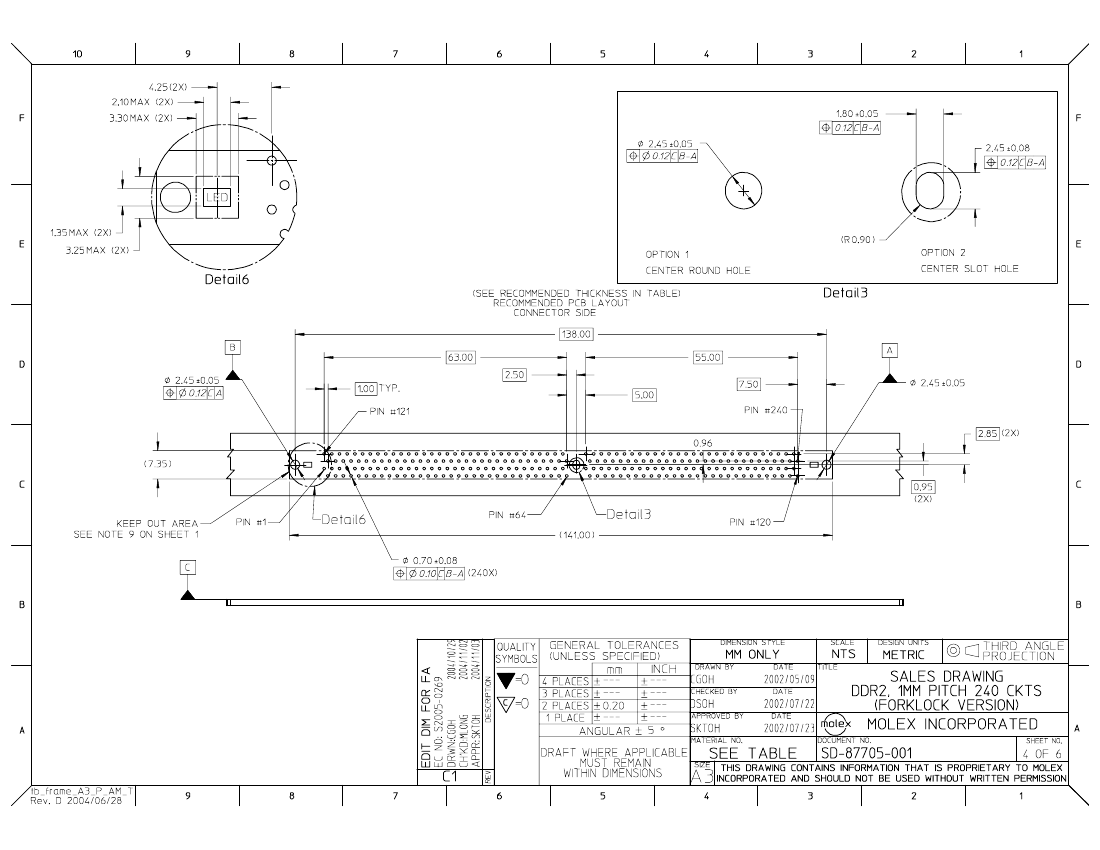

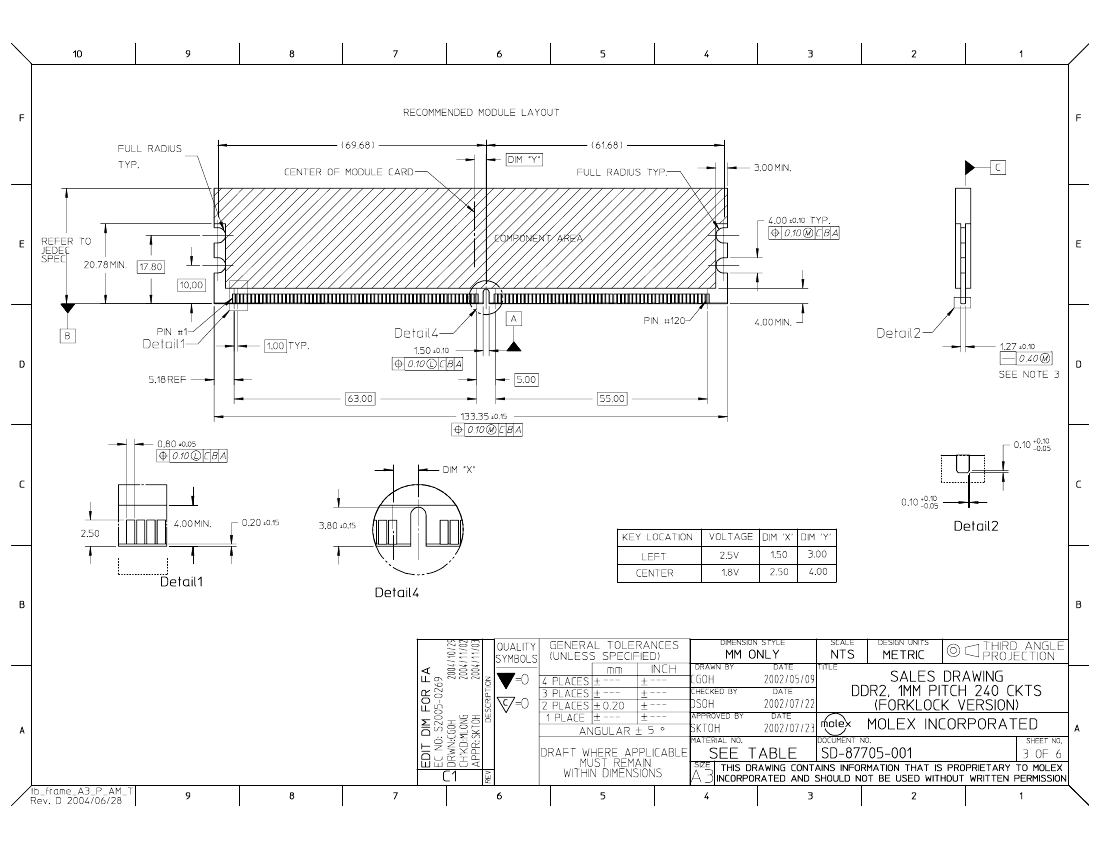

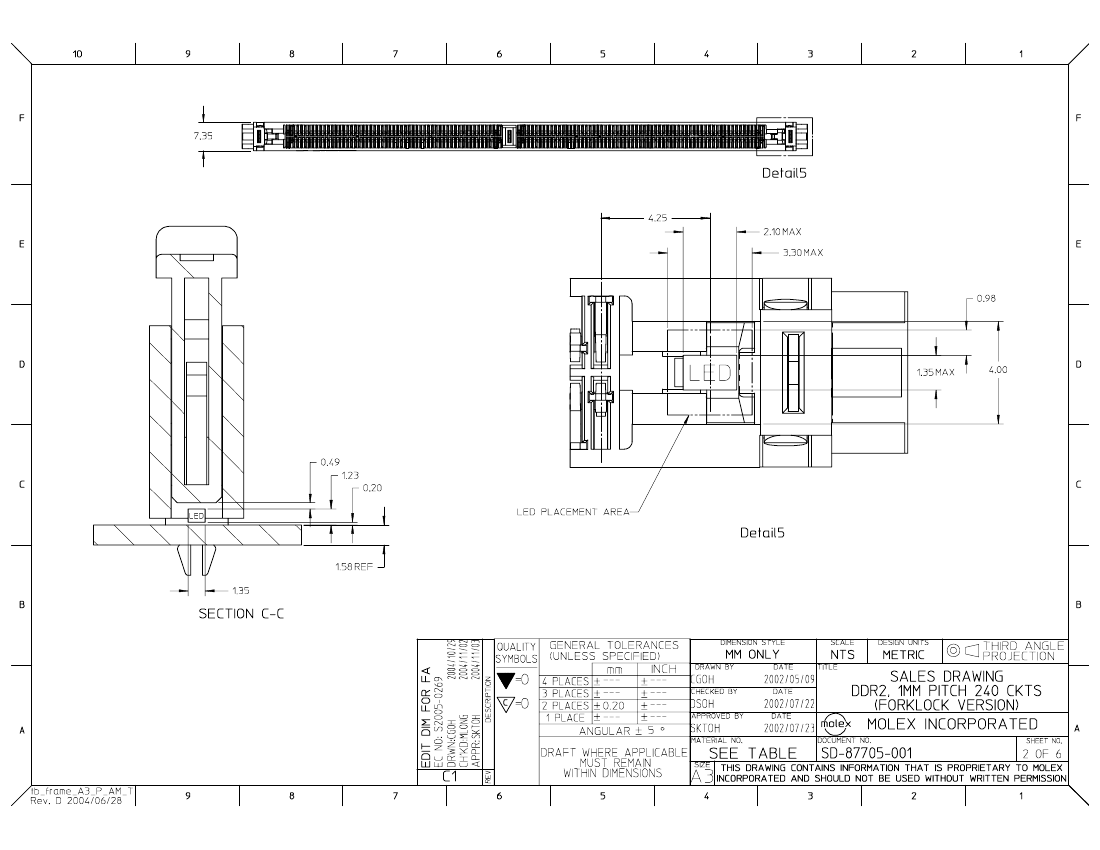

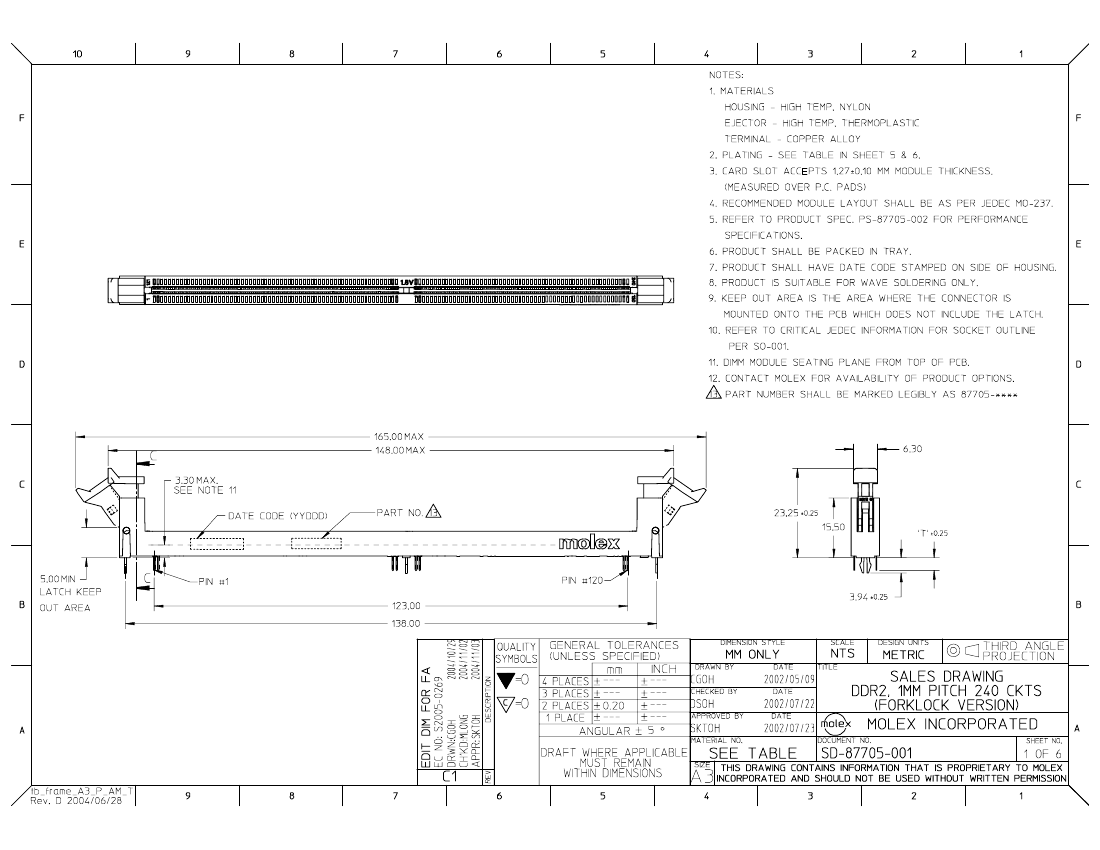

87705-1042 Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch

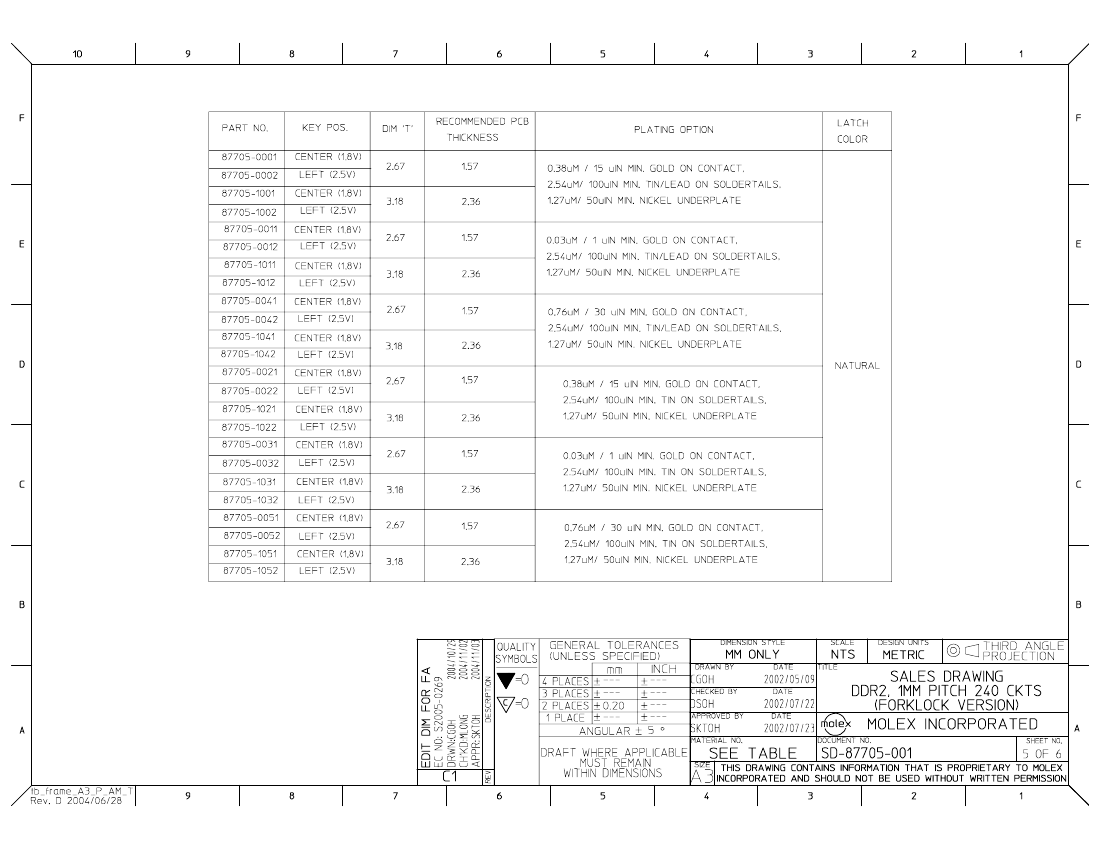

87705-1042 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
Other featuresLATCHED, POLARIZED
Board mount optionsSPLIT BOARD LOCK
subject depth0.915 inch
body length5.827 inch
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number87705
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-10 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness30u inch
Rated current (signal)0.5 A
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch1 mm
Termination typeSOLDER
Total number of contacts240
Base Number Matches1
