ODU CARD
Explanation of number codes for ODU CARD, Series 511
In 2.54-mm pitch for cross-section 0.64 × 0.64 mm
Number codes
A
B
C
D
E
.
No.
Meaning
Coding
.
.
.
A
Series
B
Type
*
C
Surface plating
(see Female headers)
D
E
*
Number of contacts
Packaging
511
= Pin headers, pitch 2.54 mm
020
= Pluggable on one side, insulator 3.5 / 2.8 mm
Mating length 6.0 mm, 1-row, straight
024
= Pluggable on one side, insulator 2.5 / 2.5 mm
Mating length 6.0 mm, 1-row, straight
021
= Pluggable on one side, insulator 3.5 / 2.8 mm
Mating length 18.0 mm, 1-row, straight
025
= Pluggable on one side, insulator 2.5 / 2.5 mm
Mating length 18.0 mm, 1-row, straight
030
= Pluggable on one side, insulator 6.04 / 2.8 mm
Mating length 6.0 mm, 2-row, straight
032
= Pluggable on one side, insulator 5.08 / 2.8 mm
Mating length 6.0 mm, 2-row, straight
031
= Pluggable on one side, insulator 6.04 / 2.8 mm
Mating length 18.0 mm, 2-row, straight
037
= Pluggable on one side, insulator 5.08 / 2.8 mm
Mating length 18.0 mm, 2-row, straight
270
= Pluggable on one side, mating length 6.5 mm,
2-row, angled
280
= Pluggable on one side, mating length 6.5 mm,
1-row, angled (see Female headers)
003
= In mating area 0.5 μm Au on Ni,
In termination area 2.0 μm Sn on Ni
(standard)
009
= Flash-gold-plated (upon request)
035
= In mating area 0.75 μm Au on Ni,
In termination area 2.0 μm Sn on Ni
(upon request)
010
= 10 contacts (example)
000
= Cardboard box
for B / Type: additional mating lengths upon request
Ordering example for Series 511
A
B
C
D
E
5 1 1
.
0 2 0
.
0 0 3
.
0 1 0
.
0 0 0
A = Series: 511 Pin headers, pitch 2.54 mm
B = Type: pluggable on one side, insulator 3.5/2.8 mm,
mating length 6.0 mm, 1-row, straight
C = Surface plating: in mating area 0.5 μm Sn on Ni
in termination area 2.0 μm Sn on Ni (standard)
D = Number of contacts: 10
E = Packaging: cardboard box
www.odu.de
Page 20
ODU CARD
ODU CARD pin headers, Series 511
Cross-section 0.64 × 0.64 mm
Pin headers, 1-row
1-row, with straight solder pins, mating length 6.0 mm, in pitch 2.54 mm
Technical data
Electrical specification
Contact load:
Contact resistance:
Insulation resistance:
Test voltage:
5A
≤ 4 mΩ
> 5 GΩ
1,500 V ~
Mechanical specification
Operating temperature: – 40 °C to +125 °C
Humidity level:
75 % rel. humidity in
accordance with
DIN EN 60721-3-3
Material and surface plating
Contact surface
Mating area:
0.5 μm Au on 1.25 μm Ni /
MIL-G-45204 Cl. 00 *)
Termination area:
2 μm Sn on 1.25 μm Ni
Insulator material:
PBT grey
GF in accordance with
UL94 V-0
Contact material:
Copper alloy
Terminations:
Solder pins
*) Applies to contact points in the mating area.
Rest of surface plating is flash-gold-plated or Sn on Ni.

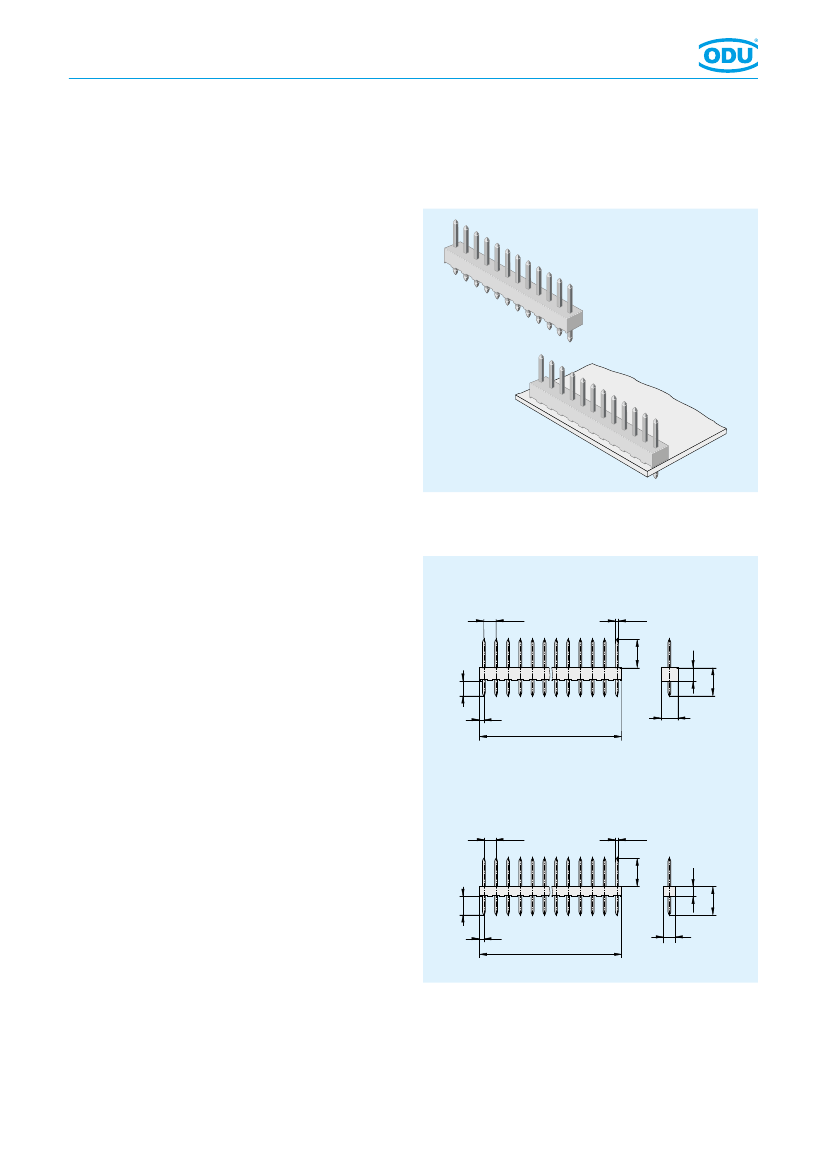

Dimensions
2.54
0.64
2.8
3.5
2.5
2.5
(6)
(6)
3.2
1.2
L ± 0.5
2.54
3.5
1.2
L ± 0.5
www.odu.de
6
6
0.64
Page 21
ODU CARD
ODU CARD pin headers, Series 511
Cross-section 0.64 × 0.64 mm
Pin headers, 1-row
1-row, with straight solder pins, mating length 6.0 mm, in pitch 2.54 mm
Order information and dimensional table
(All dimensions are in mm)
Number Dimen-
of
sion
contacts
L
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1)
PCB layout for Insulator 3.5 / 2.8
Part number
1)
Insulator 3.5 / 2.8
511.020.003.002.000
511.020.003.003.000
511.020.003.004.000
511.020.003.005.000
511.020.003.006.000
511.020.003.007.000
511.020.003.008.000
511.020.003.009.000
511.020.003.010.000
511.020.003.011.000
511.020.003.012.000
511.020.003.013.000
511.020.003.014.000
511.020.003.015.000
511.020.003.016.000
511.020.003.017.000
511.020.003.018.000
511.020.003.019.000
511.020.003.020.000
511.020.003.021.000
511.020.003.022.000
511.020.003.023.000
511.020.003.024.000
511.020.003.025.000
511.020.003.026.000
511.020.003.027.000
511.020.003.028.000
511.020.003.029.000
511.020.003.030.000
Insulator 2.5 / 2.5
511.024.003.002.000
511.024.003.003.000
511.024.003.004.000
511.024.003.005.000
511.024.003.006.000
511.024.003.007.000
2)
511.024.003.008.000
511.024.003.009.000
511.024.003.010.000
511.024.003.011.000
511.024.003.012.000
511.024.003.013.000
2)
511.024.003.014.000
511.024.003.015.000
2)
511.024.003.016.000
511.024.003.017.000
2)
511.024.003.018.000
2)
511.024.003.019.000
511.024.003.020.000
511.024.003.021.000
2)
511.024.003.022.000
2)
511.024.003.023.000
511.024.003.024.000
2)
511.024.003.025.000
2)
511.024.003.026.000
2)
511.024.003.027.000
2)
511.024.003.028.000
2)
511.024.003.029.000
2)
511.024.003.030.000
2)
4.94
7.48
10.02
12.56
15.10
17.64
20.18
22.72
25.26
27.80
30.34
32.88
35.42
37.96
40.50
43.03
45.58
48.12
50.66
53.20
55.74
58.28
60.82
63.36
65.90
68.44
70.98
73.52
76.06
Ø 1.0
2.54
PCB layout for Insulator 2.5 / 2.5
Ø 1.0
2.54
For _ please enter the required surface plating:
003: 0.5 μm Au on Ni (standard)
009: Flash-gold-plated (upon request)
035: 0.75 μm Au on Ni (upon request)
Upon request
2)
Number codes, see page 5.
