530554-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 530554-3

530554-3: Description4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

530554-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	530554-3	-	-	View	Buy Now

530554-3 Overview

4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, RECEPTACLE, ROHS COMPLIANT

530554-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1503009614
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AMPMODU
body width	0.1 inch
subject depth	0.55 inch
body length	0.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	STRIP OR LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	32 AWG

Preview

Download Datasheet

View All

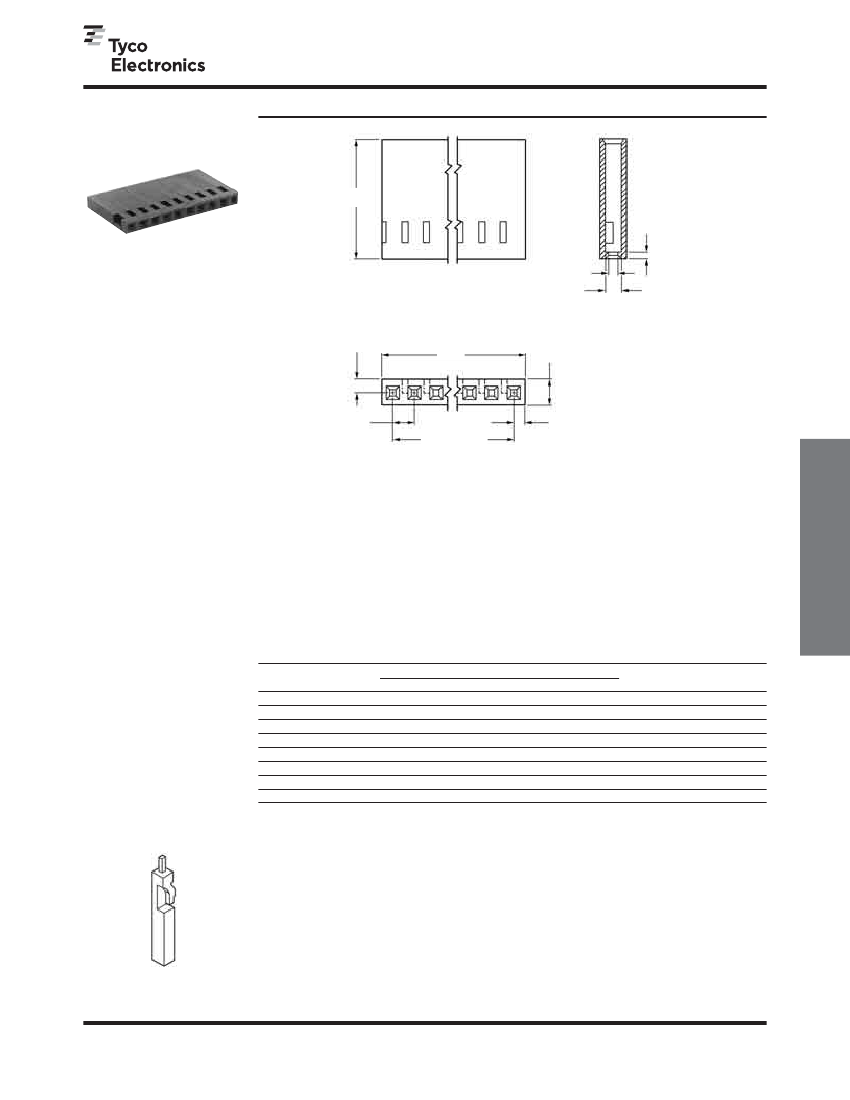

AMPMODU Interconnection System

Mini-Tandem Spring Housings, Single-Row

.100 [2.54] Centerline

.550

[13.97]

.030

[0.76]

Material

— Black glass-filled poly-

ester, 94V-0 rated

.036

[0.91]

.066

[1.68]

Technical Documents

—

pages 277, 278

Product Specification

108-25031

Application Specification

114-25021

.050

[1.27]

Max.

.100

Max.

[2.54]

.100

[2.54]

Spaces

.100

[2.54] =

.050

[1.27]

Minimum mating post length is .140 [3.55].

No. of

Pos.

.200

[5.08]

.400

[10.16]

.800

[20.32]

1.200

[30.48]

1.600

[40.64]

1.800

[45.72]

2.000

[50.80]

2.200

[55.88]

Dimensions

.100

[2.54]

.300

[7.62]

.700

[17.78]

1.100

[27.94]

1.500

[38.10]

1.700

[43.18]

1.900

[48.26]

2.100

[53.34]

Housing

Part No.

530554-1

530554-3

530554-7

1-530554-1

1-530554-5

1-530554-7

1-530554-9

2-530554-1

Spring Housings

Material—Natural

color nylon,

94V-2 rated

Note:

Mini-Tandem Spring contacts for use in these housings are shown on page 269.

Keying Plug

Part No. 531226-1

(Plugs directly into housing)

Note:

All part numbers are RoHS compliant.

267

Catalog 1307819

Revised 8-08

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-8706-080-208
