IRG4PH30K datasheet, PDF - EEWORLD Datasheet

IRG4PH30K: DescriptionINSULATED GATE BIPOLAR TRANSISTOR(Vces=1200V, Vce(on)typ.=3.10V, @Vge=15V, Ic=10A); CategoryDiscrete semiconductor The transistor; File Size347KB，9 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

IRG4PH30K Overview

INSULATED GATE BIPOLAR TRANSISTOR(Vces=1200V, Vce(on)typ.=3.10V, @Vge=15V, Ic=10A)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-247AC
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	2
Reach Compliance Code	unknown
Other features	LOW CONDUCTION LOSS
Shell connection	COLLECTOR
Maximum collector current (IC)	20 A
Collector-emitter maximum voltage	1200 V
Configuration	SINGLE
JEDEC-95 code	TO-247AC
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	MOTOR CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	640 ns
Nominal on time (ton)	53 ns
Base Number Matches	1

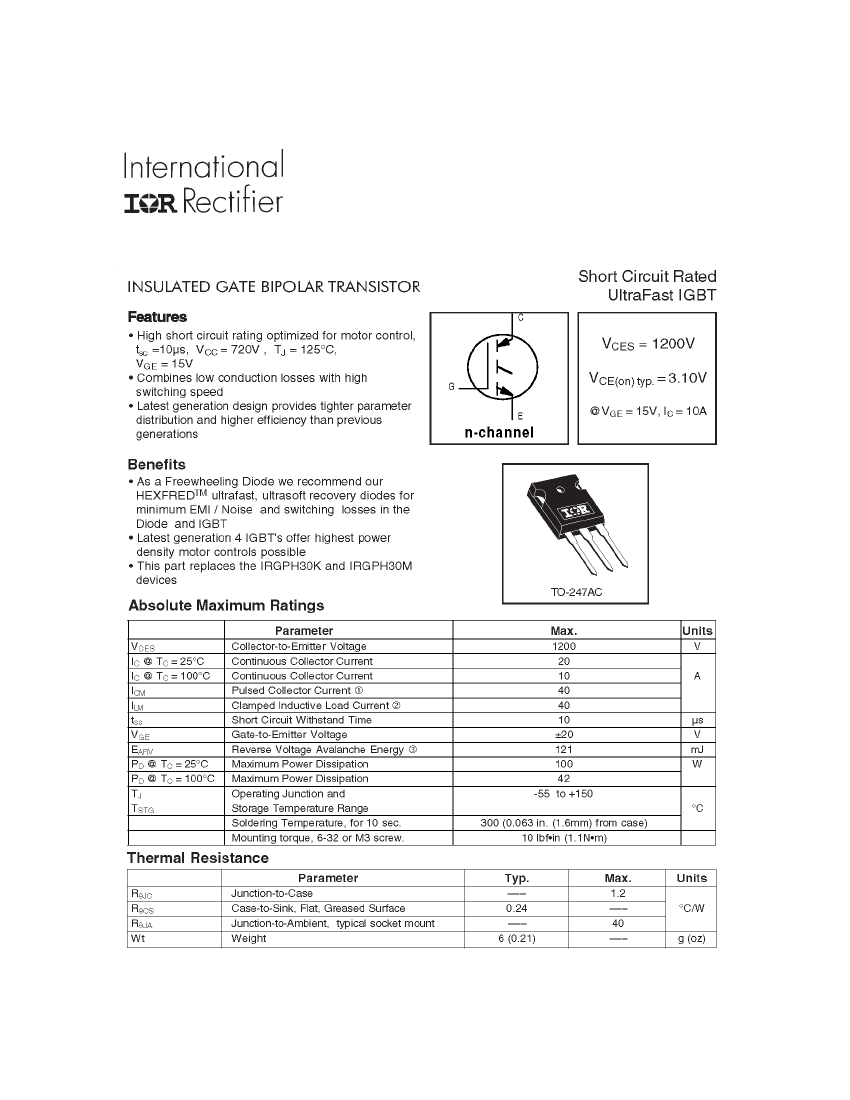

PD - 95401

IRG4PH30KPbF

•

Lead-Free

www.irf.com

1

6/17/04

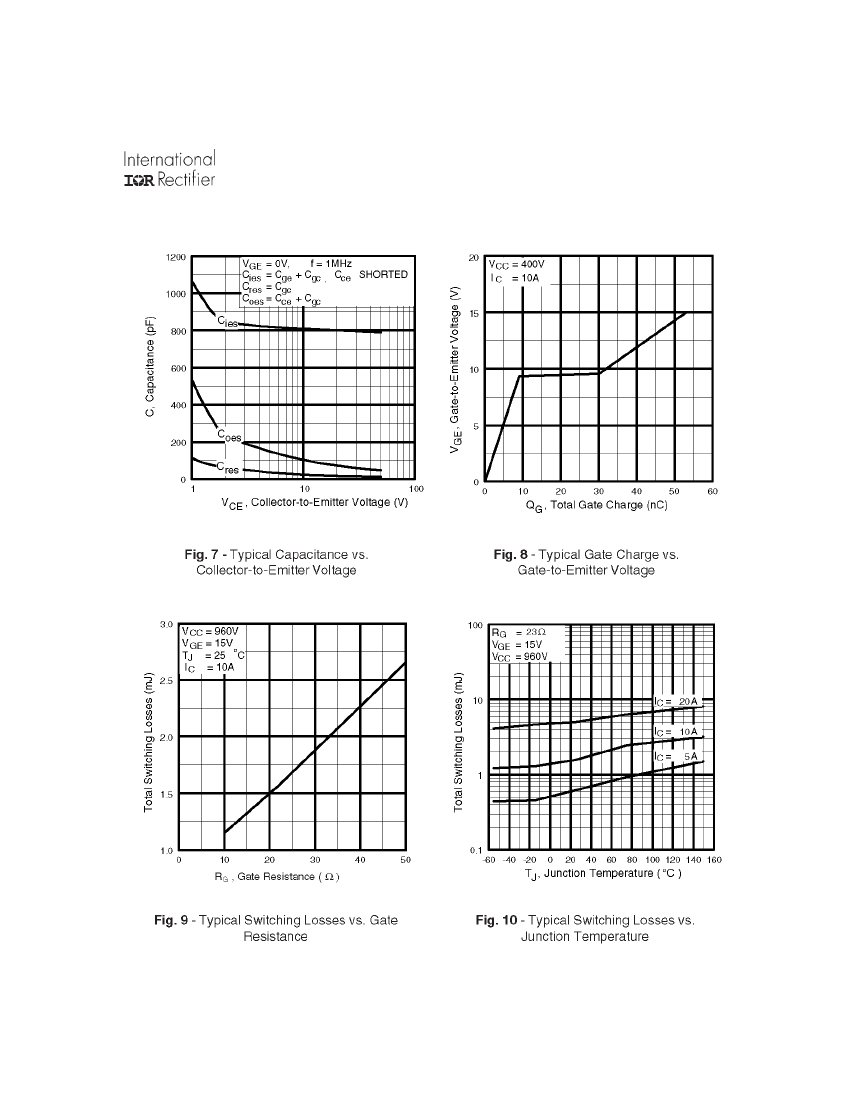

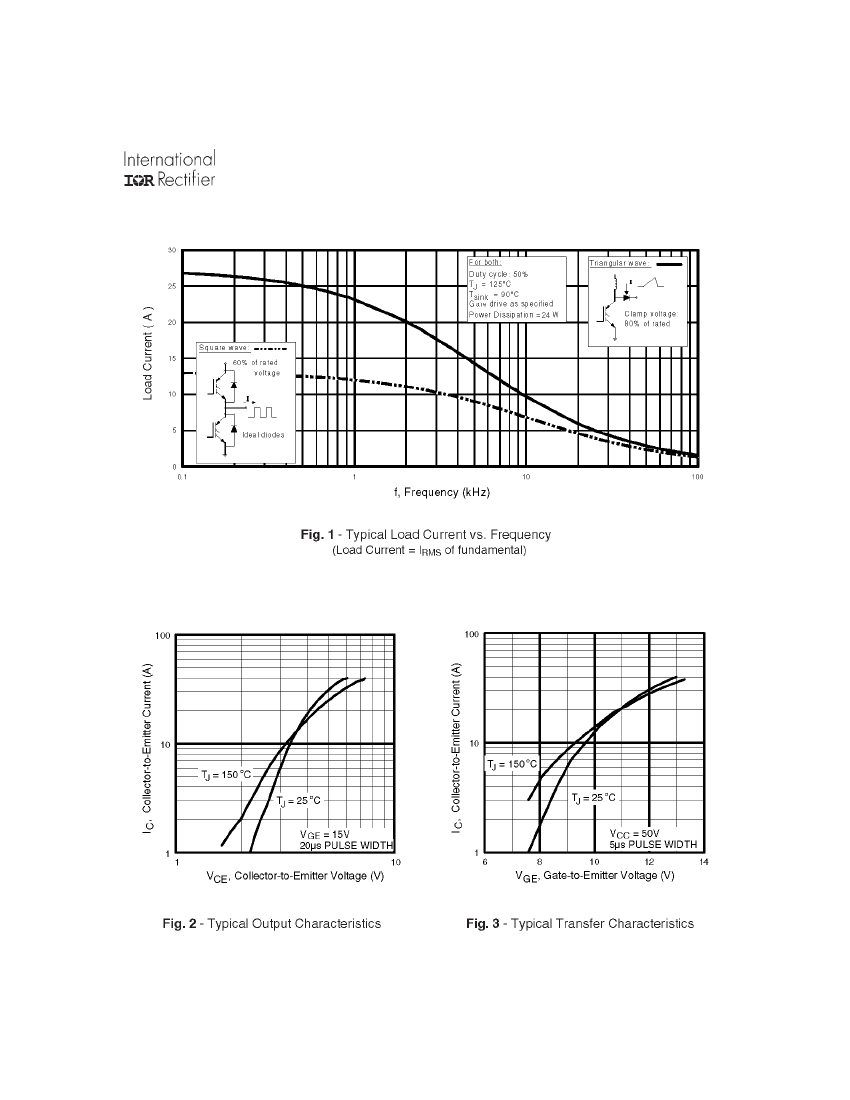

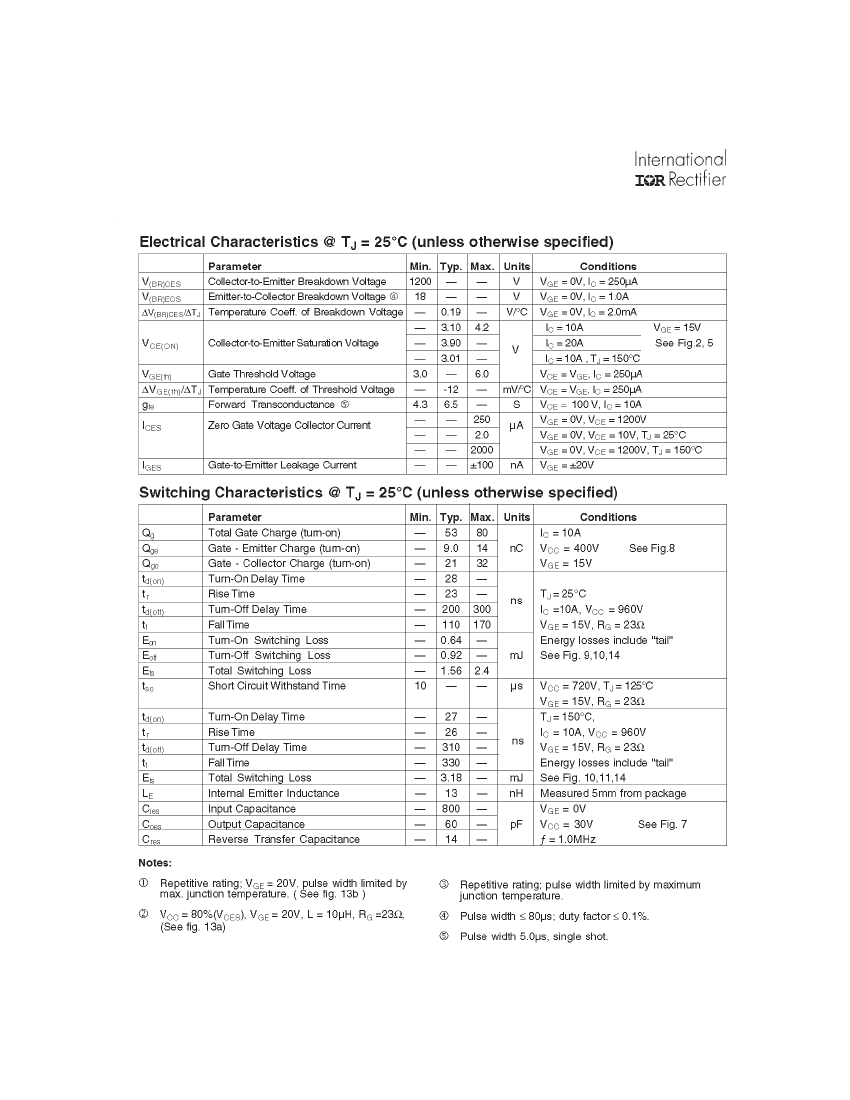

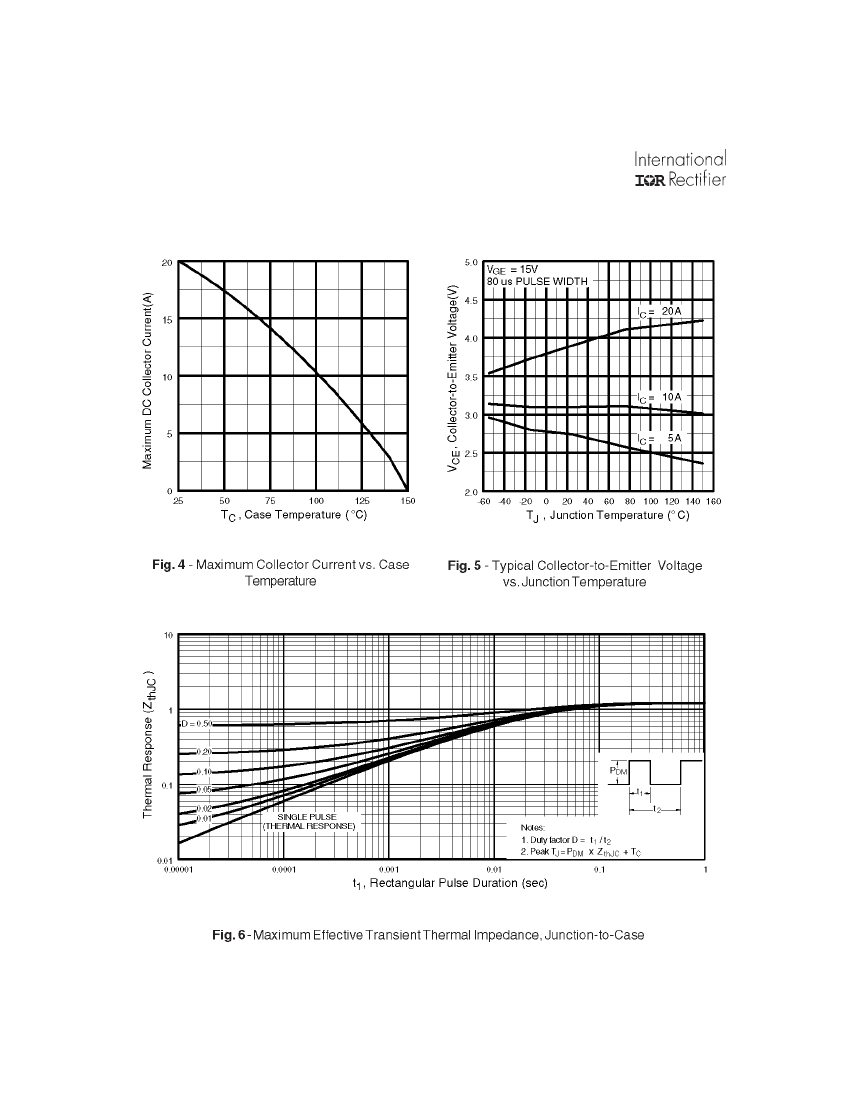

	IRG4PH30K
Description	INSULATED GATE BIPOLAR TRANSISTOR(Vces=1200V, Vce(on)typ.=3.10V, @Vge=15V, Ic=10A)
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-247AC
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	2
Reach Compliance Code	unknown
Other features	LOW CONDUCTION LOSS
Shell connection	COLLECTOR
Maximum collector current (IC)	20 A
Collector-emitter maximum voltage	1200 V
Configuration	SINGLE
JEDEC-95 code	TO-247AC
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	MOTOR CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	640 ns
Nominal on time (ton)	53 ns
Base Number Matches	1
