8894-0-15-15-12-84-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8894-0-15-15-12-84-10-0

8894-0-15-15-12-84-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size140KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8894-0-15-15-12-84-10-0 Overview

PCB Terminal, ROHS COMPLIANT

8894-0-15-15-12-84-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8894
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

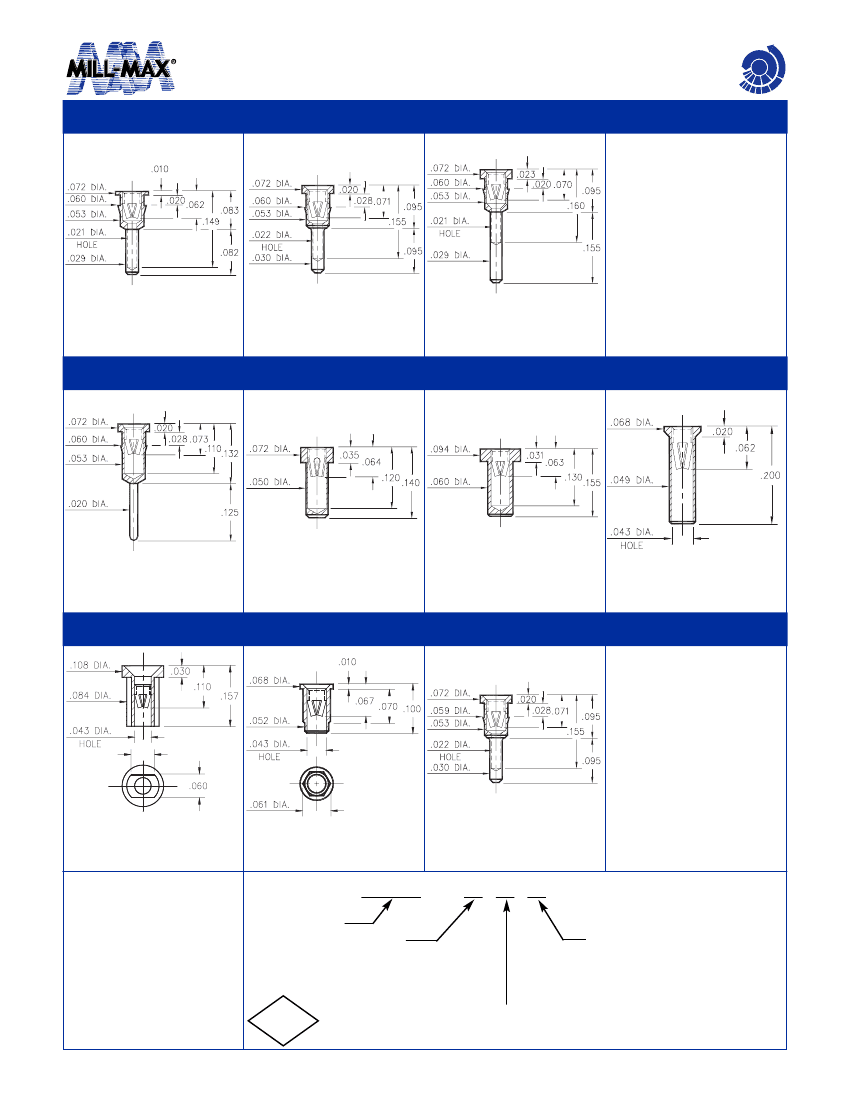

PIN RECEPTACLES

for .015” - .022” diameter pins

CHI

PINS

0512

0703

0574

0512-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

0703-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

0574-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

0468

0550

0671

0707

0468-0-15-XX-12-XX-04-0

Press-fit in .057 mounting hole

0550-0-15-XX-22-XX-10-0

Solder mount in .052 min.

mounting hole

0671-0-15-XX-12-XX-10-0

Solder mount in .063 min.

mounting hole

0707-0-15-XX-12-XX-10-0

Solder mount in .051 min.

mounting hole

5739

8894

1534

.059

5739-0-18-XX-12-XX-10-0

Surface mount

Also available on 16mm wide carrier

tape: 3,000 parts per 13” reel.

Order as: 5739-0-58-XX-12-XX-10-0

8894-0-15-XX-12-XX-10-0

Hex press-fit in .059 plated

thru hole

1534-0-15-XX-12-XX-04-0

Press-fit in .056 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL

100μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

2002/95/EC

SELECT CONTACT

#12 or #22

CONTACT (DATA ON PAGE 218)

w w w. m i l l - m a x . c o m

132

516-922-6000
