Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Green Insulator, Receptacle,
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| Board mount options | FITTING NAIL |
| body width | 0.36 inch |
| subject depth | 0.344 inch |
| body length | 0.406 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact point gender | MALE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Insulation resistance | 500000000 Ω |
| Insulator color | GREEN |
| Manufacturer's serial number | 503148 |
| Plug contact pitch | 0.059 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| PCB contact pattern | RECTANGULAR |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.7112 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 8 |
| Base Number Matches | 1 |

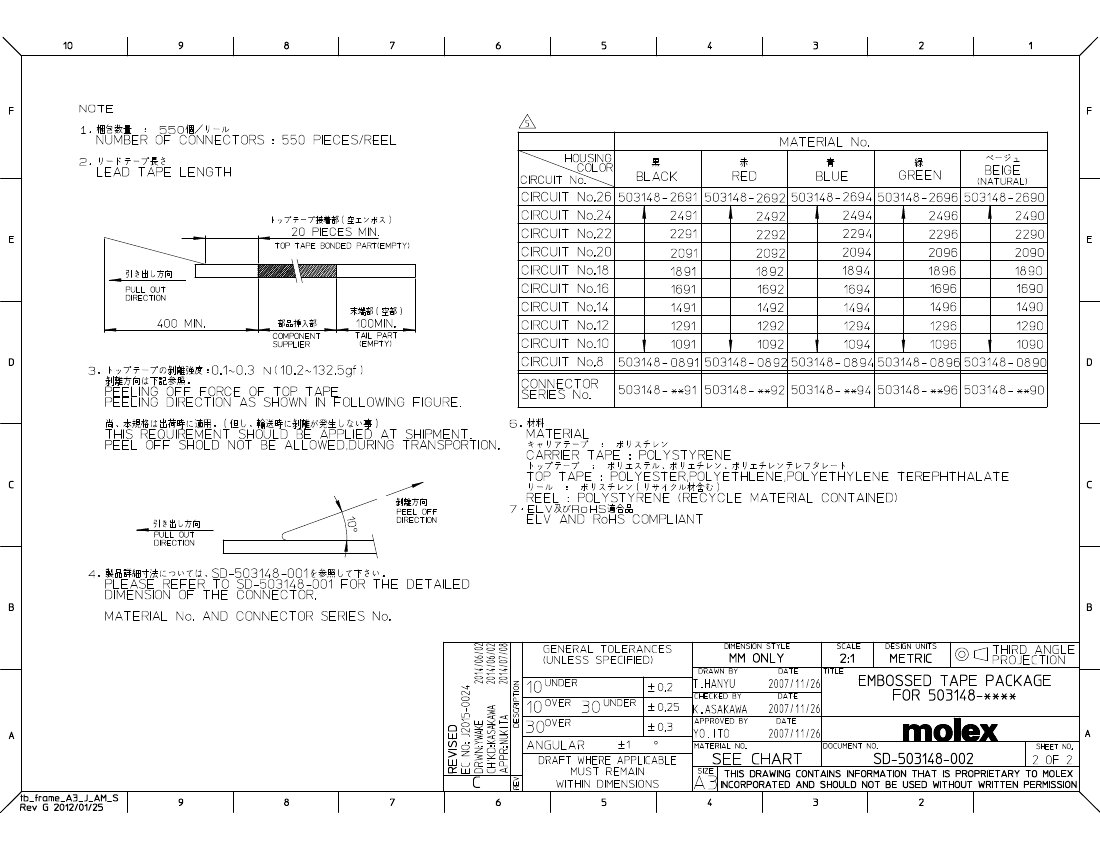

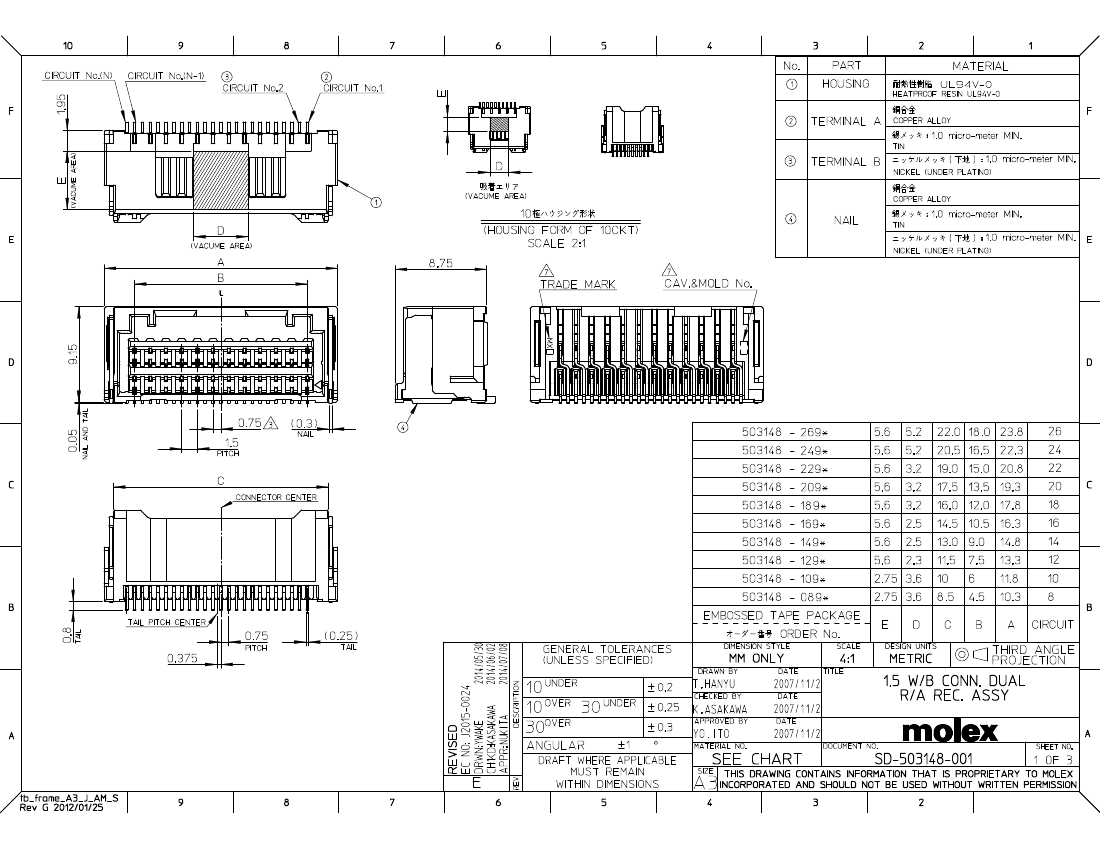

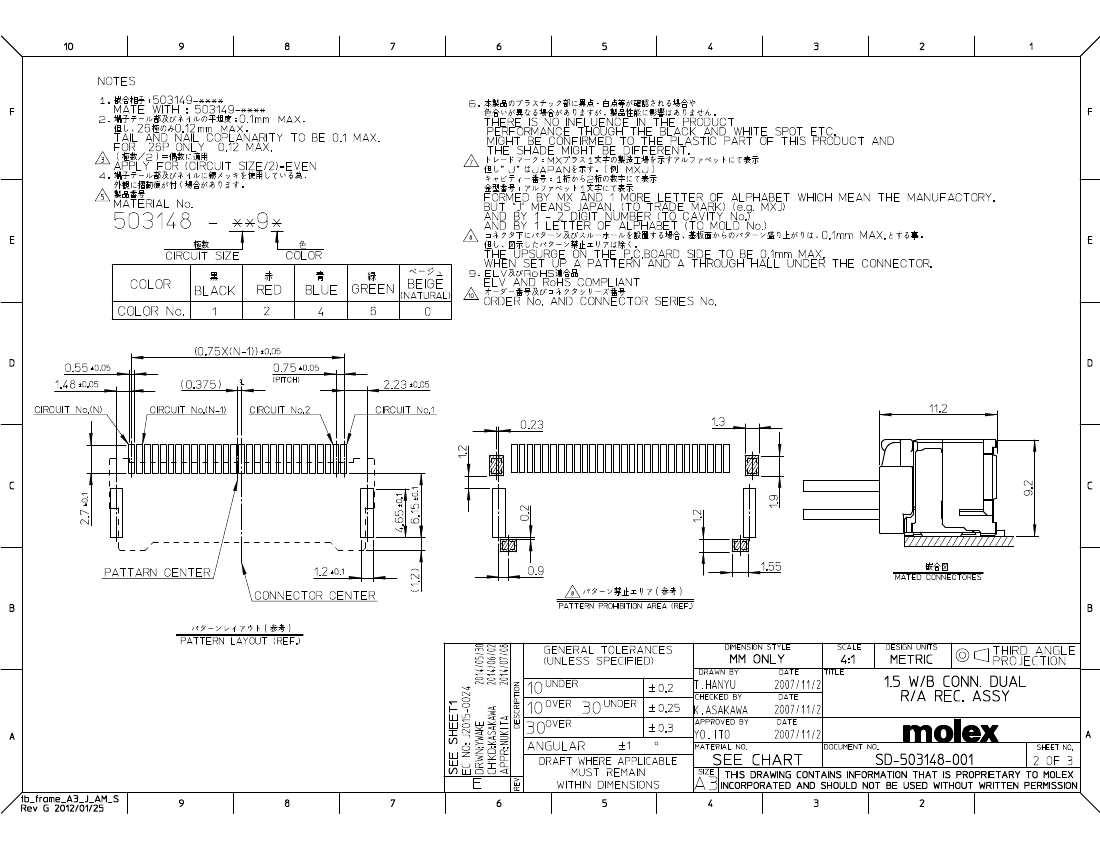

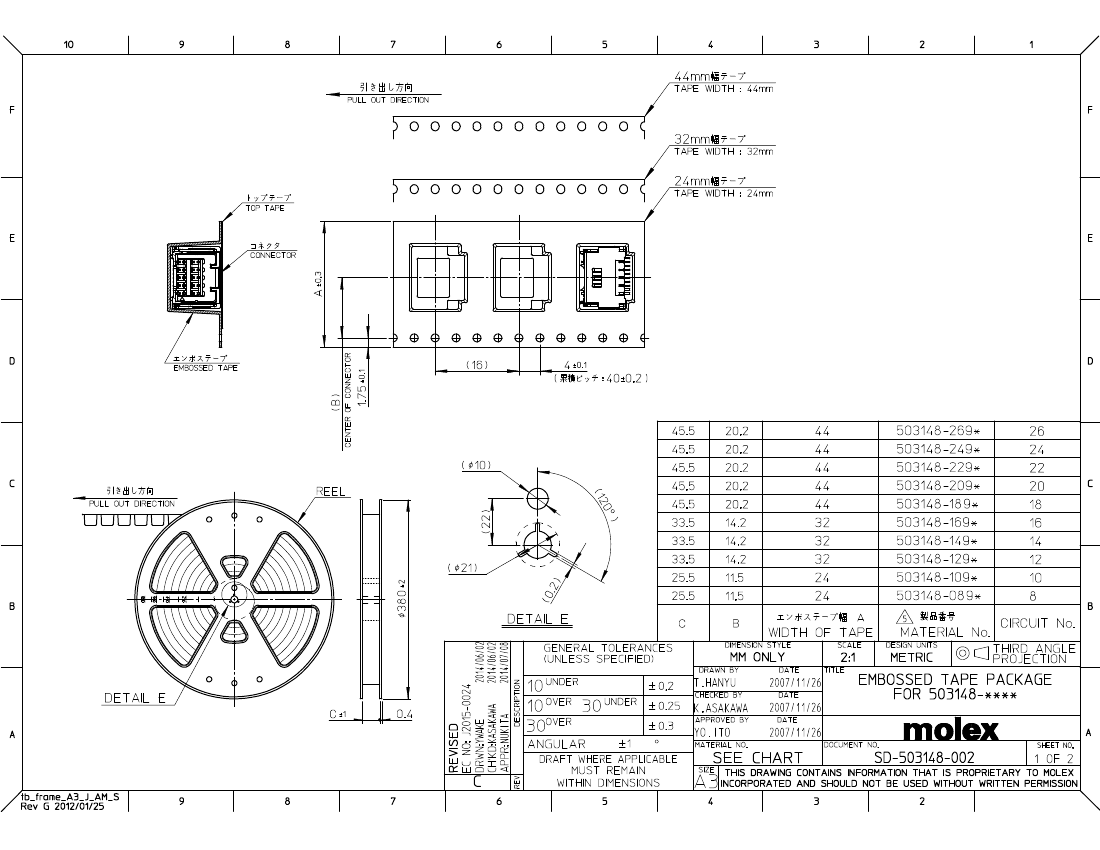

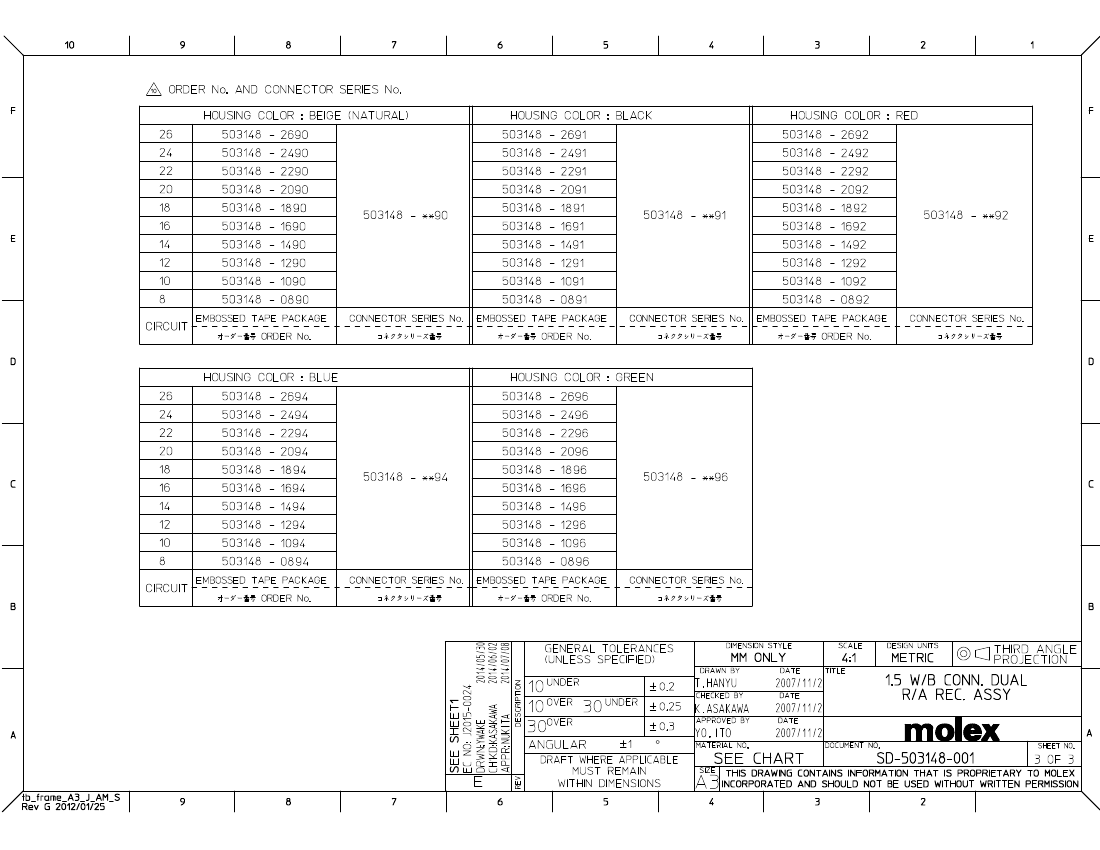

| 503148-0896 | 503148-0891 | 503148-0892 | 503148-0894 | 503148-2696 | 503148-2692 | 503148-2694 | 503148-2691 | |
|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Green Insulator, Receptacle, | Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, | Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Red Insulator, Receptacle, | Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Blue Insulator, Receptacle, | Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Green Insulator, Receptacle, | Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Red Insulator, Receptacle, | Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Blue Insulator, Receptacle, | Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.059 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Molex | Molex | Molex | Molex | Molex | Molex | Molex | Molex |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Board mount options | FITTING NAIL | FITTING NAIL | FITTING NAIL | FITTING NAIL | FITTING NAIL | FITTING NAIL | FITTING NAIL | FITTING NAIL |
| body width | 0.36 inch | 0.36 inch | 0.36 inch | 0.36 inch | 0.36 inch | 0.36 inch | 0.36 inch | 0.36 inch |
| subject depth | 0.344 inch | 0.344 inch | 0.344 inch | 0.344 inch | 0.344 inch | 0.344 inch | 0.344 inch | 0.344 inch |
| body length | 0.406 inch | 0.406 inch | 0.406 inch | 0.406 inch | 0.937 inch | 0.937 inch | 0.937 inch | 0.937 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| Insulator color | GREEN | BLACK | RED | BLUE | GREEN | RED | BLUE | BLACK |
| Manufacturer's serial number | 503148 | 503148 | 503148 | 503148 | 503148 | 503148 | 503148 | 503148 |
| Plug contact pitch | 0.059 inch | 0.059 inch | 0.059 inch | 0.059 inch | 0.059 inch | 0.059 inch | 0.059 inch | 0.059 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.7112 mm | 0.7112 mm | 0.7112 mm | 0.7112 mm | 0.7112 mm | 0.7112 mm | 0.7112 mm | 0.7112 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 8 | 8 | 8 | 8 | 26 | 26 | 26 | 26 |
