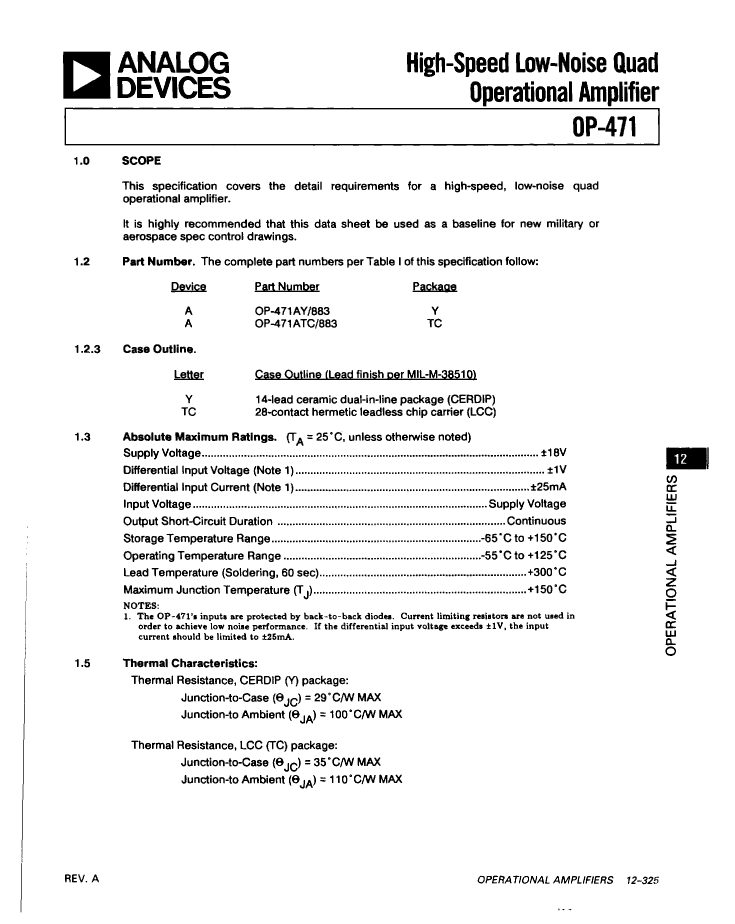

5962-88565023X amplifier basic information:
5962-88565023X is an OPERATIONAL AMPLIFIER. The commonly used packaging method is QCCN,
5962-88565023X amplifier core information:
The minimum operating temperature of 5962-88565023X is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.05 µA
When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88565023X gain becomes 0.707 times the low-frequency gain is 6500 kHz.
The nominal supply voltage of 5962-88565023X is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88565023X is 1200 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 5962-88565023X:
The width of 5962-88565023X is: 11.43 mm and the length is 11.43 mm. 5962-88565023X has 28 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 28
5962-88565023X amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N28. The packaging code of 5962-88565023X is: QCCN. 5962-88565023X packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE.
5962-88565023X package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.
5962-88565023X amplifier basic information:
5962-88565023X is an OPERATIONAL AMPLIFIER. The commonly used packaging method is QCCN,
5962-88565023X amplifier core information:
The minimum operating temperature of 5962-88565023X is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.05 µA
When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88565023X gain becomes 0.707 times the low-frequency gain is 6500 kHz.
The nominal supply voltage of 5962-88565023X is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88565023X is 1200 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 5962-88565023X:
The width of 5962-88565023X is: 11.43 mm and the length is 11.43 mm. 5962-88565023X has 28 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 28
5962-88565023X amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N28. The packaging code of 5962-88565023X is: QCCN. 5962-88565023X packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE.
5962-88565023X package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.

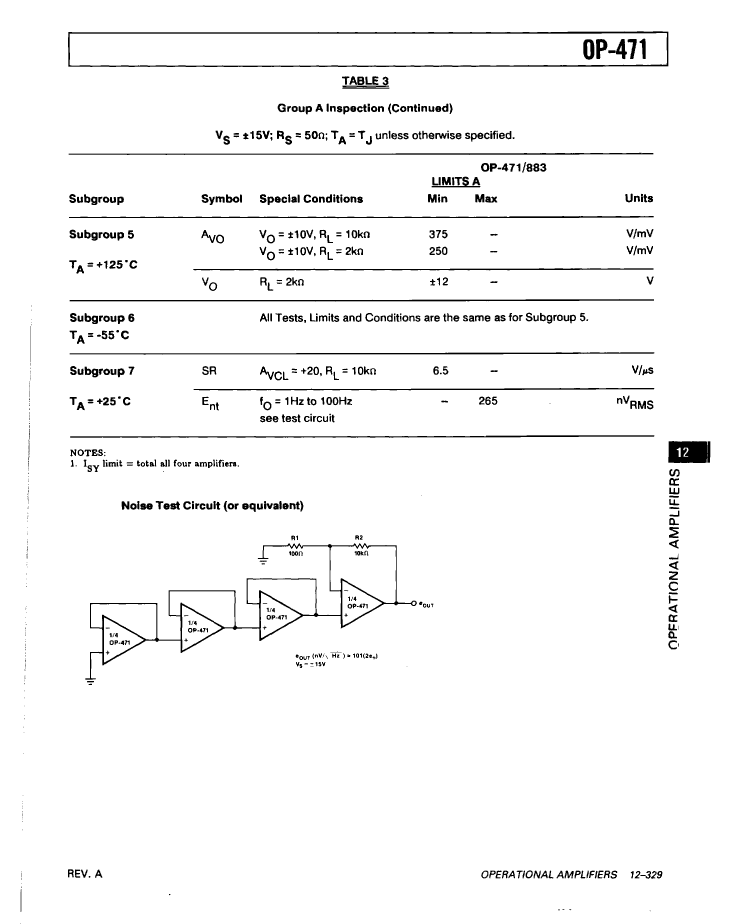

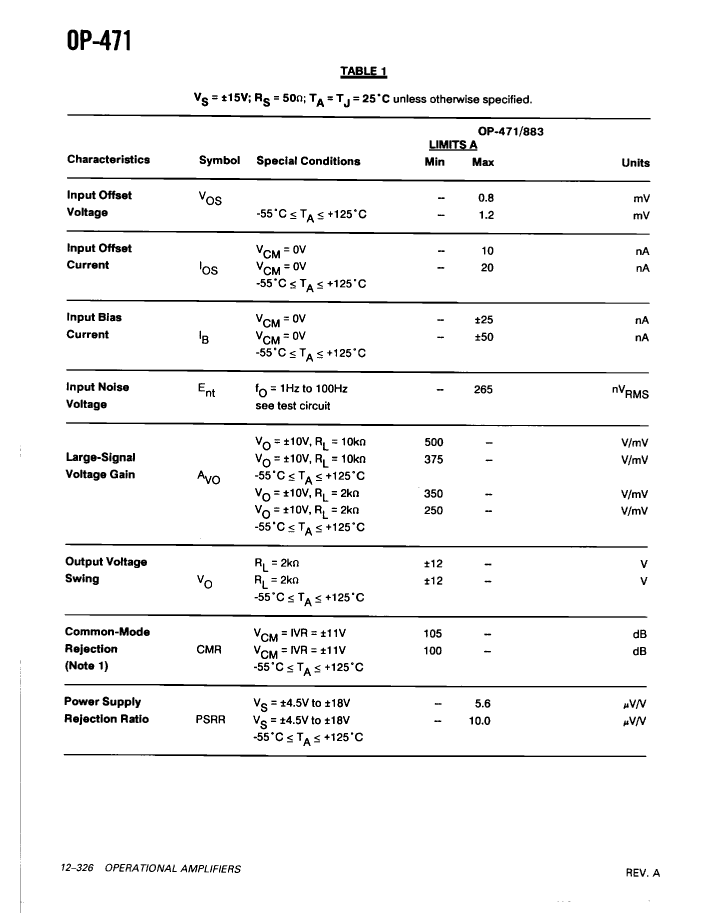

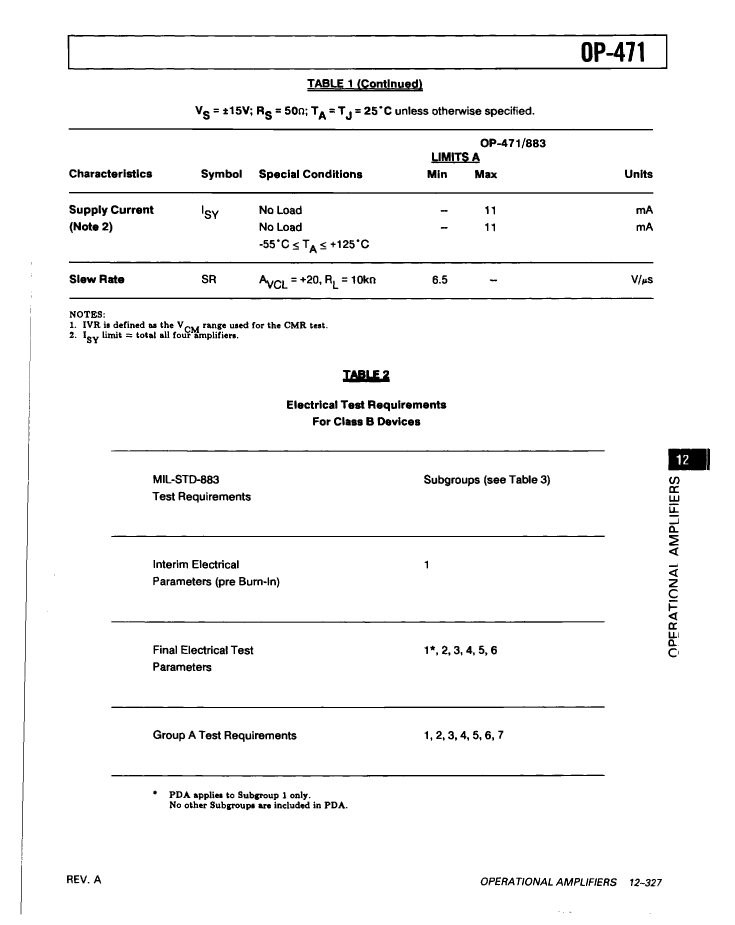

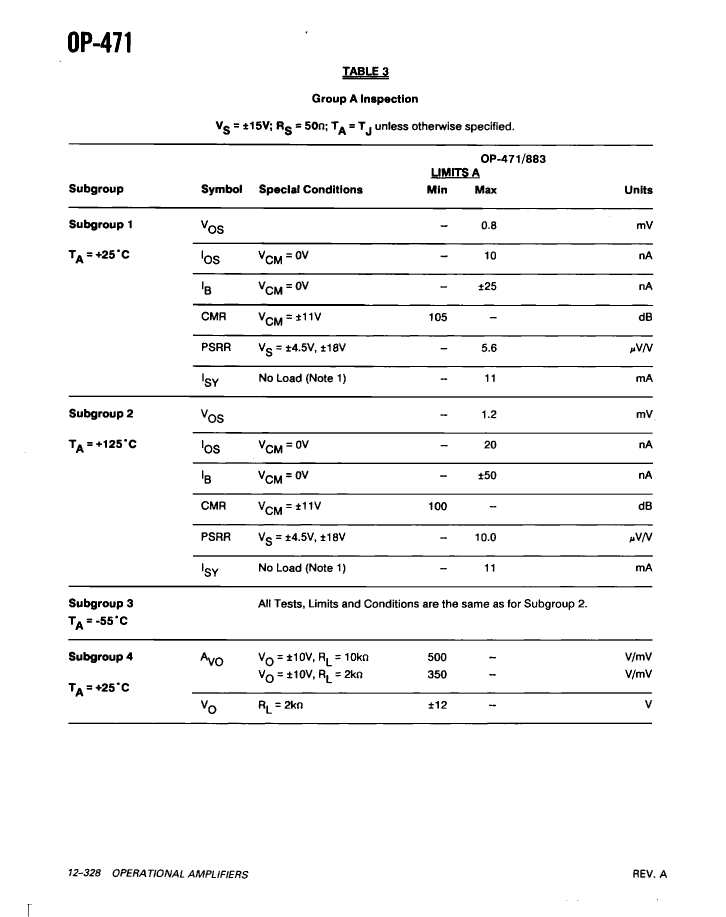

| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | QFN |
| package instruction | QCCN, |
| Contacts | 28 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.05 µA |
| Nominal Common Mode Rejection Ratio | 100 dB |
| Maximum input offset voltage | 1200 µV |
| JESD-30 code | S-CQCC-N28 |
| length | 11.43 mm |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 4 |
| Number of terminals | 28 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Qualified |
| Maximum seat height | 2.54 mm |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 6500 kHz |
| width | 11.43 mm |
| Base Number Matches | 1 |
| 5962-88565023X | 5962-8856502CX | OP-471AY/883 | |
|---|---|---|---|
| Description | IC QUAD OP-AMP, 1200 uV OFFSET-MAX, 6.5 MHz BAND WIDTH, CQCC28, HERMETIC SEALED, CERAMIC, LCC-28, Operational Amplifier | QUAD OP-AMP, 1200uV OFFSET-MAX, 6.5MHz BAND WIDTH, CDIP14, HERMETIC SEALED, CERDIP-14 | IC QUAD OP-AMP, 1200 uV OFFSET-MAX, 6.5 MHz BAND WIDTH, CDIP14, HERMETIC SEALED, CERDIP-14, Operational Amplifier |
| Parts packaging code | QFN | DIP | DIP |
| package instruction | QCCN, | DIP, | HERMETIC SEALED, CERDIP-14 |
| Contacts | 28 | 14 | 14 |
| Reach Compliance Code | compliant | compliant | unknown |
| Maker | ADI | - | ADI |
| ECCN code | EAR99 | EAR99 | - |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | - |
| Maximum average bias current (IIB) | 0.05 µA | 0.05 µA | - |
| Nominal Common Mode Rejection Ratio | 100 dB | 100 dB | - |
| Maximum input offset voltage | 1200 µV | 1200 µV | - |
| JESD-30 code | S-CQCC-N28 | R-GDIP-T14 | - |
| length | 11.43 mm | 19.43 mm | - |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | - |
| Number of functions | 4 | 4 | - |
| Number of terminals | 28 | 14 | - |
| Maximum operating temperature | 125 °C | 125 °C | - |
| Minimum operating temperature | -55 °C | -55 °C | - |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | - |
| encapsulated code | QCCN | DIP | - |
| Package shape | SQUARE | RECTANGULAR | - |
| Package form | CHIP CARRIER | IN-LINE | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - |
| Certification status | Qualified | Qualified | - |
| Maximum seat height | 2.54 mm | 5.08 mm | - |
| Nominal supply voltage (Vsup) | 15 V | 15 V | - |
| surface mount | YES | NO | - |
| technology | BIPOLAR | BIPOLAR | - |
| Temperature level | MILITARY | MILITARY | - |
| Terminal form | NO LEAD | THROUGH-HOLE | - |
| Terminal pitch | 1.27 mm | 2.54 mm | - |
| Terminal location | QUAD | DUAL | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - |
| Nominal Uniform Gain Bandwidth | 6500 kHz | 6500 kHz | - |
| width | 11.43 mm | 7.62 mm | - |
| Base Number Matches | 1 | 1 | - |
