ATT-0592-17-SMC-10 Overview

Fixed Attenuator, 0MHz Min, 8000MHz Max, STAINLESS STEEL

ATT-0592-17-SMC-10 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
Other features	SMC
Nominal attenuation	17 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	8000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

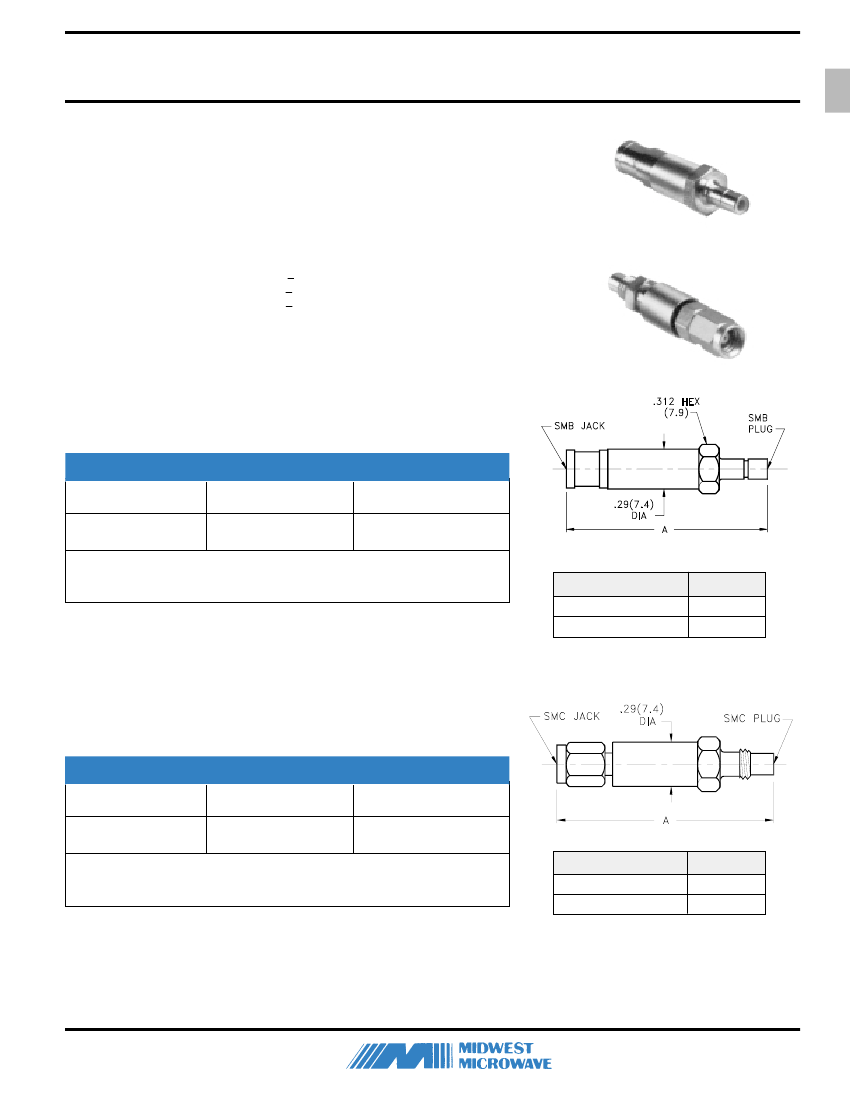

Attenuators

SMB and SMC -

SMB and SMC Type

DC - 4 GHz Performance

This new series of SMB and SMC Attenuators are especially suitable for use

in commercial and low frequency military systems. They have been

designed to withstand the same hostile environmental conditions as all of

the other Midwest Microwave series of Attenuators.

Frequency:

DC - 4 GHz

Attenuation Values:

1 - 20 dB as noted

Attenuation Accuracy:

1 - 6 dB + 0.3

7 - 10 dB

11 - 20 dB

Impedance:

50 Ohms

VSWR:

1.25 max

Power:

2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125

Peak Power:

200 Watts

Operating Temperature Range:

-54

C to +125

Finish:

Nickel Plated Brass

+ 0.5 dB

+ 0.75 dB

SMB Type

DC - 12.4 GHz

Male/Female

591 SMB Series

Female/Female

Model Number

Male/Male

ATT-591M-XX-SMB-10

ATT-0591-XX-SMB-10 ATT-591F-XX-SMB-10

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments

Attenuation Value

1 - 12 dB

13 - 20 dB

Length A

1.42 (36.0)

1.54 (39.1)

SMC Type

DC - 8.0 GHz

Male/Female

592 SMC Series

Female/Female

Model Number

Male/Male

ATT-592M-XX-SMC-10

Attenuation Value

1 - 12 dB

13 - 20 dB

Length A

1.42 (36.0)

1.54(39.1)

ATT-0592-XX-SMC-10 ATT-592F-XX-SMC-10

Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments
