ASTX-H09-48.0000MHZ-D25-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASTX-H09-48.0000MHZ-D25-T

ASTX-H09-48.0000MHZ-D25-T: DescriptionHCMOS Output Clock Oscillator, 48MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size138KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASTX-H09-48.0000MHZ-D25-T Overview

HCMOS Output Clock Oscillator, 48MHz Nom, ROHS COMPLIANT PACKAGE-4

ASTX-H09-48.0000MHZ-D25-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	2 PPM/FIRST YEAR
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Manufacturer's serial number	ASTX-H09
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.2mm
longest rise time	6 ns
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

HCMOS TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR

ASTX-H09

FEATURES:

• Compact and low in height

• Low current consumption; IR reflow possible

• Suitable for high-density SMT

• HCMOS Output

RoHS

Compliant

APPLICATIONS:

• Cellular and cordless phones

• Standard OSC for exact equipment

• Mobile communication equipment

• Portable radio equipment and music player

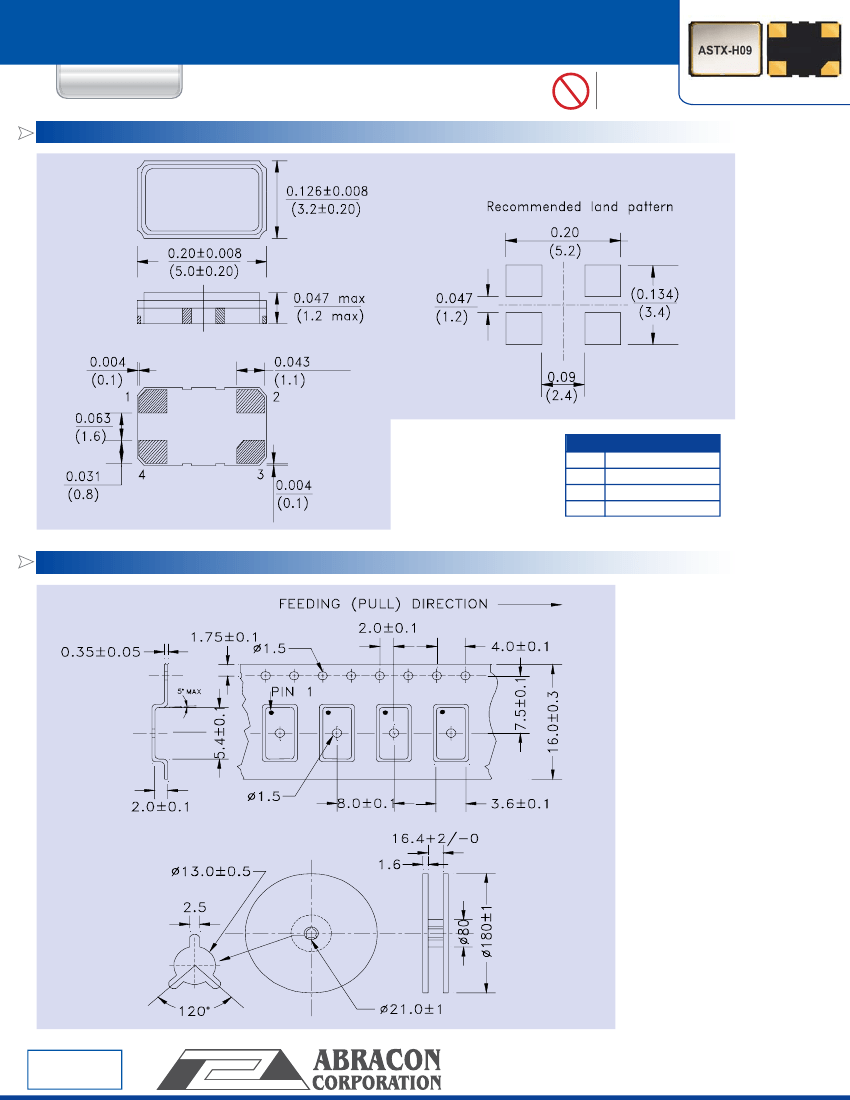

5.0 x 3.2 x 1.2mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency

Standard Frequencies

Operating Temperature

Storage Temperature

Freq. Stability vs. Room Temp.

vs. Operating Temp.

vs. Aging

vs. Supply Voltage

vs. Load

Supply Voltage (Vdd)

Supply Current

Output Type

Output Voltage (V

)

Output Voltage (V

)

Rise and Fall Time

(Tr/Tf)

Output Load

Phase Noise

Symmetry

Start-up Time

ASTX-H09

5.000MHz to 50.000MHz

12.8, 13.0, 14.4, 15.36, 16.000, 16.384, 16.8, 19.2, 19.440, 19.680,

19.8, 26.0, 39.0, 48.0 MHz

0° C to + 70° C (See Table 1 for options)

- 40° C to + 85° C

±3.0ppm (1 hour after reflow at Vcc=3.3V)

±3.0ppm standard (See Table1 for options)

±2.0ppm/1st year

±0.5ppm (Vcc ± 5% change)

±0.2ppm (± 10% change)

3.0 V Standard (See options)

15mA max

HCMOS

>2.97V

<0.33V

6nsec

15 pF

-140dBc/Hz typical @ 100kHz offset; -125dBc/Hz typical @ 1kHz offset

40/60 % @ 50% Vdd

10msec

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASTX - H09 -

Supply

Voltage (Vdd)

- Frequency -

Frequency (MHz)

XX.XXXX MHz

Packaging

Blank

Bulk

Tape and Reel

Blank

3.0V

3.3V

Table 1: Frequency Stability vs Operating Temp.

0°C-50°C

-10°C to 60°C

0°C to 70°C

-20°C to +75°C

-30°C to 75°C

-40°C to 85°C

±2.5ppm

D25

E25

F25

±3ppm

D30

E30

Blank(STD)

G30

±4ppm

D40

E40

F40

G40

H40

I40

±5ppm

D50

E50

F50

G50

H50

I50

(1,000 or 2,000pcs/reel)

REVISED: 6.19.07

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
