09365062601 Overview

Rectangular Connector,

09365062601 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Connector typeRECTANGULAR CONNECTOR
Base Number Matches1

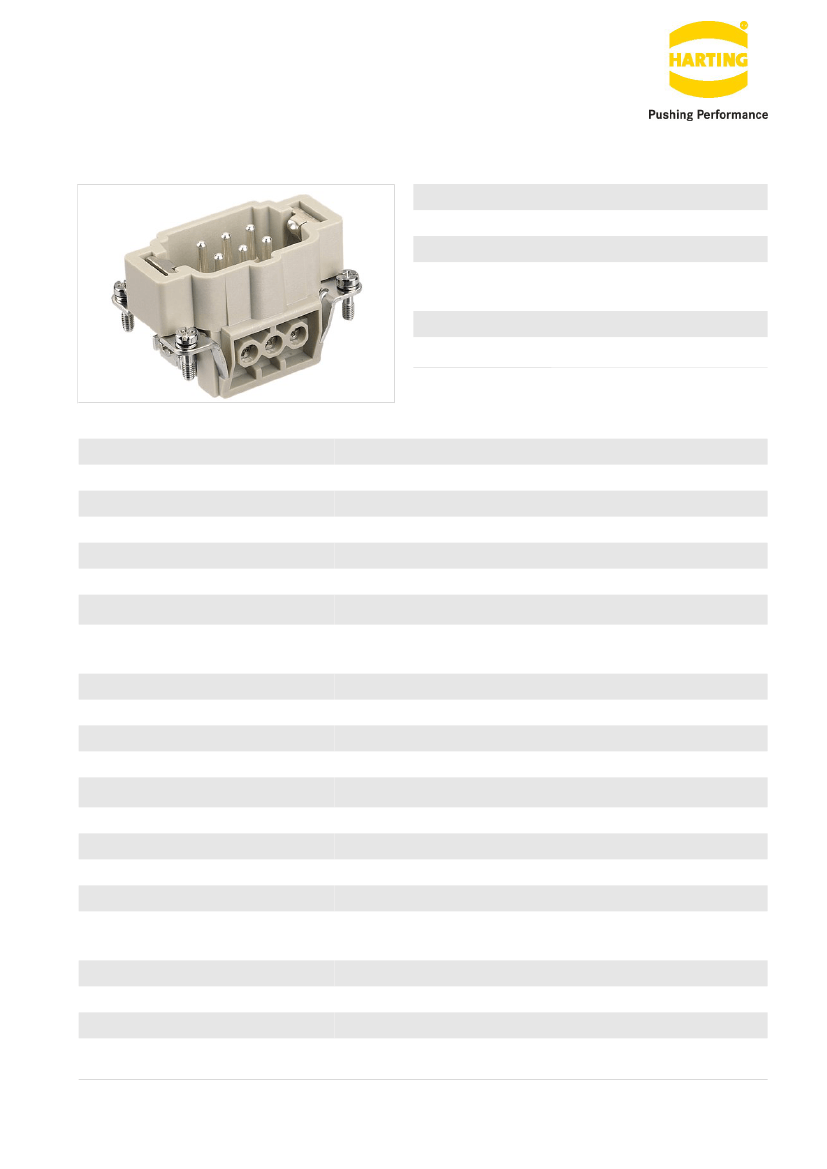

Product data sheet
09 36 506 2601
Han 6Ex UL-M-S
Han 6Ex UL-M-S
Part number
Specification
HARTING eCatalogue
09 36 506 2601
Han 6Ex UL-M-S
https://b2b.harting.com/09365062601
Identification
Category
Series
Inserts
Han
®
Ex
Version
Termination method
Gender
Size
Number of contacts
PE contact
Details
Details
Screw termination
Male
6B
6
Yes
for US purposes only
ATTENTION! Only to be used with Han
®
Ex hoods and housings!
Technical characteristics
Conductor cross-section
Electrical data acc. to IEC 61984
Rated current
Rated voltage
Insulation resistance
Contact resistance
Limiting temperature
Tightening torque
Mating cycles
0.75 ... 2.5 mm²
16 A   90 V
16 A
90 V
≥10
10
 Ω
≤1 mΩ
-20 ... +40 °C
0.5 Nm
≥500
Material properties
Material (insert)
Colour (insert)
Material (contacts)
Surface (contacts)
Polycarbonate
RAL 7032 (pebble grey)
Copper alloy
Silver plated
Page 1 / 2 | Creation date 2018-08-10 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany
Phone +49 5772 47-97100 | electric@HARTING.com | www.HARTING.com
