CS1087XDW28

Description
Vacuum Fluorescent Display Tube Driver
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size120KB,12 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

CS1087XDW28 Overview

Vacuum Fluorescent Display Tube Driver

CS1087XDW28 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeSOIC
package instructionSOIC-28
Contacts28
Reach Compliance Code_compli
ECCN codeEAR99
data entry modeSERIAL
Interface integrated circuit typeVACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 codeR-PDSO-G28
JESD-609 codee0
length17.9 mm
Multiplex display functionYES
Number of functions1
Number of segments32
Number of terminals28
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP28,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply8/16.5 V
Certification statusNot Qualified
Maximum seat height2.65 mm
Maximum slew rate5 mA
Maximum supply voltage16.5 V
Minimum supply voltage8 V
Nominal supply voltage12 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.5 mm
minfmax1 MHz
CS1087
Vacuum Fluorescent
Display Tube Driver
The VFD Driver is a microprocessor interface IC that drives a
multiplexed VF (Vacuum Fluorescent) display tube. It consists of a
32–bit shift register, a 32–bit transparent data latch, a metal mask
ROM, six 20 mA anode output drivers, twenty–three 2 mA anode
output drivers, and three 50 mA grid drivers with output enables.
Features
Power On Reset
Display Dimming Possible
Three, 50 mA Grid Drivers
Anode Options – DIP–40 and PCLL–44:
6 @ 20 mA
23 @ 2 mA
Anode Options – SO–28L:
3 @ 20 mA
15 @ 2 mA
http://onsemi.com
40
1
DIP–40
WIDE BODY
N SUFFIX
CASE 711
PLCC–44
FN SUFFIX
CASE 777
28
Chip Select
V
IGN
12 V
Clock
SO–28L
DW SUFFIX
CASE 751F
1
ORDERING INFORMATION*
Data Out
SPI Functions
Regulator
5V
GND
Device
CS1087XN40
Package
DIP–40
WIDE BODY
PLCC–44
PLCC–44
SO–28L
SO–28L
Shipping
9 Units/Rail
23 Units/Rail
500 Tape & Reel
27 Units/Rail
1000 Tape & Reel
Anodes
1:29
0.1
µF
V
CC
µP
PORT
PORT
PORT
GND PORT
V
BB
FILAMENT
VFD
GRID1GRID2 GRID3 GND
CS1087XFN44
CS1087XFNR44
CS1087XDW28
CS1087XDWR28
V
BAT
CS1087
D
OUT
D
IN
GRID1
CLK GRID2
STB GRID3
GREN
GND
*For additional package options, consult your local
ON Semiconductor sales office.
DEVICE MARKING INFORMATION
See general marking information in the device marking
section on page 7 of this data sheet.

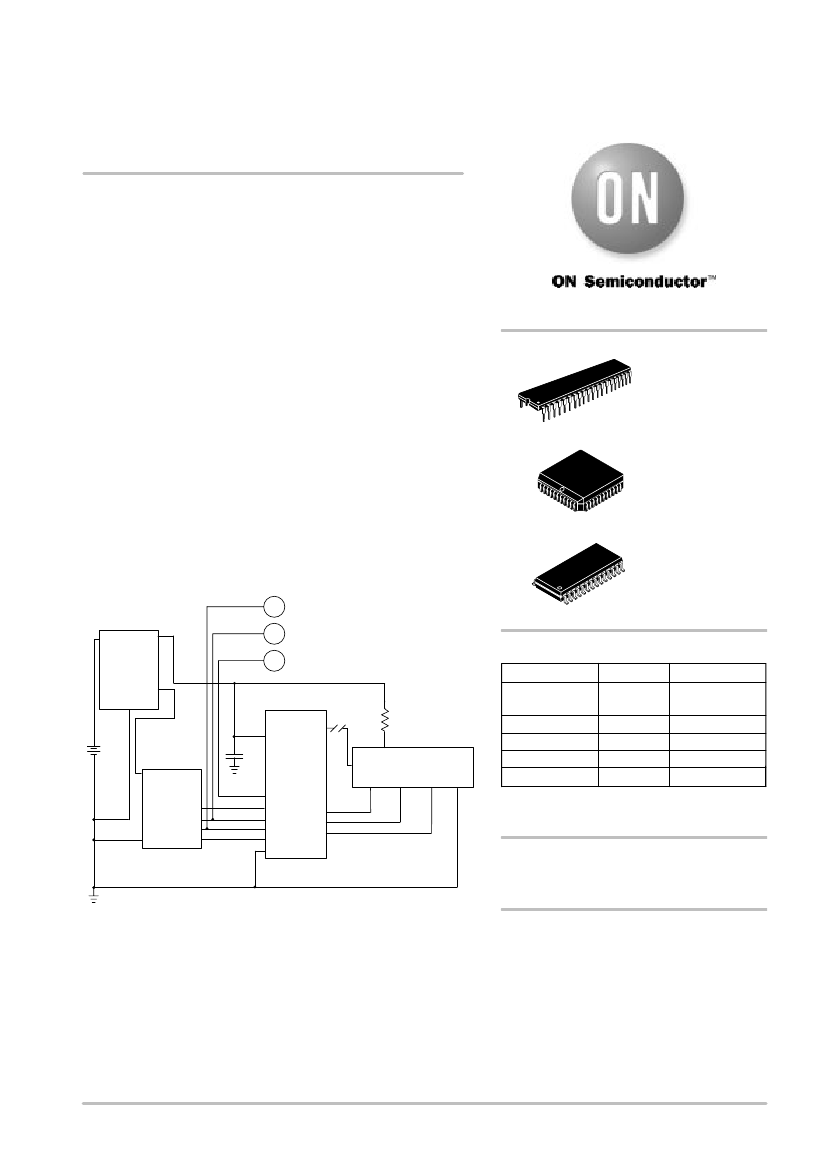

Figure 1. Application Diagram
©
Semiconductor Components Industries, LLC, 2001
1
August, 2001 – Rev. 11
Publication Order Number:
CS1087/D

CS1087XDW28 Related Products

CS1087XDW28 CS1087 CS1087XDWR28 CS1087XFN44 CS1087XFNR44 CS1087XN40
Description Vacuum Fluorescent Display Tube Driver Vacuum Fluorescent Display Tube Driver Vacuum Fluorescent Display Tube Driver Vacuum Fluorescent Display Tube Driver Vacuum Fluorescent Display Tube Driver Vacuum Fluorescent Display Tube Driver
Is it Rohs certified? incompatible - incompatible incompatible incompatible incompatible
Maker ON Semiconductor - ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor
Parts packaging code SOIC - SOIC LCC LCC DIP
package instruction SOIC-28 - SOIC-28 PLASTIC, LCC-44 PLASTIC, LCC-44 PLASTIC, DIP-40
Contacts 28 - 28 44 44 40
Reach Compliance Code _compli - _compli _compli _compli _compli
ECCN code EAR99 - EAR99 EAR99 EAR99 EAR99
data entry mode SERIAL - SERIAL SERIAL SERIAL SERIAL
Interface integrated circuit type VACUUM FLUORESCENT DISPLAY DRIVER - VACUUM FLUORESCENT DISPLAY DRIVER VACUUM FLUORESCENT DISPLAY DRIVER VACUUM FLUORESCENT DISPLAY DRIVER VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 code R-PDSO-G28 - R-PDSO-G28 S-PQCC-J44 S-PQCC-J44 R-PDIP-T40
Multiplex display function YES - YES YES YES YES
Number of functions 1 - 1 1 1 1
Number of segments 32 - 32 32 32 32
Number of terminals 28 - 28 44 44 40
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR - RECTANGULAR SQUARE SQUARE RECTANGULAR
Package form SMALL OUTLINE - SMALL OUTLINE CHIP CARRIER CHIP CARRIER IN-LINE
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified
Maximum supply voltage 16.5 V - 16.5 V 16.5 V 16.5 V 16.5 V
Minimum supply voltage 8 V - 8 V 8 V 8 V 8 V
surface mount YES - YES YES YES NO
Terminal form GULL WING - GULL WING J BEND J BEND THROUGH-HOLE
Terminal location DUAL - DUAL QUAD QUAD DUAL
minfmax 1 MHz - 1 MHz 2 MHz 2 MHz 2 MHz
