5962R9572601VXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9572601VXC

5962R9572601VXC: DescriptionNAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14; Categorylogic logic; File Size207KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9572601VXC Overview

NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14

5962R9572601VXC Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

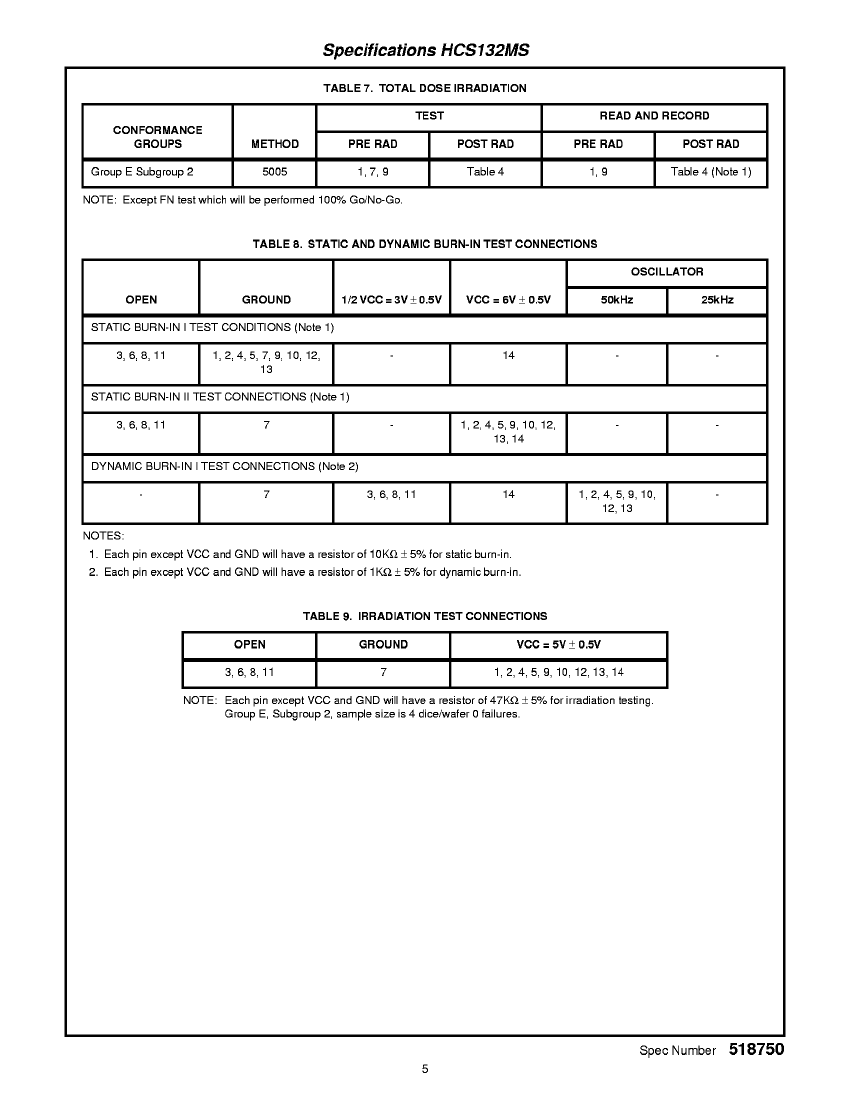

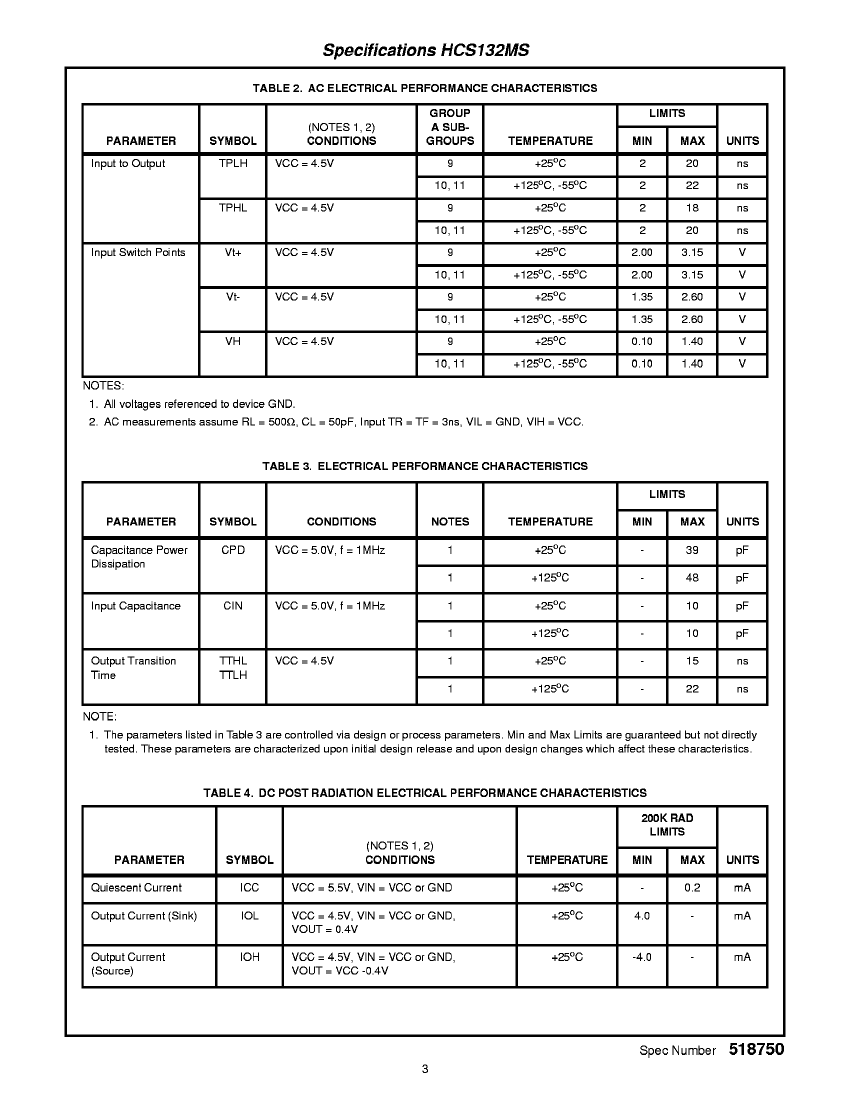

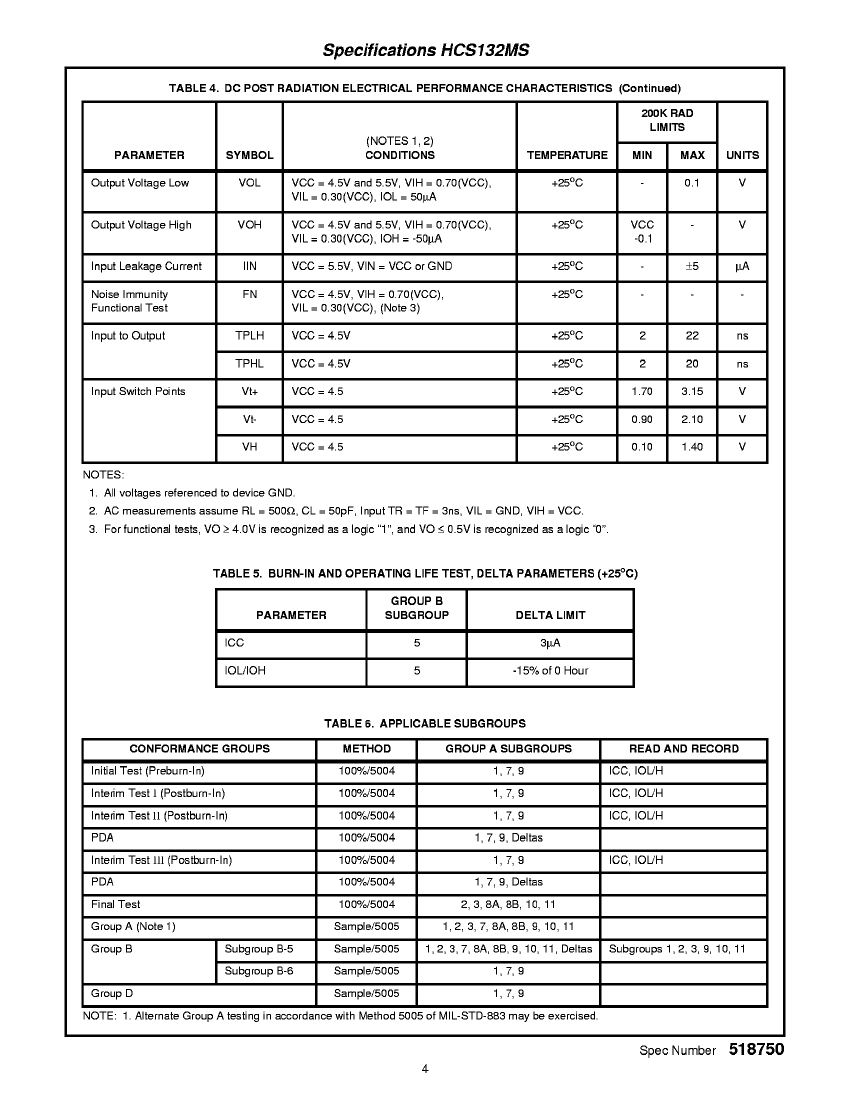

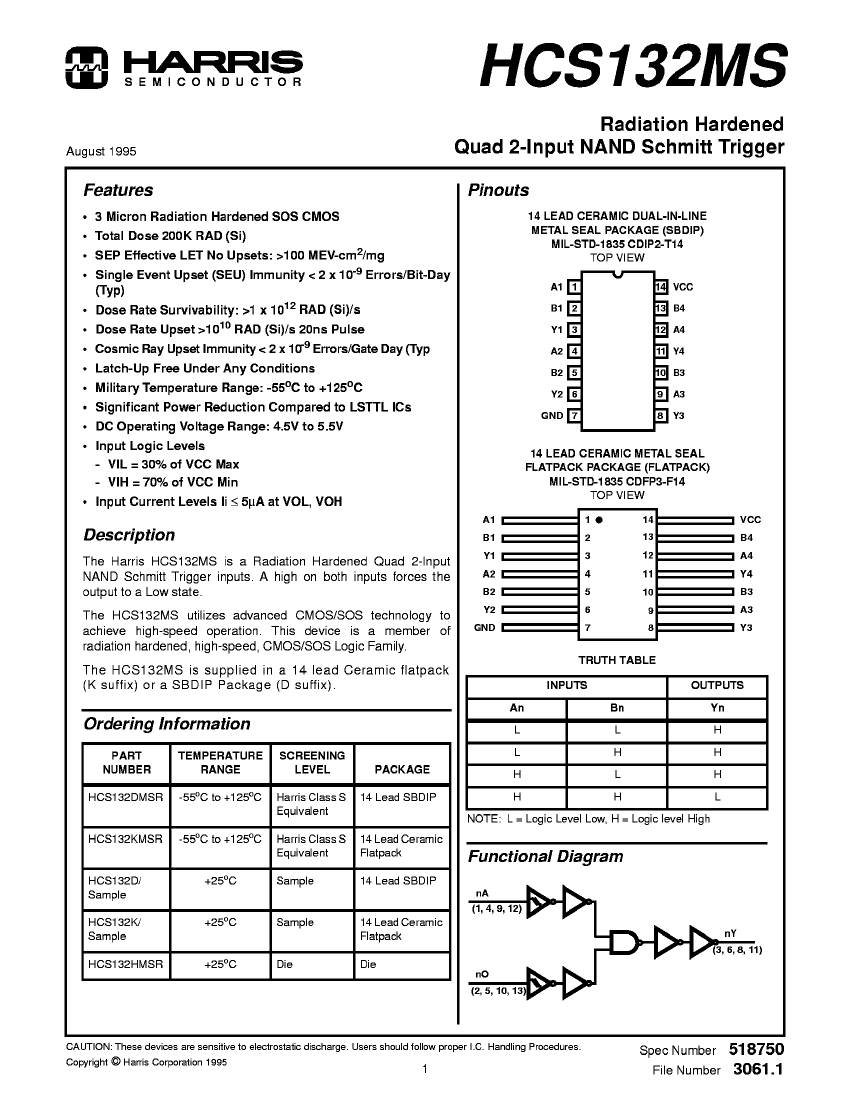

Preview

Download Datasheet

View All

5962R9572601VXC Related Products

	5962R9572601VXC	HCS132K/SAMPLE	HCS132HMSR	HCS132KMSR	5962R9572601V9A	5962R9572601VCC	HCS132DMSR	HCS132D/SAMPLE
Description	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, DIE-14	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14
package instruction	DFP,	,	DIE,	DFP, FL14,.3	DIE,	,	DIP, DIP14,.3	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDFP-F14	R-CDFP-F14	X-XUUC-N14	R-CDFP-F14	X-XUUC-N14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	4	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14	14
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	UNCASED CHIP	FLATPACK	UNCASED CHIP	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	20 ns	18 ns	18 ns	20 ns	18 ns	20 ns	20 ns	18 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	FLAT	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	UPPER	DUAL	UPPER	DUAL	DUAL	DUAL
JESD-609 code	e4	-	-	e0	e0	e4	e0	-
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-
encapsulated code	DFP	-	DIE	DFP	DIE	-	DIP	-
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-
Terminal surface	GOLD	-	-	Tin/Lead (Sn/Pb)	TIN LEAD	GOLD	Tin/Lead (Sn/Pb)	-
total dose	100k Rad(Si) V	-	-	200k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	200k Rad(Si) V	-
Base Number Matches	1	1	1	1	1	1	1	-
Maker	-	Harris	Harris	Harris	-	-	Harris	Harris
