HIP6006
Buck and Synchronous-Rectifier Pulse-Width Modulator (PWM) Controller
The HIP6006 provides complete control and protection for a
DC-DC converter optimized for high-performance
microprocessor applications. It is designed to drive two
N Channel MOSFETs in a synchronous-rectified buck
topology. The HIP6006 integrates all of the control, output
adjustment, monitoring and protection functions into a single
package.
The output voltage of the converter can be precisely
regulated to as low as 1.27V, with a maximum tolerance of
1%
over temperature and line voltage variations.
The HIP6006 provides simple, single feedback loop, voltage-
mode control with fast transient response. It includes a
200kHz free-running triangle-wave oscillator that is
adjustable from below 50kHz to over 1MHz. The error
amplifier features a 15MHz gain-bandwidth product and
6V/s slew rate which enables high converter bandwidth for
fast transient performance. The resulting PWM duty ratio
ranges from 0% to 100%.
The HIP6006 protects against over-current conditions by
inhibiting PWM operation. The HIP6006 monitors the current
by using the r
DS(ON)
of the upper MOSFET which eliminates
the need for a current sensing resistor.
FN4306
Rev.3.00
April 1, 2005
Features
• Drives Two N-Channel MOSFETs
• Operates From +5V or +12V Input
• Simple Single-Loop Control Design
- Voltage-Mode PWM Control
• Fast Transient Response
- High-Bandwidth Error Amplifier
- Full 0% to 100% Duty Ratio
• Excellent Output Voltage Regulation
- 1.27V Internal Reference
-
1%
Over Line Voltage and Temperature
• Over-Current Fault Monitor
- Does Not Require Extra Current Sensing Element
- Uses MOSFETs r
DS(ON)
• Small Converter Size
- Constant Frequency Operation
- 200kHz Free-Running Oscillator Programmable from
50kHz to Over 1MHz
• 14 Pin, SOIC and TSSOP Package
• Pb-Free Available (RoHS Compliant)
Pinout
HIP6006
(SOIC, TSSOP)
TOP VIEW
RT
OCSET
SS
COMP
FB
EN
GND
1
2
3
4
5
6
7
14 VCC
13 PVCC
12 LGATE
11 PGND
10 BOOT
9
8
UGATE
PHASE
Applications
• Power Supply for Pentium®, Pentium Pro, PowerPC™
and Alpha™ Microprocessors
• High-Power 5V to 3.xV DC-DC Regulators
• Low-Voltage Distributed Power Supplies
Ordering Information
PART NUMBER
HIP6006CB
HIP6006CB-T
HIP6006CBZ (Note)
HIP6006CBZ-T
(Note)
HIP6006CV
HIP6006CV-T
TEMP.
RANGE (
o
C)
0 to 70
0 to 70
0 to 70
0 to 70
0 to 70
0 to 70
PACKAGE
14 Ld SOIC
14 Ld SOIC) (T&R)
PKG.
DWG. #
M14.15
M14.15
14 Ld SOIC (Pb-free) M14.15
14 Ld SOIC) (T&R)
(Pb-free)
14 Ld TSSOP
M14.15
M14.173
14 Ld TSSOP (T&R) M14.173
NOTE: Intersil Pb-free products employ special Pb-free material sets;
molding compounds/die attach materials and 100% matte tin plate
termination finish, which are RoHS compliant and compatible with both
SnPb and Pb-free soldering operations. Intersil Pb-free products are
MSL classified at Pb-free peak reflow temperatures that meet or exceed
the Pb-free requirements of IPC/JEDEC J STD-020.
FN4306 Rev.3.00
April 1, 2005
Page 1 of 12
HIP6006

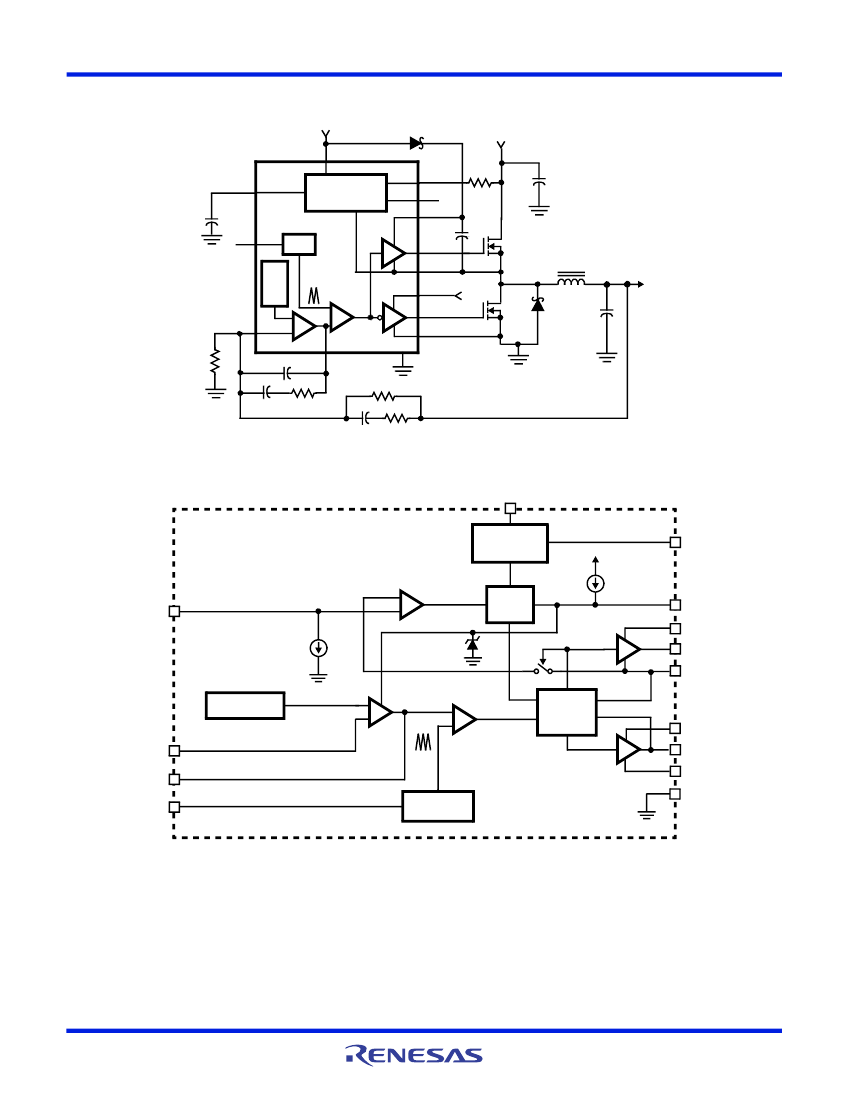

Typical Application
12V
VCC
SS
OCSET
EN
BOOT
RT
OSC
+5V OR +12V
MONITOR AND
PROTECTION
UGATE
PHASE
PVCC
+12V
+V
O
HIP6006
REF
+
FB
+
-
LGATE
PGND
GND
-
COMP
Block Diagram
VCC
POWER-ON
RESET (POR)
10A
OCSET
+
EN
-
OVER-
CURRENT
4V
SOFT-
START
SS
BOOT
UGATE
PHASE
200A
REFERENCE
1.27 VREF
+
PWM
COMPARATOR
-
+
INHIBIT
PWM
-
GATE
CONTROL
LOGIC
FB
COMP
RT
ERROR
AMP
PVCC
LGATE
PGND
GND
OSCILLATOR
FN4306 Rev.3.00
April 1, 2005
Page 2 of 12
HIP6006
Absolute Maximum Ratings
Supply Voltage, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15.0V
Boot Voltage, V
BOOT
- V
PHASE
. . . . . . . . . . . . . . . . . . . . . . +15.0V
Input, Output or I/O Voltage . . . . . . . . . . . . GND -0.3V to V
CC
+0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 2
Thermal Information
Thermal Resistance (Typical, Note 1)
JA
(
o
C/W)
SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
85
TSSOP Package . . . . . . . . . . . . . . . . . . . . . . . . . . .
95
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . 150
o
C
Maximum Storage Temperature Range . . . . . . . . . . -65
o
C to 150
o
C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . 300
o
C
(Lead tips only)
Operating Conditions
Supply Voltage, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . +12V
10%
Ambient Temperature Range . . . . . . . . . . . . . . . . . . . . . 0
o
C to 70
o
C
Junction Temperature Range. . . . . . . . . . . . . . . . . . . . 0
o
C to 125
o
C
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTE:
1.
JA
is measured with the component mounted on a high effective thermal conductivity test board in free air. See Tech Brief TB379 for details.
Electrical Specifications
PARAMETER
VCC SUPPLY CURRENT
Nominal Supply
Shutdown Supply
POWER-ON RESET
Rising V
CC
Threshold
Falling V
CC
Threshold
Enable - Input threshold Voltage
Rising V
OCSET
Threshold
OSCILLATOR
Free Running Frequency
Total Variation
Ramp Amplitude
REFERENCE
Reference Voltage
ERROR AMPLIFIER
DC Gain
Gain-Bandwidth Product
Slew Rate
GATE DRIVERS
Upper Gate Source
Upper Gate Sink
Lower Gate Source
Lower Gate Sink
PROTECTION
OCSET Current Source
Soft Start Current
Recommended Operating Conditions, Unless Otherwise Noted
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNITS
I
CC
EN = V
CC
; UGATE and LGATE Open
EN = 0V
-
-
5
50
-
100
mA
A
V
OCSET
= 4.5VDC
V
OCSET
= 4.5VDC
V
OCSET
= 4.5VDC
-
8.2
0.8
-
-
-
-
1.27
10.4
-
2.0
-
V
V
V
V
R
T
= OPEN, V
CC
= 12
6k < R
T
to GND < 200k
V
OSC
R
T
= OPEN
185
-15
-
200
-
1.9
215
+15
-
kHz
%
V
P-P
1.258
1.270
1.282
V
-
GBW
SR
COMP = 10pF
-
-
88
15
6
-
-
-
dB
MHz
V/s
I
UGATE
R
UGATE
I
LGATE
R
LGATE
V
BOOT
- V
PHASE
= 12V, V
UGATE
= 6V
I
LGATE
= 0.3A
V
CC
= 12V, V
LGATE
= 6V
I
LGATE
= 0.3A
350
-
300
-
500
5.5
450
3.5
-
10
-
6.5
mA
mA
I
OCSET
I
SS
V
OCSET
= 4.5VDC
170
-
200
10
230
-
A
A
FN4306 Rev.3.00
April 1, 2005
Page 3 of 12
HIP6006
Typical Performance Curves
80
70
1000
RESISTANCE (k)
R
T
PULLUP
TO +12V
I
VCC
(mA)
60
50
40
30
20
10
0
100
200
C
GATE
= 10pF
300 400 500 600 700 800
SWITCHING FREQUENCY (kHz)
900
1000
C
GATE
= 1000pF
C
GATE
= 3300pF
100
R
T
PULLDOWN
TO V
SS
10
10
100
SWITCHING FREQUENCY (kHz)
1000
FIGURE 1. R
T
RESISTANCE vs FREQUENCY
FIGURE 2. BIAS SUPPLY CURRENT vs FREQUENCY
Functional Pin Description
RT
OCSET
SS
COMP
FB
EN
GND
1
2
3
4
5
6
7
14 VCC
13 PVCC
12 LGATE
11 PGND
10 BOOT
9
8
UGATE
PHASE
SS (Pin 3)
Connect a capacitor from this pin to ground. This capacitor,
along with an internal 10A current source, sets the soft-start
interval of the converter.
COMP (Pin 4) and FB (Pin 5)
COMP and FB are the available external pins of the error
amplifier. The FB pin is the inverting input of the error amplifier
and the COMP pin is the error amplifier output. These pins are
used to compensate the voltage-control feedback loop of the
converter.
RT (Pin 1)
This pin provides oscillator switching frequency adjustment. By
placing a resistor (R
T
) from this pin to GND, the nominal
200kHz switching frequency is increased according to the
following equation:
5
10
-
Fs
200kHz
+ --------------------
R
T
k
6
EN (Pin 6)
This pin is the open-collector enable pin. Pull this pin below 1V
to disable the converter. In shutdown, the soft start pin is
discharged and the UGATE and LGATE pins are held low.
GND (Pin 7)
(R
T
to GND)
Signal ground for the IC. All voltage levels are measured with
respect to this pin.
Conversely, connecting a pull-up resistor (R
T
) from this pin to
V
CC
reduces the switching frequency according to the
following equation.:
4
10
-
Fs
200kHz
– --------------------
R
T
k
7
PHASE (Pin 8)
Connect the PHASE pin to the upper MOSFET source. This
pin is used to monitor the voltage drop across the MOSFET for
over-current protection. This pin also provides the return path
for the upper gate drive.
(R
T
to 12V)
OCSET (Pin 2)
Connect a resistor (R
OCSET
) from this pin to the drain of the
upper MOSFET. R
OCSET
, an internal 200A current source
(I
OCS
), and the upper MOSFET on-resistance (r
DS(ON)
) set
the converter over-current (OC) trip point according to the
following equation:
I
OCS
R
OCSET
-
I
PEAK
= -------------------------------------------
r
DS
ON
UGATE (Pin 9)
Connect UGATE to the upper MOSFET gate. This pin provides
the gate drive for the upper MOSFET.
BOOT (Pin 10)
This pin provides bias voltage to the upper MOSFET driver. A
bootstrap circuit may be used to create a BOOT voltage
suitable to drive a standard N-Channel MOSFET.
PGND (Pin 11)
This is the power ground connection. Tie the lower MOSFET
source to this pin.
An over-current trip cycles the soft-start function.
FN4306 Rev.3.00
April 1, 2005
Page 4 of 12
HIP6006
LGATE (Pin 12)
Connect LGATE to the lower MOSFET gate. This pin provides
the gate drive for the lower MOSFET.
PVCC (Pin 13)
Provide a bias supply for the lower gate drive to this pin.

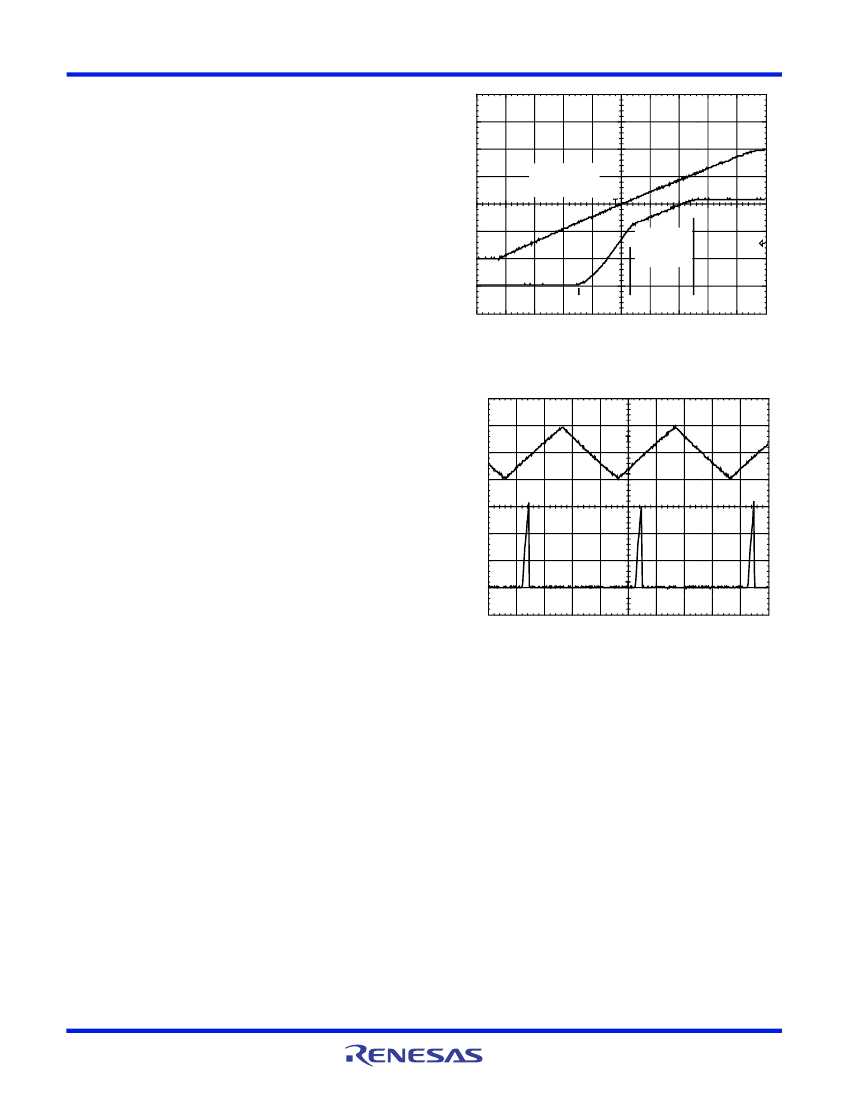

SOFT-START
(1V/DIV)
VCC (Pin 14)
Provide a 12V bias supply for the chip to this pin.
OUTPUT
VOLTAGE
(1V/DIV)
Functional Description
Initialization
The HIP6006 automatically initializes upon receipt of power.
Special sequencing of the input supplies is not necessary. The
Power-On Reset (POR) function continually monitors the input
supply voltages and the enable (EN) pin. The POR monitors
the bias voltage at the VCC pin and the input voltage (V
IN
) on
the OCSET pin. The level on OCSET is equal to V
IN
Less a
fixed voltage drop (see over-current protection). With the EN
pin held to V
CC
, the POR function initiates soft start operation
after both input supply voltages exceed their POR thresholds.
For operation with a single +12V power source, V
IN
and V
CC
are equivalent and the +12V power source must exceed the
rising V
CC
threshold before POR initiates operation.
The Power-On Reset (POR) function inhibits operation with the
chip disabled (EN pin low). With both input supplies above their
POR thresholds, transitioning the EN pin high initiates a soft
start interval.
0V
0V
t1
t2
t3
TIME (5ms/DIV)
FIGURE 3. SOFT-START INTERVAL
SOFT-START
OUTPUT INDUCTOR
4V
2V
0V
15A
10A
5A
0A
Soft Start
The POR function initiates the soft start sequence. An internal
10A current source charges an external capacitor (C
SS
) on the
SS pin to 4V. Soft start clamps the error amplifier output (COMP
pin) and reference input (+ terminal of error amp) to the SS pin
voltage. Figure 3 shows the soft start interval with C
SS
= 0.1F.
Initially the clamp on the error amplifier (COMP pin) controls the
converter’s output voltage. At t1 in Figure 3, the SS voltage
reaches the valley of the oscillator’s triangle wave. The
oscillator’s triangular waveform is compared to the ramping error
amplifier voltage. This generates PHASE pulses of increasing
width that charge the output capacitor(s). This interval of
increasing pulse width continues to t2. With sufficient output
voltage, the clamp on the reference input controls the output
voltage. This is the interval between t2 and t3 in Figure 3. At t3
the SS voltage exceeds the reference voltage and the output
voltage is in regulation. This method provides a rapid and
controlled output voltage rise.
TIME (20ms/DIV)
FIGURE 4. OVER-CURRENT OPERATION
Over-Current Protection
The over-current function protects the converter from a shorted
output by using the upper MOSFETs on-resistance, r
DS(ON)
to
monitor the current. This method enhances the converter’s
efficiency and reduces cost by eliminating a current sensing
resistor.
The over-current function cycles the soft-start function in a
hiccup mode to provide fault protection. A resistor (R
OCSET
)
programs the over-current trip level. An internal 200A (typical)
current sink develops a voltage across R
OCSET
that is
reference to V
IN
. When the voltage across the upper MOSFET
(also referenced to V
IN
) exceeds the voltage across R
OCSET
,
the over-current function initiates a soft-start sequence. The
soft-start function discharges C
SS
with a 10A current sink and
inhibits PWM operation. The soft-start function recharges C
SS
,
and PWM operation resumes with the error amplifier clamped
to the SS voltage. Should an overload occur while recharging
C
SS
, the soft start function inhibits PWM operation while fully
charging C
SS
to 4V to complete its cycle. Figure 4 shows this
FN4306 Rev.3.00
April 1, 2005
Page 5 of 12
MCU
京公网安备 11010802033920号
EEWORLD
