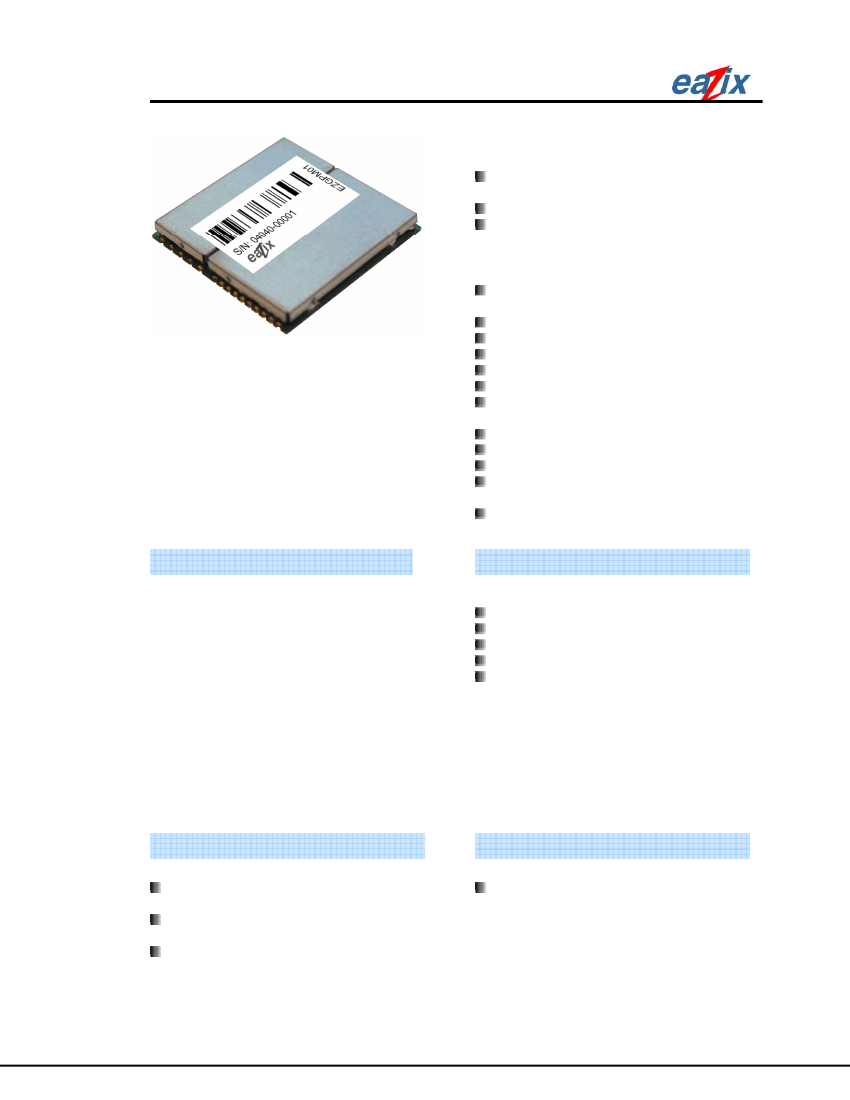

EZGPM01 data sheet
Device features
Fully self-contained 12 channel GPS
receiver
Fully EMI shielded
SiRFstar™ IIe/LP architecture
•
GRF2i/LP RF front-end IC
•
GSP2e/LP GPS Engine with
Integrated Processor
SBAS(Satellite Based Augmentation
System) support
Fast time-to-first-fix
8Mbit Flash memory
Built-in Low-noise amplifier
Advanced low power modes
Operating Voltage 3.3V
Battery supply pin for internal backup
memory and real time clock
Passive and active antenna support
Active antenna bias supply voltage pin
Active antenna overcurrent protection
Industrial operating temperature range
-40ºC …85ºC
Very compact : 25.4 X 25.4 X 3 mm
Applications
Navigation
Aviation
Automotive applications
Location Based Services
Timing applications
EZGPM01
GPS RECEIVER
Product Information Data Sheet
MARCH 2004
General Description
The EZGPM01 GPS Receiver is a fully self-
contained single-board 12 channel parallel
receiver module intended as a component
for OEM Global Positioning System(GPS).
Based on the SiRFstar™IIe/LP architecture,
the module provides complete GPS signal
processing, thus providing accurate satellite
position data.
The EZGPM01 is a completely shielded
module.
Key Features
Industry Leading GPS Performance
Builds on the high performance
SiRFstar™IIe/LP core
High-speed signal acquisition using
1920 time/frequency search channels
SBAS(Satellite Based Augmentation
System) support
Low Power GPS Architecture
Extreme low power in power-down
mode, but capable of very fast starts
Copyright © EAZIX, Inc. 2004. All Rights Reserved
1
EZGPM01 data sheet
Maximizes GPS Position Availability
SingleSat™ updates in reduced visibility
Superior urban canyon performance
FoliageLock™ or weak signal tracking
Multiple Operating Modes
Continuous Mode
TricklePower™ Mode
Push-to-Fix™ Mode
Block Diagram
Antenna
Input
BOOTSELECT
XTAL
GPS
Data
AGC
Clock
VANT
(Optional)
LNA
RF
Filter
XTAL
RTC
GSP2e/LP
Signal
Processor
1PPS
RXA/TXA
RXB/TXB
GRF2i/LP
RF IC
Power
Battery
Voltage
Regulator
Reset
IC
Data
Bus
Address
Bus
FLASH
8Mbit
EZGPM01
Figure 1:
EZGPM01 Block Diagram
Copyright © EAZIX, Inc. 2004. All Rights Reserved
2
EZGPM01 data sheet
Terminal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Terminal Name
VCC
DGND
BOOTSELECT
RXA
TXA
TXB
RXB
GPIO3
RF_ON
DGND
AGND
AGND
AGND
AGND
AGND
AGND
RF_IN
AGND
V_ANT
VCC_RF
V_BAT
RESET_N
GPIO10
GPIO6
GPIO5
GPIO7
GPIO0
GPIO1
T-MARK(1PPS)
DGND
I/O
I
I
I
O
O
I
I/O
O
Description
3.3V DC supply voltage
Digital ground
Boots in update mode when high
Serial Data Input A
Serial Data Output A
Serial Data Output B
Serial Data Input B
Indicates RF part is ON
Digital ground
Analog ground
Analog ground
Analog ground
Analog ground
Analog ground
Analog ground
Antenna input
Analog ground
Supply for active antenna
2.85V output of RF section
External backup battery
Resets the module when low
I
I
O
I
I
I/O
I/O
I/O
I/O
I/O
I/O
O
One-pulse-per-second
Digital ground
Table 1:
Device Terminal Functions
