JPJ1022-01-850 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> JPJ1022-01-850

JPJ1022-01-850: DescriptionAudio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric View All

JPJ1022-01-850 Overview

Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack

JPJ1022-01-850 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknown
Body/casing type	JACK
Configuration	1X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
Contact completed and terminated	GOLD
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Installation type	BOARD
Number of poles	2
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SOLID LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

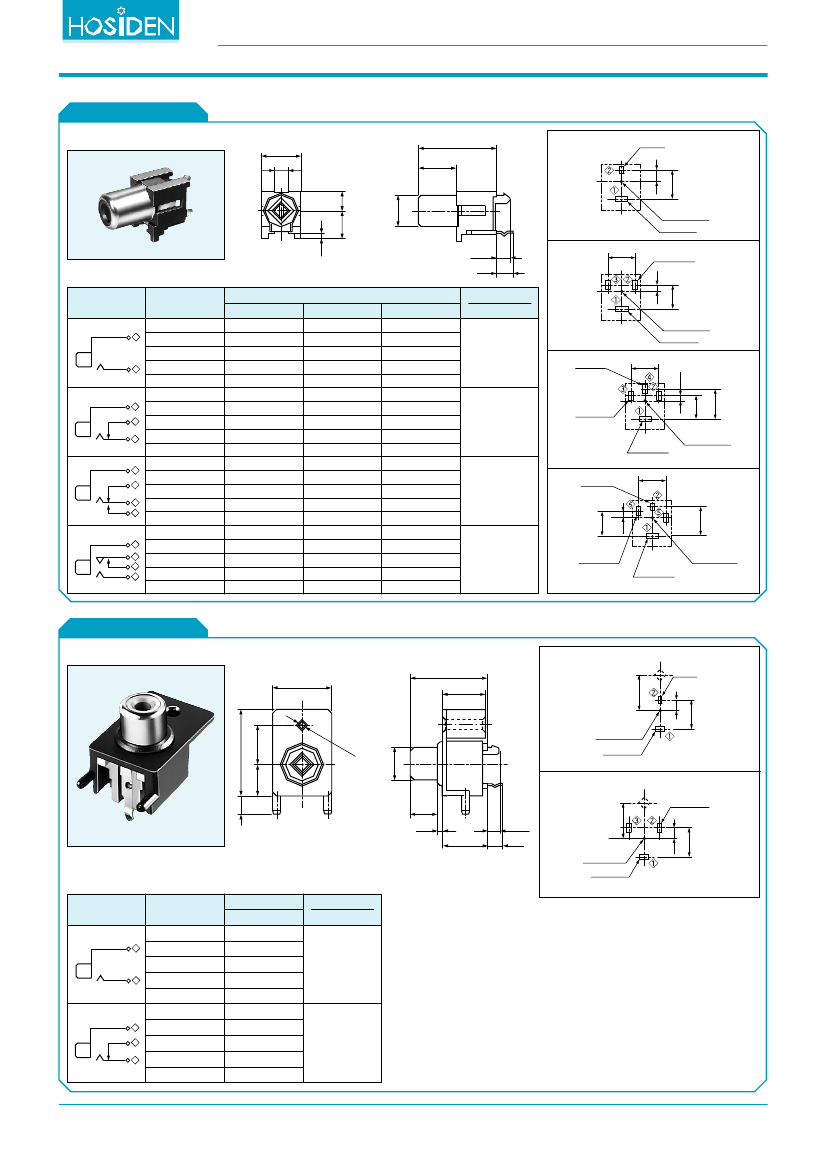

Vertical Type Pin Jacks

Unit: mm

JPJ2022 Series

19.5 mm

R=19.5

9.5

8.3

Fig. 1

(3.5)

(4)

7.5

1.5

8.2

Center of

Pin Jack

1.3×2.5

2-2.5×1

1.5

Fig. 2

2.2×1

7.5

1.5

6.7

Center of

Pin Jack

1.3×2.5

1×2

JPJ2022

Schematic

Housing Color

Black

Red

White

Yellow

Blue

Black

Red

White

Yellow

Blue

Black

Red

White

Yellow

Blue

Black

Red

White

Yellow

Blue

Ni Plated

JPJ2022-01-010

JPJ2022-01-020

JPJ2022-01-030

JPJ2022-01-040

JPJ2022-01-050

JPJ1022-01-010

JPJ1022-01-020

JPJ1022-01-030

JPJ1022-01-040

JPJ1022-01-050

JPJ4022-01-010

JPJ4022-01-020

JPJ4022-01-030

JPJ4022-01-040

JPJ4022-01-050

JPJ5022-01-010

JPJ5022-01-020

JPJ5022-01-030

JPJ5022-01-040

JPJ5022-01-050

Cover

Solder Plated

JPJ2022-01-510

JPJ2022-01-520

JPJ2022-01-530

JPJ2022-01-540

JPJ2022-01-550

JPJ1022-01-510

JPJ1022-01-520

JPJ1022-01-530

JPJ1022-01-540

JPJ1022-01-550

JPJ4022-01-510

JPJ4022-01-520

JPJ4022-01-530

JPJ4022-01-540

JPJ4022-01-550

JPJ5022-01-510

JPJ5022-01-520

JPJ5022-01-530

JPJ5022-01-540

JPJ5022-01-550

Au Plated

JPJ2022-01-810

JPJ2022-01-820

JPJ2022-01-830

JPJ2022-01-840

JPJ2022-01-850

JPJ1022-01-810

JPJ1022-01-820

JPJ1022-01-830

JPJ1022-01-840

JPJ1022-01-850

JPJ4022-01-810

JPJ4022-01-820

JPJ4022-01-830

JPJ4022-01-840

JPJ4022-01-850

JPJ5022-01-810

JPJ5022-01-820

JPJ5022-01-830

JPJ5022-01-840

JPJ5022-01-850

Hole Layout

(Bottom view)

Fig. 1

Fig. 2

2-2.5×1

Fig. 3

2.2×1

1.3×2.5

7.5

Fig. 3

6.7

1.5

Fig. 4

2-2.5×1

1.3×2.5

JPJ1055 Series

19.5 mm

(10)

R=19.5

2×1

8.2

2-2.5×1

(3.5)

11.3

(4)

(10)

1.5

6.7

Center of

Pin Jack

8.3

Fig. 1

1.3×2.5

4.5

1.2

JPJ1055

Fig. 2

Center of

Pin Jack

1.3×2.5

Schematic

Housing Color

Black

Red

White

Yellow

Blue

Black

Red

White

Yellow

Blue

Cover

Ni Plated

JPJ1055-01-010

JPJ1055-01-020

JPJ1055-01-030

JPJ1055-01-040

JPJ1055-01-050

JPJ1057-01-010

JPJ1057-01-020

JPJ1057-01-030

JPJ1057-01-040

JPJ1057-01-050

Hole Layout

(Bottom view)

Fig. 1

Fig. 2

8.2

Center of

Pin Jack

6.7

Center of

Pin Jack

8.2
