GXO-L72J/BN106.25MHZ

Description
LVDS Output Clock Oscillator, 106.25MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-6
CategoryPassive components    oscillator
File Size83KB,2 Pages
ManufacturerGolledge Electronics
Websitehttp://www.golledge.com/
Environmental Compliance
Download Datasheet Parametric View All

GXO-L72J/BN106.25MHZ Overview

LVDS Output Clock Oscillator, 106.25MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-6

GXO-L72J/BN106.25MHZ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT, CERAMIC PACKAGE-6
Reach Compliance Codecompliant
Other featuresTAPE AND REEL
maximum descent time1 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
JESD-609 codee4
Manufacturer's serial numberGXO-L72
Installation featuresSURFACE MOUNT
Nominal operating frequency106.25 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typeLVDS
Output load100 OHM
physical size7.2mm x 5.2mm x 1.8mm
longest rise time1 ns
Maximum supply voltage2.625 V
Minimum supply voltage2.375 V
Nominal supply voltage2.5 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold (Au)
Base Number Matches1

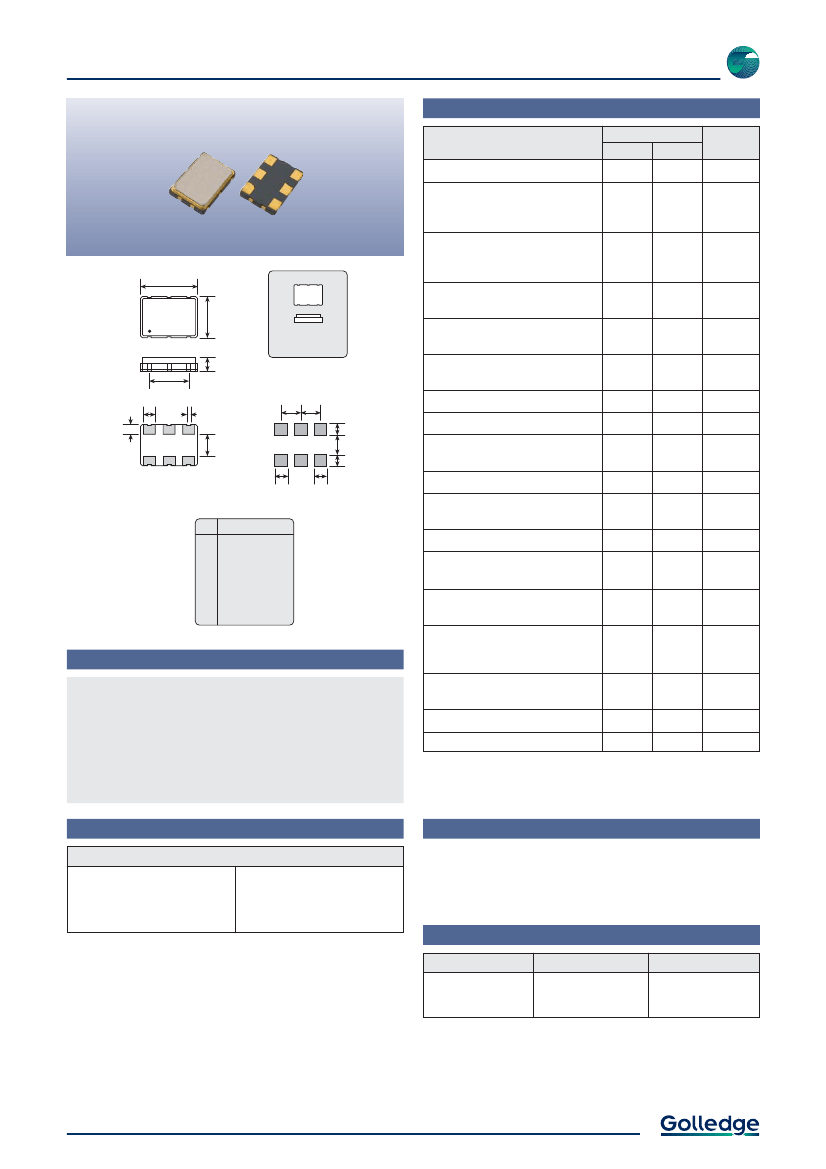

2.5V & 3.3V LVDS Oscillator
Specifications
GXO-L72
Variant
L
J
Option
Codes
Parameters
Frequency range:
80.0 ~ 200MHz
Frequency stability*:
±100ppm
±50ppm
±25ppm
B
A
7.20
(max)
Operating temperature range:
-10 to +70°C
-40 to +85°C
Storage temperature range:
-40 to +85°C
Supply voltage (V
DD
):
+3.3V (±5%)
+2.5V (±5%)
Supply current:
70mA max, 50mA typ
Output:
4
3
1.50
2.40
1.50
1.60
1.60
I
5.20
(max)
1.80
(max)
5.08
1.10
1.40
0.60
1
6
2
5
3
4
2.60
ACTUAL SIZE
SOLDER PAD LAYOUT
2.54 2.54
LVDS
1.25V typ
Offset voltage:
6
1
5
2
Differential output voltage:
0.33V typ
Output load:
Logic levels:
Start up time:
100
‘0’
level = 0.9V max
‘1’
level = 1.6V min
10ms max
TOP VIEW
PAD
1
2
3
4
5
6
CONNECTION
Enable / disable or
Not connected
Not connected
Ground
Output 1
Output 2
Supply
Waveform symmetry:
45:55 max @ 50%V
P-P
Rise / fall time:
1.0ns max (20 ~ 80%V
P-P
)
Enable / disable function:
Tristate (control via pad 1)
None (pad 1 not connected)
Output enable / disable time:
2 ms / 200ns max
Stand-by current:
30µA max
Scale 2:1
Features
N
«
«
«
«
Differential outputs
Enable / disable tristate option
Fast rise / fall times
Designed for SONET, SDH, IEEE1394 etc
Period jitter RMS:
5ps max, 3ps typ
Standard.
Optional - Please specify required code(s) when ordering
* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply
voltage change and load change.
Standard Frequencies
Frequencies in MHz
100.0000
106.2500
108.0000
125.0000
133.0000
Other frequencies available. Please consult our sales office.
155.5200
156.2500
161.1230
164.3550
Ordering Information
Product name + variant + option codes (if any) + frequency
eg:
GXO-L72L 108.0MHz
3.3V, ±100ppm -10+70°C
GXO-L72J/BI 125.0MHz
2.5V, ±50ppm -40+85°C
Option code X (eg GXO-L72L/X) denotes a custom spec.
Enable / Disable Function
Input (pad 1)
Open
‘1’
level ( 0.7V
DD
)
‘0’
level ( 0.3V
DD
)
Output 1 (pad 4)
Enabled
Enabled
High Impedance
Output 2 (pad 5)
Enabled
Enabled
High Impedance
Tel:
+44 1460 256 100
09 Sep 2010
Fax:
+44 1460 256 101
E-mail:
sales@golledge.com
Web:
www.golledge.com
