5962F9666301VEX datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 5962F9666301VEX

5962F9666301VEX: DescriptionQUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size31KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9666301VEX Overview

QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962F9666301VEX Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Differential output	YES
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422
JESD-30 code	R-CDIP-T16
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HS-26C31RH

Data Sheet

August 1999

File Number

3401.3

Radiation Hardened Quad Differential Line

Driver

The Intersil HS-26C31RH is a quad differential line driver

designed for digital data transmission over balanced lines

and meets the requirements of EIA standard RS-422.

Radiation hardened CMOS processing assures low power

consumption, high speed, and reliable operation in the most

severe radiation environments.

The HS-26C31RH accepts CMOS signal levels and converts

them to RS-422 compatible outputs. This circuit uses special

outputs that enable the drivers to power down without loading

down the bus. Enable and disable pins allow several devices to

be connected to the same data source and addressed

independently.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-96663. A “hot-link” is provided

on our homepage for downloading.

http://www.intersil.com/spacedefense/space.htm

Features

• Electrically Screened to SMD # 5962-96663

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• 1.2 Micron Radiation Hardened CMOS

- Total Dose Up to . . . . . . . . . . . . . . . . . . . . 300kRAD(Si)

- Dose Rate Upset . . . . . . . > 1x10

RAD/s (20ns Pulse)

• Latchup Free

• EIA RS-422 Compatible Outputs (Except for IOS)

• CMOS Inputs

• High Impedance Outputs when Disabled or Powered

Down

• Low Power Dissipation . . . . . . . . . 2.75mW Standby (Max)

• Single 5V Supply

• Low Output Impedance . . . . . . . . . . . . . . . . . 10Ω or Less

• Full -55

C to 125

C Military Temperature Range

Pinouts

HS1-26C31RH (SBDIP)

CDIP2-T16

TOP VIEW

AIN 1

16 VDD

15 DIN

14 DO

13 DO

12 ENABLE

11 CO

10 CO

9 CIN

Ordering Information

ORDERING NUMBER

5962F9666301QEC

5962F9666301QXC

5962F9666301V9A

5962F9666301VEC

5962F9666301VXC

INTERNAL

MKT. NUMBER

HS1-26C31RH-8

HS9-26C31RH-8

HS0-26C31RH-Q

HS1-26C31RH-Q

HS9-26C31RH-Q

TEMP. RANGE

(

-55 to 125

ENABLE 4

BO 5

BO 6

BIN 7

GND 8

HS1-26C31RH/PROTO HS1-26C31RH/PROTO

HS9-26C31RH/PROTO HS9-26C31RH/PROTO

Logic Diagram

ENABLE

DIN

CIN

BIN

AIN

ENABLE

DO DO

CO CO

BO BO

AO AO

BIN

GND

HS9-26C31RH (FLATPACK)

CDFP4-F16

TOP VIEW

VDD

DIN

ENABLE

CIN

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

http://www.intersil.com or 407-727-9207

Intersil Corporation 1999

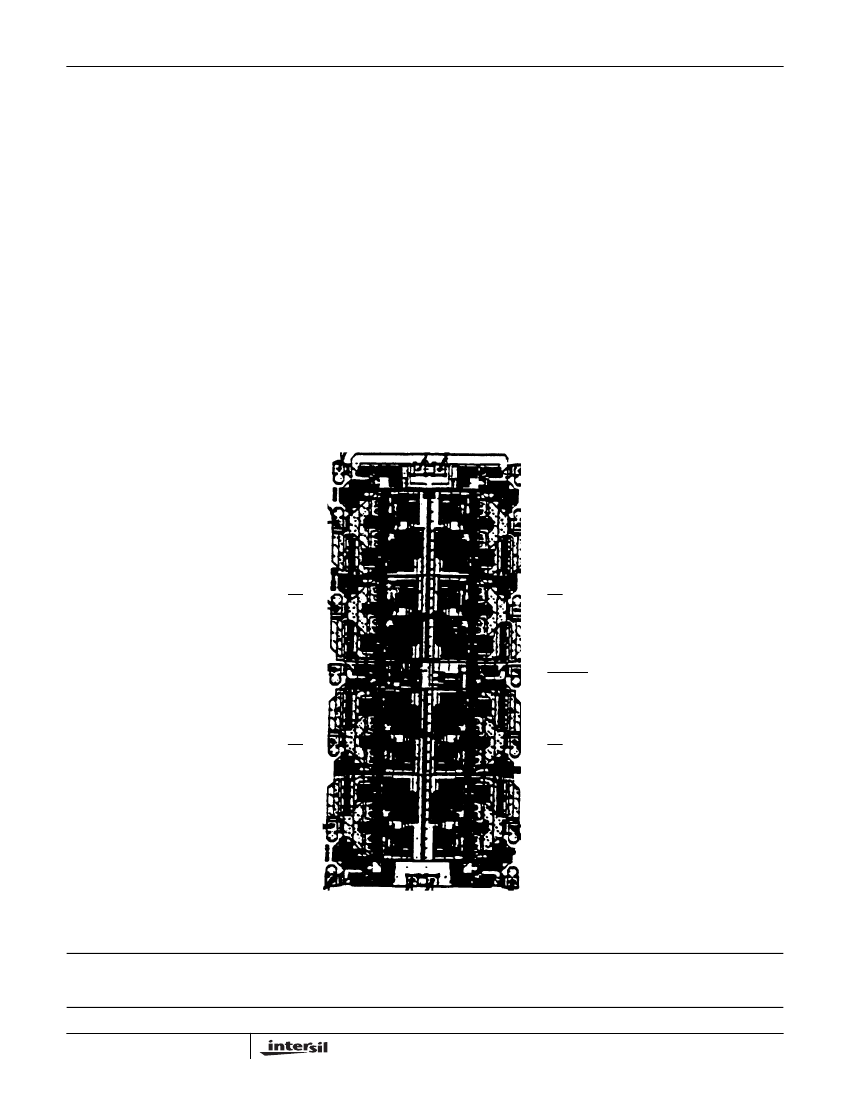

5962F9666301VEX Related Products

	5962F9666301VEX	5962F9666301QEX	5962F9666301VXX	5962F9666301QXX
Description	QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	QUAD LINE DRIVER, CDFP16, CERAMIC, DFP-16	QUAD LINE DRIVER, CDFP16, CERAMIC, DFP-16
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DIP	DFP	DFP
package instruction	DIP,	DIP,	DFP,	DFP,
Contacts	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES
Number of drives	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422	EIA-422	EIA-422	EIA-422
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16
Number of functions	4	4	4	4
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q
Maximum seat height	5.08 mm	5.08 mm	2.92 mm	2.92 mm
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
width	7.62 mm	7.62 mm	6.73 mm	6.73 mm
Base Number Matches	1	1	1	1
