UPD8049HC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> The embedded processor and controller> UPD8049HC

UPD8049HC: DescriptionIC,MICROCONTROLLER,8-BIT,8048 CPU,MOS,DIP,40PIN,CERAMIC; Categorysemiconductor The embedded processor and controller; File Size897KB，13 Pages; ManufacturerNEC ( Renesas ); Websitehttps://www2.renesas.cn/zh-cn/

Download Datasheet Parametric Compare View All

UPD8049HC Overview

IC,MICROCONTROLLER,8-BIT,8048 CPU,MOS,DIP,40PIN,CERAMIC

UPD8049HC Parametric

Parameter Name	Attribute value
Number of terminals	40
Minimum operating temperature	0.0 Cel
Maximum operating temperature	70 Cel
Line speed	11 MHz
each_compli	Yes
state	Contact Mf
Number of digits	8
cpu_family	8048
jesd_30_code	R-XDIP-T40
Packaging Materials	CERAMIC
ckage_code	DIP
ckage_equivalence_code	DIP40,.6
packaging shape	RECTANGULAR
Package Size	IN-LINE
wer_supplies	5
qualification_status	COMMERCIAL
m__bytes_	128
ROM programming	UVPROM
m__words_	2048
sub_category	Microcontrollers
Maximum supply voltage	170 mA
Rated supply voltage	5 V
surface mount	NO
Craftsmanship	MOS
Temperature level	Commercial
Terminal form	THROUGH-HOLE
Terminal spacing	2.54 mm
Terminal location	DUAL

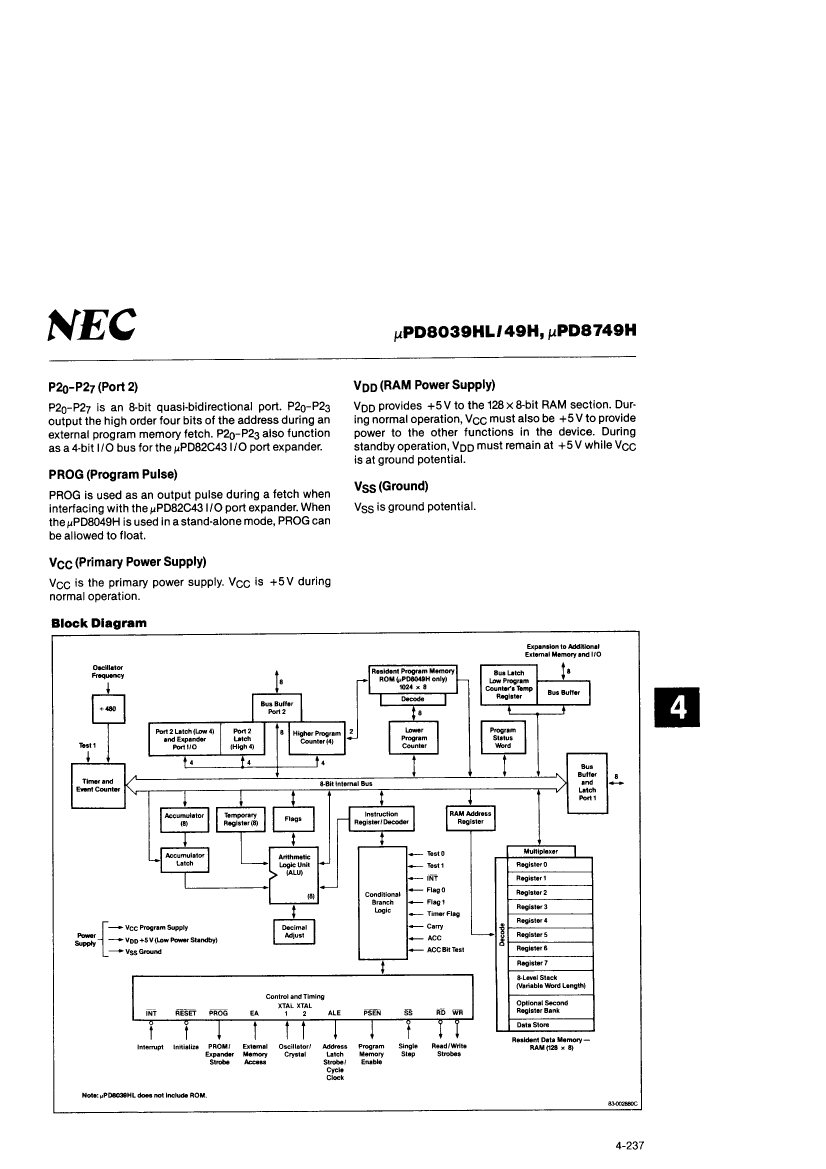

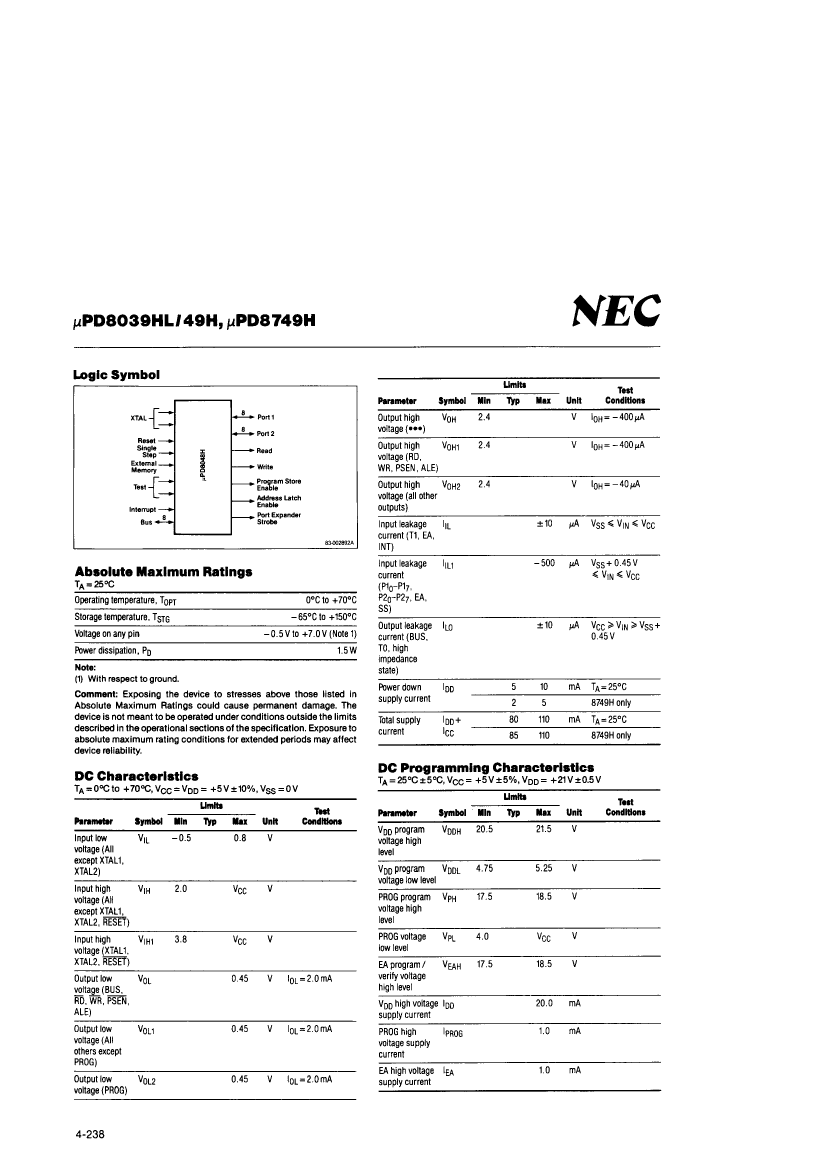

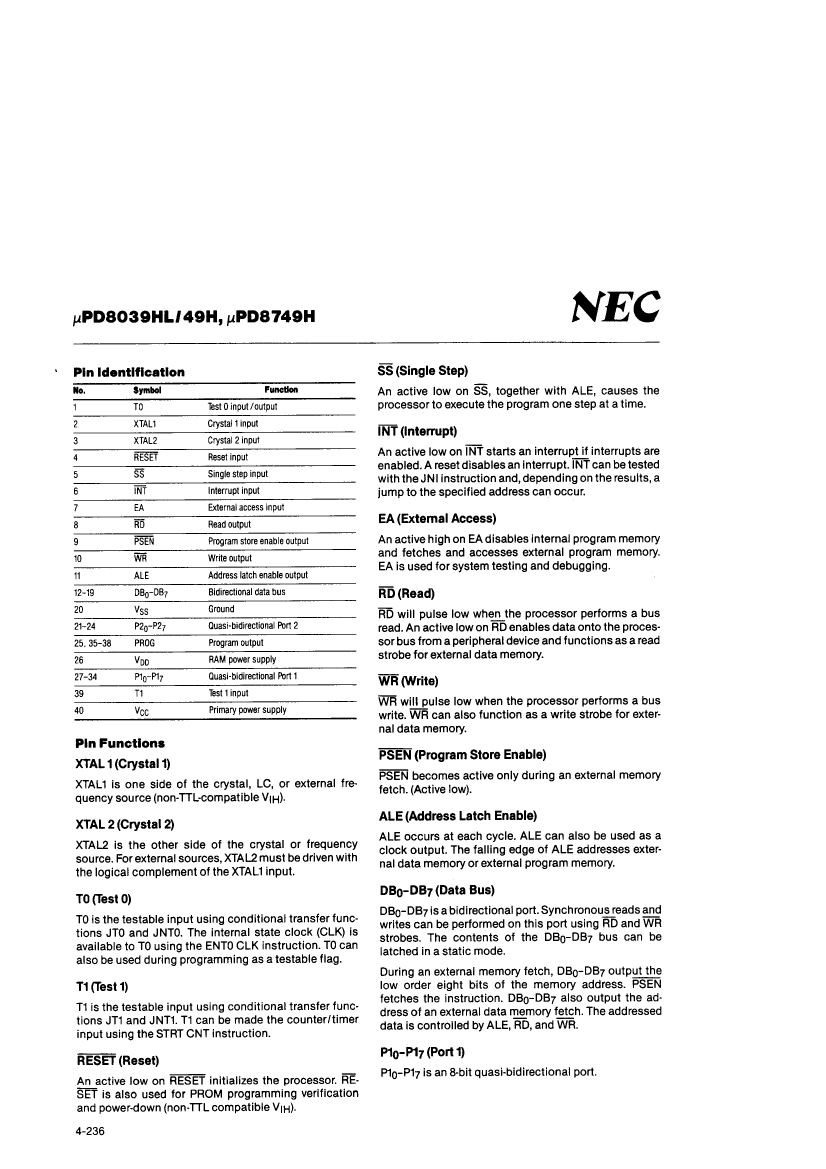

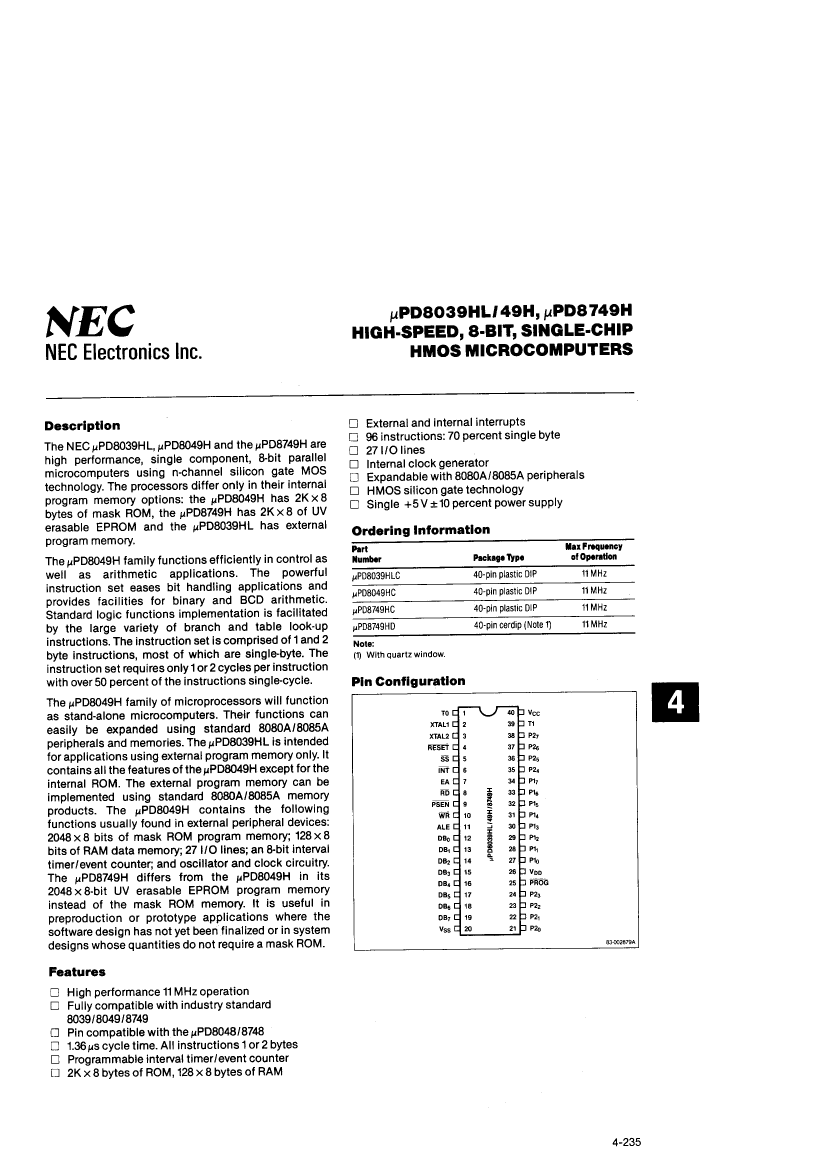

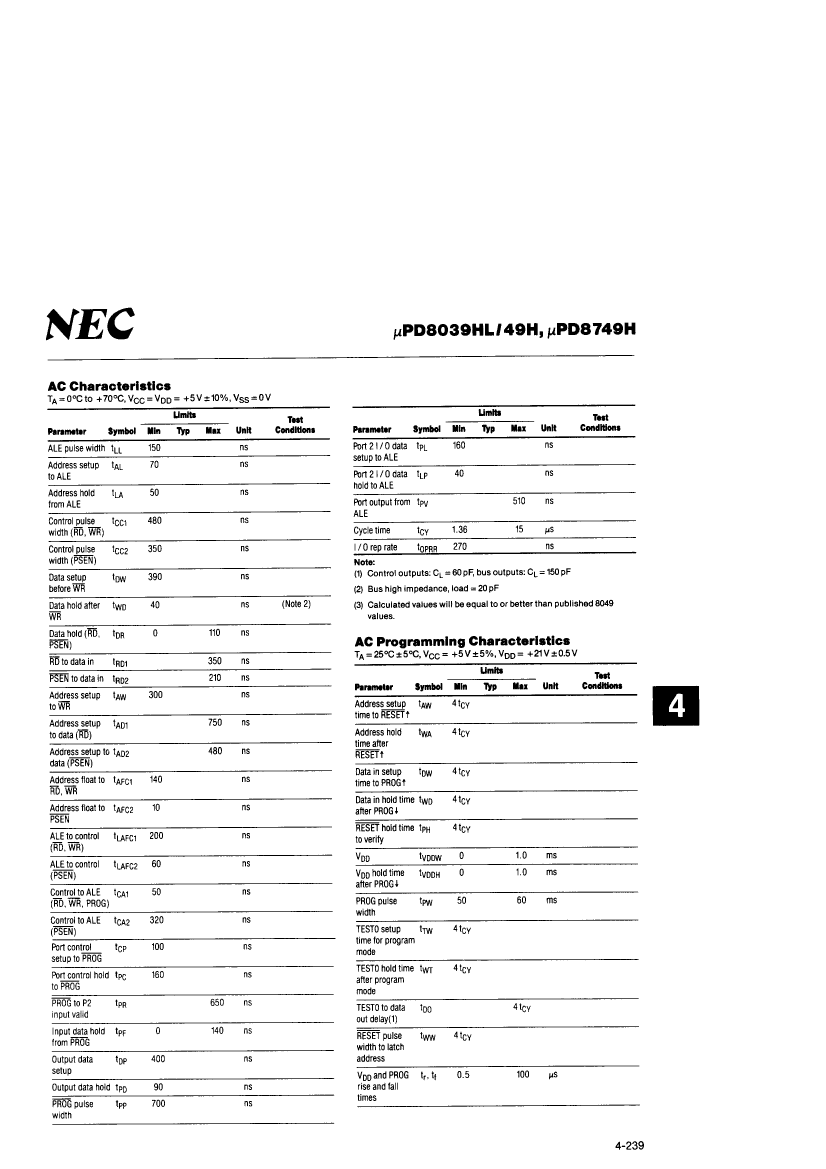

Preview

Download Datasheet

View All

UPD8049HC Related Products

	UPD8049HC	UPD8049H	UPD8749HC	UPD8039HLC	UPD8749HD
Description	IC,MICROCONTROLLER,8-BIT,8048 CPU,MOS,DIP,40PIN,CERAMIC	IC,MICROCONTROLLER,8-BIT,8048 CPU,MOS,DIP,40PIN,CERAMIC	IC,MICROCONTROLLER,8-BIT,8048 CPU,MOS,DIP,40PIN,CERAMIC	IC,MICROCONTROLLER,8-BIT,8048 CPU,MOS,DIP,40PIN,CERAMIC	IC,MICROCONTROLLER,8-BIT,8048 CPU,MOS,DIP,40PIN,CERAMIC
Number of terminals	40	40	40	40	40
Minimum operating temperature	0.0 Cel	0.0 Cel	0.0 Cel	0.0 Cel	0.0 Cel
Maximum operating temperature	70 Cel	70 Cel	70 Cel	70 Cel	70 Cel
Line speed	11 MHz	11 MHz	11 MHz	11 MHz	11 MHz
each_compli	Yes	Yes	Yes	Yes	Yes
state	Contact Mf	Contact Mf	Contact Mf	Contact Mf	Contact Mf
Number of digits	8	8	8	8	8
cpu_family	8048	8048	8048	8048	8048
jesd_30_code	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40
Packaging Materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
ckage_code	DIP	DIP	DIP	DIP	DIP
ckage_equivalence_code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
packaging shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package Size	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
wer_supplies	5	5	5	5	5
qualification_status	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
m__bytes_	128	128	128	128	128
ROM programming	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM
m__words_	2048	2048	2048	2048	2048
sub_category	Microcontrollers	Microcontrollers	Microcontrollers	Microcontrollers	Microcontrollers
Maximum supply voltage	170 mA	170 mA	170 mA	170 mA	170 mA
Rated supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
Craftsmanship	MOS	MOS	MOS	MOS	MOS
Temperature level	Commercial	Commercial	Commercial	Commercial	Commercial
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
