1369-5-36-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1369-5-36-2

1369-5-36-2: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size149KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1369-5-36-2 Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

1369-5-36-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.139 inch
subject depth	0.247 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1369
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1

Preview

Download Datasheet

View All

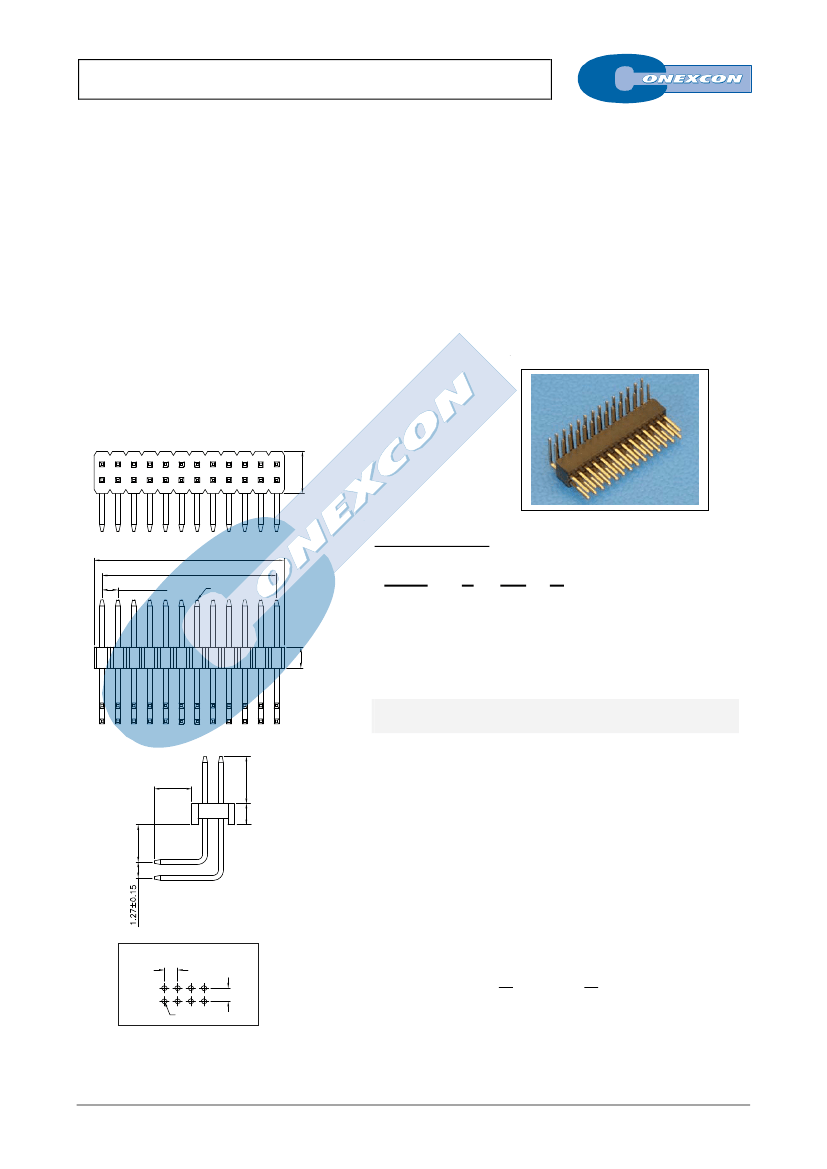

DUAL ROW RIGHT ANGLE PIN HEADER

1369 SERIES.

1.27 x 1.27 mm (0.050” x 0.050”) pitch.

General Features

Electrical Features



Available in 4 through 66 circuits

Mates with sockets dual row 1.27 mm pitch 1295, 1297,

1305, 1284, 1310, 1314 and crimp or IDC connector series

0,40 mm. square pin with different plating

Available different pin length.

Contact Sales Office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric Withstanding Voltage: 300 V AC/minute

Insulation Resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Brass

Operating temperature: -40ºC to +105ºC

RoHS Compliant

Mechanical features

Pin retention force to insulator: > 0,15 Kgf

Durability: 50 cycles

Dimension Information

3.40

Ordering Information:

1.27±0.10

Pin 0.40 Sq.

1369 -

T-

XX- C

1. Connector Series

1.70

2. (T) Contact Plating



T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

3. (XX) Circuit Size



Available in 04 through 66 circuits

4. (C) Pin Lenght

C =

1. H

= 3.80 mm.;

= 3.00 mm.;

= 3.10 mm. ;

= 2.70mm.

C =

2. H

= 3.80 mm.;

= 3.00 mm.;

= 3.30 mm. ;

= 1.70mm.

C =

3. H

= 3.00 mm.;

= 2.20 mm.;

= 2.97 mm. ;

= 1.70mm.

RECOMMENDED HOLE PATTERN

1.27

ø0.65

DIMENSIONS:





1.27















1.27













Number of circuits

A-XX

FULL LINE CATALOGUE
