BAT54ADW-13-F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT54ADW-13-F

Preview

BAT54ADW-13-F: DescriptionRectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6; CategoryDiscrete semiconductor diode; File Size125KB，3 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT54ADW-13-F Overview

Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6

BAT54ADW-13-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PDSO-G6
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FAST SWITCHING
Configuration	2 BANKS, COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	4
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

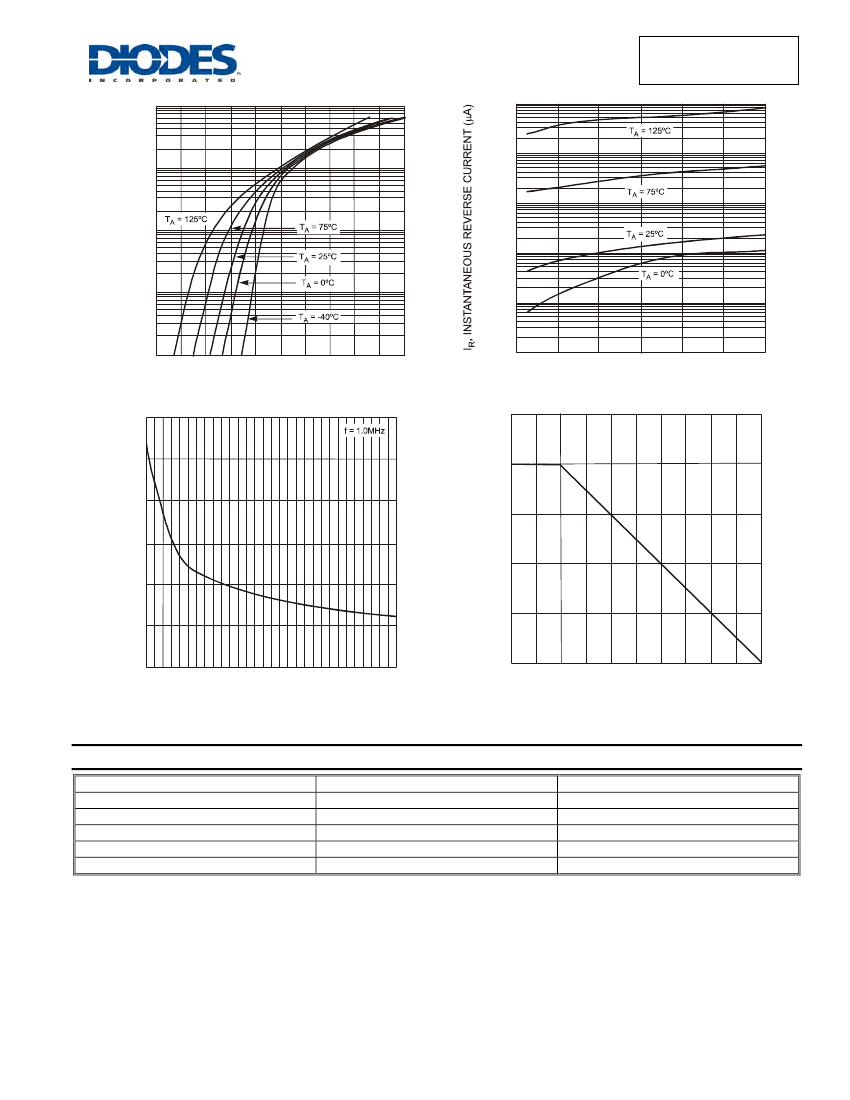

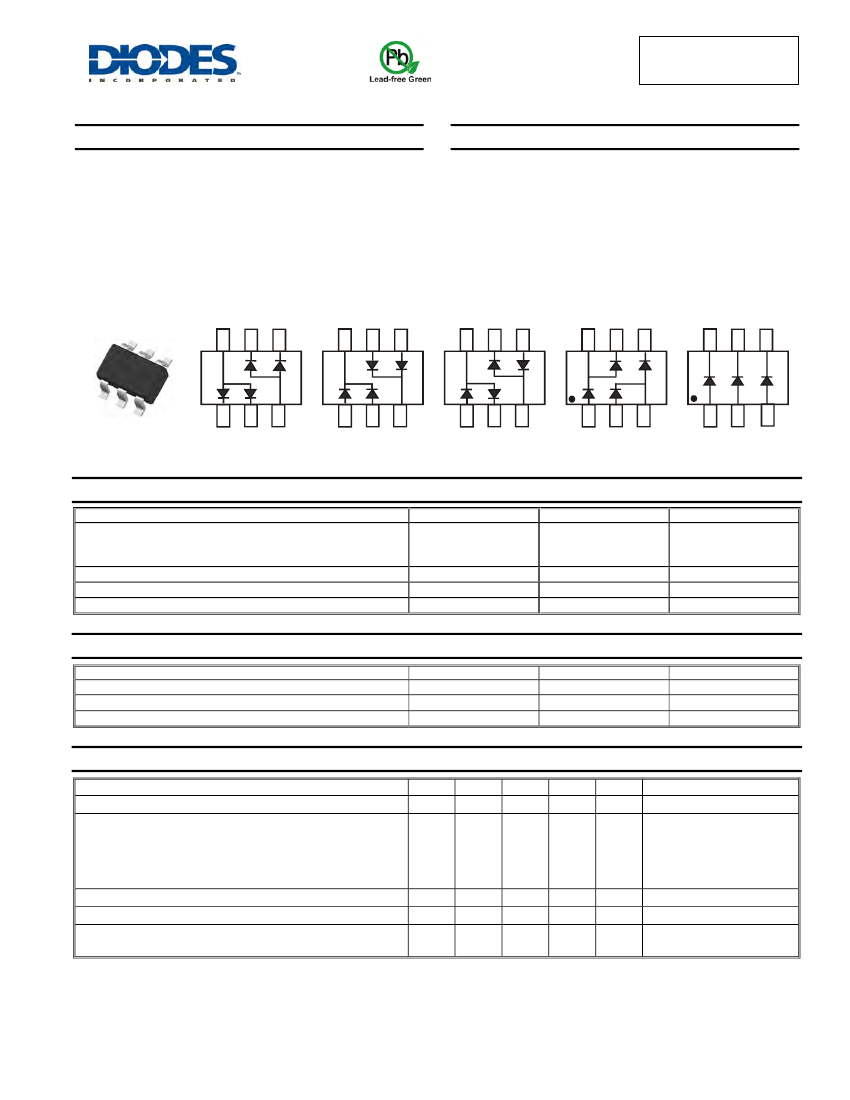

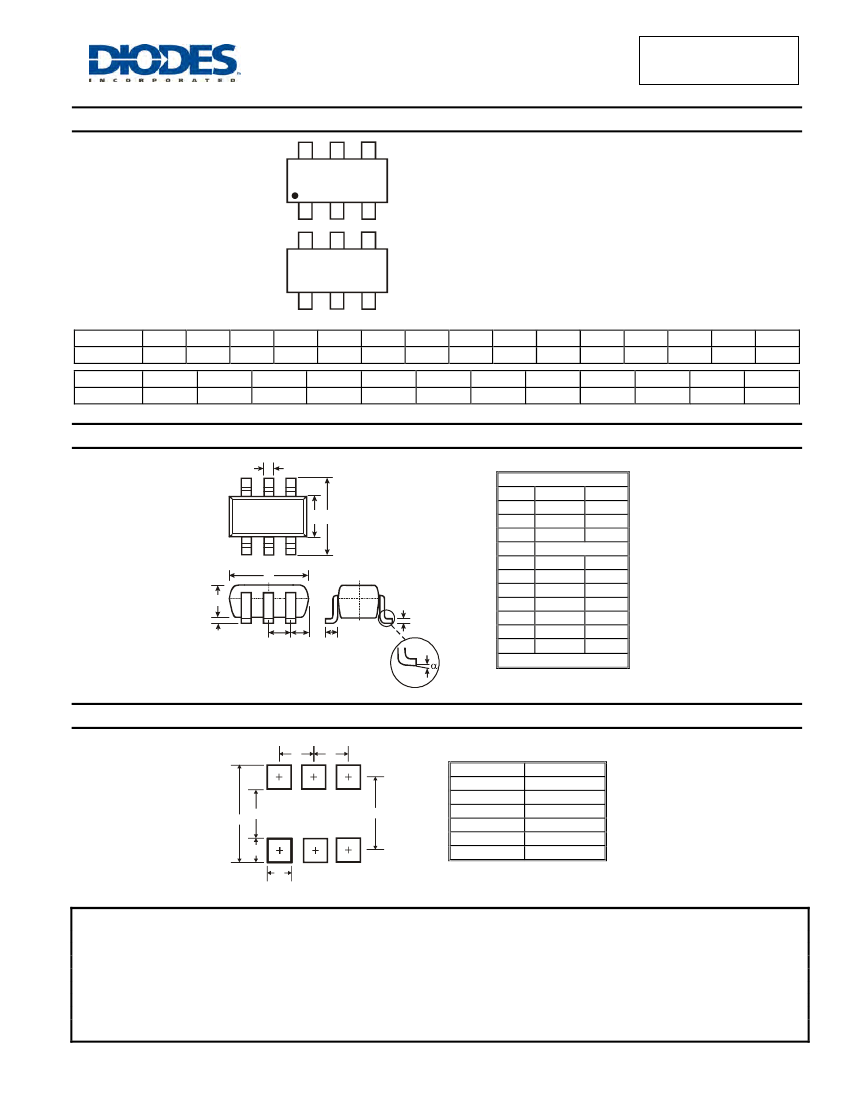

BAT54TW /ADW /

CDW /SDW /BRW

SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS

Please click here to visit our online spice models database.

Features

•

Low Forward Voltage Drop

Fast Switching

Ultra-Small Surface Mount Package

PN Junction Guard Ring for Transient and ESD Protection

Lead Free/RoHS Compliant (Note 2)

"Green" Device (Note 3 and 4)

Mechanical Data

•

A

1

C

2

C

2

C

1

A

2

A

2

AC

1

Case: SOT-363

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Solderable per MIL-STD-202, Method 208

Lead Free Plating (Matte Tin Finish annealed over Alloy 42

leadframe).

Orientation: See Diagrams Below

Marking Information: See Page 3

Ordering Information: See Page 2

Weight: 0.006 grams (approximate)

C

2

A

2

AC

1

C

1

C

2

C

1

C

2

C

3

C

1

C

1

A

2

A

1

A

1

C

2

A

1

C

1

AC

2

A

1

A

2

AC

2

A

1

A

2

A

3

Top View

BAT54ADW*

BAT54CDW*

BAT54SDW*

BAT54BRW

BAT54TW

*Symmetrical configuration, no orientation indicator.

Maximum Ratings

@T

A

= 25°C unless otherwise specified

Symbol

V

RRM

V

RWM

V

R

I

F

I

FRM

I

FSM

Value

30

200

300

600

Unit

V

mA

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Forward Continuous Current (Note 1)

Repetitive Peak Forward Current (Note 1)

Forward Surge Current (Note 1)

@ t < 1.0s

Thermal Characteristics

Characteristic

Power Dissipation (Note 1)

Thermal Resistance, Junction to Ambient Air (Note 1)

Operating and Storage Temperature Range

Symbol

P

D

R

θ

JA

T

J

, T

STG

Value

200

625

-65 to +125

Unit

mW

°C/W

°C

Electrical Characteristics

Characteristic

Reverse Breakdown Voltage (Note 5)

@T

A

= 25°C unless otherwise specified

Symbol

V

(BR)R

Min

30

Typ

⎯

Max

⎯

240

320

400

500

1000

2.0

10

5.0

Unit

V

Test Condition

I

R

= 100μA

I

F

= 0.1mA

I

F

= 1mA

I

F

= 10mA

I

F

= 30mA

I

F

= 100mA

V

R

= 25V

V

R

= 1.0V, f = 1.0MHz

I

F

= 10mA through I

R

= 10mA

to I

R

= 1.0mA, R

L

= 100Ω

Forward Voltage (Note 5)

V

F

⎯

mV

Reverse Leakage Current (Note 5)

Total Capacitance

Reverse Recovery Time

Notes:

I

R

C

T

t

rr

⎯

μA

pF

ns

1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which

can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

2. No purposefully added lead.

3. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.

4. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants

5. Short duration pulse test used to minimize self-heating effect.

BAT54TW /ADW /CDW /SDW /BRW

Document number: DS30152 Rev. 16 - 2

1 of 3

www.diodes.com

July 2008

BAT54ADW-13-F Related Products

	BAT54ADW-13-F	BAT54TW-13-F	BAT54CDW-13-F
Description	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6	Rectifier Diode, Schottky, 3 Element, 0.2A, 30V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6	Rectifier Diode, Schottky, 4 Element, 0.2A, 30V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6
Is it Rohs certified?	conform to	conform to	conform to
package instruction	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
Contacts	6	6	6
Reach Compliance Code	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	FAST SWITCHING	FAST SWITCHING	FAST SWITCHING
Configuration	2 BANKS, COMMON ANODE, 2 ELEMENTS	SEPARATE, 3 ELEMENTS	2 BANKS, COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
JESD-609 code	e3	e3	e3
Humidity sensitivity level	1	1	1
Number of components	4	3	4
Number of terminals	6	6	6
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Maximum output current	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260
Maximum power dissipation	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	30 V	30 V
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN	MATTE TIN	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40
Base Number Matches	1	1	1
Is it lead-free?	Lead free	Lead free	-

Recommended Resources

Several basic bias circuits for field effect transistors - voltage divider self-bias circuit

Full-featured subwoofer power amplifier 01

Motorcycle anti-theft electronic code lock circuit

MC33466 series flyback converter circuit diagram

Countermeasures against external interference in general frequency converters (2)

Simple high-precision temperature controller
