54F245SDMQB

Description
Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, SLIM, CERAMIC, DIP-20
Categorylogic    logic
File Size44KB,2 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/

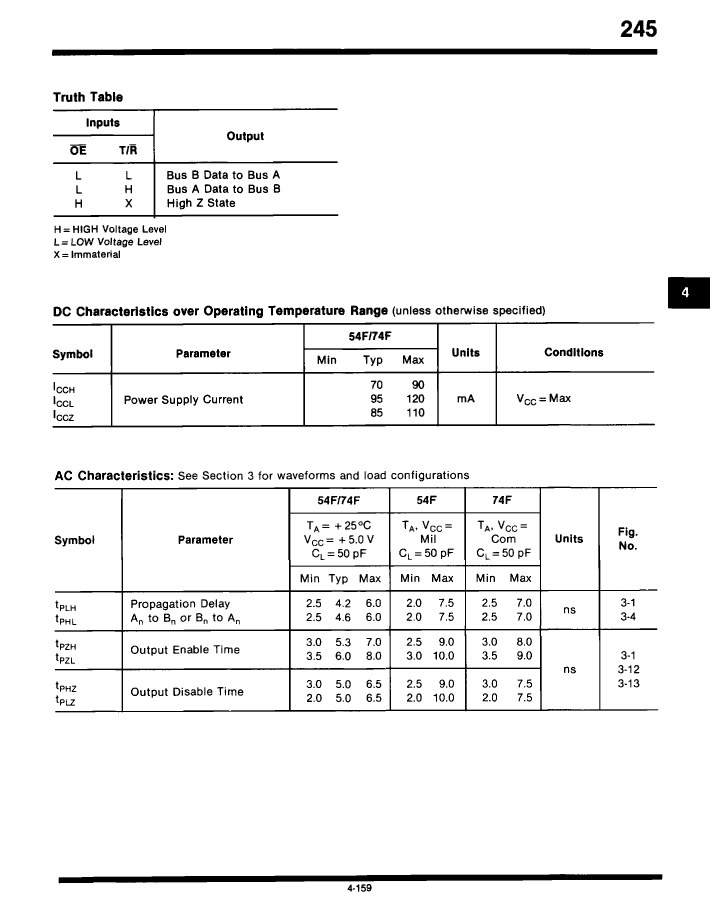

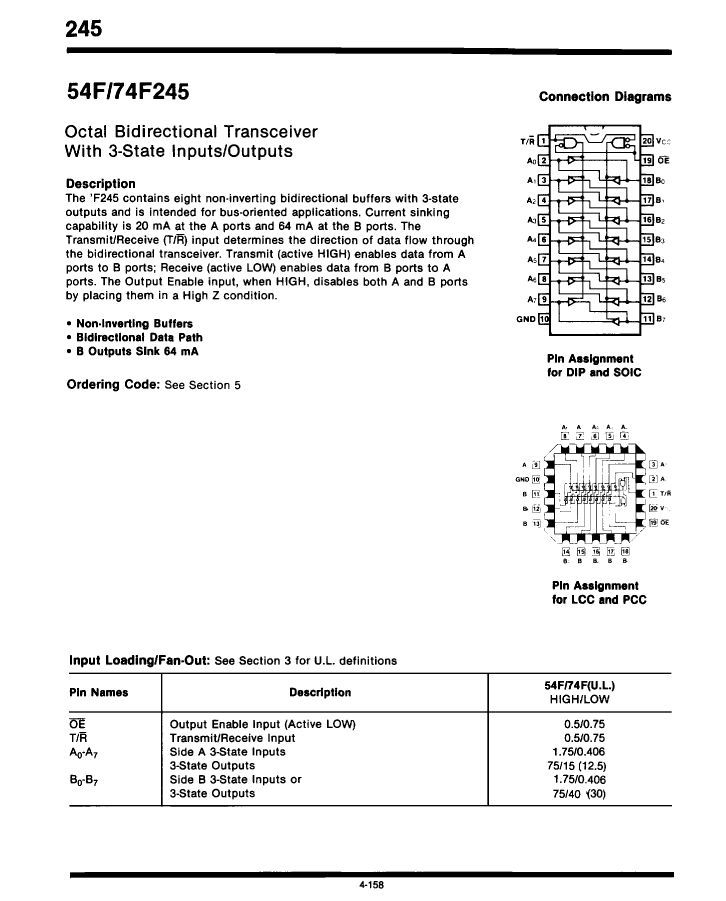

Download Datasheet Parametric View All

54F245SDMQB Overview

Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, SLIM, CERAMIC, DIP-20

54F245SDMQB Parametric

Parameter NameAttribute value
Parts packaging codeDIP
package instructionDIP,
Contacts20
Reach Compliance Codeunknown
Other featuresWITH DIRECTION CONTROL
seriesF/FAST
JESD-30 codeR-CDIP-T20
Logic integrated circuit typeBUS TRANSCEIVER
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)7.5 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Base Number Matches1
